Massey Ferguson MF 363 S TRACTOR Parts Catalogue Manual Instant Download

1
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
00

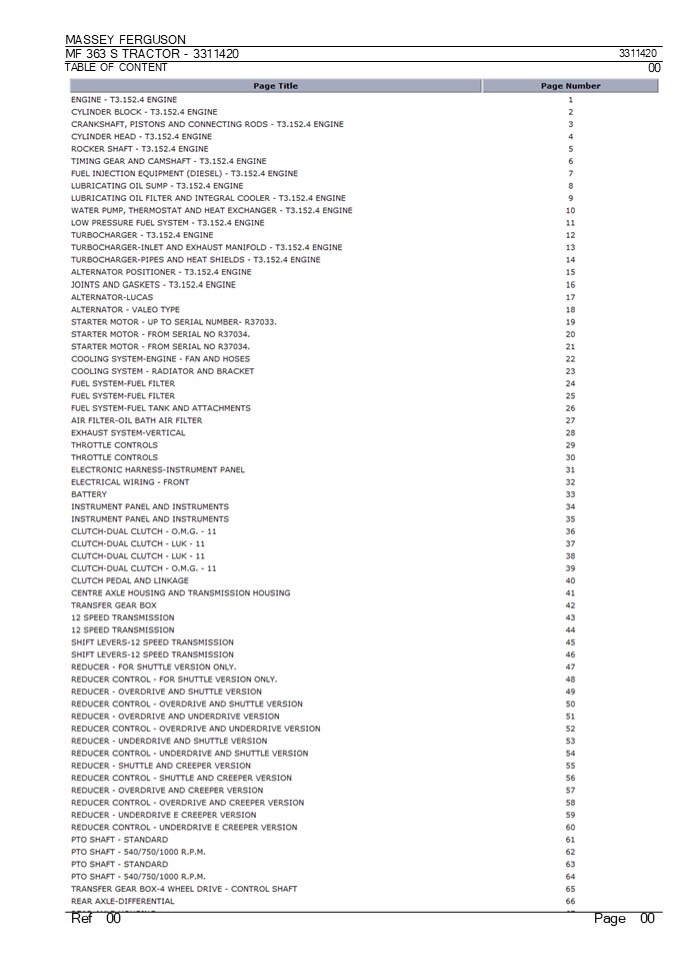

TABLE OF CONTENT
Ref 00
Page 00
2
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
00
TABLE OF CONTENT
Ref 00
Page 00
3
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
00
TABLE OF CONTENT
Ref 00
Page 00
4
https//www.ebooklibonline.com Hello dear
friend! Thank you very much for reading. Enter
the link into your browser. The full manual is
available for immediate download. https//www.ebo
oklibonline.com
5
MF 363 S TRACTOR - 3311420
1
Ref 1
Page 1
6
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
1
ENGINE - T3.152.4 ENGINE Item Part Number Qty
Description Comments T3.152.4 ENGINE 1 CN31198
X Parts Book
Ref 1
Page 1
7
MF 363 S TRACTOR - 3311420
74 72
4
73
68 70 69
85
7571
87
66
81
83
80 84 40
90
63 60 62 61 65
44
86
82
17
64
16
6
43
2
9
30 32 31
15
7
42
5
34
8
67
33
45
24
41
35
14 12
36
18
46
25
52 23 51 50
3
13
10
53
11
54
Ref 2
Page 2
8
MASSEY FERGUSON MASSEY FERGUSON MASSEY FERGUSON MASSEY FERGUSON
MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 3311420
CYLINDER BLOCK - T3.152.4 ENGINE CYLINDER BLOCK - T3.152.4 ENGINE CYLINDER BLOCK - T3.152.4 ENGINE CYLINDER BLOCK - T3.152.4 ENGINE 2
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 2 ZZ 50172 1 1 Kit,Cyl.Block Cylinder Block Repairs and replaces ZZ50173 Repairs and replaces ZZ50133 (1)
3 4 Bearing Cap Not serviced, order REF.1 (1)
4 31358356 3 Liner Not serviced, order REF.1 (1)
4 31358358 X Liner (A,B) (1)
4 31358323 3 Liner (B) Thickness 0.030".76MM O/S (1)
4 31358345 X Liner (C,D) (C,E)
5 0650710 1 Plug (1)
6 0650566 1 Plug (1)
7 0650710 4 Plug (1)
8 32417115 2 Plug (1)
9 33141124 1 Plug (1)
10 33137408 6 Thimble (1)
11 32181441 6 Screw (1)
12 33137408 2 Thimble (1)
13 32181442 2 Screw (1)
14 2415608 2 O Ring (1)
15 2485A204 1 Plug (1)
16 33157142 2 Plug (1)
17 33157143 2 Plug (1)
18 0650566 1 Plug (1)
23 32114472 2 Plug
24 0650594 1 Plug
25 32161114 1 Plug
30 4142V002 1 Housing
31 32 2418F475 1 1 Housing Seal (30) Not serviced, order REF.30 (30)
33 33826111 1 Joint
34 0350015 2 Dowel
35 0746255 9 Setscrew
36 0920003 9 Washer
40 37147975 1 Plate
41 0610045 1 Pin
42 37813113 1 Plug
43 0350016 2 Dowel
44 0720798 2 Screw
45 0746454 6 Setscrew
46 0920054 6 Washer
50 3765T011 1 Connection
51 0490486 1 Joint
52 2217072 2 Stud
53 0576002 2 Nut
54 0920053 2 Washer
60 35352404 1 Pipe,Oil
61 62 0576111 1 1 Pipe Nut (60) Not serviced, order REF.60 (60)
63 0566002 1 Olive (60)
64 0576111 1 Nut (60)
65 0566002 1 Olive (60)
66 0201047 1 Connection
67 0201047 1 Connection
68 35568109 1 Pipe,Oil
69 70 0576111 1 1 Pipe Nut (68) Not serviced, order REF.68 (68)
71 0566002 1 Olive (68)
72 0095350 1 Bolt
73 0920126 1 Washer
Ref 2
Page 2
9
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
2
CYLINDER BLOCK - T3.152.4 ENGINE
Item Part Number Qty Description Comments
74 0920126 1 Washer
75 0201047 1 Connection
80 37416753 1 Plate
81 36862511 1 Joint
82 0826201 3 Stud
83 0576002 3 Nut
84 0920053 3 Washer
90 3681E015 1 Gasket Repairs and replaces 3681E006
(A) PRESS FIT PARALLEL LINER.
(B) USED ONLY WITH ZZ50133
(C) USED ONLY WITH ZZ50173
(D) PRESS FIT
(E) SLIP FIT
Ref 2
Page 2
10
MF 363 S TRACTOR - 3311420
11
18
10 8
7
14 16 15
17
13
9
27
29
19
12
22
21
28
20
35
26
30
32
25
23
6
24
4
2
31
5
3
1
Ref 3
Page 3
11
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
3
CRANKSHAFT, PISTONS AND CONNECTING RODS -
T3.152.4 ENGINE
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 ZZ 90106 1 Kit, Crankshaft Repairs and replaces U5BG0043
2 3 U5MB0008 1 X Crankshaft Kit, Bearing (1) Not serviced, order REF.1 (A)
3 U5MB0008A U5MB0008B X X Kit, Bearing Kit, Bearing (A) Thickness (-)0.25MM Thickness (-)0.010" (A)
3 U5MB0008C X Kit, Bearing Thickness (-)0.50MM Thickness (-)0.020" (A)
4 31137211 2 Thrust Washer Thickness (-)0.75MM Thickness (-)0.030" (1)
5 31137212 31137221 X 2 Washer Thrust Washer Thickness ()0.19MM Thickness ()0.0075" (1)
6 31137222 U5ME0005 X 1 Washer Kit, Bearing Thickness ()0.19MM Thickness ()0.0075" (1)
6 U5ME0005A X Kit, Bearing (A) (A)
6 U5ME0005B X Kit, Bearing Thickness (-)0.25MM Thickness (-)0.010" (A)
6 U5ME0005C X Kit, Bearing Thickness (-)0.50MM Thickness (-)0.020" (A)
7 ZZ 90010 1 Kit, Conrod Thickness (-)0.75MM Thickness (-)0.030"
8 9 1 1 Conrod Cap (7) Not serviced, order REF.7 (7)
10 31134151 1 Bush Not serviced, order REF.7 (7)
11 0095250 2 Bolt (7)
12 33221327 2 Nut (7)
13 U5LP0029 3 Kit, Piston (B)
U5LU0023 3 Kit, Piston (C)
14 15 1 1 Piston Pin (13) Not serviced, order REF.13 (13)
16 2721A022 1 Circlip Not serviced, order REF.13 (13)
17 2721A022 1 Circlip (13)
18 4181A017 3 Kit, Piston Ring
19 31147788 1 Pulley,Crank
20 32162312 1 Screw
21 33125112 1 Washer
22 33176137 1 Washer
23 0410132 1 Gear,Crankshaft Number of teeth/spines 25
24 36271704 1 Woodruff Key
25 0330811 1 Spacer
26 31328242 2 Weight (D)
27 2185189 2 Screw
28 31731515 2 Washer Right Hand
29 2185189 2 Screw
30 31731516 2 Washer Left Hand
31 0410236 1 Starter Ring Number of teeth/spines 115
32 33117127 6 Washer Repairs and replaces 33117121
(A) PRE-FINISHED
(B) UNTOPPED
Ref 3
Page 3
12
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
3
CRANKSHAFT, PISTONS AND CONNECTING RODS -
T3.152.4 ENGINE
Item Part Number Qty Description
Comments (C) PRE-TOPPED
(D) REPLACES 31328241 IN ENGINE SETS ONLY(QTY 2).
Ref 3
Page 3
13
MF 363 S TRACTOR - 3311420
47
49
10
25
17
22
9
48
46
16
8
15
51
50
26
7
14
29
23 27
55
30
3 2
24
53
28
56
6
34
13
54
33
35 37 52 36
1
43 4445 40
4 12
41
32
39
42
31
38
11
5
19 18
21 20
Ref 4
Page 4
14
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
4
CYLINDER HEAD - T3.152.4 ENGINE
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 ZZ 80113 1 Kit, Cyl. Head
2 3 2431154 1 2 Cylinder Head Plug (1) Not serviced, order REF.1 (1)
4 3314A005 3 Insert (1)
5 3142A081 3 Valve Exhaust (1)
6 3313E011 3 Guide (1)
7 33415133 3 Washer (1)
8 0780006 3 Spring (1)
9 33423148 3 Cap (1)
10 0230001 6 Cotter (1)
11 31431121 3 Valve Inlet (A) (1)
12 2415258 3 Seal (1)
13 3313E011 3 Guide (1)
14 33177518 3 Washer (1)
15 0780006 3 Spring (1)
16 33423148 3 Cap (1)
17 18 0230001 3624V004 6 1 Cotter Plate (1) (A)
19 2 Stud See Page - Reference Number 13/10
20 2 Nut See Page - Reference Number 13/11
21 2 Washer (B)
22 3645T003 1 Plate
23 3611E003 1 Spacer
24 2216165 2 Stud
25 0576051 2 Nut
26 0920054 2 Washer
27 3612M002 1 Plate
28 0490485 1 Joint
29 0746254 6 Setscrew
30 0920053 6 Washer
31 3771K072 1 Therm. Housing Repairs and replaces 3771K071
32 3685A004 1 Joint
33 2431A054 1 Plug
34 0650203 1 Plug
35 2411157 1 Washer
36 0096213 2 Bolt
37 0920053 2 Washer
38 0096442 1 Bolt
39 0920054 1 Washer
40 2215179 1 Stud
41 0576051 1 Nut
42 0920054 1 Washer
43 2217072 1 Stud
44 0576002 1 Nut
45 0920053 1 Washer
46 32524132 1 Stud
47 33221329 1 Nut
48 32524148 3 Stud
49 33221329 3 Nut
50 32181457 5 Screw
51 32181458 9 Screw
52 2485613 1 Thermostat
53 3764A041 1 Connection
54 0490184 1 Joint
55 0096433 2 Bolt
56 0920054 2 Washer
(A) SERVICED IN PAIRS
(B) NOT REQUIRED FOR THIS APPLICATION
Ref 4
Page 4
15
MF 363 S TRACTOR - 3311420
47
45
39 40
38
42 43 44
36
37
46
58
33 34
5150 52
41
24 25
23
53
21
22
19
54 55 30 31
18
16
14 12 11
15
20
9
10
3
17
7
8
6
13
32
35
4
5
27 28
2
1
26
29
Ref 5
Page 5
16
MASSEY FERGUSON MASSEY FERGUSON MASSEY FERGUSON MASSEY FERGUSON
MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 3311420
ROCKER SHAFT - T3.152.4 ENGINE ROCKER SHAFT - T3.152.4 ENGINE ROCKER SHAFT - T3.152.4 ENGINE ROCKER SHAFT - T3.152.4 ENGINE 5
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 4115R805 1 Rocker Shaft Ass Repairs and replaces 4115R803
2 ZZ 90047 1 Rocker Shaft Repairs and replaces 41151306 (1)
3 1 Shaft Repairs and replaces U7LR0002 (2)
4 0650507 2 Plug Not serviced, order REF.2 (2)
5 0170033 1 Circlip (1)
6 0101138 1 Bracket (1)
7 8 3737A091 0780005 1 1 Lever Spring (1) Right Hand Repairs and replaces 3737A081 Repairs and replaces 3737A041 (1)
9 10 3737A091 0330505 1 1 Lever Spacer (1) Right Hand Repairs and replaces 3737A081 Repairs and replaces 3737A041 (1)
11 37521212 1 Bracket (1)
12 2112A066 1 Pin (1)
13 0330505 1 Spacer (1)
14 15 3737A101 0780175 1 1 Lever Spring (1) Left Hand Repairs and replaces 3737A071 Repairs and replaces 3737A031 (1)
16 35568352 1 Pipe,Oil (1)
17 18 3737A091 0330505 1 1 Lever Spacer (1) Right Hand Repairs and replaces 3737A081 Repairs and replaces 3737A041 (1)
19 0101138 1 Bracket (1)
20 0330505 1 Spacer (1)
21 22 3737A101 0780005 1 1 Lever Spring (1) Left Hand Repairs and replaces 3737A071 Repairs and replaces 3737A031 (1)
23 24 3737A101 0101138 1 1 Lever Bracket (1) Left Hand Repairs and replaces 3737A071 Repairs and replaces 3737A031 (1)
25 0170033 1 Circlip (1)
26 0860012 6 Tappet
27 32151116 6 Screw Repairs and replaces 0720677
28 0576052 6 Nut
29 2214209 2 Stud
30 2211283 2 Nut
31 0920004 2 Washer
32 32754435 2 Stud
33 2211283 2 Nut
34 0920004 2 Washer
35 0206002 1 Union
36 37188197 1 Cyl.Head Cover
37 38 2487854 1 1 Cover Cap (36) Not serviced, order REF.36 (36)
39 40 24870001 1 1 Cap Joint (38) Not serviced, order REF.38 (38)
41 36811115 1 Joint
42 0576102 2 Nut
43 3314P004 2 Washer
44 3381A003 2 Washer
45 33872516 1 Pipe,Breather
Ref 5
Page 5
17
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
5
ROCKER SHAFT - T3.152.4 ENGINE
Item Part Number Qty Description Comments
46 31754118 1 Spring
47 21825195 1 Clip Repairs and replaces 0180063
48 36561129 1 Clip
49 0748354 1 Screw
50 0920002 1 Washer
51 0920052 1 Washer
52 36561129 1 Clip
53 2217570 1 Stud
54 0576002 1 Nut
55 0920053 1 Washer
Ref 5
Page 5
18
MF 363 S TRACTOR - 3311420
23
1
21
2
24 25 22
30
28
7
10
31
9
29
3 4
8
26 27
15
17
16
11 12
54
14 13
53
47
46
48
18
6
45
44
5
20
41 40
38
39
19
42
56
57 55 58 49
43
50
52
51
Ref 6
Page 6
19
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
6
TIMING GEAR AND CAMSHAFT - T3.152.4 ENGINE
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 37161482 1 Timing Case
2 36814119 1 Joint
3 0746355 12 Screw
4 0920053 12 Washer
5 0096234 2 Bolt
6 0920053 2 Washer
7 31415264 1 Camshaft
8 31164131 1 Gear,Camshaft Number of teeth/spines 50
9 0746214 3 Screw
10 0920053 3 Washer
11 0995447 1 Hub
12 0350005 1 Dowel
13 31164362 1 Gear,Idler Number of teeth/spines 90
14 1 Bush (A)
15 0940738 1 Plate
16 0095199 1 Screw
17 0920883 1 Washer
18 37354312 1 Timinggear Cover
19 0096232 2 Bolt
20 0920053 2 Washer
21 37461104 1 Plate
22 36835413 1 Joint
23 0748510 2 Bolt
24 2238153 2 Nut
25 0920054 2 Washer
26 36172128 1 Plate
27 36837413 1 Joint
28 2183204 1 Screw
29 0920053 1 Washer
30 2183204 1 Screw
31 0920053 1 Washer
38 ZZ 90039 1 Kit, Front Cover Repairs and replaces A5FH0245
39 40 3661P002 1 1 Cover Spring (38) Not serviced, order REF.38 (38)
41 2126151 1 Rivet (38)
42 36813136 1 Joint
43 2415344 1 Seal
44 0748414 2 Setscrew
45 0920053 2 Washer
46 0096213 1 Bolt
47 0576002 2 Nut
48 0920053 2 Washer
49 0748353 8 Screw
50 0920052 8 Washer
51 2233207 3 Screw
52 0920053 3 Washer
53 0096240 1 Bolt
54 0920053 1 Washer
55 3623H005 1 Plate
56 36862512 1 Joint
57 2227117 5 Screw
58 1 Screw See Page - Reference Number 14/17
(A) NOT FITTED ON THIS APPLICATION
Ref 6
Page 6
20
MF 363 S TRACTOR - 3311420
27 26
19
23
25
22
20
18
24
16
21
17 15
31 32
36 34
33
3
35
29
4
28
30
1
5
2
7
6
12
11 9 10
38 40
39
37
41
13
8
14
Ref 7
Page 7
21
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
7
FUEL INJECTION EQUIPMENT (DIESEL) - T3.152.4
ENGINE
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 2643B132 1 Injection Pump
2 1 Solenoid (A)
3 2644951 1 Sleeve
4 31718104 1 Seal
5 31718105 1 Wire
6 26430809 1 Woodruff Key
7 33828108 1 Joint
8 2217575 3 Stud
9 0576002 3 Nut
10 0920003 3 Washer
11 0920053 3 Washer
12 3116K072 1 Gear,Fuel Pump Number of teeth/spines 50
13 26431262 1 Nut
14 26430506 1 Washer
15 3521E004 1 Injection Pipe NO.1 CYL.
16 3521E005 1 Injection Pipe NO.2 CYL.
17 3521E006 1 Injection Pipe NO.3 CYL.
18 3558X007 1 Leak-Off Pipe
19 0095315 2 Banjo Bolt
20 0921176 2 Washer
21 0921176 2 Washer
22 0201526 1 Union
23 0921176 1 Washer
24 0921176 1 Washer
25 0206102 1 Union
26 33225412 1 Union Nut
27 33811112 1 Olive
28 2645A013 3 Atomiser
29 2645A301 1 Holder (28)
30 2645K603 1 Nozzle (28)
31 33813126 3 Spacer
32 33813127 3 Seal
33 0921173 3 Washer
34 35 3662K002 2216108 3 6 Clamp Stud Repairs and replaces 3666V002 Repairs and replaces 3666V003
36 0576002 6 Nut
37 38631117 1 Plate
38 36511127 1 Plate
39 36845115 1 Clip
40 36845115 1 Clip
41 2211401 2 Nut
(A) NOT FITTED ON THIS APPLICATION
Ref 7
Page 7
22
MF 363 S TRACTOR - 3311420
50
57 56
48
43
58
59
49
55
54
44
53
52
42
51
20
45
38
19
22
24 23
39 35
46
47
21
36 37
25 2728
4
41
5
26
29
30
40
12
6
8
9
1
33
32
34
7
31
18
14 13
17
16
60
6261
11
15
64 63
3 2
10
Ref 8
Page 8
23
MASSEY FERGUSON
MF 363 S TRACTOR - 3311420
3311420
8
LUBRICATING OIL SUMP - T3.152.4 ENGINE
Item Part Number Qty Description Comments T3.152.4 ENGINE
1 37172483 1 Sump
2 2487004 1 Plug
3 2411287 1 Washer
4 41424209 1 Joint
5 6 1 1 Joint Joint (4) Not serviced, order REF.4 (4)
7 3688V003 1 Joint Not serviced, order REF.4
8 3688V002 1 Joint
9 0826265 2 Stud
10 0576002 2 Nut
11 0920053 2 Washer
12 0826285 1 Stud
13 0576002 1 Nut
14 0920053 1 Washer
15 0746211 11 Bolt
16 0920053 11 Washer
17 0096245 2 Bolt
18 0920053 2 Washer
19 35137611 1 Pipe,Oil
20 38121531 1 Bracket
21 0746052 1 Bolt
22 0920002 1 Washer
23 0920052 1 Washer
24 33817308 1 Bush
25 36631118 1 Clip
26 0746053 1 Bolt
27 0920002 1 Washer
28 0920052 1 Washer
29 33532121 1 Union
30 0560244 1 Olive
31 33242407 1 Tube
32 31786412 1 Dipstick
33 34 33812108 1 1 Dipstick Washer (32) Not serviced, order REF.32 (32)
35 38156311 1 Bracket
36 36113131 1 Spacer
37 0826833 2 Stud
38 0576005 2 Nut
39 0920056 2 Washer
40 0097109 1 Bolt
41 0920058 1 Washer
42 41314187 1 Oil Pump Repairs and replaces 41314178
43 44 1 1 Body Gear (42) Not serviced, order REF.42 (42)
45 32712715 1 Plunger Not serviced, order REF.42 (42)
46 31742128 1 Spring (42)
47 33157122 1 Cap (42)
48 0610012 1 Pin (42)
49 0746355 3 Screw
50 0920053 3 Washer
51 41115086 1 Gear,Idler Number of teeth/spines 21
52 53 0050265 1 1 Gear Bush (51) Not serviced, order REF.51 (51)
54 0180831 1 Clip
55 34711129 1 Pipe,Oil
56 33532121 1 Union
57 0560244 1 Olive
58 33532121 1 Union
59 0560244 1 Olive
60 33266125 1 Spacer
61 0760050 1 Shim
62 33121417 2 Shim
Ref 8
Page 8
24
MASSEY FERGUSON MASSEY FERGUSON MASSEY FERGUSON
MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 MF 363 S TRACTOR - 3311420 3311420
LUBRICATING OIL SUMP - T3.152.4 ENGINE Item Part Number Qty Description Comments LUBRICATING OIL SUMP - T3.152.4 ENGINE Item Part Number Qty Description Comments LUBRICATING OIL SUMP - T3.152.4 ENGINE Item Part Number Qty Description Comments 8
63 33121416 3 Shim Shim
64 33121415 4 Shim Shim
Ref 8
Page 8
25
Suggest If the above button click is invalid.
Please download this document first, and then
click the above link to download the complete
manual. Thank you so much for reading
26
MF 363 S TRACTOR - 3311420
4
6
5
2 3
1
7
Ref 9
Page 9
27
https//www.ebooklibonline.com Hello dear
friend! Thank you very much for reading. Enter
the link into your browser. The full manual is
available for immediate download. https//www.ebo
oklibonline.com
