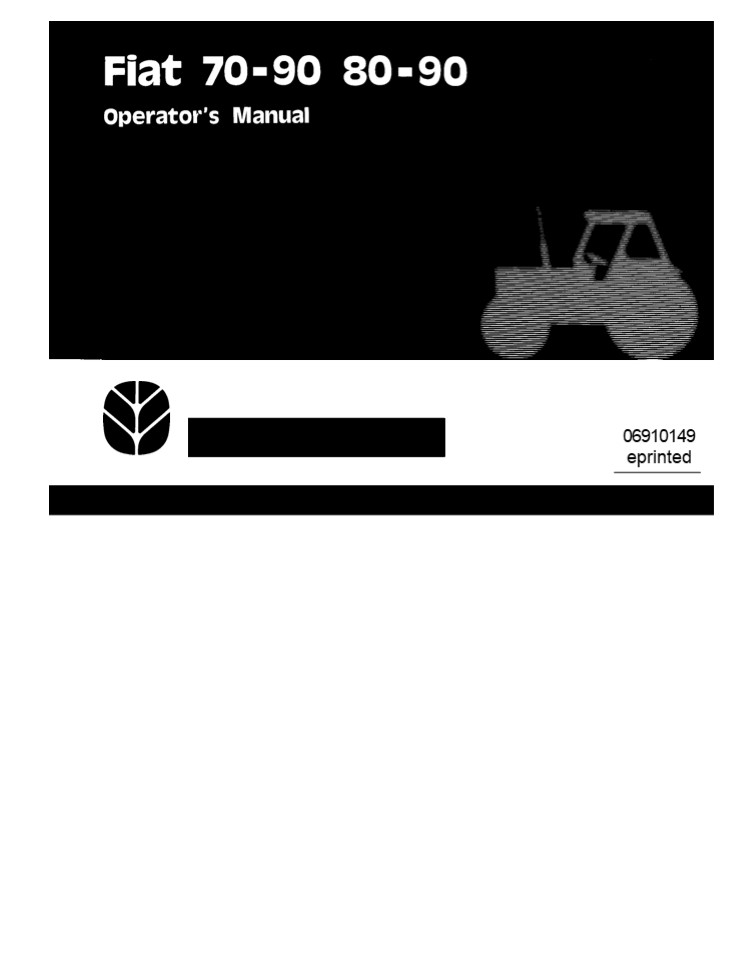

New Holland Fiat 70-90 80-90 Tractors Operator’s Manual Instant Download (Publication No.06910149)

1
06910149 eprinted
2
Fiatagri. The specialist Agriculture Division of
FiatGeotech.
Fiatagri is now the specialist agricultural
machinery division of FiatGeotech, the new Fiat
group company formed on January 1st 1988 to head
the earth technology sector and unify,
rationalize and expand the group's activities in
agricultural and earth-moving equipment,
previously developed separately by Fiatagri and
Fiatallis. The Fiatagri Division name represents
the combination of all the prestige of the
trademarks borne by the products which
represent it out in the field Fiat and Agrifull
tractors, Laverda combiné harvesters, Hesston hay
and forage machinery, and Braud multi-purpose
trailed and self-propelled grape-harvesters. S0
Fiatagri, with Europe's most complete advanced
full-line, is a real specialist, responsible for
the design, production and marketing of its
product lines. It draws on the common structures
made available by FiatGeotech, which provide the
resources and economies of
scale for further product developments. Experience
, tradition and constant innovation have made
Fiatagri products undisputed leaders at a
worldwide level and above all in Europe, with
rankings and market shares which best demonstrate
their continuing standing with farmers everywhere.
FI/fiTGE_at_TECH EARTH TECHNOLOGY
3
FIAT
7ö-9õ
8õ-9õ
OPERA TION - MA IN TEN A NCE - S P E CIFI CA TIONS
4
https//www.ebooklibonline.com Hello dear
friend! Thank you very much for reading. Enter
the link into your browser. The full manual is
available for immediate download. https//www.ebo
oklibonline.com
5
QUICK REFERENCE INDEX
Page 4 6 7 8 15 20 31 55 60 63 69 75 77 80 85 91 9
9
Service .... . . .. .. ...... . ... . ......
.. ... .. .. ..
Tractor Storage ..................................
........................................... Tracto
r Identification Data ............................
........................................ Safety
Precautions ......................................
......................................... Control
and Instruments ................ .. . .. . . . ..
.. . . .. .. . . . . . Operation
..................................................
........................................... Guide
to Lih Operation ............. ...................
........................................ Servicing
Schedule ........................................
....................................... Electrical
System ..........................................
........................................ Specifica
tions ...... . ...................................
........................................... 70-90
DT and 80-90 DT Tractors ......................
................................. Splitter-Reverse
d Version ........................................
........ . ... .. . . No-Spin V'esion
..................................................
................................ 40 kph V'ersion
..................................................
.......... . ... .. . . ... .. . Heated and
Ventilated Comfort Cab V'esion ...................
................. Heated and Ventilated
Supercomfort Cab Version ............... ... ....
Air Conditioned Supercomfort Cab Version
......................................
Contents .........................................
..................................................
...... 107 Servicing Chart .......................
..................................................
.... attached Wiring Diagram ....................
..................................................
....... attached
2
6
Spares and after-sales service always close
at hand
handling and retrieval systems holds a total of
40 million spare parts of more than 100,000
different kinds. The Center can handle up to 4000
orders per day. Added to Fiatagri's efficient
When you by a Fiatagri agricultural machine, you
also get something that does not catch the eye,
but may well prove its worth in the future,
namely, the company's large and efficient
after-sales and spares organization. At the San
Matteo (Modena) spares center, a highly modern
installation with 32,000 square meters under roof
and equipped with electronic
organization and fast service is the superior
quality of its original spare parts - the quality
that ensures that a Fiatagri agricultural machine
never loses its value as time goes by.
13352
7
Service
15702
Service
Turn to these shops in full confidence. You will
benefit from the assistance and know-how of
skilled service- men. FIATAGRI's experience is at
your service to help you solve any problem
related to tractor operation and use.
An extended network of FIATAGRI Authorized Shops,
equipped with all necessary means to perform any
repair and overhaul work, is at your disposal.
4
8
Maintenance The 70-90 and 80-90 tractors were
designed with the owner in mind and an effort has
been made to simplify maintenance. The purpose of
this handbook is to familiarise the ope- rator
with the operation and regular servicing of the
tractor. Remember that the time spent on
maintenance ex- tends the life of your
tractor. Pay particular attention to the
instructions covering fuel filtering, air cleaner
maintenance and lubrication remember that badly
filtered fuel results in injection sy- stem
deterioration and irregualr air cleaner
maintenan- ce leads to premature engine wear, and
reckon that a tractor oil change every 200 hours
is equivalent to a truck oil change every 8,000
to 9,000 km.
Spare Parts

• Use genuine FIATAGRI parts only. Failure to do
  this will
• Cost you more.
• Not result in complete satisfaction.
• Seriously risk improper functioning of the
  tractor. Original spares are sold by the FIATAGRI
  Sales and Serv- ice Organziation.
• In all orders be sure to quote (see page 7)
• Tractor Model and Frame Number.
• Engine Type and Number.
• The Part No. of the spare needed (listed in the
  Spare Parts Catalogue).

9
7racror Srorage

• If the tractor is to be stored for an extended
  period carry out opera- tions described below.
  See also dis- tributor-type injection pump
  instruc- tions on page 52.
• Protect the engine as follows
• For periods of storage of up to one month no
  precautions are needed provided not more than
  100 hours have elapsed since the last engine oil
  change, otherwise see be- low.
• For storage periods in excess of one month, drain
  engine oil with a warm engine, fill the sump with
  oliof- iat AMBRA SUPER oil and run the engine at
  part throttle for a few mi- nutes.
• Remove air cleaner outer car- tridge and clean
  as directed in Servi- cing Chart.
• Do not drain the engine cooling system. In the
  cold season ensure that the strength of the FIAT
  PAR- AFLU 11 anti-freeze mixture is cor- rect.
  To this end adhere to the in- structions given on
  page 55.

Thoroughly clean the tractor and store in a
dust-free and dry shed or garage. Thoroughly
clean the tractor coat paintwork with silicone
wax and unpainted metal parts using ap- proved
protectants. Store equip- ment under cover, in
dry and venti- lated premises. Ensure that all
controls are off (including electrical switches
and parking brake). Remove starter switch
key. Ensure that piston rods (power steering,
lift, etc.) are fully retracted. For tractor with
cab see operators manual pages 76 and 77. Fill
the fuel tank to maximum le- vel. Remove battery,
clean battery top and coat terminal clamps and
posts with ropy petroleum jelly. Store
battery in ventilated premises away from
sunlight, where tempera- ture does not fall below
100C.
Sealed battery Check state of charge by
connecting a voltmeter battery terminals as
described on page 60.
Prop axles to take the tractor weight off the
wheels and deflate the tires. Ofhewise, raise
tractor and check tire pressure regularly.
Cover equipment with non-plas- tic,
non-waterproof terpaulin.
WARNING When starting engine after a period of
storage, pay particular attention to the
instructions given on page 20.
6
10
Identification
Tractor Data Plate.
Frame Type and Number.
Engine Type and Number.
11
Safety Precautions
Tractor should be operated only by responsible
persons suitably trained and duly authorized.
THIS SYMBOL IS YOUR SAFETY ALERT SIGN It means
Keep a first aid kit handy.
ATTENTION - DANGER YOUR SAFETY IS INVOLVED
Read and heed all safety instructions carrying
the signal words WARNING, CAU- TION and DANGER.
Do not work with loose garments that could get
caught in moving parts. Check that all rotating
parts connected to the PTO shaft are well
shielded.
GENERAL Read this manual thoroughly be-
fore attempting to start, operate,
service or refuel the tractor. A few minutes
reading will save time and trouble later.

• You tractor was designed with

safety very much in mind. However,
there is no real substitute for cau- tion and
attention in preventing acci- dents. Once an
accident has hap- pened it is too late to think
about what you should have done.

• Remember that your tractor has

been designed exclusively for agri-
B Read and heed all machine- mounted safety
decals before refuel- ing or servicing the
machine and re- place any missing decals.
cultural use. Any other application must first be
authorized by the man- ufacturer.
12
Do not attempt to increase max. engine rpm by
altering injection pump governor setting.
TRACTOR STARTING
m Prior to starting the engine check that
parking brake is on and gear and PTO levers are
in neutral, even if your tractor is fitted with a
start inhibiting device. Never by- pass start
inhibitor switch. Consult trained servicing
personnel if start inhibitor is not operating
correctly.
Do not alter relief valve setting of hydraulic
systems (power steering, hydraulic lift, remote
control valves, etc.).
y Do bot run engine in closed
Do not operate tractor if you feel unwell. Stop
working rather than risk an accident.
premises without adequate ventilation
m Make sure that all implements are fully lowered
before starting.
as exhaust fumes are deadly.
m Ensure that there are no persons or obstacles
within range before starting the tractor.
a Ensure that all guards and pro- tective
devices are correctly in- stalled before
starting the tractor (ROPS frame or cab, hoob
side pan- els, PTO guard, front axle drive shaft
guard etc.).
Always use steps and grab handles when getting on
or off the tractor.
Never work without roll-over protec- tion frame
or cab correctly fitted tq tractor. Check that
fasteners are not loose and that the frame is not
damaged in any way. Do not alter cab by welding
or drilling.
m Do not attempt to start or mano- euvre the
tractor unless sitting in opeator's seat.
13
OPERATION
Always operate the tractor at a safe speed for
the type of ground being worked. Reduce speed on
slopes and curves to prevent roll- over.

• Select the track width most suit- able to the
  work in hand, keeping tractor stability in mind.

When working on sloping ground, do not drive
too fast, parti- cularly when turning.

• Apply clutch gradually abrupt en- gagement,
  particularly uphill or under pull, could cause
  tractor to pitch dan- gerously. Immediately
  disengage clutch if front wheels start to rise.

Use extreme caution when op- erating with the
wheels near the edge of a slope.

• Do not coast downhill in neutral or with clutch
  disengaged.

When the tractor is moving, its operator should
always be sitting in the operator's seat. Do not
get on or off a moving tractor. Always depress
the brake pedal gently. Do not corner at high
speed.
10
14
TOWING
Adjust the towing attachment correctly to
maintain tractor stability. See note on page 45.
Drive slowly when towing heavy trailers or
wheeled implements.
USING AGRICULTURAL IMPLEMENTS AND MACHINERY
Unless your tractor is fitted with a regulation
passenger seat, never carry any riders, even
inslde the cab.
m Always use implements or ma- chinery rated for
use with your trac- tor. Never use machinery
designed for more powerful tractors.
Trailers should not be towed unless equipped
with an independ- ent braking system.
Respect the highway code during on-road transfers.
Always use drawbar when towing heavy loads. Do
not pull from 3-point hitch links as tractor
could pitch.
m Do not negotiate tight bends with the PTO
under heavy load as this could damage the drive
shaft universal joints.
Do not ride the brake and clutch pedals.
Latch brake pedals when roading otherwise
dangerous skidding may occur when braking. Do not
overwork brakes downshift to slow tractor.
When towing, do not negotiate bends with the
differential lock in, otherwise you may not be
able to steer the tractor.
m When coupling, never stand be- tween tractor
and implement while the tractor is being backed
up.
1 I
15

• Return gear lever to neutral, dis- engage PTO,
  apply parking brake, stop the engine and engage a
  gear before leaving the tractor seat. Always
  remove starter switch key before leaving tractor
  unattended.

• Park tractor on level ground if possible, engage
  a gear and apply parking brake.
• On gradients, apply parking brake and first gear
  uphill and reverse gear downhill. For greater
  safety, use the optional chock, especially with a
  trailer on tow.

• Never operate a PTO driven imple- ment without
  first ensuring that no one is on machine or too
  near its work range.
• Check that all rotating parts con- nected to the
  PTO shaft are well
• shielded.

MAINTENANCE
Allow engine to cool down be- fore removing
radiator cap with en- gine shut off, slowly turn
cap to re- lease pressure before removing cap
completely.
Install rear ballasts when using front lifting
equipment.
STOPPING
Never leave equipment in the raised position with
the tractor sta- tionary.
Disconnect the battery ground lead before
starting any work on the electrical system.
12
16
WARNING In some of the photographs in this manual
panels or covers have been removed for
illustrative purposes. Never operate tractor
without these panels or with shields removed.
CAUTION Some of the illustrations in this manu-
al have been taken from photographs of
prototypes. Standard production tractors may
differ in some details.
0
Do not fill tank completely when tractor is to be
operated in strong sunlight, as fuel could expand
and escape. Any escaping fuel should be wiped off
immediately.

• Ensure that hydraulic system is not under
  pressure before discon- necting lines.

Hydraulic oil escaping under pressure could
cause serious per- sonal injury. When tracing oil
leaks wear protec- tive shields, glasses and
gloves.
Before attempting to inspect, clean, adjust,
repair or service the tractor or attached
implement in any way, ensure that the engine
is stopped, transmission in neutral, brakes are
applied, PTO is disen- gaged and all moving parts
are sta- tionary.
Tractor fuel may be dangerous. Never refuel with
tractor in motion, near an open flame with a warm
en- gine or when smoking.
M Always keep a fire extinguisher within reach.
) tt
0
-
. J
Work on tires should be carried out only by
experienced personnel using proper equipment.
Incorrect tire installation could cause a seri-
ous accident. If in doubt, apply to qualified
personnel for help.
1O48j
13
17
(No Transcript)
18
CONTROLS AND INSTRUMENTS
1. Control board (see page 19).
8. Lift-O-Matic (see page 29).
12. Splitter control lever (see page 23).
2. Master clutch lever.
9. Hydraulic lift controls (see page 30).
13. Differential lock pedal.
3. Reach adjustment lever (see page 51).
14a Accelerator pedal.
10. Parking brake lever (release
button)
4. Reverser lever (see page 23).

• Up Applied
• Down Released

15. Gear lever (see page 23).
5. P.T.O. clutch lever (see page 24).
16. Brake pedals.
11.Throttle lever.
6. P.T.O. control knob (see page 24).
17. Steering adjustment knob.
CAUTION Depress release button to release parking
brake lever 10.
7. Four wheel drive control (see page 68).
18. Instrument panel (see page 17).
15
19
Suggest If the above button click is invalid.
Please download this document first, and then
click the above link to download the complete
manual. Thank you so much for reading
20
(No Transcript)
21
https//www.ebooklibonline.com Hello dear
friend! Thank you very much for reading. Enter
the link into your browser. The full manual is
available for immediate download. https//www.ebo
oklibonline.com
