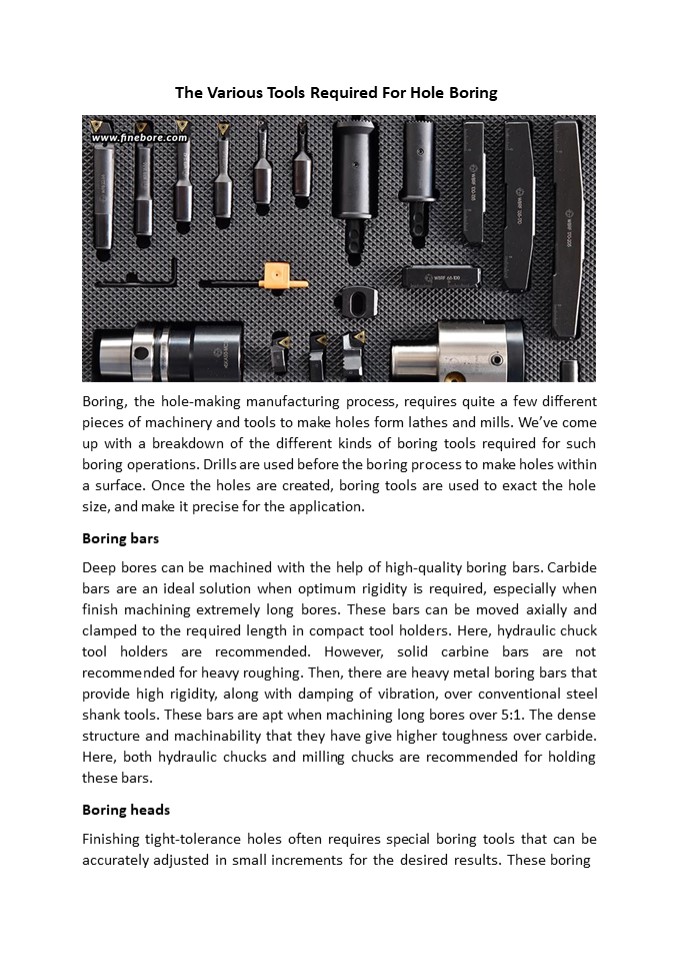

The Various Tools Required For Hole Boring

1
The Various Tools Required For Hole Boring
Boring, the hole-making manufacturing process,
requires quite a few different pieces of
machinery and tools to make holes form lathes and
mills. Weve come up with a breakdown of the
different kinds of boring tools required for such
boring operations. Drills are used before the
boring process to make holes within a surface.
Once the holes are created, boring tools are used
to exact the hole size, and make it precise for
the application. Boring bars Deep bores can be
machined with the help of high-quality boring
bars. Carbide bars are an ideal solution when
optimum rigidity is required, especially when
finish machining extremely long bores. These bars
can be moved axially and clamped to the required
length in compact tool holders. Here, hydraulic
chuck tool holders are recommended. However,
solid carbine bars are not recommended for heavy
roughing. Then, there are heavy metal boring bars
that provide high rigidity, along with damping
of vibration, over conventional steel shank
tools. These bars are apt when machining long
bores over 51. The dense structure and
machinability that they have give higher
toughness over carbide. Here, both hydraulic
chucks and milling chucks are recommended for
holding these bars. Boring heads Finishing
tight-tolerance holes often requires special
boring tools that can be accurately adjusted in
small increments for the desired results. These
boring
2

• heads are often referred to as fine boring heads.
  These boring heads come in several styles, some
  utilizing basic round boring bars, while others
  utilizing special insert holders. Depending upon
  the application and purpose, the boring head can
  be chosen. These boring heads are quite
  expensive, and are typically reserved for boring
  holes with diametric tolerances less than 0.025
  mm.
• Other tools
• Back boring and face grooving heads, and
  chamfering insert holders, are used as secondary
  options, after a hole is bored. Specific heads
  with cutters at appropriate angles can help to
  execute the process without manually moving the
  part, changing the tool, or adjusting the cutter
  angle.
• Strict attention required for every detailing
• Whatever the boring operation and tool,
  machinists are required to pay strict attention
  to every detail, along with the processes and
  tools used. Although there are many factors that
  can determine whether a boring operation is
  successful or not, adhering to the following
  rules will ensure the desired results.
• The workpiece materials need to be kept
  well-supported.
• The unsupported tool length should be kept to the
  minimum,
• The largest diameter tool possible should be
  used.
• Chatter should be overcome by adjusting tool
  pressure.
• Who to approach?
• Whether it is a boring bar, a boring head, or any
  other boring accessory, or even an entire boring
  kit, FineTech Toolings is the one-stop solution
  for all your boring needs. Finish boring tools,
  rough boring tools, special boring tools, deep
  boring tools, and large diameter boring tools
  are only part of our large umbrella of products.
  And, whatever we offer, all our products are
  industry-specific in nature, and are in
  conformance to the international quality
  standards, which is what makes us the most
  genuine boring tools suppliers in Bangalore. Be
  very sure while making your purchase, as
  choosing the right boring tool is very essential.
