Title: H07RN-F cables to a few different products


1

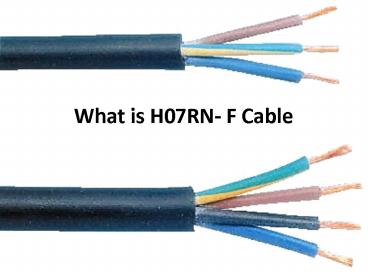

What is H07RN- F Cable
2
  • The H07RN-F cables are harmonized, heavy-duty,
    and flexible chloroprene-sheathed cables ideal
    for use in various electrical operations
    subjected to moderate mechanical stress. Rubber
    cable is used extensively in industrial equipment
    and electrical instruments, including drills and
    circular saws, transportable motors, generators,
    and various other medium-stress mechanical
    machines.
  • H07RN-F The weather-resistant rubber neoprene
    jacket makes this cable ideal for both indoor and
    outdoor use. intended to give excellent
    flexibility and endure chemical, mechanical, and
    thermal loads and has a voltage rating of 450/750V

3
What does H07RN-F stand for?
  • H07RN-F is defined as a harmonized code that
    provides a standardized specification for
    electrical leads following the European Committee
    for Electrotechnical Standardization (CENELEC)
    standard
  • H stands for harmonized standards compliance.
  • 07 denotes a 450/750V voltage rating
  • R denotes EPR insulation
  • N denotes PCP outer sheath
  • F denotes flexible copper conductors
  • 450/750V 1kV nominal voltage for fixed
    installation
  • Bending Radius less than 25mm cable diameter 6 x
    cables with a diameter of more than 25mm.
  • Coldest operating temperature -20
  • Hottest operating temperature 85

4
H07RN-F Cable Specifications
  • Flexible H07RN-F cables are designed for use with
    moving machinery, electric appliances, and
    construction sites.
  • Mains Cable Cores, Rubber Flexible Cable
    Specifications
  • The H07RN-F is offered in a single-core or
    multi-core configuration. For greater current
    ratings, single-core mains cables are typically
    used, as one line will be used for each of the
    three phases, as well as neutral and earth. Some
    manufacturers provide rubber flexible cable
    variations with up to 19 conductive cores, in
    addition to standard multi-core lines with two
    cores, three cores, four cores, or five cores.

5
Colors of Multi-Core H07RN-F Wiring
  • Blue (Neutral) and Brown are the two core colors
    (Live Line 1)
  • Green/Yellow (Earth), Blue, and Brown are the
    three core colors.
  • Green/Yellow, Brown, Black (Live Line 2), and
    Grey are the four core colors (Live Line 3)
  • Green/Yellow, Blue, Brown, Black, and Grey are
    the five core colors.

6
Application
  • HO7RN-F cables are flexible rubber insulated
    neoprene jacketed electrical cables commonly used
    in kitchen and catering equipment, appliances,
    refrigerators, power tools, computers, medical
    devices, heaters, mobile homes, and any other
    heavy mechanical duty electrical or electronic
    equipment intended for use outside the United
    States.
  • It can resist temperatures as low as -25 degrees
    Celsius, making it far safer to use than PVC
    wire. The higher-powered cables might have
    overall diameters of more than 37mm due to their
    heavy-duty nature.
  • Warning The HO7RN-F cables have a maximum
    operating temperature of 60C and should not
    directly contact any high-temperature surface or
    component.

7
What Is The Purpose of The h07 Cable?
  • Heavy-duty trailing rubber flexible cable used to
    power electrical appliances and construction
    sites (H07RN-F). It has a resistant sheath, which
    implies h07 is usable in refrigeration systems.
  • The distinction between h05 and h07 cable
  • H0X specifies the cable's intended application
    (also, in most cases, provides information about
    the jacket materials)
  • - H07 RN F is a flexible rubber jacket cable with
    heavy-duty oil resistance. H07 RN F is the type
    of cable that should be utilized in all types of
    weather for outdoor performances. H07RN-F cables
    are the only cable usable on construction sites,
    traveling funfairs, and other similar situations.
  •  The voltage rating was the key difference
    between HO5 and HO7 (500V vs. 700V). I have some
    1.5mm percent 2 HO5 RNF on hand, but I use it for
    stage power, 13A extension leads, and other such
    things. Otherwise, HO7 RNF is the way to go.
  • If you buy in bulk, the cost difference between
    H05 and H07 is negligible. Therefore there's no
    incentive to get H05.

8
Related Products for H07RN-F
  • We can connect H07RN-F cables to a few different
    products. A brief explanation of each of these
    models is provided below.
  • H05RR-F
  • These cables are used in toasters, irons, vacuum
    cleaners, and other household appliances and
    electrical equipment. H05RR-F cables are capable
    of withstanding light mechanical stress. They are
    most effective when used for conditions that
    produce just minor physical harm. These cables
    also have the advantage of being ozone resistant,
    making them environmentally beneficial. They are
    not, however, suitable for long-term outdoor use.
  • H01N2-D
  • The H01N2-D cable is another rubber wire that is
    extremely flexible and preserves its elasticity
    to the utmost extent possible. This cable is
    specifically designed to transport high currents
    from electric welding machines to the welding
    tool, and it can do so either automatically or
    manually. Spot welding machines also use these
    wires. This cable's strong casing helps it
    withstand severe temperatures. It is also flame
    retardant, making the cable safe.

9
  • H05RN-F
  • H05RN-F is a well-balanced cable that holds up
    nicely to light mechanical stress. The conductor
    of the H05RN-F is multicolored. This conductor is
    encased in black neoprene. When utilized for
    medium-duty projects, the cable performs at its
    best. These wires can be found in many indoor
    environments, including homes, businesses, and
    kitchens. This flexible cable also complies with
    the requirements for flame retardancy and grease
    resistance.
  • H05VV-F
  • Medium-duty electrical components, such as
    computers and office components, heaters, medical
    devices, and so on, use these wires. Electrical
    insulation is present in these cables. They have
    a neatly stranded copper conductor with a voltage
    rating of 300/500 Volts. However, it is critical
    to ensure that this cable does not come into
    touch with extreme temperatures when in use. The
    cable can tolerate temperatures of up to 60
    degrees Celsius.

10
Conclusion
  • H07RN-F cables have multi-cores that can
    withstand 1000V. The rubber jacket is
    weather-resistant, making it suitable for both
    indoor and outdoor use.
  • To find an appropriate rubber cable, you should
    first determine your preferences, which will
    allow you to narrow down your alternatives
    quickly. May this advice assist you in making an
    informed decision while purchasing H07RN-F
    cables.
  • We aim to provide a full cable solution for you
    as a professional manufacturer of flexible rubber
    cables, H07RN-F cable, H05RN-F cable, welding
    cable, electrical power cable, VFD / EMC cable,
    XLPE / PVC cable, solar cable, and marine
    shipboard cable.

11
Kathiyawad Wires Cables 617, Star Plaza, M. G.
Road, Phulchab Chowk, Rajkot, Gujarat 360001,
India
sale_at_k-w-c.co.uk
91 812 812 60007
