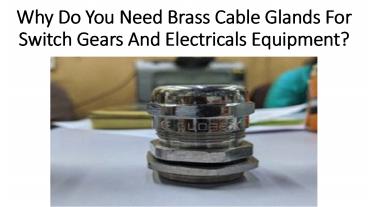

Why Do You Need Brass Cable Glands For Switch
Gears And Electricals Equipment?
2

• A brass cable gland is the 'mechanical cable
  entry device' which connects to the terminal of
  electrical cables and secures them to any piece
  of apparatus. They are also known as cable
  connectors, cable fittings, cord grips, or cable
  strain reliefs.
• Cable glands are vital for ending cables in harsh
  or venturesome areas where protection and ingress
  protection is required. These units are necessary
  for electrical instrumentality and switch gears
  as they offer strain relief and can even attach
  to the aluminum sheath or armor of the cable.
• As mechanical cable entry devices, metallic or
  non-metallic materials make up cable
  glands. Brass cable glands are necessary across
  many industries that use these in conjunction
  with cable and wiring used in electrical
  instrumentation and automation systems. They find
  use on the cable of all on the market sizes and
  sorts. Its primary role is to pass a tube wire or
  cable through an enclosure. However, they also
  find uses in protecting electrical parts from
  flames which may occur in hazardous areas.

3
Purpose of Cable Glands

• As mechanical fittings, they are components of
  the electrical installation. They strengthen the
  attachments of cables with the electrical
  instrumentality to which the cable is connected.
  They protect
• The entrance out of the instrumentality from mud
• From being twisted at the connecting edge to the
  instrument
• Brass cable glands are for all sorts of power,
  control, instrumentation, data, and
  telecommunications cables. As a protection and
  termination device, they ensure that the
  characteristics of the enclosure that the cable
  enters are adequately maintained.

4

• What is the need for Cable Glands?
• For cable management, the cable gland plays
  multiple roles in the protection of the cable's
  attachments.
• What proper protection do they offer?
• Cable glands provide fastening, grounding,
  bonding, insulation, and strain relief.
• They seal cables that face up to bulkheads or
  gland plates. They can forestall external
  contaminants like dirt, dust, or fluid and embed
  an electrical spark or a flame.
•  Stop the cable from becoming forced or twisted
  among the cable gland's remit.
• Working of cable glands
• Brass cable glands primarily work as a protection
  device that protects the enclosures on electrical
  instrumentality. The gland is a seal to the entry
  edge, stopping impurities from outside to cause
  any damage to the electrical system and the
  cable.
• Environmental contaminants like dirt, fluid, or
  water cause damage to the cable joints and may
  cause disconnection from the electrical parts.
  Therefore, cable glands stop cables from being
  stretched and twisted out of the machine.

5
Cable Glands Usage

• ? Earth continuity in an armored cable. If the
  cable organ encompasses a metallic construction
  that needs testing to check its ability to
  sustain any sturdy short-circuits or fault
  currents.
• ? On a cable, it acts as a holding force
  guaranteeing only an adequate resistance level is
  allowed.
• ? Provides environmental protection by securing
  the outer cable sheath by consoling that mud or
  water can reach the enclosed area.
• ? It offers additional levels of protection to
  parts of installations where there is a necessity
  for excellent ingress protection.
•  ? Provides additional environmental protection
  at the cable entry edge that maintains the
  ingress protection rating of the enclosure.
• There are multiple decisions to decide on cable
  glands as they are factory-made and support the
  environments where they reside.

6
Points To Keep In Mind While Choosing Cable Glands

• While choosing cable glands, you should consider
  following factors
• ? Is it on the brink of being used within or
  outdoors?
• ? Is it going to be used in an explosive or
  venturesome atmosphere or a secure industrial
  zone?
• ? Will it be placed in an area where the
  surroundings are soiled or damp?
• ? Is there any presence of corrosive materials or
  gases nearby?
• ? Is it applicable for the dimensions and kind of
  cable used?

7
Types of Cable Glands

• There are various types of cable glands. Few of
  them include
• ?     Single compression - For the within
  buildings and smaller installations.
• ?     Double compression - this is for power
  plants and factories that require durable seals.
  These cable glands have double waterproofing and
  double-compression application at the cable core
  and outer covering or armor.
• ? A flexible hose is for places with higher
  temperatures.
• ?     PVC  For management cables connected to
  instruments.

8

• The single and double-compression cable glands
  have three different varieties to be used as per
  requirement
• Light-duty
• Weatherproof
• Flameproof
• ?     Armoured Cable Glands
• Armored cable glands for armored cables accompany
  by steel-wire armored (SWA) cables. These are the
  standard cable for underground and wall cabling
  installations. The steel mesh protects the cable
  from injury.
• ? Waterproof Cable Glands
• They offer IP68 waterproofing, i.e., they resist
  immersion in water of one meter or a great deal
  of depth, use the International Protection (IP),
  the standard marker for resistance to water,
  dust, and various contaminants.
• ? Metal Cable Glands
• These cable glands are factory-made from
  stainless steel, aluminum which supplies a range
  of benefits
• ? Stainless steel offers wise corrosion and
  pressure resistance.
• ? Aluminum is flexible and rust-resistant and
  collectively conducts heat and electricity.

9

• The brass cable gland is the early sort that
  provides strength and resistance to magnetism and
  deformation at low and high temperatures. It
  collectively provides a wise electrical, natural
  phenomenon. We specialize in brass cable glands
  that are universally in use, and it is the
  hardiest variety for the event and power business
  and various industrial areas. The six sorts of
  brass cables have entirely totally different uses
  like
• ?     Indoor - these are better for cables, in
  conjunction with armored, plastic, and
  rubber-sheathed.
• ?     Outdoor - these are useful with plastic or
  rubber-sheathed and unsheathed cables.
• ? Straightening is beneficial with
  rubber-sheathed and unsheathed cables and employs
  in indoor and outdoor applications.
•  ?     Weatherproof - these are used with plastic
  or rubber-clad cables. They are hard-built and
  provide a
• strong seal having a variation designed for
  optimum water resistance.
• ?     Threaded glands are made-to-order to be
  employed in fixed industrial applications.
• ?     Industrial - primarily combine with plastic
  or rubber-clad and with armored cabling.

10
Rubber Cable Glands

• Some sorts of these glands have watertight seals.
  These seals are mass-produced from Indian rubber.
  Hydrocarbon is the fabric in making O-rings, a
  circular seal that forms a sturdy seal.

11
Conclusion

• Thus, in the above article, we have shared the
  needs and applications of brass cable glands.
  These are also helpful in applications involving
  shielded cable for electromagnetic securitythis
  helps maintain the cable's integrity by simply
  tightening the gland. Cable glands comply with
  the highest demands as regards sealing,
  retention, quality, and safety.
