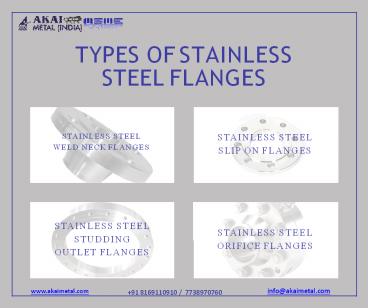

1TYPES OF STAINLESS STEEL FLANGES
STAINLESS STEEL SLIP ON FLANGES
STAINLESS STEEL WELD NECK FLANGES
STAINLESS STEEL STUDDING OUTLET FLANGES
STAINLESS STEEL ORIFICE FLANGES
info_at_akaimetal.com
www.akaimetal.com
91 8169110910 / 7738970760
2STAINLESS STEEL WELD NECK FLANGES
Akai Metal India Manufacture stainless steel
flanges according to ASME, EN, ISO, and DIN
standards. Stainless steel Weld neck flanges
This is planned to be joined to a piping system
by buttwelding. It is relatively exclusive
because of Its neck but is favored for
high-stress applications.
www.akaimetal.com info_at_akaimetal.com 91
8169110910 / 7738970760
3STAINLESS STEEL SLIP ON FLANGES
Stainless steel Slip-on flanges have a ring
located over the end of the pipe and the face of
the flanges extends from the pipe end. If Type
C stub ends or Type B stub ends are used, these
can also be used as lap joint flanges.
www.akaimetal.com info_at_akaimetal.com 91
8169110910 / 7738970760
4STAINLESS STEEL STUDDING OUTLET FLANGES
Stainless steel Studding Outlets flanges are
mostly provided in SA- 105. They can also be made
from a full range of stainless steel and alloy
materials. The average thickness shown above for
all studding outlets is the minutest required
per ASME Section VIII Division I Paragraph UG-
43(d) for thread engagement and an ID mount.
www.akaimetal.com info_at_akaimetal.com 91
8169110910 / 7738970760
5STAINLESS STEEL ORIFICE FLANGES
Stainless steel Orifice Flanges are used with
orifice beats for the persistence of measuring
the flow rate of either liquids or gases in the
particular pipeline. Pairs of pressure
Tappings, mostly on 2 sides, directly
opposite each other, are machined into the
orifice flange.
