Title: New Card Based Scheme to Ensure Security and Trust in Vehicular Communications


1

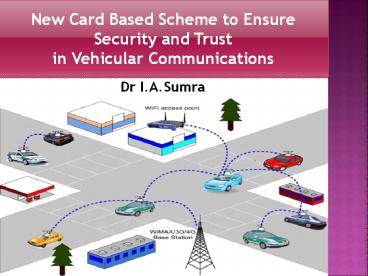

New Card Based Scheme to Ensure Security and
Trust in Vehicular Communications
  • Dr I.A.Sumra

2
  • Introduction
  • Authentication Requirement in VANET
  • Related Work
  • Trusted Security Module in VANET
  • Proposed Card-based Scheme
  • Conclusion
  • References
  • QA

OVERVIEW
2
3
  • Vehicular ad-hoc network is a special kind of
    network in which nodes (Vehicles) can communicate
    with each other on the road and with its
    Infrastructure.

V2I
3
4
VANET APPLICATIONS
  • Safety Applications
  • Non Safety Applications

Work Zone Warning!!!
Work Zone Warning!!!
Work in Progress Plz! use Alt. route
Shopping MALL
Parking Slot Available!!!
Parking Slot Available!!!
RSU
4
5
VANET Security requirement
Authentication
Integrity
Confidentiality
Availability
5
6
VANET User requirement
Security
Privacy
Trust
6
7
trust
  • an entity can be trusted if it always behaves in
    the expected manner for intended purpose.
  • all components of the network (vehicles and
    infrastructure) are behaving in an
  • expected manner
  • (secure communication between the components) and
    serve the users and save human lives.

7
8
authentication requirement in VANET
  • Authentication is an open issue and key security
    requirement in vehicular network and all
    applications are required to be authenticated.
  • Authentication is needed for most tasks for
    sending critical messages to other vehicle or
    getting some services from the network.
  • Authentication is required in two different
    cases.
  • if users send or receive safety messages in
    network, it should be authenticated first by a
    valid user.
  • when user needs any service from service
    providers (SP), they should check the user
    information from its own billing server which
    later charges the users for the use of any sort
    of services/resources.

8
9
RELATED WORK
  • Authentications types in VANET
  • Message Authentication
  • Broadcast Message Authentication
  • Pairwise Message Authentication
  • GroupWise Message Authentication
  • Vehicle Authentication
  • Road Side Unit (RSU) Authentication
  • Authentication requirement for Business
    Transaction
  • Prepaid Package (Pay before use)
  • Post-paid Package (use After pay)

9
10
Trusted security module
  • Trusted Platform module (TPM) is a hardware chip
    and it is the core component of the Trusted
    Computing Group (TCG).
  • TPM provides cryptographic functions, secures
    storage of secret data and provides the basis to
    fulfil major security requirements.

10
11
TPM functionalities
  • Low Cost
  • TPM is a low cost security module as compared to
    temper proof device (TPD)
  • Resist Software Attacks
  • TPM can resist software attacks but it cannot
    control hardware tempering.
  • Ownership
  • TPM_takeownership command creates ownership of
    the vehicle. Whenever user buys new vehicle, the
    authority will assign it to be the owner of that
    particular vehicle. When the vehicle is sold out
    then we need to change ownership to the new user.
  • Cryptographic Functions TPM provides
    cryptographic function and also ensures the data
    integrity in the network through cryptographic
    components (SHA-1 Engine, RSA and Random Number
    Generator).
  • Root of Trust
  • Root of trust for measurement (RTM)
  • Root of trust for Reporting (RTR)
  • Root of Trust for Storage (RTS)

11
12
Proposed Card-based Scheme
  • Authentication is more complex task in vehicular
    network compared to any fixed network due to
    dynamic nature of its topology. Our scheme is
    based on fixed infrastructure which is called
    vehicular Service Providers (VSP).
  • VSP issues secret cards with different time
    durations like one month, two month, and six
    month. When the users need to do is only to enter
    a 16 digits secret code into the vehicle unit and
    then communicate with vehicular Service Providers
    server.
  • The VSP server will verify the secret code
    through an integrity verification process and
    after verification has been completed, it will
    activate the PCA at the user vehicle to generate
    certificates for some specific time duration.
  • Objective of this propose scheme to solve the
    problem of authentication and users should be
    authentic while they join network on road and
    taking services.

12
Proposed Card Based Scheme
13
16 Digit Secret Code
  • First 8 digit uses for PCA is taken from a smart
    card inserted to the vehicle unit by this way, we
    eliminate the need for connecting with the PCA
    and sending request for certificate and key for
    singing the messages.
  • In this scenario, a vehicle A signs a message
    with TPM signing (SK) key, attach valid AIK
    certificate and signature inside the VPS security
    tag and broadcast this message to other vehicles.
  • Every other vehicle checks this message that
    comes with security VPS tag. If VPS tag is exist
    with message, its means this message is secure
    and properly signs with TPM signing key (SK).
  • Every time TPM generates one signing key and
    sends request to storage area for AIK
    certificate. By frequently changing the signing
    key and AIK, it maintains the security in the
    system.

First Part
Second Part
16 digit secret codes
13
Process mechanism of Card-based Scheme
14
Secure communication
First Part
  • shows the authentic warning message with security
    tag. Because of the VPS signature certificate, it
    can be seen that it would be difficult for an
    attacker to change the security tag.
  • shows how an ideal secure and trusted
    communication between the vehicles would take
    place using the proposed scheme.

Safety message with VPS Security Tag
Secure communication between the vehicles
14
15
Secure Business Communication
Second Part
  • Next 8 digit secret codes is used for business
    related applications such as taking some services
    and paying money for these services like
    telephone and internet services on road.
  • vehicle A sends request for internet access on
    road, so authentication and billing sever
    authenticates the user together with its billing
    information. After that the VPS server gathers
    some more parameters such as speed, position and
    direction of the requesting vehicle.
  • If the user of the vehicle fulfils all
    requirements, the VSP server provides required
    road services. Another vehicle C may also sends
    request for any other services, and the same
    procedure will be followed for serving the
    required services.

15
Authentication in Business Communication
16
unique features of proposed scheme
  • It is based on card which has 16 digit secret
    code that provides security based on trusted
    platform module (TPM) for signing safety messages
    and for business transactions.
  • The storage area is proposed inside vehicle for
    saving security keys and billing information. It
    eliminates the dependency on external storage
    device(memory stick) that should not use for the
    storage of users information.
  • Users do not depend on external party for
    authentication in dynamic topology vehicular
    communication network.
  • Message tag contains signature and certificate
    that make difficult for attackers to alter the
    tag.
  • proposed scheme is based on TPM and it is low
    cost security device and develop the chain of
    trust in vehicular network.

16
17
Conclusion
  • Security and trust are two main users
    requirements for trusted vehicular network.
  • In vehicular communications, when user receives
    any safety message, it should be authentic, and
    that the requesting source is valid.
  • In vehicular communications, when user receives
    any safety message or non safety message, it
    should be authentic.
  • Authentication is require for sending and
    messages and also for business transaction.
  • Proposed scheme are based on TPM and provides
    user authentication requirement in network while
    communicating with other vehicle and also taking
    service from any service providers.
  • We hope proposed scheme will be helpful for
    solving the problem of authentication in high
    speed vehicular environment.

17
18
Thank you..
18
19
Conference Paper
  • Saudi International Electronics, Communications
    and Photonics Conference (SIECPC)- 2011
  • Complete paper is available on IEEE and Research
    gate.
  • Please download complete research paper from
    research gate.

19
