Title: What is Induction Bend Pipe Manufacturers

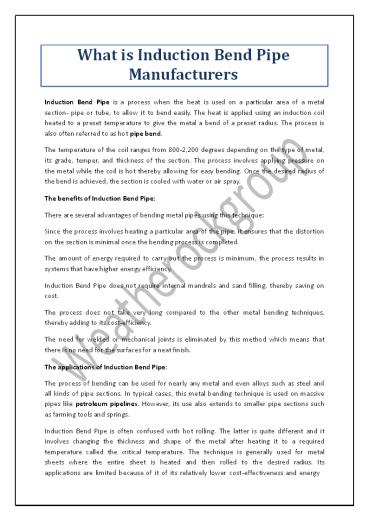

1
What is Induction Bend Pipe Manufacturers
Induction Bend Pipe is a process when the
heat is used on a particular area of a
metal section- pipe or tube, to allow it to bend
easily. The heat is applied using an induction
coil heated to a preset temperature to give the
metal a bend of a preset radius. The process is
also often referred to as hot pipe bend. The
temperature of the coil ranges from 800-2,200
degrees depending on the type of metal, its
grade, temper, and thickness of the section. The
process involves applying pressure on the metal
while the coil is hot thereby allowing for easy
bending. Once the desired radius of the bend is
achieved, the section is cooled with water or air
spray. The benefits of Induction Bend
Pipe There are several advantages of bending
metal pipes using this technique Since the
process involves heating a particular area of the
pipe, it ensures that the distortion on the
section is minimal once the bending process is
completed. The amount of energy required to carry
out the process is minimum, the process results
in systems that have higher energy
efficiency. Induction Bend Pipe does not require
internal mandrels and sand filling, thereby
saving on cost. The process does not take
very long compared to the other metal
bending techniques, thereby adding to its
cost-efficiency. The need for welded or
mechanical joints is eliminated by this method
which means that there is no need for the
surfaces for a neat finish. The applications of
Induction Bend Pipe The process of bending can
be used for nearly any metal and even alloys such
as steel and all kinds of pipe sections. In
typical cases, this metal bending technique is
used on massive pipes like petroleum pipelines.
However, its use also extends to smaller pipe
sections such as farming tools and
springs. Induction Bend Pipe is often confused
with hot rolling. The latter is quite different
and it involves changing the thickness and
shape of the metal after heating it to a
required temperature called the critical
temperature. The technique is generally used
for metal sheets where the entire sheet is
heated and then rolled to the desired
radius. Its applications are limited because of
it of its relatively lower cost-effectiveness and
energy
2
efficiency. The sections thus produced are
generally used as feed for rolling mills or
directly for fabrication. WeatherockGroup
worldwide is one of the world's top manufacturers
Supplier of top- quality Double Submerged arc
welded (DSAW) Pipe and Longitudinal Welded Pipe.
Our high- performance products include Induction
Bend Pipe Manufacturers Read More -
https//www.articleted.com/article/328716/16416/Wh
at-is-Induction-Bend-Pipe- Manufacturers
