Apache Gobblin

1

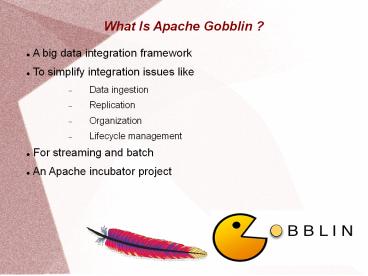

What Is Apache Gobblin ?

• A big data integration framework
• To simplify integration issues like
• Data ingestion
• Replication
• Organization
• Lifecycle management
• For streaming and batch
• An Apache incubator project

2
Gobblin Execution Modes

• Gobblin has a number of execution modes
• Standalone
• Run on a single box / JVM / embedded mode
• Map Reduce
• Run as a map reduce application
• Yarn / Mesos ( proposed ? )
• Run on a cluster via a scheduler, supports HA
• Cloud
• Run on AWS / Azure, supports HA

3
Gobblin Sinks/Writers

• Gobblin supports the following sinks
• Avro HDFS
• Parquet HDFS
• HDFS byte array
• Console (StdOut)
• Couchbase
• HTTP
• JDBC
• Kafka

4
Gobblin Sources

• Gobblin supports the following sources

• Avro files
• File copy
• Query based
• Rest API
• Google Analytics
• Google drive
• Google webmaster
• Hadoop text input
• Hive Avro to ORC
• Hive compliance purging

• JSON
• Kafka
• MySQL
• Oracle
• Salesforce
• FTP / SFTP
• SQL Server
• Teradata
• Wikipedia

5
Gobblin Architecture
6
Gobblin Architecture

• A Gobblin job is built on a set of plugable
  constructs
• Which are extensible
• A job is a set of tasks created from a workunit
• The workunit serves as a container at runtime
• Tasks are executed by the Gobblin runtime
• On the chosen deployment i.e. MapReduce
• Run time handles scheduling, error handling etc
• Utilities handle meta data, state, metrics etc

7
Gobblin Job
8
Gobblin Job

• Optional aquire lock (to stop next job instance)
• Create source instance
• From source work units create tasks
• Launch and run tasks
• Publish data if OK to do so
• Persist the job/task states into the state store
• Clean up temporary work data
• Release the job lock ( optional )

9
Gobblin Constructs
10
Gobblin Constructs

• Source partitions data into work units
• Source creates work unit data extractors
• Converter converts schema and data records
• Quality checker checks row and task level data
• Fork operator allows control to flow into
  multiple streams
• Writers sends data records to sink
• Publisher publishes job records

11
Gobblin Job Configuration

• Goblin jobs are configured via configuration
  files
• May be named .pull / .job plus .properties
• Source properties file defines
• Connection / converter / quality / publisher
• Job file defines
• Name / group / description / schedule
• Extraction properties
• Source properties

12
Gobblin Users
13
Available Books

• See Big Data Made Easy
• Apress Jan 2015
• See Mastering Apache Spark
• Packt Oct 2015
• See Complete Guide to Open Source Big Data
  Stack
• Apress Jan 2018
• Find the author on Amazon
• www.amazon.com/Michael-Frampton/e/B00NIQDOOM/
• Connect on LinkedIn
• www.linkedin.com/in/mike-frampton-38563020
