Title: Have a Look over Factory Gantry Crane Manufacturers

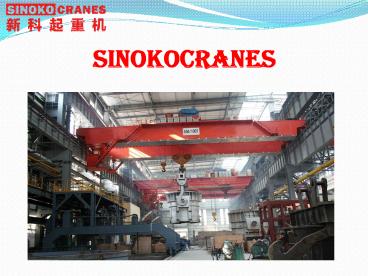

1
SinokoCranes
2
ABOUT US
  • Henan Sinoko Cranes Co,.Ltd is a modern
    manufacturing enterprise which has a tight
    technical cooperation with one of the world
    biggest professional crane manufacturing-Konecrane
    Group SWF company from the date it has rsquos
    been built. The company keeps focus on the
    cutting edge technology and developments of
    European style cranes.
  • We have more than 1200 employees, among which
    there are more than 180 engineers and
    technicians. The factory area is about 280 acres.
    The registered capital is 108.80 million RMB and
    total capital 220 million RMB. The 210-plus sets
    of advanced manufacturing and testing equipments
    enable us to make high quality products.

3
Our Equipments
4
Features
  • Optimized design by computer with reasonable
    structure, high suction weight ratio and low
    energy consumption.
  • Energizing coils processed by special technology
    with improved electrical and mechanical
    performance heat-resistance grade of insulation
    material grade C with long using life.
  • High temperature type electromagnet adopting
    unique method of heat-protection. Temperature
    limit of the attached items is increased from
    600700 degree, which expands application range
    of lift electromagnet.
  • Easy and convenient installation, operation and
    maintenance
  • It is special magnetic pole is suitable for round
    coil with different diameters selection of
    electromagnet depends on the length of round
    coil. If the electromagnet is long enough at a
    time

5
Gantry-Crane
  • 1. This gantry crane is widely used together
    with winch or trolley for lifting device.
  • 2. It is a medium and heavy size crane which
    travels in track.
  • 3. Structure main beam, support legs, crane
    traveling organ, trolley, electric equipment,
    strong lifting winch
  • 4. Power is supplied by cable or slide wire.
  • 5. It is prohibited for lifting melt metal,
    flammable, explosive, corrosion, overloading,
    dust and other dangerous operations.

6
Gantry-Crane
7
European-Crane
  • Highway Construction 450T Beam Lifting Gantry
    Crane  is  specially designed for bridge
    construction and highway construction. Main
    features
  • Multiple times usage
  • Long life-span
  • High-strength bolts f or each parts connection ,
    easy to disassemble and transport
  • Heavy capacity for highway construction, bridge
    constructions, road constructions and other huge
    projects.

8
European-Crane
  • 450T Lifting beam gantry cranes can be used to
    lift two-piece prefabricated beams at the same
    time, and a single gantry crane equipped with
    double hoisting equipment to lift prefabricated
    beams separately. The lifting capacity of two
    lifting machines at the same time is generally
    450 tons, and the lifting capacity of a single
    lifting machine. The weight is usually up to 900
    tons.
  • This type gantry crane is equipped with leg
    walking, crane walking and crane lifting
    equipment, which can achieve all-round mechanized
    action. It is mainly used to lift the
    prefabricated beam from the beam-making platform
    to the beam storage platform.
  • After the prefabricated beam is completed, it is
    lifted from the beam-holding platform to the
    beam-carrying vehicle. As a lifting device,
    complete the assembly and disassembly of the
    bridge machine. It is also used to erect bridges
    with low

9
European-Crane
10
Grab-Crane
11
Grab-Crane
  • 30t Garbage grab bucket EOT crane is a special
    kind of overhead crane which can be used to grab
    steel scraps, sludge, sand, stones and so on.
  • 30t Garbage grab bucket EOT crane girder is of
    welded girder construction. This result in lower
    dead weight with a high degree of vertical and
    horizontal rigidity and small wheel loads being
    transmitted to the crane runway. The grab crane
    is a special kind of overhead crane which can be
    used to grab steel scraps, sludge, sand,
    limestone's, garbage and so on. The EOT crane
    also can assembly with magnets for lifting steel
    materials, like steel scraps, steel billets,
    steel rebar. The working class is heavy duty

12
Grab-Crane
13
Grab-Crane
14
THANK YOU
  • TEL 0086-373-3809044
  • FAX 0086-373-3809044
  • EMAIL info_at_sinokocrane.com
  • ADD Weiqi Road, Crane Industrial Park, Changyuan
    County ,Henan Province, China
  • COMPANY SINOKO CRANES PAKISTAN OFFICE
  • TEL 0086-373-3809044
  • CONTACT Mr. Simon
  • EMAIL sale02_at_sinokocrane.com
  • ADD Karachi, Pakistan
