Title:

INFINEATAB 4 1D BARCODE SCAN, MAG STRIP, BT, RFID FOR IPAD

Description:

InfineaTab 4 1D barcode scanner, magnetic stripe reader, Bluetooth and RFID for Apple iPAD InfineaTab 4 allows mobile workers to convert their iPad 4® into a powerful point-of-sale solution. The InfineaTab 4 includes a 1D or 2D barcode scanner, optional functions like 3-track magnetic card reader or secure MCR, RFID card reader, Bluetooth and a rechargeable battery in a very compact and durable protective case. – PowerPoint PPT presentation

Number of Views:13

less

Write a Comment
User Comments (0)
Transcript and Presenter's Notes

Title: INFINEATAB 4 1D BARCODE SCAN, MAG STRIP, BT, RFID FOR IPAD


1
SEWOO LK-P12 RUGGED 2" RECEIPT PRINTER, USB, BT,
RS232 SEWOO LK-P12 RUGGED 2" RECEIPT PRINTER,
USB, BT, RS232

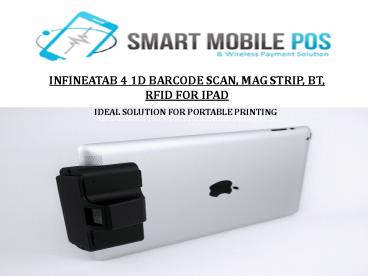

INFINEATAB 4 1D BARCODE SCAN, MAG STRIP, BT, RFID
FOR IPAD
IDEAL SOLUTION FOR PORTABLE PRINTING
IDEAL SOLUTION FOR PORTABLE PRINTING

2
DESCRIPTION
  • InfineaTab 4 1D barcode scanner, magnetic stripe
    reader, Bluetooth and RFID for Apple iPAD
  • InfineaTab 4 allows mobile workers to convert
    their iPad 4 into a powerful point-of-sale
    solution.
  • The InfineaTab 4 includes a 1D or 2D barcode
    scanner, optional functions like 3-track magnetic
    card reader or secure MCR, RFID card reader,
    Bluetooth and a rechargeable battery in a very
    compact and durable protective case.

3
SPECIFICATIONS
SR. NO. PARTICULAR DETAIL
1 Keyboard and Buttons Scan Buttons
2 Magnetic Card reader Triple track bi-directional
3 Encrypting Mag. Card reader AES-256, DUKPT for AES-128 and 3DES
4 1D Barcode reader Option MDL 1000-Laser Barcode Scan Engine (optional)
5 Device Compatibility iPad 4, iPad Air, iPad Air 2, iPad mini 2, iPad mini 4
6 LED Indication 2 LEDs for battery and device status
7 Audio Features Electro-Magnetic Buzzer
8 Reliability 1 000 000 magnetic card swipes
9 Contactless Card reader MiFARE mini, MiFARE Classic 1k/4k, MiFARE Ultra light/ Ultra light c DESFire
4
10 Battery Rechargeable Li-Ion Battery 3.7V / 1100 mAh
11 Supported Symbology 1D and 2D
12 Operating temperature 10 40?
13 Storage temperature  -20 50?
14 Weight 115 gram (With Battery)
15 Certification CE, FCC, PCI PTS 3.x (when Secure Magnetic Card Reader is installed), Apple Mfi
16 Power Supply DC 5V through mini USB
17 Compatible Accessories Single charger (GT1), 5 Stations charger (GT5)
18 Connectivity Apple 9 Pinconnector, Pass-through sync through mini USB, BT 2.0 class2, Serial Port Profile, External Serial port
19 Dimension WxDxH (mm) - 128x51x45mm
