Twin Column Universal Tensile Testing Machine and Tensile Machine

1

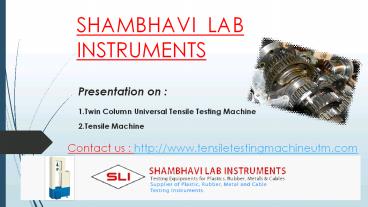

SHAMBHAVI LAB INSTRUMENTS
Presentation on 1.Twin Column Universal
Tensile Testing Machine 2.Tensile Machine

Contact us http//www.tensiletestingmachineutm.c
om
2
1. Twin Column Universal Tensile Testing Machine

• In our store, we have high quality Twin Column
  Universal Tensile Testing Machines that are
  widely demanded in different industries. Offered
  machines are sourced from renowned vendors of the
  market, who manufacture these using highly
  qualitative components and metals. To remove any
  kind of flaw, these machines are thoroughly
  checked on different quality parameters. Owing to
  their durability, excellent performance and
  robust construction, offered Twin Column
  Universal Tensile Testing Machines are widely
  used for testing plastics, cables, metals and
  other basic raw materials.
• Unrevalled Features of our Twin Column Universal
  Tensile Testing Machines
• Smooth Workability
• Low Power Consumption
• User Friendly Structure
• High Durability
• High Efficiency
• Minimal Maintenance Etc.

3
SPECIFICATIONS
MODEL NO. SET-T 1000 N SET-T 5000 KN SET-T 10 N SET-T 20 KN SET-T 50 KN
Max. Capacity (KN) 1 5 10 20 50
Load Resolution (N) 110,000 0.1 0.5 1.0 2.0 5.0
Max. Crossheaddisplacement withoutgrips / fixtures (mm) 900 900 800 700 700
Displacement Res. (mm) 0.2 0.2 0.2 0.2 0.2
Column Clearance (mm) 450 450 450 450 450
Test Speeds (mm/min) 50,100250,500 50,100250,500 30,50,100 30,50,100 30,50,100
Machine Dimensionsmm ( W X D X H) 900 X 600 X 2000 900 X 600 X 2000 900 X 600 X 2000 900 X 600 X 2000 900 X 600 X 2000
Power Requirement 0.3 KVA 0.5 KVA 0.1 KVA 2.0 KVA 2.5 KVA
Power Supply 415 V /- 10, 3-Phase, 50Hz with Neutral Earth 415 V /- 10, 3-Phase, 50Hz with Neutral Earth 415 V /- 10, 3-Phase, 50Hz with Neutral Earth 415 V /- 10, 3-Phase, 50Hz with Neutral Earth 415 V /- 10, 3-Phase, 50Hz with Neutral Earth
Twin Column Universal Tensile Testing
Machine
4
2.Tensile Machine

• We are engaged in providing an excellent range of
  superior quality Tensile Machines that are highly
  appreciated for their excellent quality, accuracy
  and performance. These are widely used in various
  industries for testing of plastics, metals,
  cables and other materials. Easy to use, these
  machines are procured from certified
  manufacturers, well known to us. We offer
  these Twin Column Tensile Testing Machines at
  reasonable market rates in large number of
  standard as well as customized specifications
  exactly as per customers' requirements.

5

• ELECTRONIC CONTROL PANEL
• - Front panel membrance type keyboard for test
  set up- 7 segment digital display of load and
  displacement.- Storage of important parameters
  such as peak load, braking load and max.
  displacement- Facility of return of crosshead to
  home position for next test.
• NOTE
• - Over load over travel protection is
  standard.- Lower capacity load cells can be used
  with any machine for better load resolution.-
  Grips can be selected from wide range available
  for diff application.

6
Images of Twin Column Universal Tensile Testing
Machine and Tensile Machine
7
THANK YOU !
Contact us http//www.tensiletestingmachineutm.c
om
