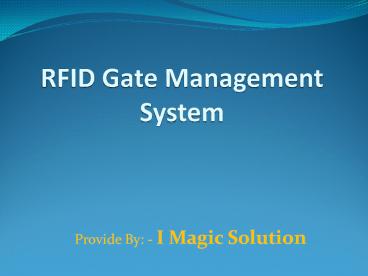

Title: RFID Gate Management System


1
RFID Gate Management System
Provide By - I Magic Solution
2
Flow Chart
Start
YES Tag Data sent to RFID server
YES Record In/Out data
Car Approach RFID gate
RFID server apply rule engine
If In gate?
Sensing By RFID Reader
If valid RFID tag
Yes If vehicle over stayed?
No Record data. Traffic light becomes green
If RFID tag detected
NO Traffic light becomes orange
Yes Send report to server SMS to vehicle owner
NO No change in traffic light. It remains Red
3
(No Transcript)
4
Hardware architecture
RFID UHF tag
RFID Reader single port with inbuilt antenna 4
IO port
RFID local server
Traffic light
Internet
RFID cloud server Application server
Mobile user
Desktop user
5
Benefit of Gate RFID System
  • Automatically Gate Open when Vehicle Access to
    Gate
  • If Vehicle not access to gate then gate man know
    and catch vehicle
  • Barrier will not open if no access
  • Manage Vehicle In Out History
  • Prohibited unwanted vehicle parking
  • When Vehicle Access then Green Light Flash or if
    Not then Red Light Flash

6
Software Technologies
  • Software Develop in VB.NET
  • Database is MS SQL

7
Hardware Requirement
  • UHF RFID Reader
  • UHF RFID Tag
  • Red/Green Traffic Light
  • Computer PC
  • POE Len Switch
  • Boom Barrier Optional
  • Barrier Close Sensor Loop Optional

8
RFID Specification
Operating Frequency 862 to 955 MHz
Power Supply 9 to 12 V DC
Serial Data Rate 4.8 to 115.2 kbps
Transmitting Power upto 30 dbm Software adjustable
Read Range Up to 4 m
Antenna Internal
Communication Interface RS232 / RS485 / Wiegand
Supported Transponders ISO 18000-6B, ISO 18000-6C (EPC Gen 2)
Indicators Buzzer as audio Indicator
Operating Temperature -12C to 50C
Read Performance 25 tags per second
Dimensions 450 X 450 X 60 mm
Weight 2.75 Kg approx
Packaging Material ABS Plastic
Color White
9
Traffic Light Specification
No Parameter Detail
1 Power Consumption 8 to 12 W
3 Voltage 230 AC / 12 DC / 24 DC
4 Voltage Range 190 to 240
5 Operating Temperature -30 to 60
6 Minimum Weight 1.9 Kg
7 Diameter 200 mm / 8
8 Number of LED 102 Nos
9 Visibility 500 Miter
10 Color Red / Green / Yellow
11 Lens UV Stabilized Polycarbonate
12 Body Metal
13 Power Saving 90
14 Light Source Ultra bright led enables
10
Computer PC
  • C2d / I3 or Higher CPU
  • 2 GB RAM
  • 512 GB HDD
  • LED Monitor
  • Onboard LAN Port
  • Win XP / Win7 OS

11
Boom Barrier Specification
Sr No Description Specification
1 Duty Cycle 75
2 Mechanism Electro-mechanical
3 Maximum Boom Length 6000 mm
4 Opening/Closing Time 3-4 sec.
5 Power Supply 230 VAC,24 VDC 50/60 Hz
6 Power Consumption 120 W
7 Housing Mild Steel with Zinc coating (inside out) plus Anti-corrosion Treatment
8 Housing Dimensions 350mm250mm1070mm
9 Housing Base Frame Mild Steel
10 Operative Options Push Button Remote Control
11 In case of Power Failure Open/Close options with mechanical handle
12 Water Proof Protection Compliant to IP44 Standards
13 Safety Features Warning Lights/ Traffic Lights
14 Life Cycle One Year Warranty
15 Weight (without Boom) 64 kg
16 Opening temp. range -20 to 50 degree centigrade
17 Drive Torque Motor

18 Voltage (/- 10) 100-240v
19 Frequency 50-60Hz
20 Maximum Power Consumption 20watts
21 Fuse 2Ah
22 Control Voltage 12v
23 No. of input Channels 06
24 No. of Open collector output 02
12
The End
