Automatic Phase Changer

1

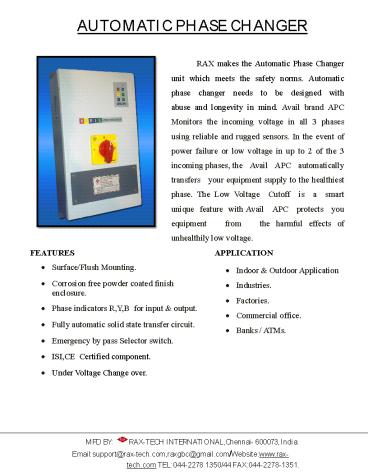

AUTOMATIC PHASE CHANGER
RAX makes the Automatic Phase Changer unit which
meets the safety norms. Automatic phase
changer needs to be designed with abuse and
longevity in mind. Avail brand APC Monitors the
incoming voltage in all 3 phases using reliable
and rugged sensors. In the event of power failure
or low voltage in up to 2 of the 3 incoming
phases, the Avail APC automatically
transfers your equipment supply to the
healthiest phase. The Low Voltage Cutoff is a
smart unique feature with Avail APC
protects you equipment from the harmful
effects of unhealthily low voltage.
FEATURES
APPLICATION

• Surface/Flush Mounting.
• Corrosion free powder coated finish enclosure.
• Phase indicators R,Y,B for input output.
• Fully automatic solid state transfer circuit.
• Emergency by pass Selector switch.
• ISI,CE Certified component.
• Under Voltage Change over.

• Indoor Outdoor Application
• Industries.
• Factories.
• Commercial office.
• Banks / ATMs.

RAX-TECH INTERNATIONAL,Chennai- 600073, India.

2
SELECTION
Model KVA Max. Capacity Bypass Switch
AAPC-40 10 KVA 40 A Yes
AAPC-60 15 KVA 60 A Yes
AAPC-80 20 KVA 80 A Yes
AAPC-100 25 KVA 100 A Yes
DIMENSION DETAIL
Model A B C D E F G H I J K L
AAPC-40 254 475 65 200 450 103 118 475 25 75 150 100
AAPC-60 254 475 65 200 450 103 118 475 25 75 150 100
All Dimensions are in mm. WARRANTY 12 months from
the date of installation or 15 months from the
date of purchase from us, which ever comes early.
