Title: Road in motion weighbridge manufacturer and exporter


1

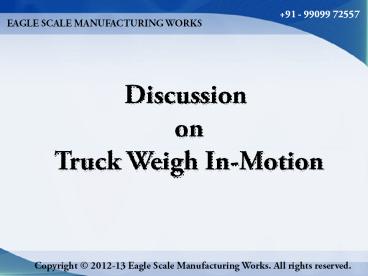

Discussion on Truck Weigh In-Motion
2
EAGLE - WIM for Toll Plaza, Toll Roads Bridge
The Vehicle weight , not the number of axles,
determines wear and tear of roads. Toll
authorities now use weight-based tolling, which
relies on weigh-in-motion technology to determine
the proper toll classification while keeping the
traffic moving. Its rigid construction
significantly improves scale reliability in
heavy-duty operation and helps to achieve precise
positioning into the road during installation
thus reducing the installation costs. The
Weighbridge is connected to traffic lights and
signals horn to control vehicle movement. Video
camera for vehicle detection and vehicle image
capturing can be delivered as optional equipment.
3
CLOSE COUPLED AXLES
The platform has been specifically designed to
take all combinations of axles. Single axles,
tandem and tri-axle combinations are easily
weighed because the electronics can capture the
weights of every axle individually. Close coupled
axles with spring or air suspension are no
problem to the weighbridge which will take
individual axles of up to 30 Ton each
4
Key Benefits
  • Instant check for road legal weight
  • Fully unattended weighing operation
  • Weighs hundreds of vehicle daily
  • Daily reporting measures vehicle productivity
  • Automatic recording of weight and images of
    vehicle
  • Gross weight, axle weights, numbers of axles
    can be recorded
  • Data record can be stored for stored for
    future use or can be sent via
  • LAN or Internet to the Server

5
LAW ENFORCEMENT
A range of indicators and computer software is
available for the EAGLE Axle which allow
authorities to choose the best system for their
enforcement needs. The Axle is particularly
suited to where compliance with legislation is
important as over speed weights are
automatically detected so that vehicles cannot be
presented with incorrect weighing tickets. The
policy of EAGLE is to produce only top quality
products incorporating the latest technological
advances. Particular emphasis is placed on
product reliability and durability and so the
company undertakes all its own design and
manufacture in order to maintain the essential
high level of quality control.
6
DYNAMIC WEIGHING
In-motion (dynamic) weighing is an established
feature of axle weighing and was originally
developed by EAGLE in the early 1991s. It is the
basis of the Single Axle system and today with
modern, state of the art electronic circuits it
provides the highest accuracy for weighing
individual axles. As a vehicle drives over the
weighbridge in low gear the axles are
automatically recorded on the move. The
electronics calculates the actual weight of each
axle as it passes over the platform and
immediately displays the weight. Automatic
operation of the weighbridge allows a driver to
weigh without the need for a specialist operator
to be present. A unique electronic zeroing system
ensures that the correct weight is achieved for
each axle and that zero adjustment between
weighing is not required.
7
WEIGH IN-MOTION PROCESSOR
The W.I.M processor is the heart of the weighing
equipment. The signals from the weigh platform
are connected to the W.I.M processor. A high
speed processor is used to process the data and
to respond to the instructions from the main
computer. The output of the W.I.M processor is
connected to the computer. The weighing software
from the computer will interact with W.I.M
processor and the complete data of the vehicles
is recognized. The Following data of the vehicles
is generated
8
  • The total weight of the vehicles
  • Each individual axle weight
  • Numbers of axle of the vehicle
  • Data and time of vehicle passed on the weigh
    in motion scale
  • Images of the vehicle (if cameras are used)
  • The vehicle number plate can also be recorded
    along with the weight data
  • Number of vehicles passed on the weigh in
    motion scale Speed of the Vehicle

9
(No Transcript)
10
SPECIFICATIONS
Maximum axle weight 40 Ton
Maximum gross weight of vehicle 120 Ton
Static accuracy /- 20 kg
Dynamic accuracy /- 50 kg per axle or /- 1 to 2 whichever is The lesser.
Indicator resolution 10 kg
Speed of operation up to 10 km/hr (max)
Recommended 3 to 5 km/hr
11
Power requirements 230 v ac 50 hz
Platform dimensions 3.2 x 0.7 x 0.3 mtr
Platform type welded construction, mild steel epoxy coated
Load Cells 20 Ton capacity each, tool alloy steel, Sealed To IP68
Electronics Microprocessor weighing control sealed to IP68
Approach and exit roadways 20 meters (min)
Operating temperature range -10 degree to 60 degree
12
OPTIONAL
We can provide as optional on line cameras which
can be fixed above the platform to have images of
the trucks passing on the platform. These images
can be used to know the vehicle numbers and the
type of vehicles. A hard copy of the images and
the vehicle weight combined together can be a
proof tor the type of vehicles and the weight
carried by the vehicle. These data will be
important information of the vehicle passing
through the check post, octroi nakas, overload of
the vehicles, sales tax and excise departments,
forest department etc.
13
Corporate Office
Address 302, Ashoka, Nr. Golden Tri Angle Building, Sardar Patel Stadium Road, Navrangpura, Ahmedabad-380014.Gujarat (INDIA).
Mobile No. 9909972557 / 9825072557 / 09879786677
Phone No. 91 - 79 - 26560311 / 64502247
Fax No. 91 - 79 - 26560311
14
Production Unit
Address Plot No. 140/141, Industrial Estate, Opp. Noble Nagar, Near Kotarpur Water Works, Post. Sardar nagar, AHMEDABAD - 382475.Gujarat (INDIA)
Mobile No 91 - 9825072557 (MR. KISHORBHAI PATEL)
Phone No 91 - 79 - 22816169 (O) 65212557
Tele-Fax No 91 - 79 - 22816169
E-Mail response_at_weighbridgeafrica.com
Websites www.weighbridgeafrica.com
15
Thank You Eagle Scale
