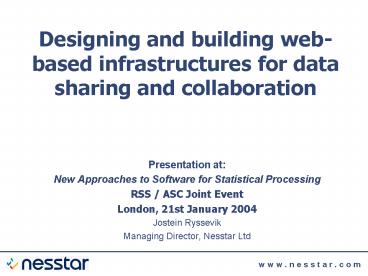

Designing and building web-based infrastructures
for data sharing and collaboration

• Presentation at
• New Approaches to Software for Statistical
  Processing
• RSS / ASC Joint Event
• London, 21st January 2004
• Jostein Ryssevik
• Managing Director, Nesstar Ltd

2
What if.

• statistical data could be published as easily on
  the Web as documents and pictures?
• users of statistical data could search for
  relevant sources across the Web more or less in
  the same way as they are googling for relevant
  documents?
• users of statistical data had a give me more
  data like this function at hand allowing them to
  locate data from disparate sources in order to
  create a time-series or do a comparison
• published statistical data could be described in
  such a way that human users as well as software
  clients would know exactly what they mean and how
  they can be used
• agreed languages were at hand allowing one
  statistical software system to talk to and
  exchange information with another
• we had a Data Web allowing all of this to happen

3
Essentials

• Open standards
• Shared protocols
• Partial agreements

4
Starting from the human end of the equation

• The majority of users of statistical data have
  not been engaged in the creation of a dataset.
• Statistical data will frequently be used for
  other research purposes than intended by the
  creators (secondary analysis).
• Statistical data will frequently be used many
  years after they were created.
• Users of statistical data are often comparing and
  combining data from a broad range of sources
  (across time and space).
• In sum Statistical data are travelling. The
  distance between the end users of statistical
  data and the production process is normally long.

5
Metadata data about.....
6
The functions of (human readable) metadata
Finding
Understanding
Assessing
7
Towards the Semantic Web

• From documents to data
• From brainware to software
• From machine readable to machine understandable
  information
• Metadata the glue of the Semantic Web
• A framework for knowledge representation RDF
• The introduction of namespaces (allowing
  different system of terms and concepts to
  cohabitate in a single information system)
• Partial understanding/agreement
• The vision the creation of a dynamic framework
  facilitating cooperation/interoperability across
  domains and communities - gradually expanding the
  web of understanding.

The Semantic Web is an extension of the current
Web in which information is given well defined
meaning, better enabling computers and people to
work in cooperation. Tim Berners-Lee
8
What is Web services adding to the party

• A simple down to earth architecture for
  distributed computing and cross system
  interoperability based on XML messaging and HTTP.
• A mechanism (directory service) allowing clients
  to dynamically locate relevant services on the
  Web (Universal Description, Discovery and
  Integration Services, UDDI)
• A way of describing (the interface of) remote
  objects that will allow clients to recognise and
  talk to them (Web Service Definition Language,
  WSDL)
• An communication protocol supporting calls to
  remote objects (SOAP).

9
Requirements to metadata standards for global
information systems

• Modularity the Lego? block principle
• Extensibility allowing domains or application
  providers to add metadata elements without
  compromising the interoperability offered by the
  base schema
• Refinement allowing domains or application
  providers to refine the use of a universal
  standard (making elements obligatory, restricting
  value domains, requiring the use of specific
  controlled vocabularies etc.)

10
The tension between the makers of standards and
the implementers

• The main concern of standards makers is
  interoperability across domains, communities and
  systems (creating Empires of understanding)
• The main concern of implementers is efficiency
  and relevance within an application
• ...even in situations where interoperability is
  high on the agenda there will be plenty of
  reasons for breaking the standards
• Therefore metadata standards aspiring for
  universal acceptance cannot insist on regulating
  every little detail the wider the acceptance
  the thinner the standard.

11
Metadata for traveling statistics where are we?

• The Common Warehouse Metamodel (CWM) from OMG a
  model and syntax for the exchange of metadata
  for data warehousing and business intelligence
• ISO 11179 a universal standard for describing
  data elements in a metadata repository
• GESMES (and GESMES CB) a metadata model for the
  exchange of multidimensional data and
  time-series.
• IQML, AskXML and Triple-S, metadata for the
  exchange of questionnaire data
• SPSS MR data model
• The Data Documentation Initiative (DDI) a
  general metadata standard for statistical data
  (micro as well as aggregated)

12

• Established in 1995 to create a universally
  supported metadata standard for the social
  science community
• Initiated and organised by the the
  Inter-University Consortium for Political and
  Social Research (ICPSR), Michigan, USA
• Members coming from social science data archives
  and libraries in USA, Canada and Europe and from
  major producers of statistical data
• First version of the standard expressed as an
  SGML-DTD
• Translated to XML in 1997
• DDI 1.0 published spring 2000
• Extended to cover multidimensional data
  (cubes/tables) in 2001
• Architectural reform process initiated 2003
• Fast take-up in the core community and beyond

13
Characteristics

• End-user perspective
• provide the end-user with the information needed
  to locate relevant data sources and to use
  data-sources in a sound way
• Initial emphasis on survey-data
• developed to describe independent surveys on
  study, file and variable-level (rudimentary
  support for other types of data)
• Emphasis on codebooks (survey-data dictionaries)
• metadata seen as a complete book or document
• Library-orientation
• strong on catalogue information,
• mapping to Dublin Core

14
Achievements

• Acceptance
• fast take-up in the community of data archives
  and data libraries world-wide
• Community building
• revitalised the co-operation and sharing of
  know-how and technologies among the archives and
  libraries
• Strengthening of the ties between the data
  archiving and data producing communities
• Software development

15
Nesstar - vision
To develop a truly distributed platform for
electronic publishing of statistical data,
building on object technology, open (metadata-)
standards and lightweight Internet protocols.
....or simply
To bring the models, technologies and collective
energy of the Web to the world of statistics.
16
Nesstar an overview

• An architecture for a totally distributed virtual
  data library
• The ability to locate multiple data sources
  across national boundaries
• The ability to browse detailed information about
  these data sources
• ..and to do data analysis and visualisation over
  the net
• ..or to download the appropriate subset of data
  in one of a number of formats
• Supporting standard micro-data as well as
  aggregated tables/cubes

• Allowing the user to bookmark/hyperlink resources
  in the data and metadata repositories
• searches
• datasets
• analysis (tables, models etc.)
• ..and to hyperlink these resources from external
  Web-objects (like texts)
• A system for imposing a variety of access control
  policies, including statistical disclosure
  control (SDC)
• Powerful data preparation tools, including a
  system for remote publishing of data to NESSTAR
  servers

17
Nesstar - a fully distributed Data Web
18
Ongoing development

• Integrated multilingual thesaurus support
• Trend Wizard locating and harmonizing
  potentially comparable variables from disparate
  sources/sites in order to create trends and
  comparisons
• Geo-referencing of statistical data facilitating
  geo-oriented resource location
• Directory service (web service registry) allowing
  clients to automatically discover Nesstar servers
  and get a description of the services that they
  are providing.

19
Examples of use The World Bank

• Using Nesstar to provide access to large amount
  of survey-data colected by the World Bank in
  various developing countries
• Data to be used by internal reserachers to
  evaluate the effects of the Banks investments
• A customised version of Nesstar fully integrated
  with the Banks intranet

Demo
20
Examples of use Black Country regional
observatory

• Using Nesstar to build a regional observatory
  providing access to local data and knowledge
• One of a series of obsrevatories set up to serve
  the community, local industry and the general
  public.
• Fully based on the UK e-government standards
  (e.g. e-GMS)

Demo
21
Characteristics of the architecture

• Fully distributed architecture with no "central
  server". Creating a resilient and scalable system
  with no single point of failure.
• Well defined namespace. Every resource or
  operation has a corresponding URL. Operations can
  consequently be "bookmarked" and reapplied at a
  later time. The Nesstar URLs can be embedded in
  normal Web pages to provide Nesstar/Web
  integration.
• Programming language independent protocol.
  Nesstar is implemented in Java and C/C but the
  protocol is XML and RDF based and fully language
  independent.
• Integration by hyperlinking. The Nesstar objects
  can link to each other across server boundaries.
• Object orientation. The Nesstar system is built
  according to an object-oriented principle,
  consisting of an extensible set of self
  describing components.

22
NEOOM Nesstar Object Oriented Middleware

• All statistical objects live at a URL
• Objects are self describing when a client
  access the URL of the object, the object returns
  a description of its current state (and its
  available methods) in RDF (using RDF as an
  Interface Description Language)
• Remote object-oriented calls are performed by a
  simple protocol running on top of HTTP. The calls
  can be stored as a URL, specifying the location
  of the relevant object as well as the method
  parameters.
• This allows for client side storage of
  statistical operations that easily can be rerun
  at a later stage thereby creating a simple batch
  language for operations on remote statistical
  objects.

23
Nesstar end-user client Runs on any
PC/workstation with any operating system that
can run a modern web-browser with standard
Javascript support. Recommended minimum hardware
configuration RAM 256 Mb Processor 800 Mhz
Software architecture
End-user client
Standard Java script enabled Web Browser
MS Internet Explorer 5.0 or Netscape/Mozilla
5.0
Nesstar Web engine
Using Cocoon 2.1 and Velocity 1.3
Web Client Application
Nesstar server Dedicated server running under MS
Windows 2000 or XP operating. Recommended minimum
hardware configuration RAM 2 Gb Processor 2 x
2.0 Ghz Harddisk 60Gb Nesstar Web engine can run
on top of the Nesstar server or reside on another
server machine with the same recommended minimum
configuration
Object cache
Proxy objects
HTTP Interface Servlet
RDF Class Interface Definitions
Web Server/Container Tomcat 4.1.24
BridgeRemote Bean
LocalBean
Percistence manager
J2EE compliant EJB Container Jboss 3.2.1
MVCSoft 1.1
Metadata database Oracle/MySQL/MS SQL-Server
