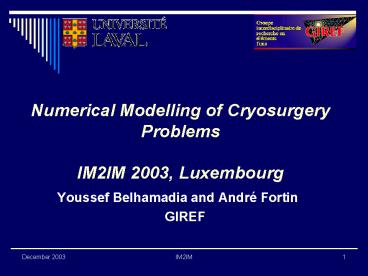

Numerical Modelling of Cryosurgery
Problems IM2IM 2003, Luxembourg

• Youssef Belhamadia and André Fortin
• GIREF

2
Liver cryosurgery
3
Prostate cryosurgery
J.C. Bischof et Al, Cryobiology (1997)
4
Cryosurgery
5
Plan

• Introduction
• Stefans problem
• Enthalpy and semi-phase-field formulations
• Adaptive strategy
• Numerical results 2D
• Analytical solution
• Oscillating source problem
• Numerical results 3D
• Formation of a cusp
• Applications to cryosurgery
• Conclusions

6
Introduction

• Motivation of this work part of a large project
  on cryosurgery (SKALPEL-ITC)
• Idea insert cryoprobes in a tumor. The
  freezing-thawing (phase change) will destroy
  cancerous cells.
• Our goal numerical study of phase change
  problems with an accurate prediction of the
  liquid-solid interface.

7

• Stefans problem

8
Enthalpy vs temperature
Enthalpy
Temperature
9
Enthalpy and semi-phase-field
where
10
Semi-phase-field formulation
11
Vertical interface
12
Vertical interface
Regular mesh
13
Vertical interface
Adapted meshes
14
Mesh adaptation

• Difficult to capture the freezing interface on a
  uniform mesh
• In 3D, the number of elements necessary is huge
• The position of the interface evolves with time
• Time-dependent mesh adaptation

15
Mesh adaptation

• 2D
• Hierarchical error estimator
• From a numerical solution of degree k, find a
  correction of degree k1
• 3D
• Definition of a solution dependent metric
• Valid only for linear solution
• Error related to the Hessian matrix

16
Time dependent mesh adaptation

• Starting from on mesh
• Solve the system on mesh to obtain a
  first approximation
• Adapt the mesh on and
• to get mesh
• Reinterpolate on mesh
• Solve the system on mesh to get the
  solution

17
Oscillating source problem
18
Oscillating source problem
Adaptation en
Adaptation en et
19
Oscillating source problem
20
Formation of a cusp
21
Formation of a cusp (3D)
22
Cusp regular meshes
279936 elements
105456 elements
584016 elements
2239488 elements
23
Cusp adapted meshes
Adaptation on only
28 945 elements
Adaptation on
92 973 elements
24
Rectal protection during prostate cryosurgery
J.C. Bischof et Al, Cryobiology (1997)
25
Rectal protection during prostate cryosurgery
J.C. Bischof et Al, Cryobiology (1997)
26
Liver cryosurgery
J.C. Bischof et Al, Cryobiology (1997)
27
Liver cryosurgery
28
Liver cryosurgery
29
Conclusions

• The semi-phase-field formulation gives good
  results for phase change problems in 1D, 2D and
  3D problems
• Even better results when combined with mesh
  adaptation
• Mesh adaptation is necessary to obtain very
  accurate results both for 2D and 3D problems
• Our adaptive strategy is completely general and
  not specific to phase change problems

30
Source problem
31

• Solution analytique oscillation du cercle

• Nouvelle séquence dadaptation
• Raffinement des arêtes,
• Déraffinement des arêtes,
• Retournement des arêtes,
• Déplacement des sommets.
• Une seule adaptation pour chaque pas de temps.
• On adapte le maillage suivant

32
Oscillating sphere
33
Oscillating cylinder (2D)
34
Oscillating cylinder
Initial mesh
Adapted meshes
8192 elements
around 3000 elements
35
Analytical and numerical solutions
36
Formation of a cusp
Adaptation on
Adaptation on and
37
Formation of a cusp
38

• Solution analytique front vertical

Enthalpie et température après une minute et
position de linterface
39
Weak formulation

• Implicit Euler
• Find and
  such that

40

• Solution analytique front vertical

Formulation à 2 champs
Formulation à 1 champ
41

• Solution analytique front vertical

Formulation à 2 champs
Formulation à 1 champ
42
Oscillating sphere
43
Oscillating sphere (3D)
Exact (red) and numerical (blue) solutions
44
Enthalpy formulation

• Introducing the enthalpy H as a function of T
• H-T formulation
