http:voh'chem'ucla'educlasses159A

1

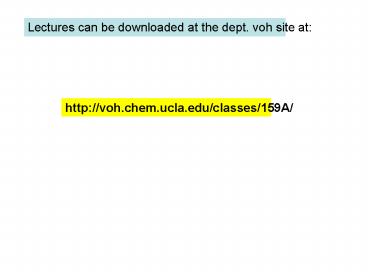

Lectures can be downloaded at the dept. voh site
at
http//voh.chem.ucla.edu/classes/159A/
2
From last time - activation zone up from -40
-40
up
20
and oxyR binds in this zone to activate various
members of its regulon in response to peroxide
and related oxidants.
3
References for oxyR
Zheng, M., F. Åslund, and G. Storz. (1998).
Science 2791718-1721
Kim et. al (2002), Cell, 109383-396
Choi H. et. al. Cell, 105103-113
Lee et al, Nat Struct Mol Biol. (2004) 111179-85
Tao et. al (1995) J. Bact. 177. pp. 6740-44
(later)
4
A little history of peroxide challenge and oxyR
purification
Genetic pathway
Various anti-stress proteins
Peroxide treatment of cells
oxyS
oxyR induction
Some other regulators
5
These forms of oxyR were used in the Storz lab
exps
4 of 6 cysteines inactivated by mutation. (others
not important for transcription - next slide)
DNA-binding domain
199
C C C C C C
208
structure
biochemistry
6
Zheng, M., F. Åslund, and G. Storz. 1998.
Science 2791718-1721
4 cys gone
conclusion only 199/208 needed
7
The oxidized form, when fragmented, shows a
disulfide between 199 and 208 by mass spec.
Next Is the redox system Grx1/glutathione
involved in controlling activity?
8
oxyR-dependent txn. is inactivated by the GrxI
protein and reducing form of glutathione (GSH)
titration
conclusion - the oxidation state of glutathione
can determine whether oxyR will be active. (and
Grx1 acts as a catalyst for the reaction)
9
Transcription starting with reduced oxyR
Reduced oxyR can be re-activated by either
peroxide or the GRX1/glutathione system. So
either direct or Grx1/glutathione oxidation
contributes to the net state.
10
Model Oxidants work directly or indirectly via
glutathione oxidation. The net effect is that
oxyR monitors the cells oxidation status.
inactive
active
11
Choi H. et. al. Cell, 105103-113
They went on to determine the structure of the
oxidized and reduced forms.
Oxidized form A fragment missing the
DNA-binding domain and in which 4
(non-essential) cysteines had been replaced by
site-directed mutagenesis
Reduced form Same as above except C199 has also
been replaced to prevent oxidation.
12
reduced
oxidized
superpositon
disulfide
13
A close-up of the region around the 2 cysteines
This arginine may enhance reactivity by
stabilizing the thiolate anion at cys-199
disulfide
Long distance between cysteines in
reduced, inactive form
Active, oxidized form
14
They also found large changes in contacts between
monomers and speculated about how these could
lead to activation. But this is very far from
clear because the DNA-binding domain and the DNA
are both absent. Moreover, a subsequent paper
must be taken into account.
15
Kim et. al, Cell, Vol 109, 383-396, May 2002

• They were skeptical of the oxyR model for several
  reasons including
• They say only cys199, not its partner cys208, is
  absolutely essential for activity.
• They previously found a form of oxyR in which
  only cys199 was modified,
• in this case to SNO (S-nitrosothiol)
• cys199 and cys208 are so far apart in the
  structure that it would seem to be
• difficult for them to react readily in vivo.
• it didn't fit with their prior speculation about
  the redox changes leading
• to a graded response, rather than acting via an
  on-off switch (see next slide).

16
Annual Review of Genetics December 2003, Vol. 37,
pp. 91-121
Observed oxidized forms of cysteine
Only this matters to Storz
17
Storz model
Kim model
Additional possible oxidants (at cys199?)
nitroso
sulfenic
glutathio
A graded response depending on redox conditions?
18
Essentially, they repeated the mass-spec.analysis
using the native protein and found
"we conclude that C25 and C199 are
solvent-accessible thiols that C143 and C208
are free thiols, albeit buried in the protein
and that C180 and C259 form a disulfide, which
is accessible to reductants in the native
(aerobically purified) state Second, the finding
that residues C180 and C259 (alanines in the
crystal) participate in a disulfide bond is
supported by their very close proximity (5.9 Å).
Third, the crystallographic data places
distantly located C199 and C208 in a disulfide
(despite being 18 Å apart in the truncated
4CysAla mutant protein). We find no evidence
for a disulfide bond between C199 and C208 in
the full-length wild-type OxyR."
Uh-oh!
19
Summary of their results
DNA-binding domain
Solvent accessible
199
C C C C C C
Disulfide in wt protein
20
They made various oxidized forms of the solvent
accessible cysteine 199, (reduced with dtt for
comparison), and tested katG gene
activation. Conclusion all forms are active.
21
Docking (right) shows that GSSG (disulfide
created by glutathione oxidation) fits perfectly
in a site near cys199. If GSSH were created by
oxidation after redox challenge it might go there
and produce cys199-S-G, which is one of their
active forms.
22
CD spectra of the various forms imply a graded
degree of structure change.
And there is some evidence (see the paper) that
each form binds DNA with a unique affinity.
23
(No Transcript)
24
A (very recent) reply to Kim from the Storz/Ryu
groups
Nat Struct Mol Biol. 2004 Dec11(12)1179-85.
Revised protocol Use full length wt protein
(like Kim et al study). Differs in didnt use
air-oxidized protein (Kim purified as
usual). Instead reduce it fully with dtt and then
oxidize with peroxide.
25
Mass spec to see which disulfides form
Reduced - all free CSH
Re-oxidized - 199-208 disulfide
Interpretation they were correct before. Other
group erred in using air-oxidized protein.
26
Now look for role of cysteines in pathway of oxyR
oxidation.

• Protocol
• Modify mutants with a thiol oxidation reagent.
• 2. Detect modification via UV spectroscopy

Mutants used 4CA C208 and C199
left 4CA-C208S only C199 left 4CA-C199S
only C208 left
27
Only when C199 is present alone does S-OH form
350nm known to come from sulfenic acid S-OH
3
Interpretation C199 is modified to S-OH. It is
unstable and then reacts with C208 to form a
disulfide.
1
2
28
no S-OH forms if rxn occurs in presence of
gluathione
29
Proposal (includes rate data)
30
Synthesis/cop-out in review from Georgiou (2002)
Cell 111, 607-610.
Based on the work presented suggest a plausible
model for the role of glutathione in redox
sensing. 250 words or less, please.
