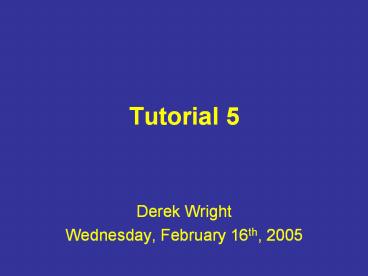

1
Tutorial 5
  • Derek Wright
  • Wednesday, February 16th, 2005

2
Sensors and Image Systems
  • Physical Principles of Sensors
  • Optical Imaging Systems
  • IR Imaging Arrays
  • Electronic Nose
  • Tactile Sensors and Arrays

3
Sensor Basics
  • Sensors are transducers
  • Transducers convert one form of energy to another
  • Alternator in your car turns mechanical into
    electrical
  • Engine converts chemical to thermal to mechanical
  • Eyes convert light into electrical

4
Sensor Basics
  • Sensors either
  • Directly convert one form to another
  • Use one form to change (modulate) another
  • Direct Conversion
  • Solar panel Light ? Electricity
  • Thermocouples Heat ? Electricity
  • Modulating
  • Thermoresistive, Optoresistive Changing
    resistance must be have current driven through it
    to measure

5
Biological Sensor Arrays - Eyes
  • The eye is a biological form of a sensor array
  • It consists of an array of transducers (rods and
    cones)
  • The signals are transmitted by neurons along axons

6
Optical Imaging Systems
  • Array structures allow multidimensional
    measurement to occur
  • Optical Imaging Systems
  • Charge Coupled Devices (CCDs)
  • CMOS Cameras
  • X-ray Imagers

7
Charge Coupled Devices
  • Incident photons cause creation of electron-hole
    pairs
  • Electrons move to insulator boundary under bias
    for storage
  • Charge is shifted out of a row or column by a
    shifting potential
  • Cannot be integrated on the same substrate as
    accompanying electronic circuits

8
CCD Operation
9
CCD Operation
10
CCD Operation
  • http//micro.magnet.fsu.edu/primer/java/photomicro
    graphy/ccd/shiftregister/index.html
  • http//www.extremetech.com/article2/02C39732C154
    652C00.asp

11
CMOS Cameras
  • Can be created with standard CMOS processes
  • Can be integrated with accompanying electronic
    circuits
  • An incident photon creates an electron-hole pair
    in a reverse biased diode
  • Configured to cause charge to drain off of a
    capacitor
  • Photon absorption ? capacitor voltage decrease

12
CCD vs. CMOS Cameras
  • CCD has a better Fill Factor (FF)
  • Better image quality and photon capture
  • Lower noise
  • CCD only outputs the analog charge
  • Must be converted to digital by another chip
  • CMOS has on-chip integration
  • Results in high-speed and low-power
  • Reduces flexibility, but decreases cost

13
X-ray Imagers
  • Amorphous thin film techniques can produce
    large-area x-ray detectors
  • Two types
  • Indirect
  • Direct
  • On-pixel amplification means fewer x-rays needed
    to make an image ? Safer!

14
p-i-n Structure
?Ec
h?
?Ev
i a-SiCH
n a-SiCH
Al
p a-SiCH
ITO
15
X-ray Imagers
  • Indirect Method
  • A top layer of phosphor turns the x-ray into a
    visible discharge
  • Visible photons are then detected by amorphous
    silicon (a-Si) p-i-n photodiodes

16
X-ray Imagers
  • Direct Method
  • Amorphous selenium (a-Se) absorbs x-rays
  • A layer of a-Se with a huge E-field is used
  • It converts x-rays into electron-hole pairs
  • E-field separates them into current

17
IR Imagers
  • Two detection methods
  • Quantum (photon ? e-h pairs)
  • Thermal (photon ? temp?)
  • Useful in night vision systems
  • Police use them in Ontario to find pot grow houses

18
IR Imagers
  • Quantum Detection
  • Photons have an energy hf hc/?
  • If this energy is bigger than the bandgap of a
    detector material, e-h pairs will be created
  • IR has lower energies than visible, so the
    bandgap has to be reduced
  • Detector bandgaps can be tuned from 0eV up
  • These detectors must operate at very low
    temperatures
  • Restricted to special uses

19
IR Imagers
  • Thermal Detection
  • IR photons will turn into heat when they hit
    certain materials
  • The heat can be detected and imaged
  • A pyroelectric material will generate a voltage
    or current proportional to the IR power shining
    on it

20
Microcalorimetric Sensors
  • A heated chamber is kept at a constant
    temperature
  • An incoming gas flow is burned
  • When the gas burns it releases heat energy
  • The released heat results in less heat from the
    chamber to keep a constant temperature
  • Released heat energy can be measure by how much
    less the chamber needs to heat the gas flow

21
Microcalorimetric Sensors
22
Electrochemical Cells
  • Use a catalyst to convert molecules to be
    measured into ions
  • Two modes of operation
  • Amperometric The ions are moved through a
    catalyst and electrolyte to create a current
  • Potentiometric The ions charge a capacitor and
    appear as a voltage

23
Electrochemical Cells
Amperometric
Potentiometric
24
Acoustic Wave Devices
  • Tiny free-standing beams are created through
    micromachining
  • They have a mechanical resonance frequency (?)
  • They are coated in a polymer that adsorbs the
    specific molecules to be observed
  • More molecules stick ? mass? ? ??

25
Acoustic Wave Devices
26
Gas-Sensitive FETs
  • A small channel lets gas pass between the gate
    and the substrate (channel)
  • The underside of the gate can be coated with a
    material to adsorb certain gasses
  • When the gasses adsorb into the coating, it
    changes the threshold voltage

27
Resistive Semiconductor Gas Sensors
  • O2 can act as a p-type dopant in silicon
  • It attacks point defects
  • The number of point defects increases with
    temperature
  • The Si must be heated
  • The more O2 in the silicon, the higher the
    conductivity

28
Resistive Touchscreens
  • Two flexible resistive layers are separated by a
    grid of spacers
  • When the two layers are pressed together the
    resistance can be measured between several points
  • This determines where the two resistive layers
    contacted

29
Resistive Touchscreens
30
Capacitive Touchscreens
  • A conductive layer is covered with a dielectric
    layer
  • The finger represents the other plate of the
    capacitor
  • A kHz signal is transmitted through the
    conductive plate, the dielectric, and the finger
    to ground
  • The current from each corner is measured to
    determine the touch location

31
Capacitive Touchscreens
32
Ultrasound Touchscreens
  • Ultrasonic sound waves (gt40 kHz) are transmitted
    in both the horizontal and vertical directions
  • When a finger touches the screen, the waves are
    damped
  • Receivers on the other side detect where the
    sound was damped
  • Multiple touch locations are possible

33
Ultrasound Touchscreens
34
Fingerprint Sensors
  • An array of tiny capacitive sensors
  • Works similarly to the capacitive touchscreen
  • Finger works as one plate of a capacitor
  • Chip works as the other
  • Sensors are small enough to determine if a
    fingerprint ridge is touching it
  • An image is produced

35
Fingerprint Sensors
