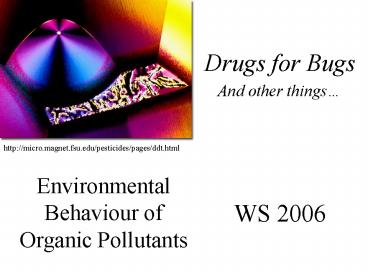

Environmental Behaviour of Organic Pollutants

• Drugs for Bugs
• And other things

http//micro.magnet.fsu.edu/pesticides/pages/ddt.h
tml
WS 2006
2
http//www.ecifm.rdg.ac.uk/pesticides.htm
3
What are Pesticides?

• Toxic to undesired organisms
• Chemically diverse
• Used in crop and health protection
• Persistence and effectiveness causes
  environemental problems
• Central theme in environmental movement

Introduction
4
Types by pest
Introduction
5
Organophosphates Carbamates Organochlorines Pyreth
rins Pyrethroids
Insecticides
Dithiocarbamates Mercurials Copper
Herbicides
Carbamates Phenoxyacetic acids Triazine Phenylurea
s
Fungicides
Introduction
6
Introduction
7
Chlorinated hydrocarbons

• Alkane, Alkene, Aromatic
• Insecticides DDT, Lindan, Toxaphen, Cyclodienes
  (Aldrin, Dieldrin, Heptachlor, Chlordan, Mirex)
• symmetrical compounds, low dipole moment ? highly
  lipophilic and resistant ? bioaccumulate
• Neurotoxins, Activity through MFO (Mixed Function
  Oxidase), Proven resistance development
• Substantial environmental damage, widely
  distributed, wide mode of action, reproductive
  effects (Eggshell thinning, endocrine disruptor
  etc.)

Chlorinated hydrocarbons
8
DDT para-Dichlordiphenyltrichlorethane

• substituted ethane (Cl, Chlorobenzene)
• Condensation of chloral with Chlorobenzene, many
  side reactions (14 substances in commercial DDT)
• Degradation e.g. to DDE (dichlordiphenyltrichloret
  hene) via HCl-splitting, e.g. by
  dehydrochlorinase)
• in the environment (Antarctic) and humans
  (Breastmilk) detectable
• Bioaccumulation
• in Industrialised countries banned, in developing
  countries used against malaria

Chlorinated hydrocarbons
9
Chlorinated hydrocarbons
Data from Connell, 2005
10
Chemical Structures
Chlorinated hydrocarbons
Figure from Connell, 2005
11
DDT production
Chlorinated hydrocarbons
Figure from Connell, 2005
12
DDT in breastmilk
Chlorinated hydrocarbons
Figure from Baird, 1999
13
Lindane, ?-HCH?-Hexachlorcyclohexane

• Synthesis via radical addition of Cl to benzene
  further isomers produced
• in Germany only against bark beetles and headlice
• in developing countries still widely used owing
  to low cost
• Could be in the chocolate you eat!

Chlorinated hydrocarbons
14
Cyclodiene Group

• Synthesis via Diels Alder Reaction of
  hexachlorpentadiene with CC-containing
  Substances
• persistent, bioaccumulating and enhanced mammal
  toxicity
• Used mainly from 1950 to 1970 against ground
  insects, locusts, termites, cockroaches
• Main ones Aldrin, Dieldrin, Endrin, Chlordan,
  Mirex, Heptachlor partially banned and on the
  UNEP POP list
• Endosulfan slightly less problematic because of S
  Group polar, less resistant, less bioaccumulating

Chlorinated hydrocarbons
15
Chlorodene synthesis
Figure from Connell, 2005
Chlorinated hydrocarbons
16
Organophosphates
Figure from Connell, 2005
Organophosphates
17
Organophosphates

• PO, P-O (polar), O-R (nonpolar)
• more water soluble, less persistent than
  chlorinated hydrocarbons (hydrolysis,
  photooxidation also possible)
• Toxicity via blocking of ester splitting enzymes,
  especially acetylcholinesterase (ACh) leading to
  blocking of synapses
• Used since 1950s Main compounds Parathion,
  Malathion, Chlorpyrivos, Iodofenphos, Dichlorvos,
  Glyphosat

Organophosphates
18
Structures
Figures from Connell, 2005
Organophosphates
19
Organophosphates
Data from Connell, 2005
20
Carbamate structure
Figure from Connell, 2005
Carbamates
21
Carbamates

• Insecticides and herbicides
• Ester/amide groups enhance water solubility
• Ester groups easily hydrolysed, oxidation
  possible, thus low persistence
• toxic effect via Ach blockage
• Some toxic to mammals
• Banned in protected water areas
• Known agents Propoxur (Baygon), Carbaryl,
  Pyrimicarb, Atrazin, Simazin

Carbamates
22
Carbamates
Figure from Connell, 2005
23
Pyrethrine und Pyrethroide

• Natural pesticides from Chrysanthemum
  cinerariifolium (Dalmatinische Insektenblume),
  now from Kenya
• Six principle active components
• Neurotoxic, alters Na and K conductance
• lipophilic, but degradable (hydrolysis,
  photooxidation)
• Detoxification via MFO, often combined with
  synergistic MFO blockers
• synthetische pyrethroids Allethrin, Fenvalerat,
  Permethrin, Deltamethrin
• Production comparatively expensive

Pyrethroids
24
Active pyrethrum constituents
Figure from Connell, 2005
Pyrethroids
25
Figure from Connell, 2005
Pyrethroids
26
cuticle
http//www.earthlife.net/insects/anatomy.html
Pyrethroids
27
Phenoxyacetic acid herbicides

• Based on structure of natural hormones
• Polar, high water solubility
• Problems with dioxin contamination, TCDD,
  produced during productions processes or possibly
  in the environment
• 2,4-D 2,4,5-T, MPCA
• Partially banned

Phenoxyacetic acid herbicides
28
Structure
Formation of TCDD
Phenoxyacetic acid herbicides
Figures from Connell, 2005
29
