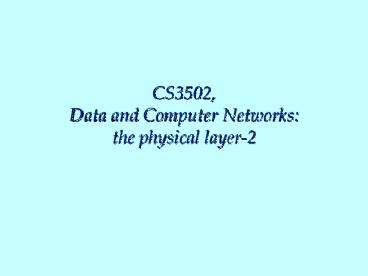

CS3502, Data and Computer Networks: the physical layer2

1
CS3502,Data and Computer Networksthe physical
layer-2

2
channel capacity

• channel - a path, contained in the transmission
  medium, through which signals/bits may pass
• a part of the medium, not all
• channel capacity - maximum number bits/sec the
  channel can support
• factors which determine channel capacity
• bandwidth
• number signal levels
• noise

3
channel capacity

• basic channel capacity formulas
• 2 caseschannel requirement, channel capacity.
• Case 1 The channel capacity required to digitize
  an analog signal which contains the highest
  frequency Fmax
• is given by the Nyquist formula
• R 2 Fmax log2 (V),
• where
• R channel requirement in bps,
• Fmax maximum frequency in hertz
• V signal levels

4
channel capacity

• examples
• 1. Fmax 3100 Hz, 8 signal levels. What is R?
• A R 2(3100) log(8) 18,600 bps
• 2. R 60 Kbps, Fmax is 6000 Hz. How many signal
  levels?
• A ?
• 3. Fmax 10KHz, V is 16. What is R?
• A ?

5
channel capacity

• Case 2 Channel Capacity with noise present.
  Shannon formula.
• C W log2 (1 S/N)
• where
• C channel capacity in bps
  W band width in hz
• S signal strength in Watts
  N noise strength in Watts
• Note 1 upper bound, independent of signal
  levels.
• Note 2 S/N often given in decibels if so, must
  convert to
• absolute ratio using the formula
• S/N dB 10 log10 (S/N)

6
channel capacity

• example
• 1. 30 dB 10 log10 S/N --gt S/N 103
  1000.
• 2. S/N 500, C 1Mb/s. What bandwidth needed?
• A 1 Mb/s W log2 (1500), appr.
• 1000000 W (9)
• W 111111 Hz (approx)
• 3. S/N 40dB, W 6200 Hz.
• A 81,840 (approx.)

7
channel capacity

• note 1 Shannon formulas is an upper bound
  theoretical maximum. Actual data rates often much
  less.
• note 2 noise considered in Shannon is only
  thermal noise no other type of noise.
• note 3 data compression not considered. This can
  raise the data limits considerably.

8
transmission media

• Guided Media
• twisted pair (copper)
• coaxial cable (copper)
• optical fibers (silicon... plastic or glass)
• Unguided Media
• broadcast radio frequencies
• terrestrial microwave
• satellite microwave
• Note take the tables in Text on data rates, etc.
  as a general guide, NOT as absolute truth

9
transmission media twisted pair

• copper a good conductor of electricity
• (side note recent developments by IBM leading to
  use of copper on ICs - better chips)
• 2 copper wires used to form a circuit between
  Xmitter, Rcvr
• twisting gives better electrical properties
• backbone of the local telephone system
• also used for limited long distance telephones
• also heavily used in data comm., LANs
• used for both digital, analog signals

10
transmission media twisted pair

• various quality levels voice grade, Cat 5
• data rates 1-100 Mbps, depending on quality
  voice grade at low end, Cat 5 top end.
• higher quality are more tightly twisted
• advantages
• mature - well known technology
• connections, splices easy
• production, installation techniques well known
• relatively cheap, easy to install

11
transmission media twisted pair

• disadvantages
• cost of copper
• signal attenuation increases with frequency,
  starting at low frequencies
• often needs shield to reduce noise pickup
• susceptible to cross talk if lines close together
• susceptible to lightning strikes
• less bandwidth than most other media
• See text for further explanation

12
transmission media coaxial cable

• a thick cable, consisting of an inner copper core
  surrounded by an insulator, surrounded by another
  conductor (braided shield), wrapped in a
  protective shield and an outer cover. (see
  diagram in text)
• Properties (approx.)
• bandwidth 500Mhz, analog
• data rates 500 Mbps or more
• repeater spacing 1-10 Km
• Two basic types
• broadband
• baseband

13
transmission media coaxial cable

• broadband TV cable, analog signals
• baseband LANs, digital signals
• Uses
• long distance telephone
• cable TV
• LANs
• Note higher capacity than t.p., but also much
  bulkier and difficult to work with in limited
  spaces

14
transmission media coaxial cable

• advantages
• lower attenuation than t.p. at high frequencies
• wider usable bandwidth
• better isolation (less susceptible to
  interference)
• easy to tap
• disadvantages
• physically larger, bulky
• limited bending radius
• heavier
• fire code restrictions on materials

15
transmission media optical fiber

• development of OF a major milestone in
  communications made feasible by invention of
  laser 1960 first fibers developed 1970
• twisted pair 19th century coax 1930 radio
  1900 integrated circuits 1950...
• since about 1988, majority of all U.S. long
  distance traffic over OF, though only about 5 of
  cable is OF.
• due to OF, the networks have potential to be
  faster than the computer ---- a big flip flop

16
transmission media optical fiber

• A thin, flexible medium of extremely pure
  plastic/glass. Thickness about 2-125 microns.
  Core often 62.5 microns.
• much higher data rates from 100M to several G.
• note prop. speed approximately 2/3 c, as with tp
  and coax bits much smaller
• repeater spacing much higher...
• FDDI, DQDB, and SONET all optical fiber standards
• principle each bit is transported by a tiny ray
  of light(darkness), guided by the medium.
• requires extremely accurate transmitters,
  receivers much finer degree of synchronization

17
transmission media optical fiber

• principle total internal reflection
• Two major types of fiber
• 1. multi-mode
• step index
• graded index
• 2. single mode/monomode
• limitations
• modal dispersion (multimode)
• material dispersion (single mode)
• attenuation (single mode, at very high data rates)

18
transmission media optical fiber

• advantages
• much higher bandwidth, real and potential
• very low radiation, noise pickup shielding not
  needed, crosstalk not a problem
• very low attenuation, and little variation in
  .85,1.3,and 1.55 micro- meter range
• not susceptible to lightning, etc.
• small physical size and weight
• cost will decrease
• very difficult to tap

19
transmission media optical fiber

• disadvantages
• cost
• technology less mature
• splicing difficult and critical
• installation more difficult
• Key note fiber has literally made the network
  faster than the computer. We have far to go
  before we reach the potential data rates of
  fiber....

20
unguided media broadcast radio TV

• lower frequency ranges roughly 30KHz-1GHz
• omni-directional
• data rates not as high as microwave, so less
  useful for data, but good for broadcast radio
• better propagation characteristics less
  attenuation, less interference from rain, etc.

21
unguided media

• lower frequency ranges broadcast radio
• 300-3000 kHz MF AM radio
• 3-30 MHz HF shortwave radio, CB
• 30-300 MHz VHF FM radio, VHF TV
• ...
• microwave frequency ranges 1 to 40 GHz
• infrared just below visible light frequency
  1011 - 1014

22
unguided media terrestrial microwave

• focused beam, 1-2 degrees
• high frequencies 3-40 GHz --gt high data rates
• paraboloid shaped antennas
• better repeater spacing than cable
• high data rates
• more susceptible to rain, clouds, dust, etc.
  than others

23
unguided media satellite microwave

• high frequency ( same as terr. uwave)
• geosynchronous satellite --gt repeater in sky
• broadcast media
• 22,300 miles --gt 35,000 Km
• receives, xmits on diff. frequencies to avoid
  interference
• need spacing of 4 deg. between satellites
• significant prop delay 250 ms
• less difficulty with atmosphere
• 3 major differences with terr. microwave
