On Characterizing Performance of the Cell Broadband Engine Element Interconnect Bus

1

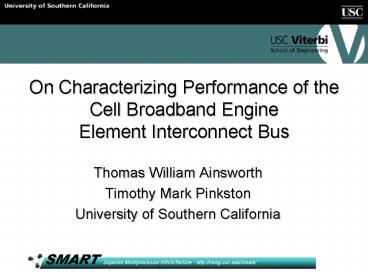

On Characterizing Performance of the Cell
Broadband EngineElement Interconnect Bus

• Thomas William Ainsworth
• Timothy Mark Pinkston
• University of Southern California

2
Outline

• Motivation and Related Work
• Background EIB Requirements
• Latency Analysis
• Throughput Analysis
• Software Considerations

3
Motivation

• With the rise of multi-core computing, the design
  of on-chip interconnection networks has become an
  increasingly important component of computer
  architecture
• In designing NoCs for specific or general purpose
  functions, it is important to understand the
  impact and limitations of various design choices
  in achieving this goal
• The EIB is an interesting OCN to study as it
  provides higher raw network bandwidth and
  interconnects more end nodes than most mainstream
  commercial multi-core processors

4
Related Work on Characterizing NoC Performance

• Academic NoCs
• TRIPS
• Doug Berger, Steve Keckler, and the TRIPS Project
  Team, Design and Implementation of the TRIPS
  EDGE Architecture, ISCA-32 Tutorial, pp 1-239,
  June 2005.
• RAW
• Michael Bedford Taylor, Walter Lee, Saman P.
  Amarasinghe, and Anant Agarwal, Scalar Operand
  Networks, IEEE Transactions on Parallel and
  Distributed Systems, Volume 16, Issue 2, February
  2005.
• Commercial NoCs
• Cell BE EIB
• Thomas Chen, Ram Raghavan, Jason Dale, Eiji
  Iwata, Cell Broadband Engine Architecture and
  its first implementation A performance view, 29
  Nov 2005, http//www-128.ibm.com/developerworks/po
  wer/library/pa-cellperf/
• Fabrizio Petrini, Gordon Fossum, Ana Varbanescu,
  Michael Perrone, Michael D. Kistler, Juan
  Fernandez Peinador, Multicore Surprises Lesson
  Learned from Optimizing Sweep3D on the Cell
  Broadband Engine, IPDPS, 2007

5
Background Cell BE Interconnect Requirements

• Cell BE On-Chip Network Requirements
• Interconnect 12 elements
• 1 PPE with 51.2GB/s aggregate bandwidth
• 8 SPEs each with 51.2GB/s aggregate bandwidth
• MIC 25.6GB/s of memory bandwidth
• 2 IOIF 35GB/s(out), 25GB/s(in) of I/O bandwidth
• Provide coherent and non-coherent data transfer
• Support two transfer modes
• DMA between SPEs
• MMIO/DMA between PPE and system memory

6
Background Element Interconnect Bus (EIB)
1.6 GHz Bus Clock Frequency, Four 16B data rings
(2 per direction)
7
Characterization Approach

• Approach Characterize Network Latency and
  Throughput based on Best- and Worst-Case Network
  Conditions
• Network Latency
• Four phases make up the end-to-end latency
• Latency Sending Phase Command Phase Data
  Phase Receiving Phase
• Sending latency Transport
  latency Receiving latency
• Sending Phase responsible for EIB transaction
  initiation
• Includes all processor/DMA controller activities
  prior to EIB access
• Command Phase sets up inter-element (end-to-end)
  communication
• Informs target element about the impending
  transaction to allow for element to set up
  transaction, performs coherency checking, etc.
• Data Phase handles ring arbitration and data
  transport
• Data ring segment to destination must be free
  before granting access
• Receiving Phase directs the received data to its
  final location
• Local Store, Memory, or I/O

8
Best-case Network Latency

• SPE1 ? SPE6 Non-coherent DMA Transaction
• - Best case for longest EIB transfer

9
Best-case Network Latency - Sending Phase

• Pipeline Latency
• 23 CPU clock cycles
• DMA Issue 10 CPU cycles
• Write SPE local store address
• Write effective address high
• Write effective address low
• Write DMA size
• Write DMA command
• DMA Controller Processing
• 20 CPU clock cycles

Sending Phase (SP) 53 CPU cycles 26.5 Bus
cycles
10
Best-case Network Latency Command Phase
11
Best-case Network Latency Command Phase

• Non-coherent Command Issue 3 Bus cycles

12
Best-case Network Latency Command Phase

• Command Reflection to
• AC1 elements
• 3 Bus cycles

AC2 elements 4 Bus cycles
AC3 elements 5 Bus cycles
13
Best-case Network Latency Command Phase

• Snoop Response 13 Bus cycles

14
Best-case Network Latency Command Phase

• Non-coherent Snoop Combining 3 Bus cycles

15
Best-case Network Latency Command Phase

• Final Snoop Response to
• AC1 elements
• 3 Bus cycles

AC2 elements 4 Bus cycles
AC3 elements 5 Bus cycles
16
Best-case Network Latency Command Phase

• Command Issue Command Reflection Snoop
  Response
• Combined Snoop Response Final Snoop Response

Non-coherent Command Phase 31 Bus cycles
Additional latency for coherent transactions 12
Bus cycles
17
Best-case Network Latency Data Phase
18
Best-case Network Latency Data Phase

• Data Request to Arbiter 2 Bus Cycles
• Data Arbitration 2 Bus Cycles
• Data Bus Grant 2 Bus Cycles

Time of Flight 6 Bus Cycles Transmission Time
8 Bus Cycles
Data Phase (DP) 20 Bus cycles
19
Best-case Network Latency - Receiving Phase
Move data from BIU to MFC 1 Bus cycle Move
data from MFC to LS 1 Bus cycle
Receiving Phase (RP) 2 Bus cycles
20
Best-case Total Latency

• For non-coherent, SPE to SPE transfers

Sending Phase (SP) 53 CPU cycles 26.5 Bus
cycles
Non-coherent Command Phase 31 Bus cycles
Data Phase (DP) 20 Bus cycles
Receiving Phase (RP) 2 Bus cycles
Non-coherent Network Latency 79.5 Bus cycles
21
Best-case Total Latency

• For memory coherent transfers

Sending Phase (SP) 53 CPU cycles 26.5 Bus
cycles
Non-coherent Command Phase 31 Bus cycles
Additional latency for coherent transactions 12
Bus cycles
Data Phase (DP) 20 Bus cycles
Receiving Phase (RP) 2 Bus cycles
Coherent Network Latency 91.5 Bus cycles
22
Worst-case Network Latency Estimates

• Worst-case latency for a coherent transfer to
  memory controller
• Assumptions
• Maximum number of command requests ahead of
  transfer
• Maximum number of data transactions with same
  destination as transfer
• Only includes EIB worst-case, not PPE/SPE worst
  case
• No cache/LS misses
• No pipeline stalls

23
Worst-case Network Latency Command Phase

• Command Phase
• There are a total of 240 request slots available
  across all other elements
• 64 MIC slots 16 element slots x 11 elements
• Since each request uses two slots for both the
  sender and the receiver, there are a total of 120
  outstanding transactions that could be in the
  queue.
• One command per transaction
• Round-robin arbitration
• Command rate of 1 for every two clock cycles
• 120 commands x 2 Bus cycles 240 Bus cycles

Worst-case Command Phase 240 Bus cycles
24
Worst-case Network Latency Data Phase

• Data Phase
• If all elements are trying to write to the MIC
  then there is a maximum of 64 transfers
• In this worst-case, the MIC can only handle 1
  write every 8 bus cycles
• 64 transfers x 8 bus cycles 512 bus cycles

Worst-case Data Phase 512 Bus cycles
25
Worst-case Total Latency

• Worst-case transfer

Sending Phase (SP) 53 CPU cycles 26.5 Bus
cycles
Worst-case Command Phase 240 Bus cycles
Worst-case Data Phase 512 Bus cycles
Receiving Phase (RP) 2 Bus cycles
Worst-case Coherent Network Latency 780.5 Bus
cycles
26
Throughput

• End-to-End Throughput Analysis
• Network Injection/Reception Bandwidth 307.2
  GB/s
• 12 elements
• 32B (read and write) data per bus cycle
• ½ x 32B x 1.6 GHz x 12 nodes 307.2 GB/s
• Network Bisection Bandwidth
• Unidirectional ring data width 16B
• 4 rings, two in each direction
• 3 concurrent transfers per ring
• 16B x 1.6 GHz x 4 rings x 3 transfers per ring
  307.2 GB/s

Injection bandwidth
Bisection bandwidth
Reception bandwidth
27
Cell BE EIB Throughput

• Cell BE EIB Sustainable Effective
  Bandwidth
• Command Phase Limitations (Non-coherent
  Transfers)
• Max. effective bandwidth 204.8GB/s
  (non-coherent transfers)
• Command bus is limited to 1 request per bus cycle
• Each request can transfer 128B

• Command bus allows the issuing of up to one
  transaction per cycle
• Each ring can issue one new transaction every 3
  cycles (grey cycles indicate a ring is
  unavailable)
• Command bus cannot sustain more than 8
  concurrent transactions at any given time

Sustainable Effective Bandwidth (non-coherent)
204.8 GB/s
28
Cell BE EIB Throughput

• Cell BE EIB Sustainable Effective
  Bandwidth
• Command Phase Limitations (Coherent Transfers)
• Max. effective bandwidth 102.4 GB/s (coherent
  transfers)
• Command bus is limited to 1 coherent request per
  2 bus cycles
• Each request transfers 128B

Sustainable Effective Network Bandwidth
(coherent) 102.4 GB/s
29
Cell BE EIB Throughput (Best-Case)

• Cell BE EIB Calculated vs. Measured Effective
  Bandwidth

BWNetwork ? 204.8 /1 GB/s
197 GB/s (measured)
Injection bandwidth 25.6 GB/s per element
Reception bandwidth 25.6 GB/s per element
g 1
Command Bus Bandwidth
BWBisection 8 links 204.8 GB/s
204.8 GB/s
Network injection
Network reception
Aggregate bandwidth
Peak BWNetwork of 25.6 GB/s x 3 x 4 307.2 GB/s
(4 rings each with 12 links)
(12 elements)
(12 elements)
1,228.8 GB/s
(3 transfers per ring)
307.2 GB/s
307.2 GB/s
r can, at best, reach 100 since no ring
interferrence
Contention-free traffic pattern
30
Cell BE EIB Throughput (Worst-Case)

• Cell BE EIB Calculated vs. Measured Effective
  Bandwidth

BWNetwork ? 204.8 /1 GB/s
78 GB/s (measured)
g 1
Injection bandwidth 25.6 GB/s per element
Reception bandwidth 25.6 GB/s per element
Command Bus Bandwidth
BWBisection 8 links 204.8 GB/s
204.8 GB/s
Network injection
Network reception
Aggregate bandwidth
Peak BWNetwork of 25.6 GB/s x 3 x 4 307.2 GB/s
(4 rings each with 12 links)
(12 Nodes)
(12 Nodes)
1,228.8 GB/s
(3 transfers per ring)
307.2 GB/s
307.2 GB/s
Contention due to traffic pattern
r limited, at best, to only 50 due to ring
interferrence
31
Software Considerations

• The network should not be considered in isolation
  of the rest of the system, nor the system in
  isolation of the network
• Due to the wide range of performance of EIB, Cell
  BE software developers must consider EIB
  strengths and limitations
• Software should plan transactions in order to
  take full advantage of the EIB
• Traffic patterns
• Latency can be mitigated through bandwidth
• Software cache, double-buffering, pre-fetching,
  etc.
• SPE tasks should be carefully assigned
• Context switches will take at least 5
  microseconds (7700 bus cycles) assuming no bus
  contention, no waiting for memory, and no
  outstanding EIB transactions

32
Closing Remarks

• The design of interconnection networks is
  end-to-end
• Injection links/interface ? network fabric ?
  reception links/interface
• Topology, routing, arbitration, switching, flow
  control, marchitecture are among key aspects in
  realizing high-performance designs
• Cell BEs EIB requires a delicate balance
• Capable of providing high bandwidth
• Should not overlook EIB control and end-to-end
  effects
• Performance characteristics are highly dependent
  on how the network is used
• Software teams cannot rely on the compiler to
  handle Cell for them (at least not yet)
• Manual and semi-automated workload management is
  necessary
• Future Work
• This analysis is only a first step
• Further analysis using simulation/hardware-based
  evaluation will give better insight and
  understanding into the EIB

33
Questions
34
Network Characterization Summary
35
Acronym List

• CBE - Cell Broadband Engine
• PPE - POWER Processing Element
• SPE - Synergistic Processing Element
• ISA - Instruction Set Architecture
• DMA - Direct Memory Access
• MMIO Memory Mapped Input/Output
• EIB - Element Interconnect Bus
• MFC - Memory Flow Controller
• LS - Local store
• SIMD - Single Instruction Multiple Data
• NoC Network on Chip
• OCN - On-chip Network
• SO - Sending Overhead
• TF - Time of Flight
• TT - Transmission Time
• RO - Receiver Overhead

36
References

• 1 William J. Dally, Interconnect limited VLSI
  architecture, in Proceedings of International
  Interconnect Technology Conference, pp 15-17, May
  1999.
• 2 William J. Dally and Brian Towles, Route
  Packets, Not Wires On-Chip Interconnection
  Networks, in Proc. of the Design Automation
  Conf., pp 684-689, ACM, June 2001.
• 3 Luca Benini and Giovanni De Micheli,
  Networks on Chip A New SoC Paradigm, IEEE
  Computer, Volume 35, Issue 1, pp 70-80, January
  2002.
• 4 Ahmed Hemani, Axel Jantsch, Shashi Kumar,
  Adam Postula, Johnny Oberg, Mikael Millberg, and
  Dan Lidqvist, Network on a Chip An Architecture
  for Billion Transitor Era, in Proc. of the IEEE
  NorChip Conference, Nov., 2000.
• 5 Marco Sgroi, M. Sheets, A. Mihal, Kurt
  Keutzer, Sharad Malik, Jan M. Rabaey, and Alberto
  L. Sangiovanni-Vincentelli, Addressing the
  system-on-a-chip interconnect woes through
  communication-based design, in Proceedings of
  Design Automation Conference, pp 667-672, June
  2001.
• 6 IBM CoreConnect, Technical Report,
  www.chips.ibm.com/products/powerpc/cores, 2000.
• 7 Kanishka Lahiri, Anand Raghunathan, and
  Ganesh Lakshminarayana, LotteryBus A New
  High-Performance Communication Architecture for
  System-on-Chip Designs, in Proc. of the Design
  Automation Conf., ACM, June 2001.
• 8 David Flynn, AMBA Enabling Reusable On-Chip
  Designs, IEEE Micro, pp 20-27, July/August 1997.
• 9 Rakesh Kumar, Victor Zyuban, and DeanM.
  Tullsen, Interconnections in Multi-Core
  Architectures Understanding Mechanisms,
  Overheads, and Scaling, in Proceedings of the
  International Symposium on Computer Architecture,
  IEEE Computer Society, June 2005.
• 10 Jian Liang, Sriram Swaminathan, and Russell
  Tessier, aSoC A Scalable, Singlechip
  Communications Architecture, in Intl Conference
  on Parallel Architectures and Compilation
  Techniques, pp 37-46, October 2000.
• 11 Pierre Guerrier and Alain Greiner, A
  Generic Architecture for On-Chip Packet-Switched
  Interconnections, in Proceedings of the Design
  Automation and Test in Europe, pp 250-256, March
  2000.
• 12 Adrijean Adriahantenaina, Herv e Charlery,
  Alain Greiner, Laurent Mortiez, and CesarAlbenes
  Zeferino, SPIN A Scalable, Packet Switched,
  On-Chip Micro-Network, in Proceedings of the
  Design, Automation and Test in Europe Conference,
  March 2003.
• 13 Shashi Kumar, Axel Jantsch, Juha-Pekka
  Soininen, Martti Forsell, Mikael Millberg, Johnny
  Oberg, Kari Tiensyrja, and Ahmed Hemani, A
  Network on Chip Architecture and Design
  Methodology, in Proceedings of the IEEE Computer
  Society Annual Symposium on VLSI, pp 105-112,
  2002.
• 14 Jacob Chang, Srivaths Ravi, and Anand
  Raghunathan, FLEXBAR A Crossbar Switching
  Fabric with Improved Performance and
  Utilization, in Proceedings of the IEEE CICC, pp
  405-408, 2002.
• 15 A. Brinkmann, J. C. Niemann, I. Hehemann, D.
  Langen, M. Porrmann, and U. Ruckert, On-chip
  Interconects for Next Generation
  Systems-on-Chips, in Proc. of the 15th Annual
  IEEE Intl ASIC/SOC Conf., pp 211-215, Sept 2002.
• 16 Timothy Mark Pinkston and Jeonghee Shin,
  Trends Toward On-Chip Networked Microsystems,
  in International Journal of High Performance
  Computing and Networking, Volume 3, Number 1, pp
  3-18, December 2005.
• 17 Joan-Manuel Parcerisa, Julio Sahuquillo,
  Antonio Gonzalez, and Jose Duato, Efficient
  Interconnects for Clustered Microarchitectures,
  in Proceedings of 2002 International Conference
  on Parallel Architectures and Compilation
  Techniques, September 2002.
• 18 Aneesh Aggarwal and Manoj Franklin,
  Hierarchical Interconnects for On-chip
  Clustering, in Proc. of Intl Parallel and
  Distributed Processing Symposium, April 2002.
• 19 Shubhendu S. Mukherjee, Peter Bannon, Steven
  Lang, Aaron Spink, and David Webb, The Alpha
  21364 Network Architecture, in Proceedings of
  Hot Interconnects 9, pp 113-117, August 2001.

37
References (Continued)

• 23 Doug Berger, Steve Keckler, and the TRIPS
  Project Team, Design and Implementation of the
  TRIPS EDGE Architecture, ISCA-32 Tutorial, pp
  1-239, June 2005.
• 24 Ramadass Nagarajan, Karthikeyan
  Sankaralingam, Doug Burger, and Stephen W.
  Keckler, A design space evaluation of grid
  processor architectures, in Proceedings of the
  34th Annual International Symposium on
  Microarchitecture, pages 40-51, December 2001.
• 25 H. Peter Hofstee, Power Efficient Processor
  Architecture and the Cell Processor, in
  Proceedings of the Eleventh Intl Symposium on
  High-Performance Computer Architecture, IEEE
  Computer Society, February 2005.
• 26 Kevin Krewell, Sun's Niagara Pours on the
  Cores, Microprocessor Report, Vol. 18, No. 9, pp
  1-3, Sept., 2004.
• 27 James M. Baker Jr., Brian Gold, Mark
  Bucciero, Sidney Bennett, Rajneesh Mahajan,
  Priyadarshini Ramachandran, and Jignesh Shah,
  SCMP A Single-Chip Message-Passing Parallel
  Computer, in the Journal of Supercomputing,
  Volume 30, pp 133-149, 2004.
• 28 Terry Tao Ye, Luca Benini, and Giovanni De
  Micheli, Packetized On-Chip Interconnect
  Communication Analysis for MPSoC, in Proceedings
  of the Design, Automation and Test in Europe
  Conference, pp 344-349, March 2003.
• 29 Peter N. Glaskowsky, IBM raises curtain on
  Power5, Microprocessor Report, Volume 17, Issue
  10, pp 13-14, October 2003.
• 30 Joel M. Tendler, Steve Dodson, Steve Fields,
  Hung Le, and Balaram Sinharoy, POWER4 system
  microarchitecture, IBM Journal of Research and
  Development, Volume 46, Issue 1, pp 5-26, January
  2002.
• 31 Seon Wook Kim, Chong-Liang Ooi, IlPark,
  Rudolf Eigenmann, Babak Falsafi, and T. N.
  Vijaykumar, Multiplex unifying conventional and
  speculative thread-level parallelism on a chip
  multiprocessor, in Proc. of Intl Conference on
  Supercomputing, pp 368-380, June 2001.
• 32 J. A. Kahle, M. N. Day, H. P. Hofstee, C. R.
  Johns, T. R. Maeurer, and D. Shippy,
  Introduction to the Cell multiprocessor, IBM
  Journal of Research and Development, Volume 49,
  Number 4/5, 2005.
• 33 Thomas Chen, Ram Raghavan, Jason Dale, Eiji
  Iwata, Cell Broadband Engine Architecture and
  its first implementation A performance view, 29
  Nov 2005, http//www-128.ibm.com/developerworks/po
  wer/library/pa-cellperf/.
• 34 Timothy M. Pinkston and Jose Duato,
  Appendix E Interconnection Networks in
  Computer Architecture A Quantitative Approach,
  4th Edition, by John L. Hennessy and David A
  Patterson, pp 1-114, Elsevier Publishers, 2007.
• 35 Mike Kistler, Michael Perrone, and Fabrizio
  Petrini, Cell Microprocessor Communication
  Network Built for Speed, IBM Austin Research
  Lab, White Paper.
• 36 Mike Kistler, (Private Communication), IBM,
  Austin, TX, June 2006.
• 37 Scott Clark, (Private Communication), IBM,
  Rochester, MN, December 2005.
• 38 Scott Clark, (Private Communication), IBM,
  Rochester, MN, June/July 2006.
• 39 David Krolak, Just like being there Papers
  from the Fall Processor Forum 2005 Unleashing
  the Cell Broadband Engine ProcessorThe Element
  Interconnect Bus, November 29, 2005,
  http//www-128.ibm.com/developerworks/power/librar
  y/pa-fpfeib/.
• 40 Michael B. Taylor. Scalar Operand Networks
  for Tiled Microprocessors, invited talk at the
  Workshop on On- and Off-chip Interconnection
  Networks, Stanford University, December 2006.
• 41 DeveloperWorks, IBM, Meet the experts The
  Mambo team on the IBM Full-System Simulator for
  the Cell Broadband Engine processor, 22 Nov
  2005, http//www-128.ibm.com/developerworks/librar
  y/pa-expert7/.
