Title: Development and Implementation of Automated Code Compliance Checking


1

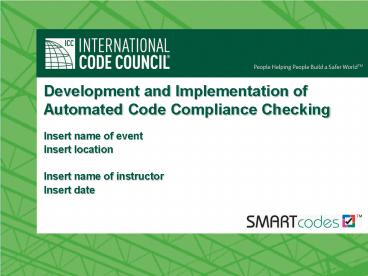

Development and Implementation of Automated Code
Compliance Checking
  • Insert name of event
  • Insert location
  • Insert name of instructor
  • Insert date

2
ICC Project Goal
  • Automate code compliance checking for the
    I-Codes and Federal, state and locally adopted
    versions of those codes leading to….
  • …. enhanced communication, knowledge and
    collaboration
  • …. more complete code complying designs
  • …. more timely and accurate design
    acceptance and approval
  • …. improved building safety and performance
  • …. reduced construction costs

3
Current Process

4
Future Process

5
Building Information Model
  • Physical and functional characteristics of a
    building (data) in digital format
  • … a shared knowledge source or database of
    intelligent information about a facility
  • … stays with the building forever and is enhanced
    over time
  • … can be seamlessly maintained and used by all

6
Interoperability
IFC
BIM
IFC
Source Lars Bjorkhaug modified. Pictures from
Selvaagbygg, DDS, Sintef BI, NBLN University of
California, CIFE Stanford, Pythagoras and Oluf
Granlund Yo.
7
Model Checking Software
  • Software tools that can read a BIM and provide
    any number of different types of output related
    to the building and its systems as represented in
    the BIM

Codes, rules and regulations in a format that
allows them to be applied by model checking
software to identify conflicts between the BIM
and the codes, rules and regulations
8
Automated Code Compliance Checking
9
Automated Code Compliance Checking
10
Automated Code Compliance Checking
11
Project Overview
  • Dictionary details associated with terms,
    properties and values that provide a basis for
    communication between SMARTcodes, MCS and BIM
  • SMARTcodes A process and software for making
    codes and other criteria smart
  • MCS and BIM ASW Availability of software that
    can apply SMARTcodes and can provide for code
    checkable BIMs

12
Project Overview
  • BIM Gallery Availability of BIMs for real
    buildings for demonstration and
    testing/validation purposes
  • Manual Code Search Ability to address code
    questions directly in the absence of a BIM
  • Data Drill Down Availability of information
    relevant to the application of the codes

13
Project Overview
  • Communications Outreach to and a pipeline for
    input from the building industry
  • Market Research Facilitating market access to
    and use of SMARTcodes
  • Collaboration Identification of and
    collaboration with relevant stakeholders,
    organizations and interested parties

14
ICC Achievements to Date
  • Invested in SMARTcodes project
  • Created robust project plan to guide ICC efforts
  • Assembled ICC project team of ICC staff, private
    sector experts and public sector users
  • Established a task group of federal, state and
    local officials to guide project
  • Creating U.S. dictionary with CSI and
    participating in similar efforts globally

15
ICC Achievements to Date
  • Developed a unique process, protocol and software
    to create SMARTcodes
  • Collaborated with other buildingSMART initiatives
    and interested parties
  • Demonstrated auto code check, manual code search
    and supporting data drill down for IECC
  • Conducting market research
  • Implemented robust communications plan

16
Future Plans
  • Complete efforts on and make 2006 IECC SMARTcodes
    available
  • Conduct work to ensure BIMs will contain
    information to support, and model checking
    software can perform auto code checking
  • Continue creation of SMARTcodes until all key
    I-Codes are completed

17
Future Plans
  • Facilitate availability of smart Federal, state
    and local amendments to I-Codes and referenced
    standards
  • Provide for manual search of SMARTcodes and
    availability of support information
  • Continue to collaborate with relevant initiatives
    and organizations

18
Questions, Suggestions or Comments?
To get involved contact Dave Conover or
Eunice Lee ICC 500 New Jersey Avenue 6th
Floor Washington, DC 20001 dconover_at_iccsafe.org el
ee_at_iccsafe.org www.smartcodes.org
19
Frequently Used Acronyms
  • AC3 Automated Code Compliance Checking
  • BIM Building Information Model
  • BIM ASW BIM Authoring Software
  • IFC Industry Foundation Classifications
  • MCS Model Checking Software
  • NBIMS National BIM Standard
