An Intelligent Tutoring System (ITS) for Future Combat Systems (FCS) Robotic Vehicle Command

1

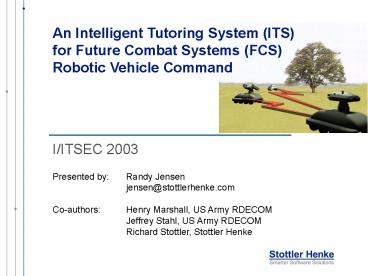

An Intelligent Tutoring System (ITS) for Future
Combat Systems (FCS) Robotic Vehicle Command

• I/ITSEC 2003

Presented by Randy Jensen jensen_at_stottlerhenke.
com Co-authors Henry Marshall, US Army
RDECOM Jeffrey Stahl, US Army RDECOM Richard
Stottler, Stottler Henke
2
FCS Concept - Background

• Distributed robotic vehicles and sensors are
  networked to control vehicles, providing
• heightened situational awareness
• extended sensor capabilities
• reduced human risk

3
FCS Training Challenge

• New paradigm requires scenario-based practice for
  FCS warfighters
• Formal tactical doctrine for FCS operational
  concept has not been developed
• Desirable to minimize costs of developing and
  administering training reduce requirements for
  human instructors and simplify scenario
  definition
• Intelligent Tutoring Systems are effective for
  simulating some of the benefits of a human
  instructor, especially for a domain with focused,
  task-based exercises

4
Simulation Testbed

• Embedded Combined Arms Tactical Training and
  Mission Rehearsal (ECATT/MR) testbed developed at
  RDECOM
• Multi-screen control interface, on OTB simulation
• Software for controlling simulated entities is
  the same as that used for operating robotic
  vehicles

5
Testbed User Interface Closeup
6
Intelligent Tutoring System (ITS) Architecture
Overview

• Simulation Interface provides two forms of data
  to Evaluation Machines
• Simulation states
• Student actions
• Instructional Manager sends notifications back to
  the student in the OCU environment, based on
  conclusions from the Evaluation Machines

7
Principle-Based Evaluation
Distinct evaluation mechanisms indexed to
instructional principles
8
FCS ITS Instructional Principle Categories

• TACTICAL DECISION MAKING
• Students ability to interpret the tactical
  situation and commanders intent, and decide what
  should be done
• Example Use airborne sensor assets to
  complement knowledge from ground-based vehicles

• COMMAND FORMULATION
• Students ability to translate tactical decisions
  into commands or orders that can be executed

• EXECUTION
• Students application of correct buttonology in
  execution

9
FCS ITSInstructional Principle Examples
TASK
Use terrain concealment to detect enemy
positions from Unmanned Ground Vehicles
(UGVs) without being detected
10
FCS ITS Instructional Principle Examples TACTICAL
TACTICAL Before cresting hills in terrain, halt
UGV and use mast sensors to scan for enemy
11
FCS ITS Instructional Principle Examples COMMAND
FORMULATION
COMMAND FORMULATION When UGV movement will
include successive halt and resume, control the
vehicle with draggable points in the OCU
12
FCS ITS Instructional Principle Examples
EXECUTION
EXECUTION The main HALT control halts all
vehicles the HALT control under Assign Task
halts the current vehicle
13
Finite State Machine (FSM) Based Evaluations

• What are they?
• Transition networks executing in coordination
  with a simulation to gather data about
  instructionally significant events and states,
  and make evaluation conclusions in real time
• Why use them in an ITS?
• Several benefits
• Modularity they can be used separately or in
  conjunction for a variety of scenarios
• Instructional correspondence individual
  instructional principles can be associated with
  independent evaluations
• Integration the FSM structure is easily
  integrated with free-play simulations and maps
  well to diagnosis of widely varied outcomes
• Authoring ease they can be represented
  visually, making them easy for non-programmers to
  create, maintain, and revise

14
Evaluation Machine Example
TACTICAL Before cresting hills in terrain, halt
UGV and use mast sensors to scan for enemy
15
Lessons Learned

• Automated evaluation is suited for the domain of
  training the employment of robotic vehicles under
  the FCS concept
• Streamlining domain-specific requirements
  (simulation integration, scoping training
  objectives, etc.) reduces ITS development time
  and cost
• Preferable to avoid scenario-specific evaluation
• Example Identifying terrain where a UGV has an
  exposed hull.
• Scenario-specific approach Manually annotate
  areas on the map that represent hill crests where
  a UGV would be exposed
• Scenario-independent approach Use dynamic line
  of sight (LOS) calculations in the simulation to
  determine exposure

16
Future Work

• Full system development with a rigorous
  collection of scenarios
• Enhanced feedback mechanisms, potentially with
  controls to pause or rewind the simulation
• Team training extensions
• Similar architecture applies in the team setting
• Scalable principle hierarchy supports reuse with
  scenarios involving a superset of instructional
  concepts
• ITS capabilities proposed for Integration into
  the Tank and Automotive Research and Development
  Command (TARDEC) Crew instrumentation and
  Automation Testbed
