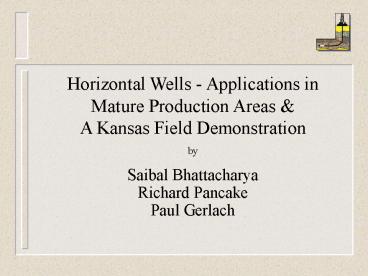

Horizontal Wells Applications in Mature Production Areas

1
Horizontal Wells - Applications in Mature
Production Areas A Kansas Field
Demonstration by Saibal BhattacharyaRichard
PancakePaul Gerlach
2
Outline

• Tools for identifying candidate applications
• Production data analysis
• Geologic mapping
• Integration of production and geologic data
• Field level volumetrics
• Lease level volumetrics
• Field demonstration - horizontal infill well
• Reservoir characterization and Simulation
• Details of well work

3
Identifying candidate applicationsProduction
data - oil cut changes

• Heterogeneity
• Vertical K
• Compartments
• Poor sweep
• Residual reserves

Schaben Field Ness County, Kansas
4
Identifying candidate applicationsProduction
data - IP Cumulative data
Welch-Bornholdt-Wherry Field, Rice County,
Kansas Producing Formation Mississippian
5
Identifying candidate applicationsPrimary
Infill Production data
Aldrich Field, Ness County, Kansas Discovered
1929 Producing Formation Mississippian
Cum Prod 1,044 MSTB 15 wells - 40 acre Primary
production 70 MSTB/well
8 Vertical Infill Wells
Infill Well
Original Well
6
Identifying candidate applicationsPrimary
Infill Production data
Excessive Spacing and Inadequate Drainage
8 Vertical Infill Wells Additional Production
553 MSTB Approx 70 MSTB / Infill well
7
Identifying candidate applicationsGeologic
mapping - structure derivative
Fold Induced Fractures
Welch-Bornholdt-Wherry Field, Rice County, Kansas
8
Identifying candidate applicationsGeologic
mapping - structure derivative
Axis of Anticlinal Attic
Hollow-Nikkel Field, Harvey County, Kansas
9
Identifying candidate applicationsIntegrating
Production Geologic data
Poor Sweep - Vertical Wells in Updip
Stratigraphic Trap
Welch-Bornholdt- Wherry Field Rice County, Kansas
10
Identifying candidate applicationsField level
volumetrics - OOIP/Qtr section
Welch-Bornholdt-Wherry Fields Discovered
1924 Producing Reservoir Mississippian
Osage Trap Type Stratigraphic Cumulative
Production 60 MMBO Original Oil in Place per
Quarter Section CI 500 MBO / qtr. section
Using data from one type well per 1/4 section
10 MMBO
5 MMBO
11
Identifying candidate applicationsField level
volumetrics - Rec. Eff/Qtr section
Recovery Efficiency per Quarter Section CI 2
Welch-Bornholdt-Wherry Fields
18
2
12
Identifying candidate applicationsLease Level
Volumetrics - Recovery factors
Hodgeman County, Kansas Mississippian
13
Identifying candidate applicationsLease Level
Volumetrics - Recovery factors
Horizontal Well Application in a Lease with Low
Recovery Efficiency
14
Outline

• Tools for identifying candidate applications
• Field demonstration - horizontal infill well
• Reservoir characterization Simulation
• Geologic model
• Reservoir model
• Engineering analysis
• Reservoir simulation
• History match
• Map residual reserves
• Performance prediction
• Details of well work

15
Reservoir CharacterizationGeologic Model
Geologic model log (Gr, Res), core, production,
DST data Maps cross-sections of Mississippian
sub-units 5 layered reservoir model
16
Reservoir CharacterizationReservoir Model
Identification of dominant lithofacies - core
studies LP1, LP2, LP3 - moldic pack-wackestone
HP1 HP2 - moldic packstone Layer porosity -
lower of that calculated from phi-K correlation,
and the highest value measured on plugs with same
dominant lithofacies
17
Reservoir Characterization - Storativity
Layer LP3
Layer LP2
Layer LP1
Layer HP2
Layer HP1
18
Engineering AnalysisProduction History
Reconstruction
Lease production - allocated to wells Water
production approximated when data unavailable
-Ummel 2
19
Engineering AnalysisReservoir Simulation -
History Match
20
Reservoir SimulationMapping Residual Potential
21
Performance PredictionPerformance Prediction -
Infill
22
Outline

• Tools for identifying candidate applications
• Field demonstration - horizontal infill well
• Reservoir characterization and simulation
• Details of well work
• Original Plugged Wellbore
• Drill Out Cement Plugs Set CIBP
• Set Whipstock Mill Casing
• Drill Build Section
• Drill Lateral Section
• Set Liner
• Final Completion
• Coiled Tubing Workover

23
Original Plugged Well
24
Set Whipstock - Mill Casing
25
Running whipstock and starting mill
Starting mill
Shear bolt
Whipstock
26
Drill Build Section
27
Drill Lateral Section
28
Directional Drilling Assembly
Motor angle
Drill bit screws here
29
Installing MWD Tool
Pulpit transmits readings to surface by
generating pressure pulses
30
Directional Drilling Trailer
MWD computers
MWD workbench
31
Reservoir Heterogeneity

• Strong Horizontal Heterogeneity
• 10 - 100 Interval
• Karst Controlled
• Result Poor Lateral Drainage

32
Final Completion
33
Breakdown of Rig Time

• Approximate of
• Work Performed Rig Hours Total
• Drilling out cmt setting CIBP 82.0 23.5
• Setting whipstock milling csg 84.5 24.2
• Drilling build section 120.0 34.4
• (actual drilling time) (27.8) (8.0)
• Drilling lateral section 52.0 14.9
• (actual drilling time) (32.8) (9.4)
• Setting liner through the curve 10.0 2.9
• Total 348.5 100

34
Drilling Completion Costs

• Intangible Drilling Costs 317,497
• Intangible Completion Costs 32,422
• Equipment 44,765
• Total 394,684
• DOE Reimbursement 116,776
• Net Cost to Mull Drilling Co. 277,908

35
Initial Production

• IP 85 BOPD 54 BWPD (4/29/00)
• Daily Prod
• 55 BO 50 BW
• for 2-1/2 months (May to mid-July)
• with 1000 of fluid over pump

36
Initial Production Problems
July 31st production 18 BOPD 32 BWPD, pumped
off
37
Complete Production Loss
38
Workover Operations
39
Halliburton coiled tubing and nitrogen foam
equipment
40
Weatherford 2.6 mill and mud motor
Mud motor
2.6 mill
41
Testing 1-1/2 jetting nozzle
42
Workover Operations
43
Lessons Learned

• Operational Flexibility (Maintain Your Options)
• New Well vs. Reentry
• Hole Size
• Drilling Fluids
• Case off the Curve
• Line the Lateral
• Good Planning
• Communication
• The Lateral is a Piece of Cake
• Horizontal Heterogeneity

44
Applying What We Learned

• Horizontal Well Supported Reservoir
  Characterization
• Mechanical Failure Made Horizontal Well
  Uneconomic
• Application of Reservoir Characterization
  Resulted in Extremely Successful Workover in the
  Field
