AsahiAmerica Thermoplastic Valves

1

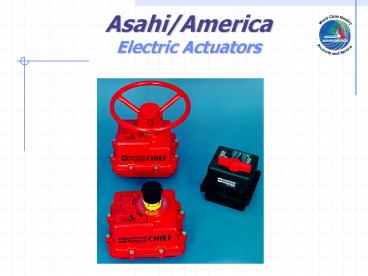

Asahi/AmericaElectric Actuators
2
Asahi/AmericaElectric Actuators
Series 92
3
Asahi/AmericaElectric Actuators
Thermal Overload Protection
Nema 4x, 7 9 rated
The Total Package
Heat-treated Hardened Spur Gear
Extended Duty Cycle
4
Asahi/America Series 92 Electric Actuators
Manual
Override
Heat Treated
Steel Gearing
Epoxy Coated
SS Trim
5
Asahi/AmericaSeries 92 Electric Actuators
Model Torque In/lb Duty Cycle S-92 400
100 A-92 700 75 B-92 1100
100 C-92 2000 50 All Duty Cycles are
based on Ambient Temperature


6
Asahi/AmericaSeries 92 Electric Actuators

• Standard Features
• Reversing Motor
• 5 or 10 second Cycle Time per 90º
• Limit Switches
• Thermal Overload Protection with Automatic Reset
• Permanently Lubricated Gear Train

7
Asahi/AmericaSeries 92 Electric Actuators

• Unique Features
• Die-Cast Aluminum Construction
• Combination Nema 4x 7 Enclosure
• Baked Powder Epoxy Coating with SS Trim
• ISO Bolt Circle
• Heat Treated, Hardened Spur Gear Design
• 100 Duty Cycle
• Color Coded Position Indicator

8
Asahi/AmericaSeries 92 Electric Actuators

• Unique Features
• Declutchable Manual Override
• 16 Point Terminal Strip
• CE Marking (115vac 220vac models)
• Internal Provisions for Field Mounting
• Accessories
• In House Manufacturing

9
Asahi/AmericaSeries 92 Electric Actuators

• Unique Features
• CSA Certification (Available upon request)
• Star Drive Output (Available upon request)
• Bus Compatibly
• Traceability (All units serialized)

10
Asahi/America Series 92 Electric Actuators

• Total Flexibility
• Ball Valves Multiport
• Valves 1/2-6
• Butterfly Valves
• 1½ - 24
• Additional Limit Switches
• Feedback Potentiometer
• Two Wire Control
• Local/Remote Stations

• Extended Cycle Times
• Various Voltages
• 180º Center Off Kit
• Mechanical Brake
• Heater Thermostat
• Multi-turn Capability
• Electronic Positioner
• Fail-safe Battery Backup

11
Asahi/AmericaSeries 92 VS. The Competition

• Powdered metal gearing or sand casting
• Nema 7 available as an option
• Cadmium-plated trim
• easily corroded, epoxy coating available as an
  option

• 75 duty cycle available as an option
• 12 point terminal strip
• Non-ISO bolt circle
• Poor gear alignment
• Multiple vendors necessary for complete technical
  support

12
Asahi/AmericaSeries 92 Electric Actuators

• Engineering Specifications
• Models S92, A92, B92 C92
• Output Torque 400-2000 in-lbs.
• Voltage 120 Vac 50/60 Hz
• Current Draw 1.3 Amps (S92 A92) 1.0 Amps
  (B92 C92)

13
Asahi/AmericaSeries 92 Electric Actuators

• Engineering Specifications
• Conduit Entry ½ NPT, quantity of 2
• Max. Temperature 150º F
• Switches Two SPDT (15 amps)
• Cycle Time Seconds / 90º
• S-92/A-92 10
• B-92/C-92 25

14
Asahi/America Electric Actuators Questionnaire

• The following questions need to be asked
• to make a proper recommendation
• Voltage ?-115 vac etc
• On/Off , Modulating,Failsafe ?
• Nema Rating ?-IV or VII
• Frequency of Operation ?-Duty Cycle
• Environment ?-Temp,Corrosion Resistance
• Feedback ?-Switches Dry Contact, Potentiometer
