CUSTOMER EXPECTATIONS

1

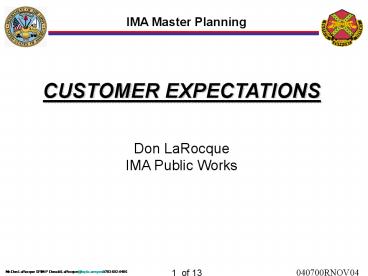

CUSTOMER EXPECTATIONS Don LaRocque IMA Public
Works
2
CUSTOMER EXPECTATIONS

Speed Affordability Quality
Versatility Durability Inventiveness
3
FACILITATE THE FORCE - QUICKLY
Modularity Facility Planning Guidance (for
temporary relocatable facilities)

• Maximum use of existing permanent facilities
  will be made to accommodate modularity facility
  requirements. Facility requirements that cannot
  be met by use of existing facilities will be met
  by use of temporary relocatable facilities.
• Expected duration of the requirement is 6 10
  years.
• Individual relocatable modules costing more
  than 250,000 must be purchased with OPA funds.
  Modules costing less than 250,000 may be
  purchased with OMA funds.
• Unaccompanied Personnel Housing
• Unaccompanied Personnel will be housed at
  current PP standard for the installation ex.
  11 _at_ Ft Stewart, (single man rooms), 22 at Ft
  Drum and Ft Campbell, etc.
• 111 relocatable module is acceptable
  permanent party standard. (illustration shown)

4
Modularity Facility Planning Guidance (for
temporary relocatable facilities - continued)

• Unit Operations Facilities (Co, BN, BDE
  Headquarters).
• Unit Ops facilities will be at 50 of Army
  standard-- 5,000 sf/unit is acceptable.
• Generic Admin and Supply/Storage modules will
  be used. This allows the most flexibility in
  setup, use, and eventual removal.
• COMSEC Storage closets not authorized. Class V
  safes will be used.
• The cost of Modular Arms Vaults placed in a
  Unit Ops module is additive to the cost of the
  Ops module when assessing applicability of OMA or
  OPA funds.
• Modular Arms Vaults sited external to Unit Ops
  modules are not considered buildings unless
  provisions are made in the vault for human
  occupancy. Elsewise, they are considered storage
  containers.
• Maintenance Facilities.
• Each unit will be assigned maintenance bays in
  existing permanent motor pools.
• Additional Organizational Vehicle Parking and
  relocatable maintenance shelters (Clamshells type
  facilities) may be procured to augment existing
  motor pools. Rational is to have all units at
  the same standard until the temporary mission
  ends or permanent, adequate facilities are
  constructed.

5
Modularity Facility Planning Guidance (for
temporary relocatable facilities - continued)

• Unaccompanied Personnel Dining will be
  accommodated by longer meal service hours and
  bussing to existing Dining Facilities.
• NEPA documentation needs to be as comprehensive
  as the Installation can define it.
• Annual and Weekend Training will not be
  compromised.
• Modular buildings will use Commercial grade
  materials and finishes. Examples
• Solid core wood or steel doors. Steel door
  frames. Three hinges.
• Walls no less than 2X4 thickness.
• Insulating, low-e glazing.
• Vinyl covered wallboard.
• Vinyl tile flooring.

6
Representative photos of relocatable buildings
Admin buildings
Modular Arms vaults under pole barns
Ft Stewart
Modular 111 relocatable barracks (modules not
physically attached to each other)
Clamshell maintenance space
Motor Pool area
Ft Stewart Relocatable Barracks
Site prep and utilities
Motor Pool Admin Supply/Storage
7
Relocatable buildings arriving at Ft Campbell and
being scanned by VACIS
Representative photos of relocatable buildings
Relocatable buildings ready to be installed
Ft Campbell
WWII Wood being repaired for BCT(UA) barracks
Modular Army Vaults
Relocatable supply/storage buildings
relocatable admin buildings
Ft Drum
Site preparation - clearing, grading, utilities
8
Representative photos of relocatable buildings
Fort Stewart MEDHOLD Relocatables

16 soldiers/latrine
4 man room 270sf
4 man room 270sf
Common area

• Each soldier has 70sf.
• Each room houses 4 soldiers.
• Each building houses 16 soldiers and has
  integral latrine/laundry.
• Purchase cost for 300 pn 2.3M
• Annual lease cost 1.9M

Laundry
Purchase cost for 1,516 soldiers would be 11.6M
4 man room 270sf
4 man room 270sf
Shower/bathroom
9
Proof of principle test Operational Readiness
Training Centers (ORTCs)
Battalion HQ
Officers Quarters
Barracks (Incl in 05 supplemental)
Dining Facility
Company Operations Facility
Battalion Equipment Maintenance Storage
Facility
Company Maintenance Sheds
10
Charrette Productsfor eventual permanent
facilities
1. Exact space use needs. I.e definition of all
occupants and all special space needs
2. Functional layout of the facility to meet the
needs of the occupants
3. Well defined site adaptation of the facility.
4. CADD rendering of the facility. (Perhaps the
most important product)
5. Updated and accurate 1391
11

CUSTOMER EXPECTATIONS
QUESTIONS?
