Outdoor Motion Capturing of Ski Jumpers using Multiple Video Cameras

1

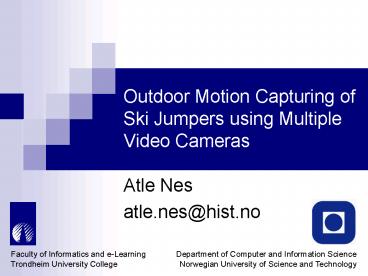

Outdoor Motion Capturing of Ski Jumpers using
Multiple Video Cameras

• Atle Nes
• atle.nes_at_hist.no

Faculty of Informatics and e-Learning Trondheim
University College
Department of Computer and Information
ScienceNorwegian University of Science and
Technology
2
General description

• Task
• Create a cheap and portable video camera system
  that can be used to capture and study the 3D
  motion of ski jumping during take-off and early
  flight.
• Goals
• More reliable, direct and visual feedback
• More effective outdoor training
• ?Longer ski jumps!

3
2D?3D solution

• Multiple video cameras have been placed
  strategically around in the ski jumping hill
  capturing image sequences from different views
  synchronously.
• Allows us to reconstruct 3D coordinates if the
  same physical point is detected in at least two
  camera views.

4
Camera equipment

• 3 x AVT Marlin F080B (CCD-based)
• FireWire/1394a (no frame grabber card needed)
• 640 x 480 x 30 fps
• 8-bit / 256 grays (color cameras not chosen
  because of intensity interpolating bayer
  patterns)
• Exchangeable C-mount lenses (fixed and zoom)

5
Camera equipment (cont.)

• Video data (3 x 9MB/s 27 MB/s)
• 2 GB RAM (5 seconds buffered to memory)
• 2 x WD Raptor 10.000 rpm in RAID-0 (enables
  continuous capture)
• Extended range
• 3 x 400 m optical fibre (full duplex firewire)
• Power from outlets around the hill
• 400 m BNC synchronization cable

6
Camera setup
Synch pulse
Video data Control signals
7
Direct Linear Transformation
- Based on the pinhole model - Linear image
formation
W
Z
image space(U, V, W)
object pointO (x, y, z)
principal point P (u0, v0, 0)
U
object space(X, Y, Z)
V
X
Y
image point I (u, v, 0)
projection centreN (u0, v0, d) (x0, y0, z0)
image plane(U, V)
8
DLT Fundamentals

• Classical collinearity equations
• Standard DLT equations (aka 11 parameter
  solution)

Abdel-Aziz and Karara 1971
9
DLT Camera Calibration

• Minimum n 6 calibration points for each camera
  (2n equations)

DLT parameters (unknowns)
10
DLT Point reconstruction

• Minimum m 2 camera views of each reconstructed
  image point (2m equations)
• Usually a redundant set (more equations than
  unknowns) ? Linear Least Squares Method

object coordinates (unknowns)
11
Direct Linear Transform

• Loved by the computer vision community -
  simplicity
• Hated by the photogrammetrists - lack of accuracy
• DLT indirectly solves both the
• Intrinsic/Interior parameters (- 3 -)
• principal distance (d)
• principal point (u0,v0)
• Extrinsic/Exterior parameters (- 6 -)
• camera position (x0,y0,z0)
• pointing direction R(?, f, ?)

12
Lens distortion / Optical errors

• Non-linearity is commonly introduced by imperfect
  lenses (straight lines are no longer straight)
• Should be taken into account for improved
  accuracy
• Additional parameters (- 7 -)
• radial distortion (K1,K2,K3)
• tangential distortion (P1,P2)
• linear distortion (AF,ORT)

13
Radial distortion (symmetric)
14
Lens distortion / optical errors

• Tangential distortion (decentering)
• Linear distortion (affinity, orthogonality)

U
U
V
V
Skewed image / Non-Orthogonality
Non-Square Pixels / Affinity
15
Added nonlinear terms

• Extended collinearity equations

Brown 1966, 1971
16
Bundle Adjustment

• Requires a good initial parameter guess (for
  instance from a DLT Calibration)
• Non-linear search - Iterative solution using the
  Levenberg Marquardt Method
• Basically Update one parameter, keep the rest
  stable, see what happens Do this systematically
• Calibration points and intrinsic/extrinsic
  parameters can be separated blockwise
• The matrix has a sparse structure which can be
  exploited for lowering the computation time

17
Detection of outliers

• Calibration points with the largest errors are
  removed automatically/manually resulting in a
  more stable geometry.
• Both image and object point coordinates are
  considered.

18
Overview

• Direct Linear Transformation is used to estimate
  the initial intrinsic and extrinsic parameter
  values for the 2D?3D mapping.
• Bundle Adjustment is used to refine the
  parameters and geometry iteratively, including
  the additional parameters.
• Intrinsic Additional parameters off-site (focal
  length, principal point, lens distortion)
• Extrinsic parameters on-site (camera position
  direction)

19
Calibration frame

• Was used for finding estimates of theintrinsic
  parameters.
• Exact coordinates in the hill was measured using
  differential GPS and a land survey robot station.
• Points made visible in the camera views using
  white marker spheres.

20
Video processing

• Points must be automatically detected, identified
  and tracked over time and accross different
  views.
• Reflective markers are placed on the ski jumpers
  suit, helmet and skies.

21
Video processing (cont.)

• Blur caused by fast moving jumpers (100 km/h) is
  avoided by tuning aperture and integration time.
• Three cameras gives a redundancy in case of
  occluded/undetected points (epipolar lines).
• Also possible to use information about the
  structure of human body to identify relative
  marker positions.

22
Granåsen ski jump arena
23
Granåsen ski jump arena
24
Visualization

• Moving feature points are connected back onto a
  dynamic 3D model of a ski jumper.
• Model is allowed to be moved and controlled in a
  large static model of the ski jump arena.

25
Results

• Reconstruction accuracy
• Distance 30-40 meters
• Points in the hill 3 cm xyz
• Points on the ski jumper 5 cm xyzD

26
Future work

• Real-Time Capturing and Visualization
• Direct Feedback to the Jumpers
• Time Efficient Algorithms
• Linear Closed-Form Solutions

27
