Lecture: Image and Audio Analysis

1

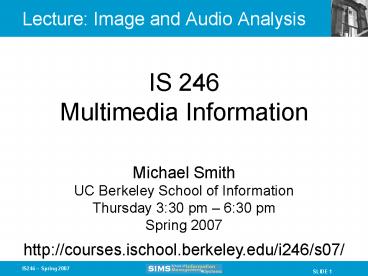

Lecture Image and Audio Analysis
IS 246Multimedia Information
Michael Smith UC Berkeley School of
Information Thursday 330 pm 630 pm Spring
2007 http//courses.ischool.berkeley.edu/i246/s07
/
2
Updated Schedule

• Jan Feb. Film Art, Media Theory and Signals
  Introduction
• March 1 Film Art Summary, Intro to Content
  Analysis, Assignment 1 Due
• March 8 Computer Vision and Signal Processing in
  Multimedia
• March 15 Media Theory Revisited, New Media, Intro
  to Video Production
• March 22 Video and Audio Production Workshop,
  Assignment 2
• April 5 Audio Information Retrieval and Media
  Asset Management
• April 12 Information Retrieval Continued, Video
  Production Assignment Due
• April 19 Media Communications, Intro to Social
  Media
• April 26 Future Media Social Media, Media
  Aesthetics
• May 3 Future Media Immersive Systems, 3D
  modeling, Synthetics

3
Media Work Flow

• Capture and Pre-Production
• Classical and advanced media technology
• Previsualization
• Editing and Post Production
• Film editing and new visualization technology
• Processing
• Media content analysis
• Distribution / Sharing
• Telecommunications and Social Media

4
Audio and Image Signals
5
Sampling

• AUDIO
• IMAGE

6
Quantization

• AUDIO
• IMAGE

7
Image Filtering
8
Region Detection

• Figure 3.10, Multimodal Video Characterization
  and Summarization (Smith 2004)

9
Texture Functions Edge Detection

• Figure 3.11b, Multimodal Video Characterization
  and Summarization (Smith 2004)

10
MPEG 1 Motion Vectors

• B-P Frames Data
• Dependent on Encoder and GOP Pattern

11
Pattern Matching for Motion

• Match template in Image 1 to location in Image 2
• Example with L1 Norm (Euclidean Difference)

Difference Window Wt(i,j)
12
LP and HP Filtering

• Audio

13
Systems to Filters

• A system transforms a signal into a new signal or
  a different signal representation
• y(t) F( x(t) )
• Examples y(t) 2x(t) y(t) x(t)2 y(t)
  x(t-2)
• Typical Filter
• y(t) A1y(t-1) A2y(t-2) B0x(t) B1x(t-1)

x(t)
13
http//www.coe.montana.edu/ee/rmaher/ee477_SP04/le
cture/EE477_SP04_01_intro_files/frame.htm
14
Image Filtering

• Low Frequency
• High Frequency
• Differential

¼ ¼ ¼ ¼ -1 -1 -1 -1 9 -1 -1 -1 -1 0
1 0 -½ 1 ½ 0 1 0
0 -1 -1 -1 0 -1 2 -4 2 -1 -1 -4 13
-4 -1 -1 2 -4 2 -1 0 -1 -1 -1 0
15
Image Filtering
16
Exercise
Differential Filter Original HPF

0 1 0 -½ 1 ½ 0 1 0 -1 -1 -1 -1 9
-1 -1 -1 -1
17
Histograms and Smoothing

• Figure 3.7, Multimodal Video Characterization and
  Summarization (Smith 2004)

18
Readings for Today

• The course website contains the updated class
  readings for March 8th.
• http//courses.ischool.berkeley.edu/i246/s07/readi
  ngs.html
• Below are the discussion question assignments
• Thursday 03/08 Content Analysis
• Handouts from Chapter 3, Multimodal Video
  Characterization and Summarization (All).
• Davenport, G., Aguierre-Smith, T.G. and Pincever,
  N. Cinematic Primitives for Multimedia. IEEE
  Computer Graphics and Applications, 11 (4) pp.
  67-74. (Matt Schutte).
• Dorai, C. and Venkatesh, S. Computational Media
  Aesthetics Finding Meaning Beautiful. IEEE
  Multimedia, 8 (4) pp. 10-12. (Patrick Schmitz)
• Davis, M. Media Streams An Iconic Visual
  Language for Video Representation. in Baecker,
  R.M., Grudin, J., Buxton, W.A.S. and Greenberg,
  S. eds. Readings in Human-Computer Interaction
  Toward the Year 2000, Morgan Kaufmann Publishers,
  Inc., San Francisco, 1995 pp. 854-866. (Kevin
  Lim and Zaven Demerjian).
• A. W. M. Smeulders, M. Worring, S. Santini, A.
  Gupta, and R. Jain. Content-Based Image Retrieval
  at the End of the Early Years, IEEE Transactions
  on Pattern Analysis and Machine Intelligence,
  vol. 22, 2000 pp. 1349-1380. (Patrick Schmitz).
• P. Aigrain, H. Zhang, and D. Petkovic.
  Content-based Representation and Retrieval of
  Visual Media A State-of-the-Art Review
  Multimedia Tools and Applications, vol. 3, 1996
  pp. 178-202. (Matt Ochmanek).
• Fractals Presentation (Bernt Wahl).

19
Davis Media Streams

• Questions

20
Smeulders CBIR

• Questions

21
Evolution Robotics

• SIFT Features
• David Lowe's SIFT keypoint detector (UBC 2003)

22
Assignment for Next Week

• Edit Yourself
• Post 2 pictures with an edit effect on the class
  wiki (or email to msmith_at_ischool.berkeley.edu)
• Rotoscope, Edge Filter, Blur, Morph, etc

23
Readings for March 15

• Computational Media Theory
• Eco, U. Articulations of the Cinematic Code. in
  Nichols, B. ed., University of California Press,
  Berkeley, 1976 pp. 590-607. (Zaven)
• Metz, C. Film language a semiotics of the
  cinema. University of Chicago Press, Chicago,
  1991 pp. 92-107 pp. 108-146. (PS, Matt O.)
• Eisenstein, S.M. Film Form Essays in Film
  Theory. Harcourt Brace Jovanovich, Publishers,
  San Diego, 1949 pp. 45-63. (Matt S.)
• Recommended Davis, M. and Levitt, D. Time-Based
  Media Processing System (US Patent 6,243,087),
  Interval Research Corporation, USA, 2001 pp.
  1-20. (Kevin)
• Continued from Feb. 22
• Bordwell, D. and Thompson, K. Film Art An
  Introduction. 8th edition pp. 218 - 263
  (Continued).
• Kuleshov, L. Kuleshov on Film Writings by Lev
  Kuleshov. University of California Press,
  Berkeley, 1974 pp. 41-55.
• Isenhour, J.P. The Effects of Context and Order
  in Film Editing. AV Communications Review, 23
  (1) pp. 69-80.
• Burch, N. Theory of film practice. Princeton
  University Press, Princeton, N.J., 1981 pp.
  3-16.
• Barthes, R. Action Sequences. In Strelka, J. ed.,
  Patterns of Literary Style. State University of
  Pennsylvania Press, University Park,
  Pennsylvania, 1971 pp. 5-14.

24
Computer Vision Videos

• Virtualized Reality
• Object Tracking

25
Previous MMM Projects

• Monkeybotster
• Recreation Evaluation Interface
• Lunchmeisters
• Recipe Box
• Wishter
• DARE
• HouseBuddies

26
Recreation Evaluation Interface

• Recreation Evaluation Interface enables camera
  phone users to see what's happening where they
  are not, and let others in their community know
  what's happening where they are
• Using real-time data and a reference database,
  this community can connect with other people with
  similar interests to maximize their local
  knowledge, enabling better decision-making about
  how and where to spend one's time

27
DARE

• DARE will leverage the camera phones as tools
  that allow users to play games with and against
  each other
• The main objective of DARE is to bring different
  social networks together informally, or as ice
  breakers and team builders for corporations,
  school groups and other such groups

28
MMM2 Find The Mobile News

• Find the Mobile News is a location-based system
  that aggregates photographs of news and other
  events based on geography. It allows camera-phone
  users to upload photos directly from their phones
  to the system immediately, as news happens and
  they capture it. Metadata with each photograph
  describes the location, date, time, and
  photographer of the picture optionally, users
  can add free-text annotations as well.
• Users in the community or around the world can
  access photos on FTMN by any combination of
  geographic location, date, time, photographer,
  photographer rating, photograph rating, and
  keywords. They can view the results of a search
  on a map that indicates where each photo was
  taken. Aggregation of pictures in real time
  allows community-produced news to be published
  instantly and on location.
