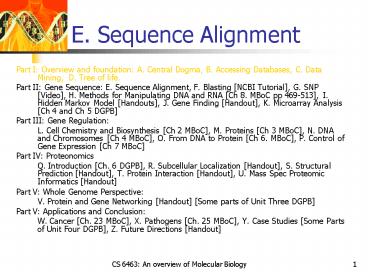

E. Sequence Alignment

1
E. Sequence Alignment

• Part I Overview and foundation A. Central
  Dogma, B. Accessing Databases, C. Data Mining,
  D. Tree of life.
• Part II Gene Sequence E. Sequence Alignment, F.
  Blasting NCBI Tutorial, G. SNP Video, H.
  Methods for Manipulating DNA and RNA Ch 8. MBoC
  pp 469-513, I. Hidden Markov Model Handouts,
  J. Gene Finding Handout, K. Microarray Analysis
  Ch 4 and Ch 5 DGPB
• Part III Gene Regulation
• L. Cell Chemistry and Biosynthesis Ch 2 MBoC,
  M. Proteins Ch 3 MBoC, N. DNA and Chromosomes
  Ch 4 MBoC, O. From DNA to Protein Ch 6. MBoC,
  P. Control of Gene Expression Ch 7 MBoC
• Part IV Proteonomics
• Q. Introduction Ch. 6 DGPB, R. Subcellular
  Localization Handout, S. Structural Prediction
  Handout, T. Protein Interaction Handout, U.
  Mass Spec Proteomic Informatics Handout
• Part V Whole Genome Perspective
• V. Protein and Gene Networking Handout Some
  parts of Unit Three DGPB
• Part V Applications and Conclusion
• W. Cancer Ch. 23 MBoC, X. Pathogens Ch. 25
  MBoC, Y. Case Studies Some Parts of Unit Four
  DGPB, Z. Future Directions Handout

2
E. Sequence Alignment

• E. Sequence Alignment
• E.1. Sequence Similarity
• E.2. Dynamic Programming
• E.3. Blasting and (Psi-Blast)
• Reading
• The NCBI BLAST education pages (all three
  sections).
• Altschul, et al on PSI-BLAST and on improving
  PSI-BLAST (using ROC curves)

3
E. Sequence Alignment Purpose of Sequence
Alignment and Blasting

• What is an alignment, and why might it be
  significant?
• An alignment is a mapping from one sequence to
  another, identifying elements that are likely to
  have arisen from a common ancestor
• A good alignment is an indication of homology
• Alignments are NOT exact matches. We will need a
  method to find good alignments in a database...

4
E. Sequence Alignment Phylogenetic Tree
5
E.1 Sequence Similarity Similarity vs. Homology
Paralogs vs. Orthologs

• Homology is an evolutionary relationship that
  either exists or does not. It cannot be partial.
• An ortholog is a homolog with shared function.
• A paralog is a homolog that arose through a gene
  duplication event. Paralogs often have divergent
  function.
• Similarity is a measure of the quality of
  alignment between two sequences. High similarity
  is evidence for homology. Similar sequences may
  be orthologs or paralogs.

6
E.1 Sequence Similarity How do we compute
similarity?

• Similarity can be defined by counting positions
  that are identical between two sequences
• Gaps (insertions/deletions) can be important
  abcdef abcdef abcdef
  abceef acdef a-cdef

7
E.1 Sequence Similarity Not all mismatches are
the same

• Some amino acids are more substitutable for each
  other than others. Serine and threonine are
  more alike than tryptophan and lysine.
• We can introduce "mismatch costs" for handling
  different substitutions.
• We don't usually use mismatch costs in aligning
  nucleotide sequences, since no substitution is
  per se better than any other.

8
E.1 Sequence Similarity Many possible alignments
to consider

• Without gaps, there are are NxM possible
  alignments between sequences of length N and M
• Once we start allowing gaps, there are many
  possible arrangements to consider abcbcd
  abcbcd abcbcd
  abc--d a--bcd ab--cd
• This becomes a very large number when we allow
  mismatches, since we then need to look at every
  possible pairing between elements there are
  roughly NM possible alignments.

9
E.1 Sequence Similarity Avoiding random
alignments with a score function

• Not only are there many possible gapped
  alignments, but introducing too many gaps makes
  nonsense alignments possible
  s--e-----qu---en--ce sometimesquipsentice
• Need to distinguish between alignments that occur
  due to homology, and those that could be expected
  to be seen just by chance.
• Define a score function that accounts for both
  element mismatches and a gap penalty

10
E.1 Sequence Similarity Match scores

• Match scores are often calculated on the basis of
  the frequency of particular mutations in very
  similar sequences.
• We can transform substitution frequencies into
  log odds scores, which can then be added together.

11
E.1 Sequence Similarity Local vs. Global
alignments

• A global alignment includes all elements of a
  sequence, and includes gaps
• A global alignment may or may not include "end
  gap" penalties.
• A local alignment is includes only subsequences,
  and sometimes computed without gaps.
• Local alignments can find shared domains in
  divergent proteins and are fast to compute
• Global alignments are better indicators of
  homology and take longer to compute.

12
E.1 Sequence Similarity An alignment score

• An alignment score is the sum of all the match
  scores of an alignment, with a penalty subtracted
  for each gap.
• Gap penalties are usually "affine" meaning that
  the penalty for one long gap is smaller than the
  penalty for many smaller gaps that add up to the
  same size.
• a b c - - da c c e f d9 2 7 6 gt 24 - (10
  2) 12

Gap start continuationpenalty
AlignmentScore
Matchscore
13
E.2 Dynamic Programming Finding the optimal
alignment

• Given a pair of sequences and a score function,
  identify the best scoring (optimal) alignment
  between the sequences.
• Remember, exponential number of possible
  alignments (most with terrible scores).
• Computer science to the rescue dynamic
  programming identifies optimal alignments in time
  proportional to the sum of the lengths of the
  sequences

14
E.2. Dynamic programming

• The name comes from an operations research task,
  and has nothing to do with writing programs.
• Dynamic programming alignments are a key
  technology in bioinformatics, and you should
  understand how they work.
• Called Needleman-Wunch or Smith-Waterman

15
E.2. Dynamic Programming The recurrence

• The idea Recursion for the cost that you want to
  optimize
• Boundary Condition
• Recurrence
• Example Pairwise sequence alignment
• Ci,j optimal cost for aligning sequence
  A1..i and B1..j where A and B are input
  sequences of length n and m.
• Boundary Condition
• C0,j Ci,0 0 for i,j 0.
• C0,j Ci,0 cost of deletion for i,j gt 0.
• Recurrence Si,j
• Si-1,j-1 cost of substituting Ai with Bj.
• Si-1,j cost of deletion
• Si,j-1 cost of insertion

16
E.2. Dynamic Programming Filling up the table

• Using the recurrence compute all Ci,j in a
  table C
• At the same time, keep track of which case you
  use to get Ci,j in another table F
• Use F to backtrack and construct the solution.

Ci.j
For backtracking
(1)
(1)
(2)
(2)
(3)
(3)
Ci,j
17
E.2. Dynamic Programming Dynamic programming
alignment

• Each cell has the score for the best aligned
  sequence prefix up to that position.
• Start by filling in initial gap and first element
  to first element match score
• Use arrow to indicate path to that alignment

18
E.2. Dynamic Programming Continue filling in
optimalpath scores

• For each cell, have three choices for how to get
  there from the last optimal alignment (match, gap
  sequence 1, gap sequence 2).
• Best score(s) are selected, and arrows added
  indicated route.-5 5 0 5 -5 0-7 -5
  -12

19
E.2. Dynamic Programming Optimal alignment by
traceback

• We traceback a path that gets us the highest
  score. If we don't have end gap penalties,
  then take any path from the last row or columnto
  the first.
• Otherwise we needto include the top and bottom
  corners
• AACADCD---A-CD

20
E.2. Dynamic Programming How do we pick match
scores?

• For match scores, two main options
• PAM based on global alignments of closely related
  sequences. Normalized to changes per 100 sites,
  then exponentiated for more distant relatives.
• BLOSUM based on local alignments in much more
  diverse sequences
• Picking the right distance is important, and may
  be hard to do. BLOSUM seems to work better for
  more evolutionarily distant sequences. BLOSUM62
  is a good default.

21
E.2. Dynamic Programming Picking gap penalties

• Many different possible forms
• Most common is affine (gap open gap continue
  penalities)
• More complex penalties have been proposed.
• Penalties must be commensurate with match scores.
  Therefore, the match scoring scheme influences
  the gap penalty
• Most alignment programs suggest appropriate
  penalties for each match score option.

22
E.2. Dynamic Programming Searching for optimal
scores

• One possibility is to try several different match
  score and gap penalties, and choose the best
• In general, this is called parameter space search
  and it is important in many areas.
• Problems
• requires a lot computation
• we need some principled way to compare the
  results.
• Use significance testing to compare...

23
E.2. Dynamic Programming The significance of an
alignment

• Significance testing is the branch of statistics
  that is concerned with assessing the probability
  that a particular result could have occurred by
  chance.
• How do we calculate the probability that an
  alignment occurred by chance?
• Either with a model of evolution, or
• Empirically, by scrambling our sequences and
  calculating scores on many randomized sequences.
• Extreme value statistics (max, not sum)

24
E.2. Dynamic Programming Metric-space database
search

• A metric is a function with these
  characteristics
• f(A, B) f (B,A)
• f(A,A) 0
• f(A,B) f(B,C) ? f(A,C) the triangle inequality
• Log(n) database search for closest (inexact)
  match can be done for metrics
• Miranker, et al. have applied this to sequence
  databases (transforming score matrix)

25
E.3 Blasting Why BLAST?

• Dynamic programming solutions to alignment
  problems are relatively slow, and don't lend
  themselves to efficient database search.
• Need some way to search a large database to find
  sequences that have an inexact match to a query
  sequence
• Competing solutions FASTA BLAST.
• Both imperfect approximations to DP. DP finds
  some distantly related sequences the
  approximations don't
• BLAST is more commonly used, although both are
  fine.

26
E.3 Blasting Sequence search basics

• BLAST/FASTA are 50-100x faster than DP
• If searching for coding regions, always translate
  nucleotide to amino acid sequence.
• Use appropriate substitution and gap scores
• BLOSUM62 is good for weak protein similarities
• Use PAM30, PAM70 or BLOSUM45 for better results
  on more similar sequences, BLOSUM80 for most
  distant
• Use Low-complexity filters and, for human
  sequence, filter out human repeats (ALUs, etc)

27
E.3 Blasting How does BLAST work

• BLAST2 (gapped BLAST)
• Break sequence into overlapping words, by
  default of length 3. n-l1 l-size words for
  sequence of length n. ABCDE ? ABC, BCD, CDE
• For each word, define 50 other words that are
  similar (use substitution matrix threshold T)
• Repeat for each of the n-l1 words, giving about
  50n words (out of 2038000 possible)
• Use a hash table to find all places in DB with
  exact match to any of those words.

28
E.3 Blasting Blasting Extending alignments

• Identify database sequences that contain several
  matching words on the same diagonal (think DP
  alignments) and within a short distance.
• Extend these short, ungapped alignments in both
  directions along the sequence so long as score of
  alignment increases.
• Call these extended alignments HSP's for high
  scoring pairs

29
E.3 Blasting PSI Blast

• Position Specific Iterated BLAST
• Intuition substitution matrices should be
  specific to a particular site. Penalize
  alanine?glycine more in a helix.
• Idea Use BLAST with high stringency to get a set
  of closely related sequences. Align those
  sequences to create a new substitution matrix for
  each position. Then use that matrix
  (iteratively) to find additional sequences.

30
E.3 Blasting Why (not) PSI-BLAST

• If the sequences used to construct the Position
  Specific Scoring Matrices (PSSMs) are all
  homologous, the sensitivity at a given
  specificity improves significantly.
• However, if non-homologous sequences are included
  in the PSSMs, they are corrupted. Then they
  pull in more non-homologous sequences, and become
  worse than generic

31
E.3 Blasting How to use PSI BLAST

• Set initial thresholds high. Inspect each
  iteration's result for suspicious sequences.
• Do several iterations (5), or until no new
  sequences are found
• Even if only looking for a small set of
  sequences, make the initial search very broad
• First, use NR with up to 5 iterations to set PSSM
• Then use that PSSM to search in restricted domain

32
E.3 Blasting PSI-BLAST example
33
E.3 Blasting First Iteration
...
34
E.3 Blasting Second iteration
...
...
35
E.3 Blasting PSI-BLAST caveats

• Increased ability to find distant homologues
• Cost of additional required care to prevent
  non-homologous sequences from being included in
  the PSSM calculation.
• When in doubt, leave it out!
• Examine sequences with moderate similarity
  carefully.
• Be particularly cautious about matches to
  sequences with highly biased amino acid content

36
E.3 Blasting Some notes on sequence-based
database searching

• Matches of gt50 identity in a 20-40 amino acid
  region occur frequently by chance.
• Most sequences that share statistically
  significant similarity throughout their entire
  lengths are homologous.
• If A is homologous to B, and B to C, then A must
  be homologous to C, even if they share no
  significant sequence similarity.
• Low complexity regions, transmembrane regions and
  coiled-coil regions often display significant
  similarity without homology
• Screen them out of your query sequences!
