Resource Mapping and Scheduling for Heterogeneous Network Processor Systems

1

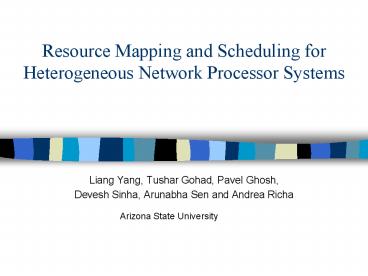

Resource Mapping and Scheduling for Heterogeneous
Network Processor Systems

• Liang Yang, Tushar Gohad, Pavel Ghosh,
• Devesh Sinha, Arunabha Sen and Andrea Richa

• Arizona State University

2
Agenda

• Network Processor (NP) System
• Resource Mapping and Scheduling Problem
• Heuristic Approach
• Linear Programming and Randomized Rounding
• Resource Contention Issue
• Detection and Elimination
• Experimental Results
• Summary and Future Work

3
Network Processor Systems

• Programmable devices designed to process packets
  at wire-speed
• Non-homogeneous real-time systems
• Comprise of a mix of ASICs, programmable
  processors and on-chip interconnects
• Optimized to support multiple applications such
  as IPv4, Diffserv, etc.

4
Resource Mapping and Scheduling Problem in NP

• Given a set APPAPP1, APP2, ,APPk of
  applications each specified by a DAG, where each
  application APPj has a set of constraints (e.g.
  timing constraints, area constraints etc.), find
  the mapping that minimize the system cost in
  terms of dollar value while satisfying all the
  design constraints
• Assuming only one application active at any given
  time

5
System Specification

• Possible Task-to-Resource Mappings
• Several algorithms may be available for
  execution of a task
• Associated with each resource are cost and area
  parameters
• There may be multiple instances of a resource

6
Integer Linear Programming (ILP) formulation

• Objective
• Find a task-to-resource mapping with minimum cost
• Constraints
• Board area constraint
• Timing constraint
• Unique task constraint
• Exclusive resource constraint
• Communication delay constraint
• Task-to-Resource mapping constraint
• Task dependency constraint
• Example design problem with 3-flows
• 800 variables
• 2000 constraints

7
Heuristic Approach-- Randomized Rounding

• Based on Linear Programming solution
• Traditional evolutionary algorithms require a set
  of feasible solutions as a starting point, i.e.
  Genetic Algorithms, Simulated Annealing
• Hard to obtain an initial feasible set due to the
  conflicting constraints (area, time) in the
  problem

8
Randomized Rounding

• Relax integrality constraints of the ILP and
  solve the LP
• Fractional values of the binary variables used as
  probabilities for rounding them to either 0 or 1
• Variable Randomized Rounding
• Randomly select variables from a set of randomly
  chosen constraints
• Round the selected variables
• Iterative rounding in case of constraint violation

9
Randomized Rounding (cont.)

• Fixing Variables
• Reducing the number of variable to be rounded
• Fix variable with integer values after solving LP
• Iteratively solve LP till the number of integer
  variables does not increase
• Grouping variables
• Assign priority based on the variable group
  affiliation

10
Randomized Rounding (cont.)

• Rollback Point Selection
• Roll back only to the last group where
  constraint violation occurred
• Rounding Step Size
• Round one or more each time?

11
Randomized Rounding Results

• Near-optimal solution in a fraction of ILP
  solution time

12
Exploration of Solution Space

• If the deadline constraint is too strict, the ILP
  may not have any feasible solution for the
  existing set of resources.
• On the other hand, with a too relaxed deadline
  feasible solution will be obtained with increased
  chance of resource contention.
• Solution space is explored using binary search in
  order to find a least cost feasible solution
  without any resource contention.

13
Improvement of Solution

• Relaxed deadline for packet processing helps to
  reduce the system cost in dollar value.
• Packet latency is increased, while satisfying the
  line speed.
• This approach allows multiple packets to be
  inside the system simultaneously (packet level
  parallelism).
• There may be resource contention if more than one
  packet try to access the same resource at the
  same instance of time for two different tasks.

14
Resource Contention

• Example
• Line rate 10Gbps, Packet size 64 bytes
• No Packet Gap
• Packet arrives every 51ns

15
Resource Contention Detection

• Packet Flow Graph (PFG)
• This is visual depiction of the flow of packets
  through various resources inside NP system
• G(V, E) V is the set the of resources allocated
  by the ILP, with additional entry and exit nodes,
  s and t, respectively.
• Edge e (u, v) e E, if resource u and v are
  sequentially allocated.
• Weight w(e) is associated with edge e w(e)
  (x(e), y(e)) where x(e) is the allocation
  sequence of the resource and y(e) is the
  execution time on that sequence.

16
Resource Contention Detection

• Resource Cycle Time
• Calculation in PFG
• It is defined as the maximum time span for which
  a resource is busy in executing the set of tasks
  for a packet.
• Resource is not available until it finishes all
  the tasks for a packet scheduled on it
• Maximum Cycle Time
• It is defined as the maximum of all resource
  cycle times.
• Resource contention is detected if maximum cycle
  time is greater than packet arrival rate.
• Gantt chart is used to detect resource contention
  among multiple paths in a task graph

17
Resource Contention (Single Path)

• Example

18
Resource Contention (Multiple Paths)
19
Resource Contention Elimination

• Binary search approach to speed up the
  exploration of solution space iteratively.
• Solution found by ILP is scrutinized for resource
  contention.
• If there is no resource contention, no more work
  needed.
• search iteratively for least cost feasible
  solution otherwise

20
Resource Contention Elimination
d is the arrival rate of the packets and l is the
maximum diameter of the flow graphs
21
Experimental Settings

• Codesign method applied to a Packet Processing
  System similar to the Intel IXP2400 network
  processor
• Resource set derived from Intel IXP2400
  architecture
• Application set derived from the standard
  benchmarking applications defined by the Network
  Processing Forum, for which there is a mapping
  available from Intel
• Compared performance of the mapping generated by
  our approach with the standard mapping specified
  by Intel as part of the IXA Application Framework

22
Performance Metrics

• End-to-end Packet Latency
• Defined as the time interval starting when the
  first bit of a
• packet enters the input port and ending when the
  first bit of
• the packet reaches the output port
• Throughput
• The number of data bits transferred in unit time.
  Measured
• at 0 packet loss while varying packet size
• Resource Utilization
• The ratio of the time a resource was active and
  the total
• measurement time

23
Input Task Graphs
24
Experimental Parameters

• Input

25
Experimental Results

• Output

26
Experimental Results
27
Experimental Results
28
Conclusion and Future Work

• Codesign framework for PPSs with consideration of
  multiple flows and real-time constraints
• The iterative improvement scheme introduces
  packet-level parallelism into the system
• For task graphs of the benchmark applications,
  the method produces solution in a small time and
  shows performance metrics comparable to the
  existing PPSs
• The framework can be extended with
• An object-oriented or modeling language for
  specification
• Effects of caching and multithreading
• Dynamic analysis for workload characterization

29

• Thank You
• Questions ?
