Title: III. TOOLS

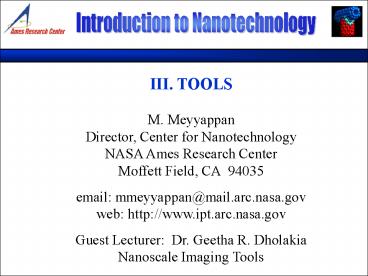

1
Introduction to Nanotechnology
III. TOOLS M. Meyyappan Director, Center for
Nanotechnology NASA Ames Research Center Moffett
Field, CA 94035 email mmeyyappan_at_mail.arc.nasa.
gov web http//www.ipt.arc.nasa.gov Guest
Lecturer Dr. Geetha R. Dholakia Nanoscale
Imaging Tools
2
Overview of Microscopy
  • Optical Microscope
  • Electron Microscopes
  • - Transmission electron microscope
  • - Scanning electron microscope
  • Scanning probe microscopes
  • - Scanning tunneling microscope
  • - Atomic force microscope

3
Optical Microscopes
  • Image construction for a simple biconvex lens

4
Schematic of a Simple Optical Microscope
Important parameters Magnification Image
size/Object size Resolution Minimum distance
between two objects that can still be
distinguished by the microscope.
  • Total visual magnification
  • MOBJ X MEYE

www.microscopy.fsu.edu
5
Rayleigh Criterion for Resolution
?x 0.2µ
  • www.microscopy.fsu.edu www.imb-jena.de
  • Please check the first web site to watch
    a Java Applet on the dependence of Rayleigh
    criterion on ? of incident radiation and on the
    numerical aperture.

6
The Electron Microscopes
  • Use the wave nature of an elecron for imaging
  • de Broglie ? h / mv
  • ? wavelength associated with the particle
  • h Planks constant 6.63 x 10-34 J.s
  • mv momentum of the particle
  • me 9.1 x 10-31 kg e 1.6 x 10-19 coloumb
  • P.E eV mv2/2 gt ? 12.3/?VÅ
  • V of 60kV, ? 0.05 Å gt ?x 2.5 Å
  • Thus higher resolution than the optical
    microscope is attainable
  • Microscopes using electrons as illuminating
    radiation
  • TEM SEM

7
TEM
8
Components of the TEM
  • Electron Gun Filament, Anode/Cathode
  • Condenser lens system and its apertures
  • Specimen chamber
  • Objective lens and apertures
  • Projective lens system and apertures
  • Correctional facilities (Chromatic, Spherical,
    Astigmatism)
  • Desk consol with CRTs and camera
  • Transformers 20-100 kV Vacuum pumps 10-6
    10-10 Torr

9
Schematic of E Gun EM lens
  • Magnification 10,000 100,000 Resolution 1
    nm-0.2 nm
  • www.udel.edu

10
TEM Images
www.udel.edu www.nano-lab. com www.thermo.com
11
Schematic of SEM
Physics dept, Chalmers university teaching
material
12
SEM
13
Electron Scattering from Specimen
www.unl.edu
  • Resolution depends on spot size
  • Typically a few nanometers
  • Topographic scan range order of mm X mm
  • X rays elemental analysis

14
Some SEM Images
CNT in an array
Blood platelet Dia 7?
CNT NASA nanotech group Blood cell www.
uq.edu. au
15
Scanning Probe Microscopy
  • 1982 Binning Rohrer, IBM Zurich.
  • STM, AFM Family.
  • Resolution Height 0.01nm, XY 0.1nm
  • Local tip-sample interaction Tunneling
    (electronic structure), Van der Waals force,
    Electric/Magnetic fields.
  • Advantages atomic resolution, non destructive
    imaging, UHV, ambient/liquids, temperatures.
  • Diverse fields materials science, biology,
    chemistry, tribology.

www.spm.phy.bris.ac.uk
16
Scanning Tunneling Microscope
I ? e-2?d
  • I Tunneling current ? (decay const.) ? 2m?/
    h
  • d tip-sample distance
  • www.mpi-halle.mpg.de spm.aif.ncsu.edu

17
STM Operational Modes and Requirements
  • Vibration isolation 0.001nm
  • Reliable tip - sample positioning
  • Electrical and acoustic noise isolation
  • Stability against thermal drift
  • Good tips
  • STM Mechanical stability
  • Topography (conducting surfaces and biological
    samples).
  • ST Spectroscopy (from IV obtain the DOS).
  • STP(spatial variation of potential in a current
    carrying film).
  • BEEM (Interfacial properties, Schottky barriers).

18
STM Electronics
  • Current to voltage converter Gain 108-1010
  • Bias Circuit
  • Feedback Electronics Error amplifier, PID
    controller, few filters.
  • Scan Electronics X -X Y -Y ramp signals
    (generated by the DA card).
  • HV Circuit amplifies the scan voltages and the
    feedback signal to 100 V from 10 V.
  • Data acquisition and image display

19
STM Images
HOPG in ambient Geetha Ramaswamy, Thesis (1999),
Physics Dept, I.I.Sc., India
Si(7X7) UHV Courtesy RHK Tech.
20
More Pictures
  • Molecular resolution image of a self assembled
    monolayer (SAM).
  • Geetha R Dholakia, W. Fan, M. Meyyappan,
    Appl. Phys. A, 80 1215 (2005).
  • Quantum corral Fe on Cu(111)
  • Courtesy Eigler, IBM Almaden

21
Scanning Tunneling Spectroscopy
  • STM can also be used to obtain electronic data
    about the sample
  • dI/dV ? DOS of sample
  • For Eg Effect of Zn impurity on a high Tc
    superconductor
  • T 250mK.
  • (J.C. Davis Group, Cornell)

22
Scanning Tunneling Potentiometry
STM can also be used as a local probe of
potential and electric field Geetha Ramaswamy
and A.K. Raychaudhuri, A.P.L. Vol. 75, p. 1982,
1999.
Top Topography potential distribution in the
nanoscale in a platinum film. Bottom left
Electric field near a grain boundary triple point
(TP above).
23
Atomic Force Microscope
  • www.fys.kuleuven.ac.be www.chem.sci.gu.edu.au

24
AFM Modes of Operation
  • Contact mode
  • Force nano newtons
  • Non-contact mode
  • Force femto newtons
  • Freq. of oscillation 100kHz
  • Intermittent contact
  • Image any type of sample.

Park Scientific handbook
25
AFM Images
Mica digital instruments Grating
www.eng.yale.edu
26
Acronyms Galore !
  • Based on the force or physical quantity used to
    acquire the image, a number of scanning probe
    microscope techniques are available
  • MFM Magnetic force microscopy
  • EFM Electrostatic force microscopy
  • TSM Thermal scanning microscopy
  • NSOM Near field scanning optical microscope
