Data Mining

1

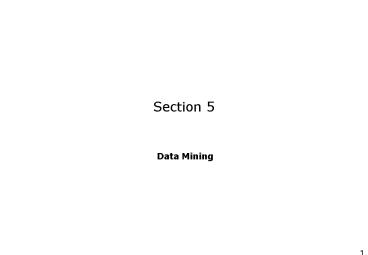

Section 5

• Data Mining

2
Section Content

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

3
5.1 Data Mining Introduction

• Data mining
• the discovery of new information in terms of
  patterns or rules from huge amounts of data
• mining tools should identify these patterns,
  rules and trends with minimal user input
• data mining is related to
• statistics exploratory data analysis
• artificial intelligence knowledge discovery and
  machine learning
• techniques from machine learning, statistics,
  neural networks and genetic algorithms are used
• due to the vastness of the amount of data,
  efficiency/scalability of data mining algorithms
  is a key issue

4
Data Mining and Data Warehousing

• The goal of data warehousing is to support
  decision making with data.
• Data mining can help in conjunction with a data
  warehouse with certain types of decisions.
• Data mining helps to extract new patterns/rules
  that cannot be found by merely querying or
  processing data.
• Aggregated or summarised collections of data in
  warehouses improves the efficiency of data mining
  in these cases.
• The potential use of data mining needs to be
  considered early in the design of a data
  warehouse.

5
Sections Covered

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

6
5.2 Knowledge Discovery

• Data mining is part of the knowledge discovery
  process
• data selection
• data cleansing
• enrichment
• data transformation / encoding
• data mining
• reporting and display
• Example
• Database Transaction database for a goods
  retailer
• Client data name, zip code, phone, date of
  purchase, item code, price, quantity, total amount

7
Knowledge Discovery - Example

• New knowledge can be discovered from the client
  data
• data selection
• data about specific items or categories of items
• items from stores in specific regions
• data cleansing
• correct incorrect zip codes
• eliminate records with incorrect phone numbers
• enrichment add additional information
• age, income, credit rating of client
• data transformation reduce the amount of data
• group items into product categories
• group zip codes into regions

8
Data Mining - Knowledge Discovery

• Data mining might discover
• co-occurrences - items that are typically bought
  together
• association rules - when a customer buys video
  equipment, he/she also buys another electronic
  gadget
• sequential patters - when a customer buys a
  camera, then within 3 months he/she buys
  photographic supplies
• classification trees - customers can be
  classified by frequency of visits, types of
  finance used, etc. combined with statistics about
  the classes
• This information can then be used to for example
• optimise store locations
• run promotions
• plan seasonal marketing strategies

9
Goals of Data Mining

• Prediction
• show how certain attributes within the data will
  behave in the future
• example predict what customers will buy under
  certain discounts
• example predict sales volume for some period
• Identification
• data patterns can be used to identify the
  existence of an item, an event, or an activity
• example detecting intruders by the commands they
  execute

10
Goals of Data Mining

• Classification
• partition data such that different classes or
  categories can be identified
• example customers can be categorised into
  regular and infrequent shoppers, into
  discount-seeking customers etc.
• categorisation - e.g. into food categories - can
  reduce the complexity of data mining
• Optimisation
• optimise the use of limited resources (time,
  space, money, etc)
• example what are the best products to spend our
  money on over the next three months?

11
Types of Knowledge Discovered

• Co-occurrences
• collection of items/actions/events that occur
  together
• example items that are bought together by a
  consumer in a shop
• Association rules
• correlation of a set of items with another range
  of values for another set of variables
• example when someone buys bread, he/she is
  likely to buy cheese
• Classification hierarchies
• create a hierarchy of classes from an existing
  set of events or transactions
• example customers might be divided into a credit
  worthiness hierarchy based on their previous
  credit transactions

12
Types of Knowledge Discovered

• Sequential patterns
• search for a sequence of events or actions
• example a patient that underwent cardiac surgery
  and later developed high blood urea, is likely to
  suffer from kidney problems
• Patterns within time series
• detection of similarities within positions of the
  time series
• example a pattern in a time series of stock
  market prices may be used to predict employment
  rates
• Categorisation and segmentation
• partition a set of events of items into
  segments/categories/classes
• example treatment data on a disease can be
  partitioned into groups based on the side effects
  that are caused

13
Counting Co-occurrences

• The problem is to count co-occurring itemsets -
  motivated by market basket analysis.
• A database of consumer transactions forms the
  basis
• transaction a single visit to a store, an order
  at a virtual store (Web site), or a single order
  through a mail-order catalog
• a transaction consists of a transaction ID,
  customer ID, date, item and quantity
• The goal is to identify items that are typically
  purchased together.
• This can be used to improve the layout of shops
  or catalogs.

14
Frequent Itemsets (1)

• Consider the following transaction table
• Transaction Customer Date Items bought
• 101 12 11/09 milk, bread, juice
• 792 13 12/09 milk, juice
• 1130 14 14/09 milk, eggs
• 1735 13 14/09 bread, coffee, biscuits
• Items bought in one visit are already grouped
  together into itemsets.
• Support of an itemset the fraction of
  transactions that contain all items in the
  itemset
• Examples
• milk, juice has a support of 50
• bread, coffee has a support of 25

15
Frequent Itemsets (2)

• Large itemsets are itemsets that have a certain
  minimum support, i.e. are itemsets that occur
  frequently.
• Example
• for a minimum support of 40, the large itemsets
  are milk, juice, milk, juice, bread
• Proposition
• every subset of a large itemset is also a large
  itemset
• Algorithm
• large itemsets can be computed incrementally
• start with itemsets of cardinality 1 that have
  the required support

16
Sections Covered

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

17
5.3 Association Rules

• A database can be regarded as a collection of
  transactions.
• Each transaction involves a set of items.
• Example the items in a basket that a shopper
  uses in a supermarket
• Transaction Time Items bought
• 101 635 milk, bread, juice
• 792 738 milk, juice
• 1130 805 milk, eggs
• 1735 840 bread, coffee, biscuits

18
Association Rules

• An association rule is of form X gt Y where X and
  Y are two disjoint sets of items
• Example
• for sets of goods as itemsets X and Y, the
  expression X gt Y means that if a customer buys
  X, he/she is also likely to buy Y.
• if the customer buys milk, he/she is also likely
  to buy juice.
• The support for a rule X gt Y is the percentage
  of transactions that hold all of the items in the
  union X ? Y.
• Examples
• Milk gt Juice has 50 support
• Bread gt Juice has 25 support

19
Association Rules

• The confidence of a rule X gt Y is the percentage
  (fraction) of all transactions including X that
  also include Y.
• Example
• the rule Milk gt Juice has confidence 66.7
• that means that 2/3 of all transactions with milk
  also include juice
• Note that support and confidence might be
  different.
• The goal is to discover rules with a certain
  minimum support and confidence.
• These rules can be used for prediction for a
  rule
• Pen gt Ink
• offer discounts on pens and you might increase
  ink sales.

20
Association Rules

• How to compute these rules?
• Generate large itemsets (itemsets with a certain
  minimum support)
• For each large itemset X, generate all rules with
  a certain minimum confidence (mconf)
• for X and Y ? X, let Z X - Y (divide X
  into Y and Z)
• if support(X) / support(Y) gt mconf then
• Y gt Z is a valid rule
• the confidence of rule Y gt Z is defined as
  support(X) / support(Y)
• Example for Xmilk, juice and Ymilk ?
  milk, juice,
• let Zjuice
• X, Y, Z have support 50, 75 and 50, resp.
  (support for itemsets 5.14)
• for mconf40 milk gt juice is a valid rule
  with confidence 66.7 ( 50/75 )

21
Generating Association Rules

• In principle, generating rules based on large
  itemsets and their support is straightforward.
• Computing all large itemsets and their support
  creates an efficiency problem if the number of
  items is very high.
• If m is the number of items, then 2m is the
  number of different itemsets.
• Example a typical supermarket might have several
  thousands of items.
• Computing the support of all itemsets might take
  a long time.
• Reducing the combinatorial search space is
  therefore important - the following properties
  can be used
• subsets of large itemsets are large
• extensions of small itemsets are small

22
Association Rules - Algorithms

• Outline of an algorithm that finds large
  itemsets
• Step 1
• test the support for itemsets of length 1 -
  called 1-itemsets - by scanning the database
• discard those that do not meet the minimum
  requirement.
• Step 2
• extend large 1-itemsets into 2-itemsets by
  appending one item each time (this generates all
  itemsets of length two)
• test the support and eliminate all 2-itemsets
  that do not meet the minumum support.
• Step 3
• repeat the above steps extend (k-1)-itemsets
  into k-itemsets.

23
Association Rules among Hierarchies

• Items might be divided among disjoint hierarchies
  based on some classification, e.g. Beverage can
  be divided into Juice and Milk
• Associations might occur among the hierarchies of
  items.
• Example healthy frozen yoghurt gt bottled water
• Particularly interesting are associations across
  hierarchies.
• this kind of information can be used to arrange
  different kinds of items in a supermarket

24
Negative Associations

• Negative associations are more difficult to
  detect than positive associations.
• Example 60 of customers who buy crisps do not
  buy bottled water.
• There are usually more negative associations than
  positive ones.
• The majority of itemset combinations do not occur
  in databases.
• Finding interesting negative associations can be
  difficult.

25
Association Rules - Additional Considerations

• Sampling
• For very large databases, sampling improves
  efficiency.
• Truly representative samples can help to find
  most of the rules.
• The danger is that
• false positives might be discovered (large
  itemsets that are not truly large)
• true positives might be missing.
• Other problems
• Cardinality of itemsets and volume of
  transactions can be very high.
• Variablity of transactions (geographical, season)
  makes sampling difficult.
• Multiple classifications along different
  dimensions.

26
Sections Covered

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

27
5.4 Sequential Patterns

• Sequential patterns are based on sequences of
  itemsets.
• Assume transactions to be ordered by time.
• Example
• transactions in a supermarket
• milk, bread, juice bread, eggs milk,
  coffee, biscuits may be based on three visits of
  a customer
• A subsequence of a sequence is obtained by
  deleting one or more itemsets.
• Example
• let milk, bread, juice bread, eggs milk,
  coffee, biscuits be the orginal sequence
• milk, bread, juice bread, eggs is a
  subsequence
• milk, bread, juice milk, coffee, biscuits
  is a subsequence

28
Support for Sequences

• A sequence a1, ... , am is contained in another
  sequence S if
• S has a subsequence b1, ..., bn such that ai ?
  bi for 1 lt i lt n
• Example
• milk, bread coffee, biscuits is contained
  in milk, bread, juice bread, eggs milk,
  coffee, biscuits
• The support of a sequence S is the percentage of
  a set of given sequences that contain S as a
  subsequence.

29
Discovery of Patterns in Time Series

• Time series are sequences of events.
• An event might be a fixed type of transaction.
• Example
• closing price of a stock or fund each day.
• Analysis of time series
• find period of time in which the stock did not
  fluctuate more than 1
• find period (week/month/quarter) with the
  greatest loss
• identify stocks with similar behaviour

30
Sections Covered

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

31
5.5 Classification and Regression

• Classification Rules
• Regression
• Tree-structured Rules

32
Discovery of Classification Rules

• Classification means defining/identifying a
  function that maps an object into one of many
  possible classes.
• Example a bank wants to classify loan applicants
  into loanworthy and not loanworthy
• a classification rule could define the
  classification
• not loanworthy current monthly debt obligation
  exceeds 25 of monthly net income
• loanworthy otherwise
• loanworthiness is a dependent, categorical
  attribute
• In general there is one rule (set) per class
• (var1 in range1) and ... and (varn in rangen)
• gt object O in class C1
• var1 , ..., varn are the predictor attributes

33
Support and Confidence

• Again we can define support and confidence for
  these rules.
• The support for a classification condition C is
  the percentage of tuples that satisfy C.
• The support for a rule C1 gt C2 is the support
  for the condition C1 ? C2. (C1 AND C2 is the set
  of objects in both C1 and C2.)
• Consider those tuples that satisfy condition C1.
  The confidence for a rule C1 gt C2 is the
  percentage of such rules that also satisfy
  condition C2.

34
Regression

• Regression is similar to classification, except
  that the dependent variable is numerical (and not
  categorical).
• Rules (such as classification rules) can be
  regarded as functions.
• A regression rule is a function that maps
  variables into a target class variable.
• Example LabTest(patientID, test1, ... , testn)
• the values in that relation result from a series
  of lab tests
• the target variable P is the probability of
  survival - a numerical variable
• the regression rule
• (test1 in range1) and ... and (testn in rangen)
  gt P x
• the regression function is P f(test1, ... ,
  testn)

35
Regression (2)

• If P appears as a function y f(x1, ... , xn)
• and f is linear in the domain variables,
• then the process of deriving f from a given set
  of
• tuples ltx1, ... , xn, ygt is called linear
  regression.
• Linear regression is a common statistical
  technique.

36
Tree-Structured Rules

• Specific classification and regression rules
  shall now be examined.
• These are rules that can be represented as trees
  - called classification trees or decision trees.
• These trees are typically the output of the data
  mining activity.
• Each path from a root to a leaf node represents
  one classification rule.
• Example Insurance risk determination for motor
  insurance

Age lt 25 gt
25 Car Type NO sports
family YES NO
37
Decision Trees

• A decision tree is a graphical representation of
  a collection of classification rules.
• Each node in the tree is labelled with a
  predictor or splitting attribute.
• Each outgoing edge of an internal node is
  labelled with a predicate that involves the
  splitting attribute.
• Each leaf node is labelled with a value of the
  depending attribute.
• A classification rule can be associated with each
  leaf node - constructed as the conjunction of the
  predicates
• Age lt 25 and Car Type sports for the YES-leaf
• Decision trees are constructed in two phases
• growth phase create tree based on specialised
  rules from an input database (relation)
• pruning phase reduce tree size by generalising
  rules

38
Sections Covered

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

39
5.6 Other Types of Data Mining

• Neural Networks
• Genetic Algorithms
• Clustering and Segmentation

40
Neural Networks

• Techniques from artificial intelligence can be
  used to generalise regression.
• Neural networks provide an iterative method to
  carry out this generalised regression.
• Neural networks use a curve-fitting approach to
  infer a function from a set of samples.
• This process is based on learning a test sample
  is the initial input, the system then
  incrementally infers functions based on more
  samples
• Neural networks can be applied to classification
  problems.
• Modelling time series with neural networks is
  difficult.

41
Genetic Algorithms (1)

• Genetic algorithms (GA) are a class of randomised
  search procedures for adaptive and robust search
  over a wide range of search topologies.
• Principle
• Genetic algorithms extend the idea of
  characterising human DNA by a four-letter
  alphabet (A,C,T,G).
• Construction
• Devise an alphabet that allows the encoding of a
  solution to the decision problem in terms of
  strings of that alphabet.
• Usage
• Study the cutting and combination of strings
  (compare natural reproduction and evolution).
• New generations of individuals (solutions) are
  generated and assessed - survival of the fittest.

42
Genetic Algorithms (2)

• Generation of solutions - comparison with other
  techniques.
• GA search uses a set of solutions during each
  generation rather than a single solution.
• The search in the string-space represents a much
  larger parallel search in the space of encoded
  solutions.
• The memory of the search completed is represented
  solely by the set of solutions available for
  generation.
• A GA is a randomised algorithm since search
  mechanisms use probabilistic operators.
• While progressing from one generation to the
  next, a GA finds near-optimal balance between
  knowledge acquisition and exploitation by
  manipulating encoded solutions.

43
Clustering and Segmentation

• Clustering is about identification and
  classification.
• Clustering tries to identify categories (or
  clusters) to which a data object can be mapped.
• The categories can be disjoint or might overlap
  they might be organised into trees.
• A related problem multivariate probability
  density functions.

44
Sections Covered

• 5.1 Introduction
• 5.2 Knowledge Discovery
• 5.3 Association Rules
• 5.4 Sequential Patterns
• 5.5 Classification and Regression
• 5.6 Other Forms of Data Mining
• 5.7 Applications of Data Mining

45
5.7 Applications of Data Mining

• Decision-making contexts
• marketing
• analysis of customer behaviour based on buying
  patterns
• determination of marketing strategies (store
  locations, advertising campaigns, etc)
• segmentation of customers, stores, products.
• finance
• analysis of creditworthiness of clients
• performance analysis of finance investments
• evaluation of financing options
• fraud detection.

46
Applications

• Manufacturing
• optimisation of resources (machines, manpower,
  material)
• optimal design of manufacturing process,
  shop-floor layout, etc.
• Health care
• analysis of effectiveness of certain treatments
• optimisation of processes in a hospital
• analysing side effects of drugs
• relating patient wellness and doctor
  qualifications.
