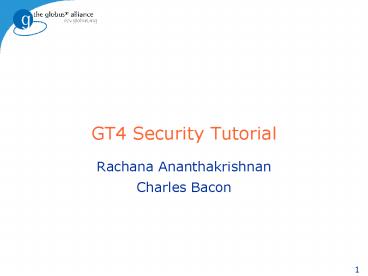

GT4 Security Tutorial

1
GT4 Security Tutorial

• Rachana Ananthakrishnan
• Charles Bacon

2
Presentation 1

• Encryption
• Signature
• Certificates

3
Encryption

• Encryption is the process of taking some data and
  a key and feeding it into a function and getting
  encrypted data out
• Encrypted data is, in principal, unreadable
  unless decrypted
• Decryption is the reverse process

4
Asymmetric Encryption

• Encryption and decryption functions that use a
  key pair are called asymmetric
• Data is encrypted with one key, the other key
  must be used to decrypt the data
• And vice versa

Data
Data
Decrypt
Encrypt
Encrypt
Decrypt
Data
Data
5
Public and Private Keys

• With asymmetric encryption each user can be
  assigned a key pair a private and public key

Public key is given away to the world
Private key is known only to owner
6
Public and Private keys

• Anything encrypted with the public key can only
  be decrypted with the private key
• And vice versa
• Since the private key is known only to the owner,
  this is very powerful.

Data
Encrypt
Decrypt
Data
7
Digital Signatures

• Digital signatures allow the world to
• determine if the data has been tampered
• verify who created a chunk of data

8
Digital Signatures
Run whoami

• Digital signatures are generated by
• Creating hash of the data
• encrypting the hash with my private key
• The resulting encrypted data is the signature
• This hash can then be decrypted only by my public
  key

Hash
Encrypt
Signature
9
Digital Signature

• Recipient of data and signature
• Compute hash of data
• Decrypt signature to get hash
• Compare hash to see if they match

Hash
Compute Hash
Run whoami
?
Decrypt
Hash
Signature
10
Public Key Infrastructure (PKI)

• PKI allows you to know that a given public key
  belongs to a given user
• PKI builds off of asymmetric encryption
• Each entity has two keys public and private
• The private key is known only to the entity
• The public key is given to the world encapsulated
  in a X.509 certificate

11
Certificates

• A X.509 certificate binds a public key to a name
• It includes a name and a public key (among other
  things) bundled together and signed by a trusted
  party (Issuer)

12
Certificates

• Question Who signs certificates?
• Answer A small set of trusted entities known as
  Certification Authorities (CAs)

Name Validity Public Key
Issuer?
13
Certification Authorities (CAs)

• A Certification Authority is an entity that
  exists only to sign user certificates
• The CA signs its own certificate which is
  distributed

14
Certification Authorities (CAs)

• The public key from the CA certificate can then
  be used to verify issued certificates

Name Issuer Validity Public Key Signature
Hash
Hash
?
Decrypt
Hash
15
Certificate Policy (CP)

• Each CA has a Certificate Policy (CP) which
  states
• who it will issue certificates to
• how it identifies people to issue certificates to
• Lenient CAs dont pose security threat, since
  resources determine the CAs they trust.

16
Requesting a Certificate

• To request a certificate a user starts by
  generating a key pair
• Private key is pass-phrase protected

17
Certificate Request

• The user then signs their own public key to form
  what is called a Certificate Request
• Email/Web upload

Sign
Certificate Request Public Key
18
Registration Authority (RA)

• The user then takes the certificate to a
  Registration Authority (RA)
• Vetting of users identity
• Often the RA coexists with the CA and is not
  apparent to the user

Registration Authority
Certificate Request Public Key
State of Illinois
ID
19
Certificate Issuance
Certificate Request Public Key

• The CA then takes the identity from the RA and
  the public key from the certificate request
• It then creates, signs and issues a certificate
  for the user

Registration Authority
Name
CA
Name Issuer Validity Public Key Signature
20
Certificate Revocation

• Why revoke
• Key compromised
• Malicious user
• Certificate Revocation Lists
• List of serial numbers revoked
• Signed by CA
• Periodic Updates

21
GSI Proxy Credentials

• Proxy credentials are short-lived credentials
  created by user
• Proxy signed by certificate private key
• Short term binding of users identity to
  alternate private key
• Same effective identity as certificate

SIGN
22
GSI Proxy Credentials

• Stored unencrypted for easy repeated access
• Chain of trust
• Trust CA -gt Trust User Certificate -gt Trust Proxy
• Key aspects
• Generate proxies with short lifetime
• Set appropriate permissions on proxy file
• Destroy when done

23
Exercise 1

• Acquiring a certificate
• Starting a webservices container

24
The Exercise Code

• Well be starting with a GT4 counter service and
  adding different kinds of security to the service
  and clients
• To start, well need to get an X.509 certificate
  and install the GT4 webservices container
• All your exercise instructions are in the
  student-notes.html file
• Follow the instructions until you get to the
  beginning of Exercise 2

25
Exercise Corrections

• Files are in HOME rather than HOME/tutorial
• GT core file is gt-install.tar.gz rather than
  ws-core.gz
• If your machines date is incorrect, please
  contact us so we can fix it

26
Presentation 2

• Authentication
• Message Protection
• Security Descriptors

27
Introduction

• Authentication
• Establishing identity of remote entity
• Prove holder of private key corresponding to
  presented certificate
• Message Protection
• Integrity of message, digital signatures
• Privacy of message, encryption

28
Authentication Schemes

• GSI Secure Message
• Each individual message is secured
• XML Signature using private key
• XML Encryption using public key
• Replay Attack Prevention
• Performance hits due to XML handling

29
Authentication Schemes

• GSI Secure Conversation
• Handshake to establish secure context
• Signature and encryption using symmetric key
• Anonymous access support
• Most effective on repeated use of context
• GT initializes Apache XML Security Library
  appropriately

30
Authentication Schemes

• GSI Secure Transport
• Secure Sockets
• Encryption and signature using symmetric key
• https protocol
• Standalone container-level configuration
• Default configuration
• If routed, end to end security is not feasible

31
GT4 Server-side features

• Configure required authentication as policy
• At service or resource level
• Programmatic or security descriptors
• Message Protection options
• Integrity and Privacy
• Server response
• Same authentication scheme as request

32
GT4 Client-side features

• Configurable client side authentication
• Per invocation granularity
• Properties on the Stub
• Programmatically or Security Descriptors
• Message Protection options
• Integrity and Privacy
• Default Integrity protection

33
Security Descriptor Overview

• GT way of configuring security properties
• Declarative security
• Configure properties in files
• Programmatic security
• Descriptors as Java objects
• Types of descriptors
• Container
• Service
• Resource
• Client

34
Container Security Descriptor

• Configured in global section of deployment
  descriptor
• GLOBUS_LOCATION/etc/globus_wsrf_core/server-confi
  g.wsdd
• Parameter containerSecDesc
• Can be done only in this file
• Programmatically created
• Only one instance of container security
  descriptor per JVM
• Initialized at container startup only

35
Service Security Descriptor

• Services deployment descriptor as file
• Parameter securityDescriptor
• Loaded as file or resource stream
• Programmatically in service constructor
• Initialized from file only on service
  initialization
• Can be programmatically altered at any time

36
Service Descriptor Example

• Method specific authentication policy
• ltmethod name"createCounter"gt
• ltauth-methodgt
• ltGSITransportgt
• ltprotection-levelgt
• ltprivacy/gt
• lt/protection-levelgt
• lt/GSITransportgt
• lt/auth-methodgt
• lt/methodgt
• Default authentication policy
• ltauth-methodgt
• ltnone/gt
• lt/auth-methodgt

37
Resource Security Descriptor

• Resource descriptor set programmatically
• Load from file or use ResourceSecurityDescriptor
  object
• Security Framework does not load or initialize
• Identical to service security descriptor
• Can be loaded as file or resource stream

38
Client Security Descriptor

• Security descriptor file
• ((Stub)port).setProperty(Constants.CLIENT_DESCRIPT
  OR_FILE, fileName)
• Absolute path or as resource stream or relative
  to GLOBUS_LOCATION
• Security descriptor object
• ((Stub)port).setProperty(Constants.CLIENT_DESCRIPT
  OR, instance of ClientSecurityDescriptor)

39
Client Descriptor Example

• ltGSISecureConversationgt
• ltprivacy/gt
• lt/GSISecureConversationgt
• ltGSISecureMessagegt
• ltintegrity/gt
• lt/GSISecureMessagegt
• GSI Secure Transport, based on protocol https

40
Exercise 2

• Service Security Descriptor
• Starting a webservices container

41
The Exercise Code

• In this exercise we will take a simple counter
  service with create/add/subtract/query operations
  and add authentication
• To do this, we will first add a service security
  descriptor to add authentication to the
  operations
• Then we will modify the four clients to use the
  appropriate kinds of authentication

42
Adding the service sec. desc.

• To add the security descriptor to the service,
  first we add a securityDescriptor property to the
  server-config.wsdd
• Then we will edit the securityDescriptor file to
  define the kinds of authentication we want
• Because we want to show as much variety as
  possible, well set a number of different
  authentication methods on the different operations

43
Adding the client sec. desc.

• For the clients, we need to make the
  authentication method correspond to the matching
  operations authentication method
• Well use both the Stub/properties approach and
  the client-side descriptor approach

44
Presentation 3

• Authorization

45
Introduction

• Authorization
• Determine if said entity can perform a said
  action on a said resource
• Without this, any entity with valid certificate
  can access resource
• Authentication required before authorization

46
Server-side Authorization Framework

• Establishes if a client is allowed to invoke an
  operation on a resource
• Only authenticated calls are authorized
• Attribute-based Authorization
• Identity and Properties of an entity used in
  decision making
• Authorization policy configurable at resource,
  service or container level

47
Server-side Authorization Components

• Policy Information Points (PIPs)
• Collect attributes (subject, action, resource)
• Policy Decision Points (PDPs)
• Evaluate authorization policy
• Authorization Engine
• Orchestrates authorization process
• Enforce authorization policy
• Combining algorithm to renders a decision

48
GT 4.0 Authorization Framework
Message Context (store attributes)


Permit
Permit
Deny
Permit
Appropriate Authorization Engine
Deny
Permit
Authorization Handler
Authentication Framework
Identity and public credential of client
49
PIP Examples

• X509 Certificate details as attributes
• Method parameters as attributes
• Attributes from an attribute service
• VOMS, Shibboleth

50
PDP Examples

• Self Authorization
• Same identity as remote entity
• Gridmap Authorization
• Entry in configuration file, gridmap file
• Mapping from DN to local account
• Identity Authorization
• Matches configured identity

51
Descriptor Configuration

• Container/Service/Resource descriptor
• ltauthz valuens1org.globus.someAuthz, gridmap,
  ns2org.globus.testAuthz"/gt
• Precedence order
• Parameters
• Configured in deployment descriptor
• Prefix and parameter name
• ltparameter namens1fileName valuesomeFile/gt
• Exception is gridmap

52
Client-side Authorization

• Determines if said service/resource is allowed to
  cater to the clients request
• Pluggable authorization scheme
• Defined interface, implement custom schemes
• Configured as property on stub or using security
  descriptors
• Examples Self, Host, Identity, None
• Default Host

53
Client-side Authorization

• GSI Secure Transport
• Done after handshake is completed
• GSI Secure Conversation
• Done after handshake is completed
• GSI Secure Message
• Done after operation is complete
• Use encryption to ensure correct server
• Use client-side authorization to validate response

54
Client Descriptor Example

• Authorization Element
• ltauthz valueself/gt
• Values
• none
• host
• self
• Expected DN as string
• Does not support custom authorization
  configuration

55
Exercise 3

• Adding authorization to the service
• Adding authorization to the clients

56
The Exercise Code

• This exercise will make the client and service
  both perform self authorization
• First, exchange CounterService endpoints with a
  neighbor, and see that you can create/add/subtract
  /query/destroy on your neighbors service
• Then add self authorization to the service and
  client

57
Benefits of Self Authorization

• Dont forget that this authorization is mutual!
• Your client will reject a service if you are
  somehow tricked into reaching a service that
  isnt being run with your identity
• Your service will reject clients who are not
  running with your identity

58
Presentation 4

• Resource Security

59
Resource-level Security

• Security Properties
• Credentials
• Authentication policy
• Authorization policy
• Resource Security Descriptor
• Similar to service security descriptor
• From file or programmatically
• Highest precedence

60
Writing Secure Resource

• public class TestResource implement
  SecureResource
• ResourceSecurityDescriptor desc null
• public TestResource()
• this.desc new ResourceSecurityDescriptor(desc
  FileName)
• public ResourceSecurityDescriptor getSecurityD
  escriptor()
• return this.desc

this.desc new ResourceSecurityDescriptor() //
set properties programmatically this.desc.setGridM
ap(new GridMap())
61
Resource Security Descriptor

• Toolkit does not initialize, up to resource
  developer
• Authorization parameters programmatically set
• ResourceSecurityConfig class
• Hashmap of properties

62
Presentation 5

• Secure Notifications

63
Notifications

• Server side
• Resource property is exposed as notification
  topics
• Service has subscribe operation port type
• Operation provider SubscribeProvider
• Client side
• Consumer, embedded container
• Notification callback

64
Notification
EPR
subscribe(EPR)
Notification Consumer Manager
NotificationCallback
65
Notification Security

• Client side
• Secure container
• Secure consumer resource
• Secure subscribe invocation
• Server side
• Secure subscribe operation
• Secure notification
• Only one container descriptor per JVM

66
Exercise 4

• Adding auth/authz to resources
• Gridmap authorization

67
The Exercise Code

• What if we want other clients to access our
  counters?
• In this exercise, well let a list of authorized
  clients access our counters
• Creating new counters will still be self
  authorized
• New users will be added to the authorization list
  (or gridmap) via the addAuthorizedDN operation

68
SecureTutorial CounterService

• Well add the addAuthorizedDN operation to the
  service
• The service will, in turn, call the
  addAuthorizedDN operation on the counter resource
• The resource will implement SecureResource and
  set a PolicyDecisionPoint (PDP) with the
  GridMapAuthorization class

69
Gridmap authorization

• The gridmap authorization on the resource will
  let the authorized users use the
  add/subtract/query operations
• But dont forget that authorization is mutual!
• We cant use the self authorization on the client
  for this exercise, because well be interacting
  with services running under other identities

70
Exercise Notes

• Shared EPR at
• /eprs/shared/lab-
• Example /eprs/shared/lab-16

71
Exercise 5

• Notification security

72
The Exercise Code

• Almost all of the new code in the exercise is
  just to produce/consume notifications
• The security is handled via a descriptor on the
  service side, and Stubs on the add client

73
Presentation 6

• Credential Configuration
• Host Authorization

74
Types of Credentials

• User
• Private key is encrypted
• Cannot be directly used in GT
• Proxy
• Both keys in same file
• Private key unencrypted
• Host
• Private key unencrypted.
• Typically protected by file system priviledges
• Service
• Similar to host key

75
Descriptor Example

• Can be configured in any descriptor file, server
  and client side
• Proxy file name
• ltproxy-file valueproxy file/gt
• Certificate and key filename
• ltcredentialgt
• ltkey-file valuekey file"/gt
• ltcert-file valuecertificate file/gt
• lt/credentialgt
• Absolute file name, as resource stream, relative
  to GLOBUS_LOCATION

76
Related Utility API

• To get resource credential
• SecurityManager.getManager().getResourceSubject()
• To get service credential
• SecurityManager.getManager().getServiceSubject()
• To get container credential
• SecurityManager.getManager().getSystemSubject()
• To get effective credential
• SecurityManager.getManager().getSubject()

77
Host Authorization

• Expect host certificates used by remote entity
• Typically container or service
• Reverse resolution IP to hostname

78
Presentation 7

• Anonymous Access

79
Secure Transport Anonymous

• Client does not need certificates
• Service explicitly should allow such access
• Authorization mechanism might fail

80
Presentation 8

• GSI Secure Message

81
Secure Message Encryption

• Encrypt with public key of remote entity
• Host certificates, use hostcert.pem
• User certificates, use usercert.pem
• But encrypted private key, so not feasible in
  practice
• Proxy certificates, use same proxy certificate!
• Internally symmetric key is generated for
  performance reasons
• Privacy better than integrity
• since client authorization done after operation
  is invoked

82
Exercise 6

• Acquire hostcerts
• Setup host authorization for clients
• Add service-wide gridmap

83
The Exercise Code

• The last time we used our neighbors service, we
  used None authorization on the client. We can do
  better!
• Well get a host certificate, and set it as the
  default identity container-wide. Remember that
  we can override at the service/resource level if
  we want

84
Service gridmap

• We will also setup a service-level gridmap. This
  will let us have authorized users create and
  destroy counters without having to use something
  like addAuthorizedDN
• On the client side, we will only change to Host
  authorization. The client will expect a hostname
  that matches the IP address in the certificate
  subject

85
Exercise 7

• Anonymous access

86
The Exercise Code

• This is a brief exercise to show how to anonymous
  access works
• Well show that clients dont need a proxy to use
  anonymous access
• Well also show how unauthenticated operations
  bypass authorization, allowing anonymous clients
  to access them
• getValue is okay to expose to the world, but this
  lets us keep https//

87
Exercise 8

• GSI Secure Message

88
The Exercise Code

• This is a brief exercise to show how to setup GSI
  Secure Message security
• Well need to have a copy of the services public
  key (in this case, the hostcert.pem we just
  setup) available to the client
• The exercise also demonstrates the post-operation
  authorization

89
Presentation 9

• Delegation
• Run-As Configuration

90
Delegation

• Empower an entity with rights of another
• Typical scenario
• Client empower server
• One service empower another
• Use of proxies for delegation

91
GSI Delegation
Certificate Request
Certificate
Delegated Credential
92
Delegation

• Types of delegation
• Limited
• Full
• Services can choose to reject limited proxies
• Per service or resource configuration
• Applies to all methods
• Clients can control delegation path length
• Limits misuse

93
Delegation

• Secure Conversation
• Can delegate as part of protocol
• Extra round trip with delegation
• Full or limited delegation
• Client side authorization is required
• Secure Message and Secure Transport
• Cannot delegate as part of protocol

94
Run As Configuration

• Determines credential to associate with operation
• Significant when callouts are used
• Options system, service, resource, caller
• Default resource
• With caller, delegation required

95
Exercise 9

• Delegation
• The Bank Service

96
The Exercise Code

• This new service models a very simple bank
  account.
• Bank Factory Service can create accounts for
  users and also stores number of accounts created
• Users can then deposit and withdraw funds
• The depost/withdraw operations highlight run-as,
  operating under the callers identity

97
Presentation 10

• Delegation Service

98
Delegation Service

• Higher level service stores delegated credential
• Two remote operations
• Delegate
• Refresh
• Delegated credential as WSRF resource
• Protected with resource security

99
Delegation Service

• Client delegates and gets EPR
• EPR as part of invocation to service
• Service uses EPR to get credential
• Client can refresh credential

Hosting Environment
Service1
Resources
Service2
EPR
Delegation Service
Service3
Delegate
Refresh
Refresh
EPR
Delegate
Client
100
Delegation Service

• Two ways to get delegated credential
• Use Delegation EPR to get credential
• Register a listener to get refresh updates
• Advantages of Delegation Service
• Shared across multiple invocations
• Shared across multiple services
• Authentication protocol independent

101
Exercise 10

• The Delegation Service
• The Finance Service

102
The Exercise Code

• Pretend that we want to run a retirement planning
  service
• The user wants to let us access the their bank
  account so we can tell them when they can retire
• To accomplish this, they will create a delegated
  credential in the Delegation Service, then allow
  our finance service to access it

103
The Exercise Code

• This new service models a very simple bank
  account. You can create accounts, then deposit
  and withdraw funds
• The depost/withdraw operations highlight run-as,
  operating under the callers identity

104
The Finance Service

• Our Finance Service also rejects limited proxy,
  so the client needs to delegate full proxies
• Our simple Finance Service only takes an interest
  rate and number of years, then computes the
  result of that interest rate applied to that
  account for that number of years

105
Presentation 11

• GT 4.2 Features
• Other Interesting Security Components
• Planned Work

106
GT 4.2 Features

• Server-side Authorization Framework
• Normalized representation
• Entity as a collection of attributes
• Merge relevant attributes from same entity
• Access and Administrator rights
• Pluggable combining algorithm
• Default Permit override with delegation of rights

107
GT 4.2 Features

• Client side authorization
• Host or self authorization
• No authorization during handshake
• Security Descriptors
• Schema validation
• Cover more options

108
Community Authorization Service

• Manage rights in a VO
• User, action, resource mapping
• Generic framework
• Rights as signed SAML Assertions
• Web service interface
• Administrator interface
• Query interface
• Back end database
• Java clients

109
Community Authorization Service

• Push model
• Proxy certificate
• SOAP Header
• GridFTP control Channel
• Pull model
• Authorization Service interface
• Java PDP interface

110
GridShib

• Leveraging existing campus identity management
• Shibboleth
• Interface to campus identity management systems
• Exposes campus identity and attributes in
  standard format
• GridShib
• Plugins to interface with Grid tools
• No new credentials, use existing attributes
• Example GridShib for GT
• TeraGrid Testbed
• Details http//gridshib.globus.org/

111
MyProxy

• Credential Database
• Leverage local authentication
• Online CA
• Trust certificate provisioning
• Delegation to remote servers
• Details http//grid.ncsa.uiuc.edu/myproxy/

112
Introduce

• IDE for web service development
• Supports GT 4.0 services and clients
• GUI interface
• Build schema, stubs, implementation class
  framework
• Service level security supported
• caBig Effort
• Incubator project on dev.globus
• http//dev.globus.org/wiki/Incubator/Introduce

113
Planned Work

• Authorization module separate from WS layers
• Remote PIP and PDP support
• Trust root validation callout
• XACML interface for CAS
• WS-Naming and Identifiers

114
Reference

• Authentication
• http//www.globus.org/toolkit/docs/4.0/security/me
  ssage/
• Authorization
• http//www.globus.org/toolkit/docs/4.0/security/au
  thzframe/
• API
• http//www.globus.org/api/javadoc-4.0.0/globus_jav
  a_ws_core/
