Title: A.SZUDER


1

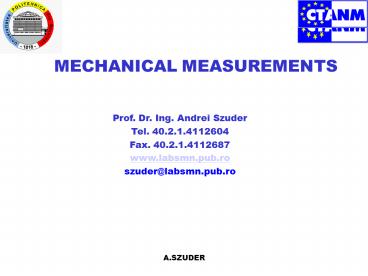

MECHANICAL MEASUREMENTS
Prof. Dr. Ing. Andrei Szuder Tel.
40.2.1.4112604 Fax. 40.2.1.4112687 www.labsmn.pub.
ro szuder_at_labsmn.pub.ro
2
PRESSURE MEASUREMENT
3
Pressure measurement
  • Pressure driven equipment (IC engines, turbines,
    etc.)
  • Pneumatic or Hydraulic mechanical elements
  • Biomedical applications (Blood Pressure,
    Barometric Chambers)
  • Losses in pipes and ducts energy efficiency
  • Atmospheric conditions (weather forecast,
    altitude)
  • Indirect measurement of flow rate or velocity
  • Scuba diving
  • Many, many more ...

4
PRESSURE MEASUREMENT
  • Absolut, Differential
  • Barometer
  • Manometer

5
Absolute pressure
Pabs 0
Presiune referinta
6
Barometer
0
P0
A
h
h
Patm
Patm A
Well-type manometer
7
Differentialpressure
P1
P2
8
Types of pressures
9
Static And Dynamic Pressure
Dynamic pressure Stagnation pressure (A) -
Static pressure (B)
10
Static And Dynamic Pressure
Dynamic pressure Stagnation pressure (A) -
Static pressure (B)
11
Types of pressure transducers
  • Liquid Column manometers
  • Elastic tubes, diaphragms, membranes (equipped
    with displacement or strain sensors)
  • Semiconductor elements (with implanted stress
    elements)
  • Piezoelectic elements (directly convert crystal
    lattice stress into voltage)

12
Liquid Column Manometers
P2
P1
P1 A
A
h
h
U tube manometer
P2 A
13
Liquid Column Manometers
P1
P1 A
A
P2
h
h
P2 A
14
InclinedManometer
P1
P1 A
hr
P2
h
g
A
P2 A
15
Pressure transducers
Patm
P2
16
Pressure transducers
  • Elastic elements
  • Changing pressure change the shape of the elastic
    element
  • Shape changing is detected by a resistive or
    position transducer

Tub
Tip C
Spirala
Tub rasucit
Elicoidal
Tuburi Bourdon
P Diferentiala
Plata
evacuat
P Absoluta
Capsula
Ondulata
Diafragme
Diferential sau absolut
17
Pressure transducers
  • Elastic elements
  • Changing pressure change the shape of the elastic
    element
  • Shape changing is detected by a resistive or
    position transducer

18
Pressure Sensor range
19
Elastic Type Manometers
20
More Elastic types...
Two dummy gagesmounted elsewhere
Why do we not put 4 active gages?
21
Dial-type Manometer
Dial-type Manometer as a mini measurement system
22
Diaphragm type manometers
To be able to detect pressure, we need to detect
the diaphragm deflection
23
Strain gauges used with Diaphragm
24
Strain gage based pressure cell
  • When a strain gage, is used to measure the
    deflection of an elastic diphragme or Bourdon
    tube it becomes a comonent in apressure
    transducer
  • Strain-gage transducers are used for narrow-span
    pressure and for differential pressure
    measurements.
  • Essentially, the strain gage is used to measure
    the displacement of an elastic diaphragm due to a
    difference in pressure across the diaphragme
  • If the low pressure side is a sealed vacuum
    reference, the transmitter will act as an
    absolute pressure transmitter.
  • Strain gage transducers are availablefor pressure
    ranges as low as 1300 MPa

25
Capacitance based pressure cell
  • Capacitance pressure transducerswere originally
    developed for use in low vacuum research. This
    capacitance change results from the movement of a
    diaphragm element
  • (The diaphragm is usually metal or metal-coated
    quartz and is exposed to the process pressure on
    one side and to the reference pressure on the
    other. Depending on the type
  • Differential pressure transducers in a variety of
    ranges and outputs of pressure, the capacitive
    transducer can be either an absolute, gauge, or
    differential pressure transducer.
  • Capacitance pressure transducers have a wide
    rangeability, from high vacuums in the micron
    range to 70 MPa.

26
  • The potentiometric pressure sensor provides a
    simple method for obtaining an electronic output
    from a mechanical pressure gauge.
  • The device consists of a precision potentiometer,
    whose wiper arm is mechanically linked to a
    Bourdon or bellows element.
  • This type of transducer can be used for low
    differential pressure applications as well as to
    detect absolute and gauge pressures.

27
The resonant wire pressure transducer
  • The resonant-wire pressure transducer
  • was introduced in the late 1970s.
  • a wire is gripped by a static member at one end,
    and by the sensing diaphragm at the other. An
    oscillator circuit causes the wire to oscillate
    at its resonant frequency.
  • A change in process pressure changes the wire
    tension, which in turn changes the resonant
    frequency of the wire. A digital counter circuit
    detects the shift. Because this change in
    frequency can be detected quite precisely,
  • This type of transducer can be used for low
    differential pressure applications as well as to
    detect absolute and gauge pressures.
  • Resonant wire transducers can detect absolute
    pressures from 10 mm Hg, differential pressures
    and gauge pressures up to 42 MPa. Typical
    accuracy is 0.1 of calibrated span, with
    six-month drift of 0.1

28
Piezoelectric sensors
  • Piezoresistive pressure sensors are sensitive to
    changes in temperature and must be temperature
    compensated.
  • Piezoresistive pressure sensors can be used from
    about 21 KPa
  • to 100 MPa.
  • Resonant piezoelectric pressure sensors measure
    the variation in
  • resonant frequency of quartz crystals under an
    applied force. The
  • sensor can consist of a suspended beam that
    oscillates while isolated from all other forces.
    The beam is maintained in oscillation at its
    resonant frequency. Changes in the applied force
    result in resonant frequency changes. The
    relationship between the applied pressure P and
    the oscillation frequency is
  • P A(1-TO/T) - B(1-TO/T2)
  • where TO is the period of oscillation when the
    applied pressure is zero, T is the period of
    oscillation when the applied pressure is P, and A
    and B are calibration constants for the
    transducer.
  • These transducers can be used for absolute
    pressure measurements with spans from 0-100 kPa
    to 0-6 MPa or for differential pressure
    measurements with spans from 0-40 kPa to 0-275
    kPa .

29
Magnetic pressure transducers
  • These included the use of inductance, reluctance,
    and eddy currents. Inductance is that property of
    an electric circuit that expresses the amount of
    electromotive force (emf) induced by a given rate
    of change of current flow in the circuit.
  • Reluctance is resistance to magnetic flow, the
    opposition offered by magnetic substance to
    magnetic flux.
  • In these sensors, a change in pressure produces a
    movement, which in turn changes the inductance or
    reluctance of an electric circuit.

30
Optical pressure transducers
  • Optical pressure transducers detect the effects
    of minute motions due to changes in process
    pressure and generate a corresponding electronic
    output signal.
  • A light emitting diode (LED) is used as the light
    source, and a vane blocks some of the light as it
    is moved by the diaphragm. As the process
    pressure moves the vane between the source diode
    and the measuring diode, the amount of infrared
    light received changes.
  • Optical pressure transducers do not require much
    maintenance.
  • They have excellent stability and are designed
    for long-duration measurements.
  • They are available with ranges from 35 kPa to 413
    MPa and with 0.1 full scale accuracy.

31
Sensor/Cavity System Response (Helmholz Resonator)
The fundamental natural frequency of the
tube/cavity system may be expressed as
where C is the sound velocity, L and a are the
length and area of the connecting tube and V is
the cavity volume. In this second order system
air acts as mass, the pressure acts as a spring
and the connecting tube as a damping element.
32
Bourdon tube over pressure protection
  • Most pressure instruments are provided with
    overpressure protection of 50 to 200 of range
    These protectors satisfy the majority of
    applications. Where higher overpressures are
    expected and their nature is temporary (pressure
    spikes of short durationseconds or less),
    snubbers can be installed.
  • If excessive overpressure is expected to be of
    longer duration, one can protect the sensor by
    installing a pressure relief valve. However, this
    will result in a loss of measurement when the
    relief valve is open.

33
Mechanical High pressure sensors
  • In the case of the button repeater ( figA), the
    diaphragm can detect extruder pressures up to
    10,000 psig and can operate at temperatures up to
    4300C because of its selfcooling design. It
    operates on direct force balance between the
    process pressure (P1) acting on the sensing
    diaphragm and the pressure of the output air
    signal (P2) acting on the balancing diaphragm.
    The pressure of the output air signal follows the
    process pressure in inverse ratio to the areas of
    the two diaphragms. If the diaphragm area ratio
    is 2001, a 1,000-psig increase in process
    pressure will raise the air output signal by 5
    psig.
  • Another mechanical high pressure sensor uses a
    helical Bourdon element (Figure B). This device
    may include as many as twenty coils and can
    measure pressures well in excess of 10,000 psig.
    The standard element material is heavy-duty
    stainless steel, and the measurement error is
    around 1 of span. Helical Bourdon tube sensors
    provide high overrange protection and are
    suitable for fluctuating pressure service, but
    must be protected from plugging. An improvement
    on the design shown in Figure B detects tip
    motion optically, without requiring any
    mechanical linkage.

34
Vacuum mesurement
  • Vacuum gauges in use today fall into three main
    categories
  • mechanical,
  • thermal,
  • ionization.

35
Vacuum mesurement
36
Semiconductor-type Sensors
37
Static Calibration
38
Pressure transducers
39
Pressure transducers
40
Pressure transducers
41
Pressure transducers
42
Pressure transducers
43
Pressure transducers
44
Pressure servo-transducer
45
Piezoelectric pressure transducer
46
Preso-sensitive switch
B
