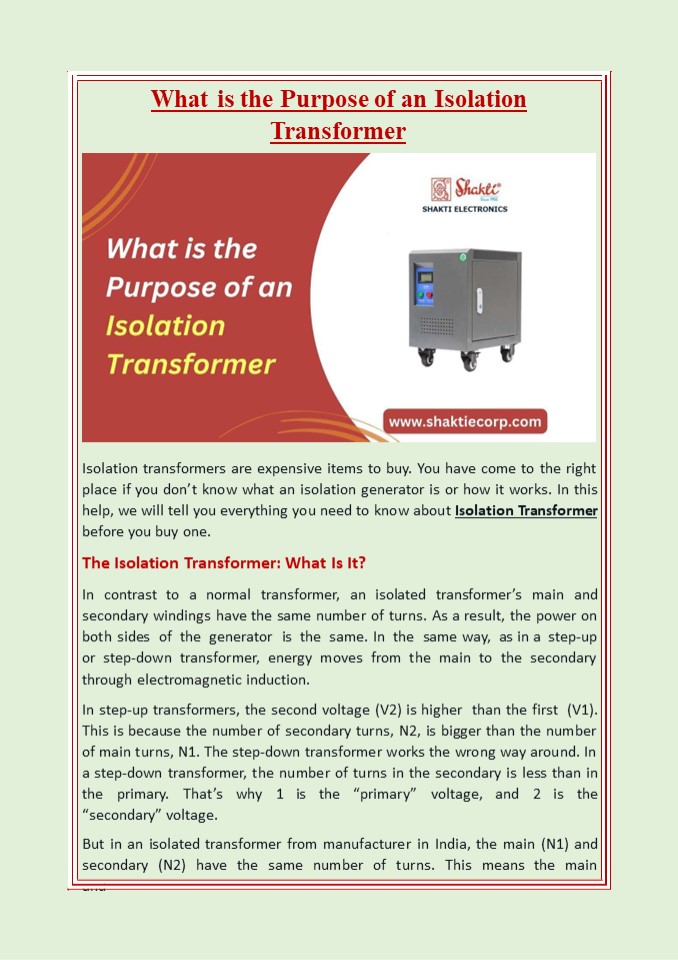

What is the Purpose of an Isolation Transformer
Isolation transformers are expensive items to
buy. You have come to the right place if you
dont know what an isolation generator is or how
it works. In this help, we will tell you
everything you need to know about Isolation
Transformer before you buy one. The Isolation
Transformer What Is It? In contrast to a
normal transformer, an isolated transformers
main and secondary windings have the same
number of turns. As a result, the power on both
sides of the generator is the same. In the
same way, as in a step-up or step-down
transformer, energy moves from the main to the
secondary through electromagnetic induction. In
step-up transformers, the second voltage (V2) is
higher than the first (V1). This is because the
number of secondary turns, N2, is bigger than the
number of main turns, N1. The step-down
transformer works the wrong way around. In a
step-down transformer, the number of turns in the
secondary is less than in the primary. Thats
why 1 is the primary voltage, and 2 is
the secondary voltage. But in an isolated
transformer from manufacturer in India, the main
(N1) and secondary (N2) have the same number
of turns. This means the main and
2
secondary currents, I1 and I2, are equal.
So, the isolation transformer is also called
a 11 turns ratio transformer because it looks
like a transformer with two windings. Purpose of
Isolation Transformer It would help to separate
circuits in many situations without adding or
taking away energy. This type of
transformers main and secondary windings is
the same. It helps with radio frequency
separation from the receiver to how much radio
transmitter is needed to split the big parts. It
helps isolate the DC power in telephone lines,
which is required to boost the repetitive
gaps that carry digital information. Advertiseme
nt Sometimes, the transformer from step
down transformer manufacturer has more than
two coils. It is also known as a ferromagnetic
core or windings. Any change in the main winding
will cause a magnetic field to change in the
core. This changes the area as it moves from one
side to the other of the secondary turning. This
creates new electrical energy in the secondary
coils. Isolation Transformer Manufacturer in
India are used to stop capacitance from making
the link between the main and secondary
circuits stronger, which would cause a high
frequency of sound. It changes the amount of
energy from one level to another. The coils dont
touch each other, so the input and output
circuits differ. How An Isolation Transformer
Works? It gets rid of the need to separate
different circuits. These are used in many
businesses to do other things without dropping or
raising the electric current. Setting up a 11
split between the main and minor windings is
helpful. It lowers the chance of getting shocked.
The power transformers are made to keep people
and resources apart, which keeps everyone safe.
It links the boat to a source of electricity. In
this case, the electric wings do not connect to
the power line. It makes noise and other sounds
quieter. It stops any noise from sending the
signal from the audio amplifier straight to
the speaker output and separates the audio
amplifier from the amplifier.
3
It helps separate DC power. These are
often used in a telephone line that
regularly boosts digital information. The
transformer divides the direct current from the
messages that tell the amplifier what to
do. Conclusion A very useful tool is an
isolation transformer, which lets you safely
power gadgets with different voltages from
the same source. The Servo Voltage
Stabilizer is also very important. It does
this by insulating the two circuits, which
cuts down on ground loops and other problems that
could affect nearby gadgets or the power source.
There are a lot of perks of Isolation Transformer
Manufacturer, but make sure to talk to a trained
electrician about how it will work in your
case. Source Link https//shaktiecorp.home.blog/
