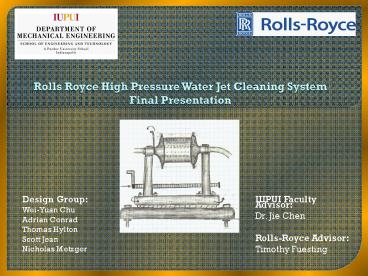

Rolls Royce High Pressure Water Jet Cleaning System Final Presentation

1
Rolls Royce High Pressure Water Jet Cleaning
System Final Presentation


Design Group Wei-Yuan Chu Adrian Conrad Thomas
Hylton Scott Jean Nicholas Metzger
IUPUI Faculty Advisor Dr. Jie Chen Rolls-Royce
Advisor Timothy Fuesting
2
Design Process

• Establish a Need
• Identify the Customer
• Determine Customer Requirements
• Develop Engineering Specifications
• Concept Development Evaluation
• Design Product
• Evaluate Product to Specifications
• Manufacture and Testing
• Product Release

3
Airfoil
4
Airfoil Ends
5
Dry Box for Blasting
6
Who is Our Customer ?

• Rolls-Royce Engineering
• Timothy Fuesting
• Mary Gambone
• Rolls-Royce dry box operator
• assemble and safely use fixture to clean
  airfoils
• Rolls-Royce maintenance / tool dye
• maintain / repair system
• Manufacturer
• simple to make parts
• Environment
• environmentally safe / recyclable

7
What Does the Customer Want ?(Initial Survey)

• Operator Safety
• no possible contact with skin
• Works as Required
• removes debris / high pressure (4000 psi)
• Fits in the space occupied by former system
• Easy to Use
• little operator training required
• Easy to Assemble
• Easy to Maintain
• Simple to Manufacture
• No Harm to the Environment
• recyclable

8
Engineering Specifications

• Provide high pressure water through the handheld
  spray nozzle
• Provide high pressure water through the fixture
• Fixture Operating Height Under 8
• Fixture must be Compact
• Fixture must have High Backpressure Tolerance
• Multiple Water Flow Directions
• Number of Adjustable Features
• Number of days between maintenance should be high
• Corrosion Resistance

9
Conceptual Design
10
Design for Airfoil Variation

• Fixture Design allows for securing the airfoil in
  either inner or outer rod configuration.
• Outer Configuration is required for airfoils with
  obstructed interior passages.

11
Off the Shelf Products

• Swiveling quick disconnects provide rotation of
  the fixture, as well as easy removal.

12
Video File of Fixture Model
13
Hydraulic Routing
14
Connections
A. Base plate B. Quick disconnection parts and
rubber pads C. Slider arbor D. Socket rods
connect large contact and small contact
15
Connections

• E.
• Quick
• disconnections and
• contacts
• F.
• Rubber and
• contacts
• G.
• Fixed arbor

16
Connections
H. Distance controller I. Arbor top
and arbor J. Screws connect arbor and plate
17
Product Evaluation

• Engineering Targets tested through various
  methods of analysis.
• Each of the engineering targets represented in
  numerical values.
• Each requirement must meet the customers
  standards.

18
Fixture/Spray Gun Pressure

• Utilized the modified Bernoulli Equation
• Assumptions Steady Flow, Incompressible, No heat
• transfer
• Results
• Fixture inlet pressure 3,582 psi
• Spray Gun Outlet Pressure 3,013 psi

19
Corrosion Resistance

• Using the maximum values listed at AZOM for 304
  stainless steel of 20 Cr, 0 Mo, and 10 N to
  calculate the PRE (Pitting Resistance Equivalent)
• Corrosion occurs with the breakdown of the
  protective surface film on the steel commonly
  caused from exposure to sulfide and chloride ions
• Quenching, adding Molybdenum, and Nitrogen to the
  metal helps prevent corrosion

20
Cost Analysis

• Consisting of mostly stainless steel components
  and high pressure connections the design
  consisted of
• 35 Components
• Rolls Royce had most components in house causing
  a reduced retail price
• Approximate Non reduced Total Cost 1,918.44

21
Fixture Operating Height

• Fixtures operating height 4.5
• Designed to function under comfortable operating
  conditions within the parameters of the dry box.

4.5
22
Stress Tolerance

• Analysis using ANSYS Workbench
• Worst Case Scenario
• Maximum Pressure
• Uniformly Distributed Force
• (4000 psi 27.579 Mpa)
• Perpendicular to Large Contact Faces

23
Meshing Technique

• Coarse Mesh
• High Stress Areas
• Refined Locations
• Large Contact Holes
• Arbor Base Edges

24
Analyzing ANSYS Results

• Analysis to look at
• Total Deformation
• Tensile Stresses
• Locate Problem Areas
• Max Stress Locations
• Less than Stainless Steel Yield Strength
• of 515 MPa.

25
Max Stress Locations
Inner Rod Assembly
Outer Rod Assembly
Max Tensile Stress 312 MPa
Max Tensile Stress 407 MPa
26
Total Deformation
Inner Rod Assembly
Outer Rod Assembly
Max Deformation .23 mm
Max Deformation .16 mm
27
Results
28
Conclusions Recommendations

• Fixture is designed to Engineering Requirements
• Replace Threaded Rods with Rack Pawl for use in
  Production
• Base with interchangeable posts for blasting ends
• Flange Bearing Style Base

29
Questions
