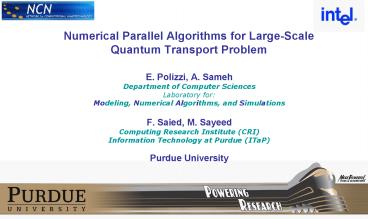

Numerical Parallel Algorithms for Large-Scale
Quantum Transport Problem

• E. Polizzi, A. Sameh
• Department of Computer Sciences
• Laboratory for
• Modeling, Numerical Algorithms, and Simulations
• F. Saied, M. Sayeed
• Computing Research Institute (CRI)
• Information Technology at Purdue (ITaP)
• Purdue University

2
Quantum transport modelingHow to proceed ?

• Current-Voltage Characteristics obtained by
  self-consistent simulations Transport-Electrostat
  ics
• High level of detail and realism in the
  simulation of nanoelectronic devices requires
  huge computational capacity

3
NESSIE a state of the art nanoelectronics
simulator and a multidisciplinary simulation
environment

• Our parallel finite element code NESSIE can
  simulate the I-V characteristics of arbitrary
  2D/3D devices using a full quantum approach
  (PDE-based model)
• By allowing the integration of different physical
  models, new discretization schemes, robust
  mathematical methods, and new numerical parallel
  techniques NESSIE becomes a robust
  multidisciplinary simulation environment

4
Numerical Techniques
Computational problems
the potential Vi is given
Basic strategy parallel MPI procedure on the
energy where each processor handles many linear
systems ? Not suitable for large-scale
nanoelectronics problem
New strategy each linear system is solved in
parallel ? The SPIKE algorithm
5
SPIKE Introduction
After RCM reordering

• Engineering problems usually produce large sparse
  linear systems
• Banded, or banded with low-rank perturbations,
  structure is often obtained after reordering
• SPIKE partitions the banded matrix into a block
  tridiagonal form
• Each partition is associated with one CPU or
  one node ? multilevel of parallelism

6
SPIKE General algorithm (A. Sameh et al.)
Reduced system ((p-1) 2m)
AXF ? SXdiag(A1-1,,Ap-1) F
Retrieve solution
A(n n) Bj, Cj (m m), mltltn
7
SPIKE A Hybrid Algorithm
Different choices depending the properties of the
matrix and/or the architecture of the machine

• The spikes can be computed
• Explicitly (fully or partially)
• On the Fly
• Approximately
• The diagonal blocks can be solved
• Directly (LU, Cholesky, or sparse counterparts)
• Iteratively (with a preconditioning strategy)
• The reduced system can be solved
• Directly (Recursive SPIKE)
• Iteratively with a preconditioning scheme
• Approximately (Truncated SPIKE)

8
SPIKE A Direct Solver and a Preconditioner
SPIKE as a Direct Solver SPIKE Preprocessing
on A
SPIKE as a Preconditioner SPIKE Preprocessing
on M
ITERATIVE METHOD
SPIKE Solver Axf (direct
/ iterative outer/inner)

• SPIKE Solver M z r
• Matrix-Vector mult. Axy

9
SPIKE The recursive scheme
Reduced system p partitions (p2n)
New Reduced system obtained by applying SPIKE
again
Reduced system p/2 partitions
?Better balance achieved between computational
and communication costs as compared to iterative
methods
10
SPIKE The truncated scheme for diagonally
dominant matrices
Approximate Reduced system

• LU is used to compute 0,IVj
• UL is used to compute I,0Wj

11
Parallel architectures used

• The results were obtained on a IBM Power4
  (Datastar at SDSC)
• and a SGI-Altix (ORNL)
• DataStar has 176 (8-way) P655 nodes. The 8-way
  nodes have 16 GB of memory and 1.5 GHz CPU speed.
  The use of 8-way nodes is exclusive only one
  user is allowed at a node at any time, regardless
  of the number of CPUs one needs on that node.
• The SGI-Altix is a shared memory machine (NUMA).
  It has 256 Intel Itanium2 processors running at
  1.5GHz, each with 6 Mb of L3 cache, 256K of L2
  cache and 32K of L1 cache. Ram has 8GB of memory
  per processors with a total of 2TB. It supports
  up to 128 processors in a single system.

12
Performance Experiments
The test matrices are dense within the band
13
SPIKE improvement over ScaLAPACK
Case 1 Spike-RP0 for non-diagonally dominant
systems

• LU is performed with partial pivoting (LAPACK)
• All the spikes are computed explicitly
• The reduced system is solved directly (recursive
  SPIKE)

14
N480, 000 RHS1 procs 32
IBM-Power4
Spike with pivoting (RP0)
15
N480, 000 RHS1 procs 32
SGI-Altix
Spike with pivoting (RP0)
16
SPIKE improvement over ScaLAPACK
Case 2 Spike-RL0 for non-diagonally dominant
systems

• LU is performed without pivoting but with
  diagonal boosting
• All the spikes are computed explicitly
• The reduced system is solved directly (recursive
  SPIKE)

? Spike is used as a preconditioner
17
New zero-pivot 10-7 Epsilon boosting 10-9

N480, 000 RHS1 procs 32
IBM-Power4
Spike w/o pivoting (RL0) - no zero-pivot
detected
no outer-iteration needed
18
New zero-pivot 10-7 Epsilon boosting 10-9

N480, 000 RHS1 procs 32
SGI-Altix
Spike w/o pivoting (RL0) - no zero-pivot
detected
no outer-iteration needed
19
IBM-Power4 and SGI Altix
Spike w/o pivoting (RL0) - no zero-pivot
detected
no outer-iteration needed
N480,000 RHS1 procs 32
20
New zero-pivot 10-7 Epsilon boosting 10-9

N480, 000 RHS1 procs 32
IBM-Power4
Spike w/o pivoting (RL0) - zero-pivot detected
diagonal boosting - outer-iteration needed
reslt10-8
21
SPIKE improvement over ScaLAPACK
Case 3 Spike-TU0 for diagonally dominant systems

• LU/UL are performed without pivoting
• Only the top/bottom blocks of the spikes are
  computed
• The truncated reduced system is solved directly

22
N480, 000 RHS1 procs 32
IBM-Power4
Spike and LU/UL without pivoting (TU0)
23
N480, 000 RHS1 procs 32
SGI-Altix
Spike and LU/UL without pivoting (TU0)
24
Performance Experiments
Last column Time on IBM-Power4, Spike method. N
480,000, b 401, preprocess and solve times.
25
SPIKE Scalability
Spike (RL0)
IBM-Power4
b161 RHS1
N0.5M
N1M
N2M
26
SPIKE Scalability
Spike (RL0)
IBM-Power4
b401 RHS1
X computational time Y communication time
If XgtgtY Tsca/Tspike ? ? If XltltY Tsca/Tspike ?
?
27
Conclusion and future directions

• Spike is an effective parallel scheme for narrow
  banded systems that are dense or sparse within
  the band. SPIKE outperforms ScaLAPACK banded
  solver.
• Spike can be used as an effective parallel
  preconditioner for banded systems
• Spike can be adapted for preconditioning sparse
  linear systems after applying an appropriate
  reordering scheme
• Spike has been included as preconditioner in
  NESSIE to address large-scale nanoelectronics
  problems including
• full 3D simulations and future full atomistic
  modeling
