Title: Intro to PCR The Polymerase Chain Reaction


1

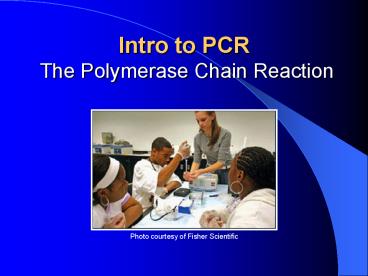

Intro to PCR The Polymerase Chain Reaction
Photo courtesy of Fisher Scientific
2
Definition
  • Polymerase Chain Reaction (PCR)
  • A procedure to amplify a specific DNA region
  • Yields millions of copies of the target region
  • Makes enough DNA for further molecular work
  • Is the first step in preparing DNA for
  • Sequencing
  • Restriction digestion
  • Bacterial cloning

Diagram by Andy Vierstraete 1999
3
Application Examples
  • PCR is commonly used to
  • Identify species
  • Identify alleles/genotypes to assess variability
    in a population
  • Create sequences for phylogenies to determine
    taxonomic relationships
  • Conduct forensic investigations

4
Non-examples
  • PCR is NOT used to
  • Amplify RNA or proteins
  • Construct genomic or cDNA libraries
  • Make monoclonal antibodies
  • Conduct stem cell research

5
Quick Quiz
  • The purpose of PCR is to
  • make copies of a specific region of DNA
  • identify the presence of particular genes
  • make sufficient genetic material for future
    molecular work
  • all of the above

6
Thermal Cycler Steps
Denature double-stranded DNA
Anneal primers to single-stranded DNA
Extend primers, yielding new double-stranded DNA
Cycling Repeat steps 1 through 3 (20 - 40 times)
7
  • PCR Animation--3D

8
Quick Quiz
  • A thermocycler protocol is comprised of which
    series of steps?
  • Decontamination, amplification, excision
  • Annealing, polymerization, cooling
  • Transcription, translation, expression
  • Denaturing, annealing, extension

9
Quick Quiz
  • PCR amplifies molecular products in a(n)
    __________ fashion
  • Logarithmic
  • Exponential
  • Linear
  • Random

10
Quick Quiz
  • Primers
  • Stabilize double stranded DNA
  • Are enzymes that catalyze the copying process
  • Are short single-stranded DNA fragments
  • Are long strings of nucleotides

11
Laboratory PCR Steps(Steps completed by
researcher)
Create Master Mix of reagents and aliquot into
tubes
Add DNA template(s)
Program thermal cycler, load with tubes and start
Remove tubes and analyze results
12
Roles of PCR Reagents
  • GoTaq PCR Mix
  • Taq polymerase
  • Enzyme that extends growing DNA strand
    complementary to DNA template
  • MgCl2
  • Provides ions needed for enzyme reaction
  • dNTPs
  • Nucleotides (Adenine, Cytosine, Guanine, Thymine)
    building blocks for new DNA strands
  • Buffer
  • Maintains optimal pH for enzyme
  • Green loading dye
  • Adds color and viscosity for future gel loading

13
Roles of PCR Reagents
  • Primers
  • Anneal to single-stranded DNA template
  • Provide initiation site for extension of new DNA
  • Forward primer
  • Anneals to DNA anti-sense strand
  • Reverse primer
  • Anneals to DNA sense strand
  • DNA template
  • In this case, the product of our DNA extraction

14
Quick Quiz
  • Which of the following reagents is NOT in a
    master mix?
  • MgCl2
  • Template DNA
  • H2O
  • dNTPs

15
Quick Quiz
  • If you forgot to add one of your primers your
    resultant gel will probably have
  • No bands
  • A smear
  • A band of the wrong size
  • Many bands

16
Setting Up the Reaction
  • PCR reagent volumes vary by experiment
  • An example ITS amplification in 25 ul final
    volume is..

17
Considerations
  • Contamination can easily lead to erroneous
    results
  • Avoid contaminating with DNA or PCR product
  • DNA stocks, PCR reagents
  • Gloves, tips, pipetters, benches
  • Carefully measure reagent quantities
  • Use appropriate cycling conditions

18
  • END

19
Resources
  • http//www.dnai.org/text/mediashowcase/index2.html
    ?id582
  • Promega PCR Protocols Reference
  • http//www.promega.com/guides/pcr_guide/
  • Promega GoTaq Kit Handbook
  • http//www.promega.com/tbs/9pim712/_row/9pim712_ro
    w.pdf
  • Additional photos from Cornell University
  • http//www.igd.cornell.edu/MolecularMarkers/PCR20
    basics.pdf

20
California State Chemistry Standards
  • Grade 8
  • 5a. Reactant atoms and molecules interact to
    form products with different chemical properties
  • 6c. Living organisms have many different kinds
    of molecules
  • Grades 9-12
  • 2.a. Atoms combine to form molecules by sharing
    electrons
  • 2b. Chemical bonds between many large biological
    molecules are covalent
  • 2c. Salt crystals are repeating patterns of
    positive and negative ions held together by
    electrostatic attraction
  • 6. Solutions are homogenous mixtures of two or
    more substances
  • 8. Chemical reaction rates depend on factors
    that influence the frequency of collision of
    reactant molecules

21
California State Biology Standards
  • Grade 7
  • 2e. DNA is the genetic material of living
    organisms and is located in the chromosomes of
    each cell
  • 3a. Genetic variation and environmental factors
    are causes of evolution and diversity of
    organisms
  • Grades 9-12
  • 1b. Enzymes are proteins that catalyze
    biochemical reactions without altering the
    reaction equilibrium
  • 1d. Molecular biology outlines the flow of
    information from transcription of RNA to
    translation of proteins
  • 1h. Most macromolecules in cells and organisms
    are synthesized from a small collection of simple
    precursors
  • 2. Mutation and sexual reproduction lead to
    genetic variation in a population
  • 4. Genes are a set of instructions encoded in
    DNA
  • 5a. General structure and function of DNA, RNA
    and proteins
  • 5b. Base-paring rules, copying of DNA,
    replication, transcription
  • 5d. Basic DNA techonolgy

22
California State Investigation and
ExperimentationStandards
  • Grades 7
  • b. Select and use appropriate tools and
    technology to perform tests, collect data,
    analyze relationships, and display data
  • Grade 8
  • a. Plan and conduct a scientific investigation
    to test a hypothesis
  • Grades 9-12
  • a. Select and use appropriate tools and
    technology to perform tests, collect data,
    analyze relationships, and display data
  • l. Analyze situations and solve problems
    that require combining and applying concepts from
    more than one area of science

23
National Standards
  • Grades 6-12
  • Content Standard A Science as Inquiry
  •
  • Content Standard C Life Science
  • Content Standard E Science and Technology
