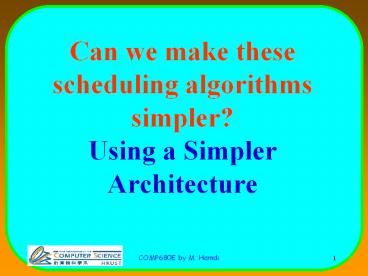

Can we make these scheduling algorithms
simpler?Using a Simpler Architecture
2
Buffered Crossbar Switches

• A buffered crossbar switch is a switch with
  buffered fabric (memory inside the crossbar).
• A pure buffered crossbar switch architecture, has
  only buffering inside the fabric and none
  anywhere else.
• Due to HOL blocking problem, VOQ are used in the
  input side.

3
Buffered Crossbar Architecture
Output Card
Output Card
Output Card
2
N
1
4
Scheduling Process

• Scheduling is divided into three steps
• Input scheduling each input selects in a certain
  way one cell from the HoL of an eligible queue
  and sends it to the corresponding internal
  buffer.
• Output scheduling each output selects in a
  certain way from all internally buffered cells in
  the crossbar to be delivered to the output port.
• Delivery notifying for each delivered cell,
  inform the corresponding input of the internal
  buffer status.

5
Advantages

• Total independence between input and output
  arbiters (distributed design) (1/N complexity as
  compared to centralized schedulers)
• Performance of Switch is much better (because
  there is much less output contention) a
  combination of IQ and OQ switches
• Disadvantage Crossbar is more complicated

6
I/O Contention Resolution
1
2
3
4
1
2
3
4
7
I/O Contention Resolution
1
2
3
4
1
2
3
4
8
The Round Robin Algorithm

• InRr-OutRr
• Input scheduling InRr (Round-Robin)
• - Each input selects the next eligible VOQ,
  based on its highest priority pointer, and sends
  its HoL packet to the internal buffer.
• Output scheduling OutRr (Round-Robin)
• - Each output selects the next nonempty internal
  buffer, based on its highest priority pointer,
  and sends it to the output link.

9
Input Scheduling (InRr.)
1
2
3
4
1
2
3
4
10
Output Scheduling (OutRr.)
1
4 1 3 2
2
4 1 3 2
3
4 1 3 2
4
4 1 3 2
4
1
2
3
11
Out. Ptrs Updt Notification delivery
4
1
2
3
12
Performance study
Delay/throughput under Bernoulli Uniform and
Burtsy Uniform Stability performance
13
Bernoulli Uniform Arrivals
14
Bursty Uniform Arrivals
15
Scheduling Process

• Because the arbitration is simple
• We can afford to have algorithms based on
  weights for example (LQF, OCF).
• We can afford to have algorithms that provide QoS

16
Buffered Crossbar Solution Scheduler

• The algorithm MVF-RR is composed of two parts
• Input scheduler MVF (most vacancies first)
• Each input selects the column of internal
  buffers (destined to the same output) where there
  are most vacancies (non-full buffers).
• Output scheduler Round-robin
• Each output chooses the internal buffer which
  appears next on its static round-robin schedule
  from the highest priority one and updates the
  pointer to 1 location beyond the chosen one.

17
Buffered Crossbar Solution Scheduler

• The algorithm ECF-RR is composed of two parts
• Input scheduler ECF (empty column first)
• Each input selects first empty column of
  internal buffers (destined to the same output).
  If there is no empty column, it selects on a
  round-robin basis.
• Output scheduler Round-robin
• Each output chooses the internal buffer which
  appears next on its static round-robin schedule
  from the highest priority one and updates the
  pointer to 1 location beyond the chosen one.

18
Buffered Crossbar Solution Scheduler

• The algorithm RR-REMOVE is composed of two parts
• Input scheduler Round-robin (with
  remove-request signal sending)
• Each input chooses non-empty VOQ which appears
  next on its static round-robin schedule from the
  highest priority one and updates the pointer to
  1 location beyond the chosen one. It then sends
  out at most one remove-request signal to outputs
• Output scheduler REMOVE
• For each output, if it receives any
  remove-request signals, it chooses one of them
  based on its highest priority pointer and removes
  the cell. If no signal is received, it does
  simple round-robin arbitration.

19
Buffered Crossbar Solution Scheduler

• The algorithm ECF-REMOVE is composed of two
  parts
• Input scheduler ECF (with remove-request signal
  sending)
• Each input selects first empty column of
  internal buffers (destined to the same output).
  If there is no empty column, it selects on a
  round-robin basis.It then sends out at most one
  remove-request signal to outputs
• Output scheduler REMOVE
• For each output, if it receives any
  remove-request signals, it chooses one of them
  based on its highest priority pointer and removes
  the cell. If no signal is received, it does
  simple round-robin arbitration.

20
Hardware Implementation of ECF-RR An Input
Scheduling Block
21
Performance Evaluation Simulation Study
Uniform Traffic
22
Performance Evaluation Simulation Study
Load Load 0.5 0.6 0.7 0.8 0.9 0.95 0.99
Improvement Percentage 1 1 3 6 13 17 12
Normalized Improvement Percentage 1 1 3 6 12 15 11
Improvement Factor 1.01 1.01 1.03 1.06 1.13 1.17 1.12
ECF-REMOVe over RR-RR
23
Performance Evaluation Simulation Study
Bursty Traffic
24
Performance Evaluation Simulation Study
Load Load 0.5 0.6 0.7 0.8 0.9 0.95 0.99
Improvement Percentage 10 13 16 20 22 18 11
Normalized Improvement Percentage 9 12 14 16 18 16 10
Improvement Factor 1.10 1.13 1.16 1.20 1.22 1.18 1.11
ECF-REMOVe over RR-RR
25
Performance Evaluation Simulation Study
Hotspot Traffic
26
Performance Evaluation Simulation Study
Load Load 0.31 0.36 0.41 0.45 0.49 0.51
Improvement Percentage 0.2 0.3 0.5 0.8 1 0.7
Normalized Improvement Percentage 0.2 0.3 0.5 0.8 1 0.7
Improvement Factor 1.002 1.003 1.005 1.008 1.01 1.007
ECF-REMOVe over RR-RR
27
Quality of Service Mechanisms for
Switches/Routers and the Internet
28
Recap

• High-Performance Switch Design
• We need scalable switch fabrics crossbar,
  bit-sliced crossbar, Clos networks.
• We need to solve the memory bandwidth problem
• Our conclusion is to go for input
  queued-switches
• We need to use VOQ instead of FIFO queues
• For these switches to function at high-speed, we
  need efficient and practically implementable
  scheduling/arbitration algorithms

29
Algorithms for VOQ Switching

• We analyzed several algorithms for matching
  inputs and outputs
• Maximum size matching these are based on
  bipartite maximum matching which can be solved
  using Max-flow techniques in O(N2.5)
• These are not practical for high-speed
  implementations
• They are stable (100 throughput for uniform
  traffic)
• They are not stable for non-uniform traffic
• Maximal size matching they try to approximate
  maximum size matching
• PIM, iSLIP, SRR, etc.
• These are practical can be executed in parallel
  in O(logN) or even O(1)
• They are stable for uniform traffic and unstable
  for non-uniform traffic

30
Algorithms for VOQ Switching

• Maximum weight matching These are maximum
  matchings based weights such queue length (LQF)
  (LPF) or age of cell (OCF) with a complexity of
  O(N3logN)
• These are not practical for high-speed
  implementations. Much more difficult to implement
  than maximum size matching
• They are stable (100 throughput) under any
  admissible traffic
• Maximal weight matching they try to approximate
  maximum weight matching. They use RGA mechanism
  like iSLIP
• iLQF, iLPF, iOCF, etc.
• These are somewhat practical can be executed
  in parallel in O(longN) or even O(1) like iSLIP
  BUT the arbiters are much more complex to build
• They are recently shown to be stable under any
  admissible traffic

31
Algorithms for VOQ Switching

• Randomized algorithms
• They try in a smart way to approximate maximum
  weight matching by avoiding using an iterative
  process
• They are stable under any admissible traffic
• Their time complexity is small (depending on the
  algorithm)
• Their hardware complexity is yet untested.
• No schedulers deal with mis-sequencing of
  packets
• Distributed schedulers buffered crossbars
• Two important points to remember
• The time complexity of an algorithm is not a
  true indication of its hardware implementation
• 100 throughput does not mean a low delay
• Weak vs. Strong stability

32
VOQ Algorithms and Delay

• But, delay is key
• Because users dont care about throughput alone
• They care (more) about delays
• Delay QoS ( for the network operator)
• Why is delay difficult to approach theoretically?
• Mainly because it is a statistical quantity
• It depends on the traffic statistics at the
  inputs
• It depends on the particular scheduling algorithm
  used
• The last point makes it difficult to analyze
  delays in i /q switches
• For example in VOQ switches, it is almost
  impossible to give any guarantees on delay.
• All you can hope for is to have a high throughput
  and a bounded queue length bounded average
  delay (but even the bound on the queue length is
  beyond the control of the algorithm we cannot
  say that the length of the queue should not be
  more than 10).

33
VOQ Algorithms and Delay

• This does not mean that we cannot have an
  algorithm that can do that. It means there exist
  none at this moment.
• For this exact reason, almost all quality of
  service schemes (whether for delay or bandwidth
  guarantees) assume that you have an output-queued
  switch

34
VOQ Algorithms and Delay

• WHY Because an OQ switch has no fabric
  scheduling/arbitration algorithm.
• Delay simply depends on traffic statistics
• Researchers have shown that you can provide a lot
  of QoS algorithms (like WFQ) using a single
  server and based on the traffic statistics
• But, OQ switches are extremely expensive to build
• Memory bandwidth requirement is very high
• These QoS scheduling algorithms have little
  practical significance for scalable and
  high-performance switches/routers.

35
Output QueueingThe ideal
36
How to get good delay cheaply?

• Enter speedup
• The fabric speedup for an IQ switch equals 1
  (mem. bwdth. 2)
• The fabric speedup for an OQ switch equals N
  (mem. Bwdth. N1)
• Suppose we consider switches with fabric speedup
  of S, 1 lt S ltlt N
• Such switch will require buffers both at the
  input and the output
• ? call these combined input- and output-queued
  (CIOQ) switches
• Such switches could help if
• With very small values of S
• We get the performance both delay and
  throughput of an OQ switch

37
A CIOQ switch

• Consist of
• An (internally non-blocking, e.g. crossbar)
  fabric with speedup S gt 1
• Input and output buffers
• A scheduler to determine matchings

38
A CIOQ switch

• For concreteness, suppose S 2. The operation of
  the switch consists of
• Transferring no more than 2 cells from (to) each
  input (output)
• Logically, we will think of each time slot as
  consisting of two phases
• Arrivals to (departures from) switch occur at
  most once per time slot
• The transfer of cells from inputs to outputs can
  occur in each phase

39
Using Speedup
40
Performance of CIOQ switches

• Now that we have a higher speedup, do we get a
  handle on delay?
• Can we say something about delay (e.g., every
  packet from a given flow should below 15 msec)?
• There is one way of doing this competitive
  analysis
• ? the idea is to compete with the performance of
  an OQ switch

41
Intuition
Speedup 1
Fabric throughput .58
Ave I/p queue too large
Speedup 2
Fabric throughput 1.16
Ave I/p queue 6.25
42
Intuition (continued)
Speedup 3
Fabric throughput 1.74
Ave I/p queue 1.35
Speedup 4
Fabric throughput 2.32
Ave I/p queue 0.75
43
Performance of CIOQ switches

• The setup
• Under arbitrary, but identical inputs
  (packet-by-packet)
• Is it possible to replace an OQ switch by a CIOQ
  switch and schedule the CIOQ switch so that the
  outputs are identical packet-by-packet? To
  exactly mimick an OQ switch
• If yes, what is the scheduling algorithm?

44
What is exact mimicking?
Apply same inputs to an OQ and a CIOQ switch

• packet by packet

Obtain same outputs

• packet by packet

45
What is exact mimicking?
Why is a speedup of N not necessary?
It is useless to bring all packets to the output
if they need wait at the output.
Need to bring packets at the output before they
can leave.
46
Consequences

• Suppose, for now, that a CIOQ is competitive wrt
  an OQ switch. Then
• We get perfect emulation of an OQ switch
• This means we inherit all its throughput and
  delay properties
• Most importantly all QoS scheduling algorithms
  originally designed for OQ switches can be
  directly used on a CIOQ switch
• But, at the cost of introducing a scheduling
  algorithm which is the key

47
Emulating OQ Switches with CIOQ

• Consider an N x N switch with (integer) speedup S
  gt 1
• Were going to see if this switch can emulate an
  OQ switch
• Well apply the same inputs, cell-by-cell, to
  both switches
• Well assume that the OQ switch sends out packets
  in FIFO order
• And well see if the CIOQ switch can match cells
  on the output side

48
Key concept Urgency
OQ switch

• Urgency of a cell at any time its departure
  time - current time
• It basically indicates the time that this packet
  will depart the OQ switch
• This value is decremented after each time slot
• When the value reaches 0, it must depart (it is
  at the HoL of the output queues)

49
Key concept Urgency

• Algorithm Most urgent cell first (MUCF). In each
  phase
• Outputs try to get their most urgent cells from
  inputs.
• Input grant to output whose cell is most urgent.
• In case of ties, output i takes priority over
  output i k.
• Loser outputs try to obtain their next most
  urgent cell from another (unmatched) input.
• When no more matchings are possible, cells are
  transferred.

50
Key concept Urgency - Example

• At the beginning of phase 1, both outputs 1 and 2
  request input 1 to obtain their most urgent cells
• Since there is a tie, then input 1 grants to
  output 1 (give it to least port ).
• Output 2 proceeds to get its next most urgent
  cell (from input 2 and has urgency of 3)

51
Key concept Urgency

• Observation A cell is not forwarded from input
  to output for one of two (and only two) reasons
• Input contention its input sends a more urgent
  cell
• (output 2 cannot receive its most urgent cell in
  phase 1 because input 1 wants to send to output 1
  a more urgent cell)
• Output contention its output receives a more
  urgent cell (Input 2 cannot send its most urgent
  cell because output 3 wants to receive from input
  3)

52
Implementing MUCF

• The way in which MUCF matches inputs to outputs
  is similar to the stable marriage problem (SMP)
• The SMP finds stable matchings in bipartite
  graphs
• There are N women and N men
• Each woman (man) ranks each man (woman) in order
  of preference for marriage

53
The Gale-Shapley Algorithm (GSA)

• What is a stable matching?
• A matching is a pairing (i, p(i)) of i with their
  partner p(i)
• An unstable matching is one in which
• there are matched pairs (i,p(i)) and (j, p(j))
  such that
• i prefers p(j) to p(i), and p(j) prefers i to j
• The GSA algorithm is guaranteed to give a stable
  matching
• Its complexity is O(N2)

54
An example

• Consider the example we have already seen
• Executing GSA
• With men proposing we get the matching
• (1, 1), (2, 4), (3, 2), (4, 3) this takes 7
  proposals (iterations)
• With women proposing we get the matching
• (1, 1), (2, 3), (3, 2), (4, 4) this takes 7
  proposals (iterations)
• Both matchings are stable
• The first is man-optimal men get the best
  partners of any stable matching
• Likewise the second is woman-optimal

55
Implementing MUCF by the GSA

• MUCF can be implemented using the GSA algorithm
  with preference list as follows
• Output j assigns a preference value to each input
  i, equal to the urgency of the cell at the HoL of
  VOQij
• If VOQij is empty then the preference value of
  input I for output j is set to infiniti
• The preference list of the output is the ordered
  set of its preference values for each input
• Each input assigns a preference value for each
  output based on the urgency of the cells, and
  creates the preference list accordingly

56
Theorem

• A CIOQ switch with a speedup of 4 operating under
  the MUCF algorithm exactly matches cells with
  FIFO output-queued switch.
• This is true even for Non-FIFO OQ scheduling
  schemes (e.g., WFQ, strict priority, etc.)
• We can achieve similar results with S 2

57
Implementation - a closer look
Main sources of difficulty

• Estimating urgency

(and communicating this info among I/ps and O/ps)

• Matching process - too many iterations?

Estimating urgency depends on what is being
emulated

• FIFO, Strict priorities - no problem

• WFQ, etc - problems

58
Other Work
Relax stringent requirement of exact emulation

• Least Occupied O/p First Algorithm (LOOFA)

Keeps outputs always busy if there are packets

• Can provide QoS

• A lot of work has been done using this direction

Conclusion We must have a speedup if we want to
approach the performance of OQ switches, or
provide QoS
59
QoS Scheduling Algorithms
60
QoS Differentiation Two options

• Stateful (per flow)
• IETF Integrated Services (Intserv)/RSVP

• Stateless (per class)
• IETF Differentiated Services (Diffserv)

61
The Building Blocks May contain more functions

• Classifier
• Shaper
• Policer
• Scheduler
• Dropper

62
QoS Mechanisms

• Admission Control
• Determines whether the flow can/should be allowed
  to enter the network.
• Packet Classification
• Classifies the data based on admission control
  for desired treatment through the network
• Traffic Policing
• Measures the traffic to determine if it is out of
  profile. Packets that are determined to be
  out-of-profile can be dropped or marked
  differently (so they may be dropped later if
  needed)
• Traffic Shaping
• Provides some buffering, therefore delaying some
  of the data, to make sure the traffic fits into
  the profile (may only effect bursts or all
  traffic to make it similar to Constant Bit Rate)
• Queue Management
• Determines the behavior of data within a queue.
  Parameters include queue depth, drop policy
• Queue Scheduling
• Determines how different queues empty onto the
  outbound link

63
QoS Router
Queue management
Policer
Per-flow Queue
Scheduler
Classifier
shaper
Policer
Per-flow Queue
Per-flow Queue
Scheduler
shaper
Per-flow Queue
64
Queue Scheduling Algorithms
65
Scheduling at the output link of an OQ Switch

• Sharing always results in contention
• A scheduling discipline resolves contention
• Decide when and what packet to send on the output
  link
• Usually implemented at output interface
• Scheduling is a Key to fairly sharing resources
  and providing performance guarantees

66
Output Scheduling
Allocating output bandwidth Controlling packet
delay
scheduler
67
Types of Queue Scheduling

• Strict Priority
• Empties the highest priority non-empty queue
  first, before servicing lower priority queues. It
  can cause starvation of lower priority queues.
• Round Robin
• Services each queue by emptying a certain amount
  of data and then going to the next queue in
  order.
• Weighted Fair Queuing (WFQ)
• Empties an amount of data from a queue based on
  the relative weight for the queue (driven by
  reserved bandwidth) before servicing the next
  queue.
• Earliest Deadline First
• Determines the latest time a packet must leave to
  meet the delay requirements and service the
  queues in that order

68
Scheduling Deterministic Priority

• Packet is served from a given priority level only
  if no packets exist at higher levels (multilevel
  priority with exhaustive service)
• Highest level gets lowest delay
• Watch out for starvation!
• Usually map priority levels to delay classes
• Low bandwidth urgent messages
• Realtime
• Non-realtime

Priority
69
Scheduling Work conserving vs.
non-work-conserving

• Work conserving discipline is never idle when
  packets await service
• Why bother with non-work conserving? (sometimes
  useful for example to minimize delay jitter)

70
Scheduling Requirements

• An ideal scheduling discipline
• is easy to implement (preferably in hardware)
• is fair (each connection gets no more than what
  it wants.
• The excess, if any, is equally shared)
• provides performance bounds (Can be deterministic
  or statistical) Common parameters are
• bandwidth
• delay
• delay-jitter
• Loss
• allows easy admission control decisions (Choice
  of scheduling discipline affects ease of
  admission control algorithm)
• to decide whether a new flow can be allowed

71
Scheduling No Classification

• This is the simplest possible. But we cannot
  provide any guarantees.
• With FIFO queues, if the depth of the queue is
  not bounded, there very little that can be done
• We can perform preferential dropping
• We can use other service disciplines on a single
  queue (e.g., EDF)

72
Scheduling Class Based Queuing

• At each output port, packets of the same class
  are queued at distinct queues.
• Service disciplines within each queue can vary
  (e.g., FIFO, EDF, etc.). Usually it is FIFO
• Service disciplines between classes can vary as
  well (e.g., strict priority, some kind of
  sharing, etc.)

73
Per Flow Packet Scheduling

• Each flow is allocated a separated virtual
  queue
• Lowest level of aggregation
• Service disciplines between the flows vary (FIFO,
  SP, etc.)

flow 1
flow 2
Classifier
Scheduler
1
2
flow n
Buffer management
74
The problems caused by FIFO queues in routers

1. In order to maximize its chances of success, a
   source has an incentive to maximize the rate at
   which it transmits.
2. (Related to 1) When many flows pass through it,
   a FIFO queue is unfair it favors the most
   greedy flow.
3. It is hard to control the delay of packets
   through a network of FIFO queues.

Fairness
Delay Guarantees
75
Round Robin (RR)

• RR avoids starvation
• All sessions have the same weight and the same
  packet length

A
B
C
76
RR with variable packet length
A
B
C
But the Weights are equal !!!
77
Solution
A
B
C
78
Weighted Round Robin (WRR)
WA3 WB1 WC4
79
WRR non Integer weights
WA1.4 WB0.2 WC0.8
80
Weighted round robin

• Serve a packet from each non-empty queue in turn
• Can provide protection against starvation
• It is easy to implement in hardware
• Unfair if packets are of different length or
  weights are not equal
• What is the Solution?
• Different weights, fixed packet size
• serve more than one packet per visit, after
  normalizing to obtain integer weights

81
Problems with Weighted Round Robin

• Different weights, variable size packets
• normalize weights by mean packet size
• e.g. weights 0.5, 0.75, 1.0, mean packet sizes
  50, 500, 1500
• normalize weights 0.5/50, 0.75/500, 1.0/1500
  0.01, 0.0015, 0.000666, normalize again 60,
  9, 4
• With variable size packets, need to know mean
  packet size in advance
• Fairness is only provided at time scales larger
  than the schedule

82
Fairness
10 Mb/s
0.55 Mb/s
A
1.1 Mb/s
100 Mb/s
C
R1
e.g. an http flow with a given (IP SA, IP DA, TCP
SP, TCP DP)
0.55 Mb/s
B
What is the fair allocation (0.55Mb/s,
0.55Mb/s) or (0.1Mb/s, 1Mb/s)?
83
Fairness
10 Mb/s
A
1.1 Mb/s
R1
100 Mb/s
D
B
0.2 Mb/s
What is the fair allocation?
C
84
Max-Min Fairness

• The min of the flows should be as large as
  possible
• Max-Min fairness for single resource
• Bottlenecked (unsatisfied) connections share the
  residual bandwidth equally
• Their share is gt the share held by the
  connections not constrained by this bottleneck

85
Max-Min FairnessA common way to allocate flows

• N flows share a link of rate C. Flow f wishes to
  send at rate W(f), and is allocated rate R(f).
• Pick the flow, f, with the smallest requested
  rate.
• If W(f) lt C/N, then set R(f) W(f).
• If W(f) gt C/N, then set R(f) C/N.
• Set N N 1. C C R(f).
• If Ngt0 goto 1.

86
Max-Min FairnessAn example
1
W(f1) 0.1
W(f2) 0.5
C
R1
W(f3) 10
W(f4) 5

• Round 1 Set R(f1) 0.1
• Round 2 Set R(f2) 0.9/3 0.3
• Round 3 Set R(f4) 0.6/2 0.3
• Round 4 Set R(f3) 0.3/1 0.3

87
Max-Min Fairness

• How can an Internet router allocate different
  rates to different flows?
• First, lets see how a router can allocate the
  same rate to different flows

88
Fair Queueing

1. Packets belonging to a flow are placed in a FIFO.
   This is called per-flow queueing.
2. FIFOs are scheduled one bit at a time, in a
   round-robin fashion.
3. This is called Bit-by-Bit Fair Queueing.

Flow 1
Bit-by-bit round robin
Classification
Scheduling
Flow N
89
Weighted Bit-by-Bit Fair Queueing

• Likewise, flows can be allocated different rates
  by servicing a different number of bits for each
  flow during each round.

Also called Generalized Processor Sharing (GPS)
90
Understanding bit by bit WFQ 4 queues,
sharing 4 bits/sec of bandwidth, Equal Weights
91
Understanding bit by bit WFQ 4 queues,
sharing 4 bits/sec of bandwidth, Equal Weights
Round 3
92
Understanding bit by bit WFQ 4 queues,
sharing 4 bits/sec of bandwidth, Weights 3221
93
Understanding bit by bit WFQ 4 queues,
sharing 4 bits/sec of bandwidth, Weights 3221
Round 1
Round 2
Weights 1111
94
Packetized Weighted Fair Queueing (WFQ)

• Problem We need to serve a whole packet at a
  time.
• Solution
• Determine what time a packet, p, would complete
  if we served it flows bit-by-bit. Call this the
  packets finishing time, Fp.
• Serve packets in the order of increasing
  finishing time.

Also called Packetized Generalized Processor
Sharing (PGPS)
95
WFQ is complex

• There may be hundreds to millions of flows the
  linecard needs to manage a FIFO queue per each
  flow.
• The finishing time must be calculated for each
  arriving packet,
• Packets must be sorted by their departure time.
• Most efforts in QoS scheduling algorithms is to
  come up with practical algorithms that can
  approximate WFQ!

1
Egress linecard
2
Calculate Fp
Find Smallest Fp
Departing packet
Packets arriving to egress linecard
3
N
96
When can we Guarantee Delays?

• Theorem

If flows are leaky bucket constrained and all
nodes employ GPS (WFQ), then the network can
guarantee worst-case delay bounds to sessions.
97
Deterministic analysis of a router queueFIFO case
FIFO delay, d(t)
Cumulative bytes
Model of router queue
A(t)
D(t)
A(t)
D(t)
R
B(t)
B(t)
R
time
98
Flow 1
R(f1), D1(t)
A1(t)
Classification
WFQ Scheduler
Flow N
AN(t)
R(fN), DN(t)
Cumulative bytes
Key idea In general, we dont know the arrival
process. So lets constrain it.
A1(t)
D1(t)
R(f1)
time
99
Lets say we can bound the arrival process
r
Cumulative bytes
Number of bytes that can arrive in any period of
length t is bounded by This is called (s,r)
regulation
A1(t)
s
time
100
The leaky bucket (s,r) regulator
Tokens at rate, r
Token bucket size, s
Packets
Packets
One byte (or packet) per token
Packet buffer
101
(s,r) Constrained Arrivals and Minimum Service
Rate
Cumulative bytes
A1(t)
D1(t)
r
s
R(f1)
time
Theorem Parekh,Gallager 93 If flows are
leaky-bucket constrained,and routers use WFQ,
then end-to-end delay guarantees are possible.
