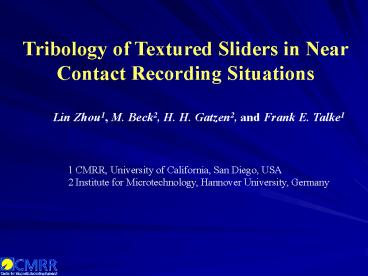

Tribology of Textured Sliders in Near Contact Recording Situations

1
Tribology of Textured Sliders in Near Contact
Recording Situations
Lin Zhou1, M. Beck2, H. H. Gatzen2, and Frank E.
Talke1
1 CMRR, University of California, San Diego,
USA 2 Institute for Microtechnology, Hannover
University, Germany
2
Outline

• Background
• Proposal of textured slider
• Texturing method
• Evaluation of textured sliders
• Stiction/friction measurements
• Slider dynamics
• Steady flying status
• Contact start/stop (CSS)
• Lubricant redistribution on disk surface
• Summary

3
Background

• To achieve flying height below 10 nm, super
  smooth disks are required
• Super smooth disks cause stiction
• Load/Unload technology or zone texturing are used

4
Proposal of textured slider

• Reduce stiction by texturing slider rather than
  the disk

5
Texturing method
Argon plasma etching Ion beam etching
Al2O3 crystals
Wear resistant coating
etching
coating
TiC crystals
Island-type texture created due to different
etching rate of different phases
6
Slider samples
(Nominal flying height 7 nm _at_ 7200 rpm)
(Nominal flying height 5 nm _at_ 7200 rpm)
Original slider surface
Texture height 4.5 nm
7
Disk samples
Disk M lubricant thickness 18 A data zone
Ra 0.35 nm landing zone bump height 10
nm Disk S lubricant thickness 20 A data
zone Ra 0.28 nm landing zone bump height
7.5 nm INSIC disk (batch IV) lubricant
thickness 12 A data zone Ra 0.20 nm
8
Stiction/friction measurements during CSS
A typical CSS cycle
9
disk M landing zone (bump height 10 nm)
(Nominal flying height 7 nm _at_ 7200 rpm)
stiction
7200 rpm
7200 rpm
stiction
Untextured slider
Textured slider
10
disk M landing zone (bump height 10 nm)
(Nominal flying height 5 nm _at_ 7200 rpm)
7200 rpm
7200 rpm
stiction
stiction
Untextured slider
Textured slider
11
Friction measurement at flying height 5 nm
On Disk M Bump height 10 nm
On Disk S Bump height 7.5 nm
In landing zone
In data zone
12
Slider Dynamics
1. Steady flying status
LDV
13
7200 rpm _at_ disk M landing zone (bump height 10
nm)
(Nominal flying height 7 nm _at_ 7200 rpm)
Slider bending mode
Untextured slider
Textured slider
14
5400 rpm _at_ disk M landing zone (bump height 10
nm)
(Nominal flying height 7 nm _at_ 7200 rpm)
Slider bending mode
Slider torsion mode
Untextured slider
Textured slider
15
7200 rpm _at_ disk M data zone
(Nominal flying height 7 nm _at_ 7200 rpm)
Untextured slider
Textured slider
16
5400 rpm _at_ disk M data zone
(Nominal flying height 7 nm _at_ 7200 rpm)
Slider bending mode
Untextured slider
Textured slider
17
Slider Dynamics
2. Contact start/stop (out-of-plane)
LDV
18
INSIC slider (Flying height 7 nm)
untextured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
19
INSIC slider (Flying height 7 nm)
4.5 nm textured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
20
INSIC slider (Flying height 5 nm)
untextured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
21
INSIC slider (Flying height 5 nm)
4.5 nm textured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
22
Slider Dynamics
3. Contact start/stop (in-plane)
skew 10 degrees
LDV
23
INSIC slider (Flying height 7 nm)
untextured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
24
INSIC slider (Flying height 7 nm)
4.5 nm textured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
25
INSIC slider (Flying height 5 nm)
untextured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
26
INSIC slider (Flying height 5 nm)
4.5 nm textured
On disk M Bump height 10 nm
On disk S Bump height 7.5 nm
27
Lubricant redistribution on disk surface
Slider INSIC slider, FH 5 nm Disk INSIC
disk (batch 4), lubricant thickness 12 A
28
After 5 min flying
3 mm
Untextured slider
45 degree
After 1 hour flying
After 5 hours flying
29
After 5 min flying
3 mm
Textured slider (with 2.5 nm carbon overcoat)
45 degree
After 1 hour flying
After 5 hours flying
30
After 5 min flying
3 mm
Textured slider (without overcoat)
45 degree
After 1 hour flying
After 5 hours flying
31
(No Transcript)
32
Right after testing
After 18 hours recover
degradation
After 1 week recover
Textured carbon coated slider
Textured uncoated slider
Original slider
33
Removal mobile lubricant (with a Q-tip dipped in
HFE-7100)
Mobile lube thickness 2 A
34
Wear track formed by textured slider without
overcoat
35
Drag tests on bonded lubricant
After 5 min flying
After 1 hour flying
After 5 hours flying
Textured carbon coated slider
Textured uncoated slider
Original slider
36
Textured uncoated slider
Original slider
Degradation
Textured carbon coated slider
37
(No Transcript)
38
Right after testing
degradation
After 18 hours recover
After 1 week recover
Textured carbon coated slider
Textured uncoated slider
Original slider
39
Summary

• Textured coated sliders cause less lubricant
  depletion than untextured slider
• Textured uncoated sliders cause more lubricant
  depletion than textured coated slider
• Slight lubricant degradation was observed with
  the uncoated slider

40

• Comment
• Textured sliders may be a possibility to avoid
  instability due to intermolecular forces if such
  an instability really exist.

41
Future work

• Need to mask the read/write element during
  etching to evaluate manufacturability of textured
  sliders
