Title: Building a National Cyberinfrastructure: Exploring the Landscape


1

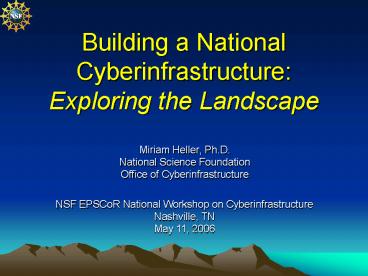

Building a National CyberinfrastructureExploring
the Landscape
  • Miriam Heller, Ph.D.
  • National Science Foundation
  • Office of Cyberinfrastructure

NSF EPSCoR National Workshop on
Cyberinfrastructure Nashville, TN May 11, 2006
2
Topics
  • CyberInfrastructure (CI) at NSF Then and Now
  • Strategic Planning Setting Directions
  • OCI Investments Now and Later
  • Closing Remarks

3
NSF Cyberinfrastructure Investments
ANIR
4
CI Genealogy Movement
PACI
HPCC
Courtesy of D.E. Atkins
5
CI Genealogy Movement
  • Atkins report - Blue-ribbon panel, chaired by
    Daniel E. Atkins
  • Called for a national-level, integrated system of
    hardware, software, data resources and services
  • New infrastructure to enable new paradigms of
    science engineering research and education with
    increased efficiency

www. nsf.gov/od/oci/reports/toc.jsp
Courtesy of D.E. Atkins
6
CI Genealogy Movement
Courtesy of D.E. Atkins
7
Office of CyberInfrastructure (OCI)
Debra Crawford Office Director (Acting) José
Muñoz Dep. Office Dir.
Judy Hayden Priscilla Bezdek Mary Daley Irene
Lombardo Allison Smith
ANL RP IU RP PU RP ORNL RP TACC RP MRI REU Sites
ETF GIG EIN IRNC Condor NMI Integ. Optiputer
CI-TEAM EPSCOR GriPhyN DISUN CCG NMI nanoHUB
HPC Acq. NCSA Core NCSA RP PSC RP
STI NMI Dev. CyberSecurity
SDSC Core SDSC RP
Kevin Thompson Program Director
Guy Almes Program Director
Fillia Makedon Program Director
Doug Gatchell Program Director
Miriam Heller Program Director
Steve Meacham Program Director
Chris Greer Program Director
Frank Scioli Program Director
Vittal Rao Program Director
ENG POC
SBE CI-Tools SBE POC
BIO POC Data, Data Tools
8
Cyberinfrastructure Budgets
NSF 2006 CI Budget
OCI 2006 Budget 127M
OCI
25
Research Directorates
75
ETF CORE 56
FY07 182.42 (Request)
9
Burgeoning Number of CI Systems
10
Cyberinfrastructure (CI) Governance
  • OCI focuses on provisioning production-quality
    CI to enable 21st century research and education
    breakthroughs
  • CISE remains focused on basic CS research and
    education mission
  • CyberInfrastructure Council (CIC)
  • NSF ADs and ODs, chaired by Dr. Bement (NSF
    Director)
  • CIC responsible for shared stewardship and
    ownership of NSFs Cyberinfrastructure Portfolio
  • Advisory Committee for NSFs CI activities and
    portfolio
  • Cyberinfrastructure User Advisor Committee (CUAC)

11
NSF will play a leadership role
  • NSF will play a leadership role in the
    development and support of a comprehensive
    cyberinfrastructure essential to 21st century
    advances in science and engineering research and
    education.
  • NSF is the only agency within the U.S. government
    that funds research and education across all
    disciplines of science and engineering. ... Thus,
    it is strategically placed to leverage,
    coordinate and transition cyberinfrastructure
    advances in one field to all fields of research.
  • From NSF Cyberinfrastructure Vision for the 21st
    Century Discovery

12
CI Vision 4 Interrelated Perspectives
High Performance Computing
Data, Data Analysis Visualization
http//www.nsf.gov/od/oci/ci_v5.pdf
13
CyberInfrastructure Today Overarching Challenge
Distributed
  • Distributed resources
  • Compute engines (e.g. TeraGrid, Condor CPU farms,
    SETI_at_home)
  • Pooled research funds (e.g. international
    collaborations)
  • Distributed data
  • Massive, distributed over real and socio-metric
    spaces
  • Dynamic generation at the periphery of the
    internet (sensor-nets, RFID, )
  • Distributed users
  • Extensive, networked teams spanning the globe
  • Yet work as an integrated, holistic system

14
Science Driven Cyberinfrastructure
  • Trade-offs
  • Interconnect fabric
  • Processing power
  • Memory
  • I/O

Courtesy of NERSC
15
Computing One Size Doesnt Fit All
Courtesy of SDSC
16
HPC Computation TeraGrid
  • Provides
  • Unified user environment to support
    high-capability, production-quality
    cyberinfrastructure services for science
    engineering research.
  • New SE opportunities using new ways to
    distribute resources and services.
  • Integrate grid services, incl.
  • HPC
  • Data collections
  • Visualization servers
  • Portals
  • Distributed, open architecture
  • GIG responsible for
  • SW integration (incl. CTSS)
  • Base infrastructure (security, networking, and
    operations)
  • User support
  • Community engagement (e.g. Science Gateways)
  • 8 RPs
  • PSC, TACC, NCSA, SDSC, ORNL, Indiana, Purdue,
    Chicago/ANL
  • Other institutions participate as sub-awardees of
    the GIG

17
Wave Propagation in a Model of the Arterial
Circulation (Data of 55 main arteries from J.J.
Wang and K. Parker, 1997)
Grand-Challenge Problem Human Arterial Tree
Courtesy of G. Karniadakis
18
Second Parallel TeraGrid Paradigm
Multiscale Simulation of Arterial Tree
Courtesy of G. Karniadakis
19
Arterial-Tree Cross-Site Performance (Homogeneous
Network)
Fixed problem size
Fixed workload
  • Three arteries 4 Million DOFs per artery
  • 1 CPU/node on ANL 2CPUs/node on NCSA/SDSC
  • No slown-down, full scalability

Courtesy of G. Karniadakis
20
Arterial-Tree Cross-Site Performance (Heterogeneo
us Network)
  • PSC connects to TG via application gateway
  • Two arteries per site
  • PSC proc2 GF vs 6 GF IA-64

Courtesy of G. Karniadakis
21
Data, Data Analysis and Visualization
  • Data curation issues
  • Avoid creation of data mortuaries
  • Catalyze development of SE data collections that
    is open, extensible, evolvable
  • Challenges of petascale
  • Substantial issues in policy and sustainable
    economic
  • Support development of a new generation of tools
    and services to facilitate transforming data into
    knowledge
  • Data mining
  • Integration
  • Analysis
  • Visualization

22
Large Hadron Collider (LHC) Experiment
  • 27 km Tunnel in Switzerland France

CMS
TOTEM
LHC _at_ CERN
ALICE
LHCb
  • Search for
  • Origin of Mass
  • New fundamental forces
  • Supersymmetry
  • Other new particles
  • 2007 ?

ATLAS
Courtesy of P. Avery
23
LHC Petascale Global Science
  • Complexity Millions of individual detector
    channels
  • Scale PetaOps (CPU), 100s of Petabytes (Data)
  • Distribution Global distribution of people
    resources

CMS Example- 2007 5000 Physicists 250
Institutes 60 Countries
BaBar/D0 Example - 2004 700 Physicists 100
Institutes 35 Countries
Courtesy of P. Avery
24
LHC Beyond Moores Law
LHC CPU Requirements
Moores Law (2000)
Courtesy of P. Avery
25
LHC Global Data Grid (2007)
CMS Experiment
  • 5000 physicists, 60 countries
  • 10s of Petabytes/yr by 2008
  • 1000 Petabytes in lt 10 yrs?

Online System
CERN Computer Center
150 - 1500 MB/s
Tier 0
10-40 Gb/s
Tier 1
gt10 Gb/s
Tier 2
2.5-10 Gb/s
Tier 3
Tier 4
Physics caches
PCs
Courtesy of P. Avery
26
  • Grid3 A National Grid Infrastructure
  • October 2003 July 2005
  • 32 sites, 3,500 CPUs Universities 4 national
    labs
  • Sites in US, Korea, Brazil, Taiwan
  • Applications in HEP, LIGO, SDSS, Genomics, fMRI,
    CS

Brazil
www.ivdgl.org/grid3
Courtesy of P. Avery
27
Common Middleware Virtual Data Toolkit
VDT
NMI
Test
Sources (CVS)
Build
Binaries
Build Test Condor pool 22 Op. Systems
Pacman cache
Package
Patching
RPMs
Build
Binaries
GPT src bundles
Build
Binaries
Test
Many Contributors
VDT Package, test, deploy, support, upgrade,
troubleshoot
Courtesy of P. Avery
28
Berkeley Open Infrastructure for Network Computing
  • BOINC lets you donate computing power to
    scientific research projects such as
  • SETI_at_home search for extra-terrestrial
    intelligence.
  • Rosetta_at_home help researchers develop cures for
    human diseases.
  • Einstein_at_home search for gravitational signals
    emitted by pulsars.
  • Quantum Monte Carlo at Home study the structure
    and reactivity of molecules using Quantum
    Chemistry.
  • folding_at_home advance our knowledge of human
    disease (requires 5.2.1 or greater).
  • Predictor_at_home investigate protein-related
    diseases.
  • Cell Computing biomedical research (Japanese
    requires nonstandard client software).
  • SZTAKI Desktop Grid search for generalized
    binary number systems.
  • Climateprediction.net, BBC Climate Change
    Experiment, and Seasonal Attribution Project
    study climate change.
  • LHC_at_home improve the design of the CERN LHC
    particle accelerator

29
NSF Middleware Initiative (NMI)
  • Program to design, develop, test, deploy, and
    sustain a set of reusable and expandable
    middleware functions that benefit many science
    and engineering applications in a networked
    environment.
  • Define open-source, open-architecture standards
    for on-line (international) collaboration
    resource sharing that is sustainable, scalable,
    and securable
  • Examples include
  • Community-wide access to experimental data on the
    Grid
  • Authorized resource access across multiple
    campuses using common tools
  • Web-based portals that provide a common interface
    to wide-ranging Grid-enabled computation
    resources
  • Grid access to instrumentation such as
    accelerators, telescopes

30
Examples NMI-funded Activities
  • From 2001-2004 funded gt 40 development awards
    integration awards
  • Integration award highlights include NMI Grids
    Center (e.g. Build and Test), Campus Middleware
    Services (e.g. Shibolleth), and Nanohub
  • Condor Mature distributed computing system
    installed on 1000s of CPU pools and 10s of
    1000s of CPUs.
  • GridChem Open source Java application
    launches/monitors computational chemistry
    calculations (Gaussian03, GAMESS, NWChemMolpro,
    Qchem, Aces) on CCG supercomputers remotely.
  • NanoHub Extends NSF Network for Computational
    Nanotechnology applications, e.g., NEMO3D,
    nanoMOS, to distributed environment over
    Teragrid, U Wisconsin, other grid assets using
    InVIGO, Condor-G, etc.

31
Virtual Organizations
  • CI relaxes/reduces constraints of time and
    distance
  • Geographical
  • Institutional
  • Disciplinary
  • Flattens the world
  • Functionally complete VOs
  • One stop shopping
  • Via tailorable portals/gateways

32
Virtual Organizations
  • Catalyze the development and sustainability of
    world-class virtual organizations for SE
    research and education
  • Secure, efficient, reliable, accessible, usable,
  • Support the development of CI resources, services
    and tools for creation and operation of VOs
    (national and inter-national)
  • Sustainable framework of resources supported by
    many stakeholders
  • Federal, state, academia, public, commercial,
    non-profit
  • Culture of sharing

33
NanoHUB A Science Gateway
Collaboration
Research
nanoHUB Virtual Organization
Enabling CI
Education
Web presence Rappture middleware
Single ZIP Package
34
Everything, Everywhere
Tiny computers that constantly monitor
ecosystems, buildings and even human bodies could
turn science on its head. Declan Butler
investigates.
35
Cyberinfrastructure Tipping Point Information
Flow Reversal
courtesy S. Kim
36
CyberInfrastructure Evolution Meeting the
challenge of distributed systems
  • CI is evolving rapidly to meet the challenge of
    distributed resources, data and users.
  • Middleware is key to managing extensive, complex
    distributed entities.
  • New linkages needed between the cyber and
    physical worlds to extend the magic of the
    search, analyze and act paradigm beyond digital
    files.

37
DDDAS Paradigm
Challenges Dynamic Compilers Application
Composition Algorithms Computing Systems Support
38
International Research Network Connections (IRNC)
  • Awards
  • TransPAC2 (U.S. Japan and beyond)
  • GLORIAD (U.S. China Russia Korea)
  • Translight/PacificWave (U.S. Australia)
  • TransLight/StarLight (U.S. Europe)
  • WHREN (U.S. Latin America)

39
Learning and Our 21st Century CI
WorkforceCI-TEAM Demonstration Projects
  • Input 70 projects / 101 proposals / 17 (24)
    collaborative projects
  • Outcomes
  • Invested 2.67 M in awards for projects up to
    250K total over 1-2 years
  • 15.7 success rate in 11 Demonstration Projects
    (14 proposals) across BIO, CISE, EHR, ENG, GEO,
    MPS disciplines
  • Broadening Participation for CI Workforce
    Development
  • Alvarez (FIU) CyberBridges
  • Crasta (VaTech) Project-Centric Bioinformatics
  • Fortson (Adler) CI-Enabled 21st c. Astronomy
    Training for HS Science Teachers
  • Fox (IU) - Bringing Minority Serving Institution
    Faculty into CI e-Science Communities
  • Gordon (OSU) Leveraging CI to Scale-Up a
    Computational Science U/G Curriculum
  • Panoff (Shodor) Pathways to CyberInfrastructure
    CI through Computational Science
  • Takai (SUNY Stonybrook) High School Distributed
    Search for Cosmic Rays (MARIACHI)
  • Developing and Implementing CI Resources for CI
    Workforce Development
  • DiGiano (SRI) Cybercollaboration Between
    Scientists and Software Developers
  • Figueiredo (UFl) In-VIGO/Condor-G MW for
    Coastal Estuarine Science CI Training
  • Regli (Drexel) CI for Creation and Use of
    Multi-Disciplinary Engineering Models
  • Simpson (PSU) CI-Based Engineering Repositories
    for Undergraduates (CIBER-U)

40
FY05 CI-TEAM CIBER-U Demonstration Project
Community Databases for Research
EducationSimpson (PSU), Regli (Drexel), Stone
(UMo), Lewis (SUNY Buffalo)
  • National Design Repository (NDR)
  • Digital Library of over 55,000 CAD models and
    assemblies
  • Serves over 1000 users per month
  • Digital library in use for research will prepare
    engineering undergraduates for collaborate design
    and expose HS students to CAD/CAE
  • Implement CIBER-U in 7 U/G engineering design
    courses to teach access, storage, search, reuse
    of CAD models and data from NDR
  • Enhance and use collaboration tools in NDR
  • Assess educational experience, learning,
    practical knowledge impact
  • 1700 undergraduate students will participate in
    CIBER-U
  • Prepare workforce for distributed,
    technology-mediated environment, preferred by
    automotive and aerospace industries today

41
Spiral Design
We are here
Community Input
X
NSB
Call to Action
HPC
Data Viz
VO and LWD
Final version to be released Summer 2006
NSF Directorates Offices
of both CI activities OCI role and structure
42
OCI Investment Highlights
  • Midrange (Track 2) HPC Acquisition (30)
  • Leadership Class High-Performance Computing
    System (Track 1) Acquisition (50M)
  • Data- and Collaboration-Intensive Software
    Services (25.7M)
  • Conduct applied research and development
  • Perform scalability/reliability tests to explore
    tool viability
  • Develop, harden and maintain software tools and
    services
  • Provide software interoperability
  • CI Training, Education, Advancement and Training
    (10M)

43
Acquisition Strategy
Science and engineering capability (logrithmic
scale)
Track 1 system(s)
Track 2 systems
Typical university HPC systems
FY06
FY09
FY08
FY07
FY10
44
HPC Acquisition Activities
  • HPC acquisition will be driven by the needs of
    the SE community
  • RFI held for interested Resource Providers and
    HPC vendors on 9 Sep 2005
  • First in a series of HPC SE requirements
    workshops held 20-21 Sep 2005
  • Generated Application Benchmark Questionnaire
  • Attended by 77 scientists and engineers
  • Proposal review nearly complete

45
HPC Acquisition Track 1
  • Increased funding will support first phase of a
    Petascale System acquisition
  • Over four years NSF anticipates investing 200M
  • Acquisition is critical to NSFs multi-year plan
    to deploy and support world-class HPC environment
  • Collaborating with sister agencies with a stake
    in HPC (DARPA, HPCMOD, DOE/OS, NNSA, NIH)

46
Cyberinfrastructure Training, Education,
Advancement, and Mentoring (CI-TEAM) FY06
  • Prepare a cyber-savvy workforce for discovery,
    innovation, and learning in and across all areas
    of science and engineering.
  • Exploit Cyberinfrastructure to cross digital,
    disciplinary, institutional, and geographic
    divides and fosters inclusion of emphasis on
    traditionally underrepresented groups.
  • Focus on workforce development activities lt50
    tool development.
  • FY06 program funds 10 M for two types of
    awards
  • Demonstration Projects ( FY05 projects,
    exploratory, limited in scope and scale,
    potential to expand to implementation scale
    250,000)
  • Implementation Projects (larger in scope or
    scale, draw on prior experience, deliver
    sustainable learning and workforce development
    activities that complement ongoing NSF investment
    in cyberinfrastructure 1,000,000).

New CI-TEAM Solicitation Due June 5, 2006
47
OCI as a Broker of Informed Mutual Self-Interest
Borromean Ring Synergy iterative, participatory
design collateral learning.
Three symmetric, interlocking rings, no two of
which are interlinked. Removing one destroys the
synergy.
48
Alignment of Stakeholders Towards Achieving
Strategic Goals
K-20
49
Concluding Remarks
  • NSF has taken a leadership role in CI and is
    working to define the vision and future
    directions
  • Successful past investments position CI for the
    Revolution
  • Achieving the goal of provisioning CI for 21st
    breakthrough science and engineering research and
    education depends on the successful investment in
    the development and deployment of useful,
    appropriate, usable, used, sustainable CI
    resources, tools, and services complemented by
    investment in a cyber-savvy workforce
  • Need PIs to
  • Identify and advise NSF and others on CI needs
  • Track growing CI use and performance
  • Demonstrate and share breakthrough research and
    education

50
Closing Remarks
  • Leadership Computing Massive data generation at
    the periphery of the net -- but middleware
    filters streaming to the core.
  • End-to-end data solutions / fusing
    research-learning
  • Middleware (and not the CPU) lies at the heart of
    the emerging cyberinfrastructure paradigm.
  • Dynamic data and the new (bidirectional) flow
    from the core to the periphery so its not just
    the issue of massive wave and distributed
    system.
  • New dynamic compilers application composition
  • Architecturally specific / robust algorithms

51
Thank You!
?
  • Miriam Heller, Ph.D.
  • Program Director
  • Office of Cyberinfrastructure
  • Suite 1145
  • National Science Foundation
  • Tel 1.703.292.7025 Email mheller_at_nsf.gov

52
nanoHUB Enhanced Research
53
nanoHUB Enhanced Computation
Remote access to simulators and compute power
nanoHUB infrastructure
internet
nanoHUB.org Web site
NMI Cluster
Remote desktop (VNC)
54
nanoHUB Enhanced Collaboration
Single Sign-on
Auto registration to generic course rooster
Assessment Hosting
Score Reporting
  • Integration code for the nanoHUB single sign-on
    is being tested
  • Potential to host learning modules in Sakai
  • Ability to report scores from assessments in
    learning modules is key
  • Conduct research studies based on assessment data

55
Other Middleware Funding
  • OCI made a major award in middleware in November
    2005 to Foster/Kesselman
  • "Community Driven Improvement of Globus
    Software", 13.3M award over 5 years
  • Ongoing funding to Virtual Data Toolkit (VDT)
    middleware via OCI and MPS OSG activities,
    including
  • DiSUN is a 5 year 12 M award for computational,
    storage, middleware resources at four Tier-2 site
  • GriPhyN (ITR) lead to iVDGL, VDT, VDS
  • Ongoing funding to VDT middleware via TeraGrid as
    part of the CTSS

56
Principles of RFID
About PowerShow.com
