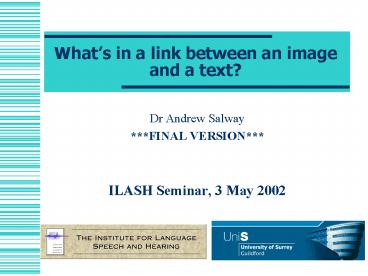

Whats in a link between an image and a text?

• Dr Andrew Salway
• FINAL VERSION
• ILASH Seminar, 3 May 2002

2
Overview

• Representing the semantic content of aesthetic
  and scientific visual artefacts in digital
  libraries
• Extracting information from collateral texts
  produced by experts who analyse visual
  information
• Integrating multimedia information in
  computational systems

3
Scientific and Aesthetic Disciplines
Experts Analysing Visual Information
Multimedia Databases
Image and Video Data
Collateral Text Corpus
Image and Video Processing
Natural Language Processing
Machine-level representation of complex visual
artefacts
Content Technologies
Query-retrieval, browsing, summarisation
Information Access in Digital Libraries
4
Research Questions

• How do experts put images into words?
• Special Languages
• Selection and organisation of information
• How to instantiate the link between visual and
  textual information in multimedia computing
  systems?

5
Analysing Aesthetic Images

• Fine Art (Panofsky 1939)
• pre-iconographic iconographic iconological
• Film (Metz 1974)
• physical cinematic diegetic connotative
  sub-textual
• Dance (Adshead-Lansdale 1988)
• description of movements discernment of form
  interpretation evaluation

6
Fine Art collateral texts

• Painting and caption, other texts

Turner, Joseph Mallord William 1775-1851The
Goddess of Discord Choosing the Apple of
Contention in the Garden of the Hesperides
(exhibited 1806) Discord chooses the apple that
will eventually be awarded by Paris to the
goddess Aphrodite, leading to the Trojan War.
First seen in the British Institution, this
picture was shown again in Turners Gallery in
1808 when its classical grandeur, based on the
work of Nicolas Poussin, must have formed a
striking contrast to the English pastoral
landscapes also shown that year. Its own
background is based on Turners experience of the
Alps in 1802.
7
Fine Art corpus analysis

• Corpus
• 804,939 words from Tate WWW-site (691,121 from
  painting captions and 113,818 from artist
  biographies)
• Specialist terminology extracted, e.g.
  art movements (surrealism, cubism, pop art,
  abstract expressionism), techniques (brushwork,
  mezzotint), types of work (watercolour, pencil
  sketch), features of a painting (monochromatic,
  naturalistic)
• Contrast between abstract art (colour, form,
  technique) and figurative art (mood, feeling,
  representation)

8
Cues for content

• depict (295 occurrences) and convey (119
  occurrences)
• this painting depicts a glass, two pears and a
  box
• this work depicts a group struggling in a wind
• this composition conveys the claustrophobia of
  the interior of an omnibus
• an expressive use of colour and shape to convey
  the subjects mood
• depict / convey (in earlier 305,913 word corpus)

• pre-iconograpical (56 / 0)
• iconographical (41 / 9)
• iconological (3 / 91)

9
Cues to chart the history of art

• influence (403 occurrences) and inspire (442
  occurrences) about 80 passive
• his paintings of the Thames were influenced by
  Whistler
• where he was influenced by expressionism
• this picture was inspired by a performance of
  Shakespeares play Macbeth
• Severini was inspired by modern machinery
• 50 ARTIST influenced by ARTIST
• 22 ARTIST influenced by MOVEMENT
• 31 WORK inspired by PERSON / ENVIRONMENT / WORLD
  / WORK

10
Crime Scenes

• I can see what appears to be a male laying in the
  prone position on the floor.
• He is wearing a maroon striped shirt with white
  collar and cuffs, blue jeans, and has a pair of
  left and right training shoes which have become
  slightly dis-extended from the foot.
• There appears to be a green tie down by his right
  hand and I can see a possible footwear impression
  in blood on his right hand.
• Surrounding the body there are droplets of blood,
  footwear impression in blood and several pieces
  of broken glass and bottles.

11
Analysing moving images Dance
Swan Lake, Matthew Bourne (1995).
12
Text Types and their Relationship to the Moving
13
Text Types and their Relationship to the Moving
14
Eliciting spoken commentaries

• Five dance experts each asked to Describe then
  to Interpret five dance sequences as they
  watched them (20 minutes in total) ?
• 11,300 words of description
• 9,754 words of interpretation
• Appears to be systematic contrasts between
  description and interpretation
• Some resonance with literature on Protocol
  Analysis (Ericsson and Simon 1993) and studies of
  language production like Chafe (1980).

15
(No Transcript)
16
Descriptions

• Utterances
• Single words in rapid sequence to identify
  movements
• Spatio-temporal details and relationships between
  dancers
• Most frequent open-class words referred literally
  to dancers, their movements and space woman,
  arm, leg, turn, jump, spin, arabesque, pirouette,
  left, right
• Descriptions clustered on a Kohonen Map according
  to both dance and to expert
• Cohesion by reference and lexical cohesion
  potentially useful for dance segmentation

17
Interpretations

• Most frequent open-class words referred
  non-literally to dancers, their movements and
  themes of the dance swan, prince, wing, flight,
  ethereality
• Longer utterances either referring to larger
  video intervals, or linking literal descriptions
  to interpreted meaning, conjoined by seems, as
  if, like, a sense of, suggest, appears to be
• The stretching of the neck, like a swan
• Aerial steps which could suggest flight
• Moving faster as if something is driving him

18
KAB Knowledge-rich video Annotation and Browsing
19
KAB Knowledge-rich video Annotation and Browsing

• Keyword indexing of video data using time-coded
  commentaries annotations can be layered
• User can query for intervals or browse between
  moving images and texts and can add own term
  lists and annotations
• OO design implemented in Java with JMF
• Limitations
• (i) only one kind of collateral text
• (ii) temporal association of text and video
  interval
• (iii) keyword-based representation of content.

20
(No Transcript)
21
(No Transcript)
22
Audio Description

• Audio description enhances TV and films for
  visually impaired viewers and is scripted before
  it is recorded in effect the story told be the
  moving image is retold in words
• Describers follow guidelines which restricts the
  language they use, i.e. normally the present
  tense, simple sentences and few pronominal
  references
• Describers are encouraged not to make inferences
  on behalf of their audience (i.e. little / no
  interpretation)
• We are interested in applying information
  extraction technology to generate machine-level
  representations of video content from audio
  description scripts
• TIWO (Television in Words), EPSRC GR/R67194/01

23
Audio Description Script

• 11.43 Hanna passes Jan some banknotes.
• 11.55 Laughing, Jan falls back into her seat as
  the jeep overtakes the line of the lorries.
• 12.01 An explosion on the road ahead.
• 12.08 The jeep has hit a mine.
• 12.09 Hanna jumps from the lorry.
• 12.20 Desperately she runs towards the mangled
  jeep.
• 12.27 Soldiers try to stop her.
• 12.31 She struggles with the soldier who grabs
  hold of her firmly.
• 12.35 He lifts her bodily from the ground,
  holding her tightly in his arms.
• (NB. Some cue information removed)

24
Corpus Analysis

• Audio Description Corpus
• 70,856 words (12 movies, various genres)
• Temporal Information, maybe use to
• align fragment with interval (aspectual verbs)
• recover event-event relations (simultaneity and
  cause, using as)
• recover time period(s) of film dates /
  (?costumes and props?)
• Other kinds of information
• 50 most frequent verbs 84 material processes

25
Exploiting Collateral Text

• Experts in a number of fields (both aesthetic and
  scientific) appear to use special languages to
  articulate the semantic content of visual
  information
• Text types select and organise information about
  still and moving images differently
• A distinction between Description and
  Interpretation, which is apparent in theoretical
  frameworks, seems to be realised in experts
  texts
• The use of collateral text in digital libraries
  requires the integration of multimedia
  information

26
Integrating Multimedia Information WHY?

• Functionality for Digital Libraries
• synchronised presentations
• hypermedia browsing
• multimedia corpora
• cross-modal IR
• information fusion
• multimedia summarisation
• information conversion.

27
Integrating Multimedia Information HOW?

• Image/Video-text data models
• Statistical Image and Text Features
• Multimedia Thesaurus
• Intermediate Representations
• ? The development of such systems may benefit
  from a computational framework in which to
  instantiate the image-text link ?

28
Issues for Instantiating the Image-Text Link

• 1many relationships

JOURNAL
TEXTBOOK
BIOGRAPHY
EXHIBITION CATALOGUE
CAPTION
29
Issues for Instantiating the Image-Text Link

• Text fragments and image regions

a young mother is strolling with her little girl
dressed in white with a salmon-coloured sash at
the extreme right, appears a scandalously
hieratic-looking couple
30
Issues for Instantiating the Image-Text Link

• Text fragments and video intervals

351 four dancers stand in a ring 355 a female
dancer enters the ring
31
Issues for Instantiating the Image-Text Link

• Choice of content representation scheme
• Keywords
• Propositions
• Spatio-Temporal Logics
• Causal Relationships
• Mental States, e.g. for films
• Mapping between levels of meaning, e.g. for
  interpretations
• Maintaining multiple viewpoints

32
Issues for Instantiating the Image-Text Link

• Typed Links?
• Intuitively an image may, for example, illustrate
  or a text, whilst a text may describe or explain
  an image
• May be a case for explicating the meaning of
  image-text links and considering precedents from
  the study of semantic networks (structural vs.
  assertional links) and from the development of
  hypertext systems (taxonomy of link types)

33
Closing Remarks

• Great potential to exploit collateral text in
  specialist digital libraries
• The development of multimedia information systems
  may benefit from a theoretical framework for
  instantiating the image-text link
• Potential for synergy between different
  disciplines concerned with this link
  computational systems may help in understanding
  the relationship between vision, language and
  knowledge

34
Whats in a link between an image and a text?

• Dr Andrew Salway
• Department of Computing, University of Surrey
• ILASH Seminar, 3 May 2002

35
(No Transcript)
36
Semiotic-based Frameworks for Multimedia

• Gonzalez
• Purchase
• Warner..

37
The Family of Images (Mitchell 1986, Iconology
image, text and ideology. Chicago Uni. Press)
Image likeness, resemblance, similitude
Optical mirrors projections
Graphic pictures statues designs
Perceptual sense data species appearances
Mental dreams memories ideas fantasmata
Verbal metaphors descriptions
38
Vision and Language
39
(No Transcript)
