ESAs Approach to Stations and Communication Networks Interoperability

1

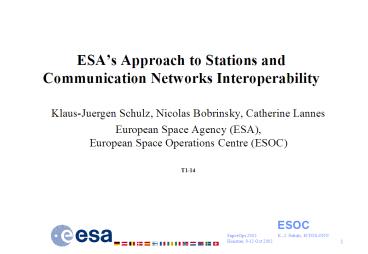

ESAs Approach to Stations and Communication
Networks Interoperability

• Klaus-Juergen Schulz, Nicolas Bobrinsky,
  Catherine Lannes

• European Space Agency (ESA), European Space
  Operations Centre (ESOC)

• T1-14

2
ESAs Stations Network
3
Mission Categories

• Deep Space missions (DS)
• Near-Earth missions, ranging from Geostationary
  Transfer Orbit (GTO) to Lagrange type orbits

• Low Earth Orbit (LEO) missions
• Frequency Bands S, X, Ku and Ka

4
Stations Overview


Kourou (French Guiana) KRU
Maspalomas (Spain) MAS
Redu (Belgium) RED-1
Villafranca (Spain) VIL-1
Transportable Vilspa (Spain) TS-1
Villafranca (Spain) VIL-2
Kiruna (Sweden) KIR-1
Kiruna (Sweden) KIR-2
Malindi (Kenia) MAL
New Norcia (Australia) NNO
Perth (Australia) PER
Santiago (Chile) AGO
PLUS 5 Baseband installations at Spacecraft
Checkout locations Gateway to Svalbard (TSS) sta
tions Gateway to NASA JPL DSN stations, to NASA
JPL Control Centre in preparation
Gateway to NASA GFCC Control Centre
Gateway to NASDA stations in preparation, to
NASDA Control Centre Gateway to CNES stations, t
o CNES Control Centre
Svalbard (Norway) SVA
5
Station Network Model

• Technical and Operational autonomy combined with
  Economical Viability

• ESA Core Stations Network Kiruna (Sweden),
  Kourou (French Guiana), Maspalomas (Spain), New
  Norcia (Western Australia), Perth (Western
  Australia), Redu (Belgium) and Villafranca
  (Spain)
• ESA Augmented Network Malindi (Kenya), Santiago
  (Chile), Svalbard (Norway)

• ESA Cooperative Network CNES, NASA/DSN,
  NASA/GSFC, NASDA, Prioranet

6
Interoperability Architecture

• Services
• Telemetry in online mode during the pass, and in
  offline mode after the pass

• Telecommand
• Orbit Determination based on Ranging, Doppler and
  Antenna Angular measurements

• Antenna Steering based on orbit information
• Voice Conferencing for Service and Operations
  Coordination

• Interoperability Solutions
• Interoperability by Hardware Deployment
• Interoperability using Bilateral Interface
  Agreements

• Interoperability using SLE Services

7
Interoperability by Hardware Deployment

• User agency equipment at Provider station
• Interface of User equipment to Provider antenna
  front end at intermediate frequency

• Communication system of the User agency
• Advantage
• No interface adaptation to Mission Control
  System

• Provider agency station looks like a User agency
  station to the Mission Control System

• Disadvantage
• Large effort for transportation, hosting,
  installation, maintenance and operations
  training, de-installation after a LEOP support


8
Interoperability using Bilateral Interface
Agreements

• Specific Interface by definition of a Wire
  Protocol

• Development of Gateway applications
• Advantage
• Cost and time effective
• Definition, Review, Implementation, Validation
  effort not to be under-estimated

• Disadvantage
• Multiplication of gateway solutions - Software
  maintenance difficult

• One gateway per pair of User and Provider agency
• Typical NM number of interfaces

9
Bilateral Interface Examples (ESAProvider)
NASCOM Gateway use for GOES-L LEOP
10
Bilateral Interface Examples (ESAProvider)
CNES Passerelle use for HISPASAT-1D
11
Bilateral Interface Examples (ESAProvider)NCTRS
use for ADEOS-2 LEOP and USERS Re-entry
12
Bilateral Interface Examples (ESAUser)CNES
Passerelle use for ENVISAT LEOP
13
Interoperability using SLE Services

• CCSDS Space Link Extension (SLE) Transfer
  Services

• Telemetry Return all Frame (RAF) and Return
  Channel Frame (RCF)

• Telecommand Command Link Transmission Unit
  (CLTU)

• Antenna Steering CCSDS standard for Orbit Data
  Messages under negotiation

• Orbit Determination CCSDS standard for Orbit
  Data Messages under negotiation

• Voice Coordination No CCSDS standard
• Technical interfaces based on common practise
  analog audio interfaces

• Operational interfaces based on common practise
  voice procedures

14
SLE ESA Implementation Approach

• SLE User capability in common Mission Control
  System software (NCTRS), used for MSG-1,
  INTEGRAL, ROSETTA, Mars Express

• SLE Provider capability deployment
• Enhanced COTS TM/TC equipment (InSnec/Cortex)
  with local SLE gateway software, used on TS-1 for
  MSG-1 (Jun 2002)

• Central SLE Gateway for access to all ESA
  stations (Nov 2002)

• Native SLE TM/TC equipment in all ESA stations
  (2003-2004)

• SLE Management
• Simple Service Instance Configuration Management
  (SICM) tool available

• CCSDS SLE Management standard draft to be
  drastically simplified before standardisation and
  implementation

15
SLE Example (ESAUser)INTEGRAL / ROSETTA
Routine Support
16
SLE Example (ESAProvider)Future NASA-JPL Mars
Mission Support
17
Communication Network Interoperability
18
Cross Support Project Work Flow (ESA as Service
Provider for LEOP)

• Contract including Mission Implementation
  Requirement Document (MIRD) and responded to in a
  Mission Implementation Plan (MIP)

• Cost-to-Completion, Quality Assurance plan, Task
  distribution

• Radio Frequency Compatibility Test
  (space-ground-ICD)

• New gateway development or re-use
• Network Configuration Document (NCD)
• Tailoring of configuration procedures for MC
  systems

• Ground Segment technical validation
• Network Operations Plan (NOP)
• Mission Readiness Tests (MRTs), System
  Performance Tests (SPTs)

• Tracking Campaigns, Simulation Campaigns, Final
  Dress Rehearsal

• LEOP Operation
• Lessons Learnt, Review of Cost at Completion

19
Conclusion

• 35 years of experience with cross support
  scenario

• Hardware deployment - Bilateral Interface
  agreements - CCSDS Space Link Extension
  standards / implementation

• SLE Usage MSG-1 (28 Aug 02), INTEGRAL (17 Oct
  02), ROSETTA (13 Jan 03), MARS Express (23 May
  03), NASA Mars Missions (03)

• SLE Deployment Plan based on staged approach
• SLE User capability, 2001
• SLE provider gateway (COTS enhancement) for one
  station (TS-1), Jul 2002

• SLE central provider gateway for all ESTRACK
  Stations, Nov 2002

• SLE native provider system in all ESTRACK
  Stations, 2003-2004

• Standardised Cross Support Workflow
• Next steps standardised SLE Management Services
  and Flight Dynamics Services
