Gravitational Waves from Massive BlackHole Binaries

1

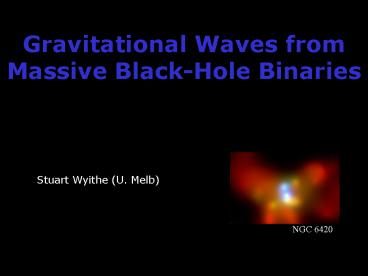

Gravitational Waves from Massive Black-Hole
Binaries

• Stuart Wyithe (U. Melb)

NGC 6420
2
Outline

• The black-hole - galaxy relations.
• Regulation of growth during quasar phase.
• The quasar luminosity function.
• Evolution of the BH mass function.
• Rate of gravity wave detection (LISA).
• The gravity wave back-ground.
• The occupation fraction of SMBHs in halos and GW
  predictions.

3
Black Hole - Galaxy Relations
Ferrarese (2002)
4
The Black Hole-Bulge Relationship

• Quasar hosts at high z are smaller than at z0
  (Croom et al. 2004).

5
The Black Hole-Bulge Relationship

• Radio quiet QSOs conform to the Mbh-? with
  little dependence on z (Shields et al. 2002).

6
Model Quasar Luminosity Function

• One quasar episode per major merger.
• Accretion at Eddington Rate with median spectrum.
• Hypothesis Black-Hole growth is regulated by
  feedback over the dynamical time.

Three assumptions
This hypothesis provides a physical origin for
the Black-Hole mass scaling. The dynamical time
is identified as the quasar lifetime.
Wyithe Loeb (ApJ 2003)
7
Model Quasar Luminosity Function.

• The black-hole -- dark matter halo mass relation
  agrees with the evolution of clustering.
• The galaxy dynamical time reproduces the correct
  number of high redshift quasars.

clustering of quasars
Wyithe Loeb (ApJ 20032004)
8
Properties of Massive BHs

• Ubiquitous in galaxies gt1011Msolar at z0.
• Tight relation between Mbh and ? (or vc, Mhalo).
• Little redshift evolution of Mbhf(?) to z3.
• Feedback limited growth describes the evolution
  of quasars from z2-6.
• Massive BHs (Mbhgt109Msolar) at zgt6.
• Is formation via seed BHs at high z or through
  continuous formation triggered by gas cooling?
• What is the expected GW signal?

9
Evolution of Massive BHs

• Were the seeds of super-massive BHs the remnant
  stellar mass BHs from an initial episode of metal
  free star formation at z20?

10

• The BH seeds move into larger halos through
  hierachical merging.

11
Evolution of Massive BHs

• Is super-massive BH formation ongoing and
  triggered by gas cooling inside collapsing
  dark-matter halos?

12
BH Evolution Triggered by Gas Cooling

• Prior to reionization, cooling of gas inside
  dark-matter halos is limited by the gas cooling
  thresh-hold (104K for H).
• Following reionization the infall of gas into
  dark-matter halos is limited by the Jeans Mass.

13

• Reionization may affect BH formation in low mass
  galaxies as it does star formation.

14
Merging Massive BHs

• Satellite in a virialized halo sinks on a
  timescale (Colpi et al. 1999)
• Allow at most one coalescence per tsink.
• BBHs in some galaxies will converge within H-1
• Coalescence more rapid in triaxial galaxies.
• Brownian motion of a binary black hole results in
  a more rapid coalescence.
• We parameterise the hard binary coalescence
  efficiency by ?mrg.

15
LISA GW Event Rate (hcgt10-22 at fc10-3Hz)

• An event requires the satellite galaxy to sink,
  rapid evolution through hard binary stage, and a
  detectable GW signal.

16
Number counts resulting from BH seeds
17
Number counts resulting from continuous BH
formation
18
Characteristic Strain Spectrum

• hspeclt10-14 (current)
• hspeclt10-15.5 (PPTA)

Jenet et al. (2006)
19

• hspec is Sensitive to the Mbh-vc Relation

Ferrarese (2002) ?010-5.0 ?5.5
WL (2002) ?010-5.4 ?5.0
20
Massive Black-Holes at low z Dominate GW Back
Ground
Sesna et al. (2004)
21
Black-Hole Mass-Function

• The halo mass-function over predicts the density
  of local SMBHs.
• Most GWBG power comes from zlt1-2.

22
Model Over-Predicts Low-z Quasar Counts at High
Luminosities
23
Galaxy Occupation Fraction

• The occupation fraction is the galaxy LF / halo
  MF
• Assume 1 BH/galaxy

24
Reduced GW Background

• Inclusion of the occupation fraction lowers the
  predicted GW background by 2 orders of magnitude.

25
Conclusions

• The most optimistic limits on the spectrum of
  strain of the GW back-ground are close to
  expected values. Tighter limits or detection of
  the back-ground may limit the fraction of binary
  BHs.
• Allowance should be made for the occupation of
  SMBHs in halos, which lower estimates of the GW
  background based on the halo mass function by 2
  orders of magnitude.
• Models are very uncertain! PTAs will probe the
  evolution of the most massive SMBHs at low z.

26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
Limits on the GW Back-Ground

• Pulsar Timing arrays limit the energy density in
  GW.
• ?gwh2lt2x10-9

(Lommen 2002)
31
Minimum Halo Mass for Star formation

• Atomic hydrogen cooling provides the mechanism
  for energy loss that allows collapse to high
  densities.
• This yields a minimum mass in a neutral IGM.

32
Minimum Halo Mass for Baryonic Collapse

• Assume gas settles into hydrostatic equilibrium
  after collapse into a DM halo from an
  adiabatically expanding IGM.
• This yields a minimum mass in an ionized IGM.

33
Minimum Halo Mass for Baryonic Collapse

• A minimum mass is also seen in simulations. The
  minimum mass is reduced at high redshift.

(Dijkstra et al. 2004)
34
Median Quasar Spectral Energy Distribution
Elvis et al. (1994) Haiman Loeb (1999)

• The median SED can be used to compute number
  counts.
• The SED can also be used to convert low
  luminosity X-ray quasar densities to low
  luminosity optical densities.

35
Binary BH Detection by LISA
104
36
Black-holes at high z accrete near their
Eddington Rate
37
A BBH in a pair of Merging Galaxies (NGC 6420
Komossa et al. 2003)
38
Gravitational Waves from BBHs

• The observable is a strain amplitude
• In-spiral due to gravitational radiation.

39
Merger Rates for DM Halos
Time
Large M
Small M
Lacey Cole (1993)
40
The Press-Schechter Mass Function
Z0
Z30
41

• Reionization may affect BH formation in low mass
  galaxies as it does starformation.

42
Binary Evolution Timescales (Yu 2002)

• BBHs in some galaxies will converge within H-1
• Coalescence more rapid in triaxial galaxies.
• Residual massive BH binaries have Pgt20yrs and
  agt0.01pc.

43
Merging Massive BHs

• Satellite in a virialized halo sinks on a
  timescale (Colpi et al. 1999)
• Allow at most one coalescence during the decay
  plus coalescence times.

44
Reduced Event Rate

• Inclusion of the occupation fraction lowers the
  predicted event rate by an order of magnitude.
