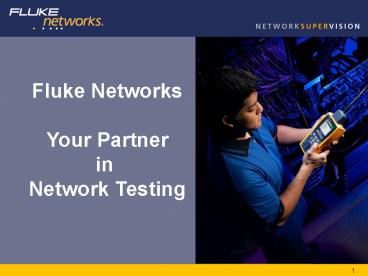

Fluke Networks Your Partner in Network Testing
2

• Copper Testing Standards Update

3
Types of Standards

• Component specifications
• Define performance and grades of cables,
  connectors and hardware
• Example ANSI/TIA/EIA 568-B.2
• Installed Link Specifications
• Permanent Link and Channel
• Example ANSI/TIA/EIA 568-B.1
• Network Technology Standards (Applications)
• Define performance requirements for all elements
  of a the network
• Example IEEE 802.3

4
Developments in Cabling Requirementsfor 10
Gigabit Ethernet

• The IEEE 802.3an committee is studying the
  implementation for 10 Gigabit Ethernet over
  twisted-pair copper cabling (10GBASE-T)
• Several companies are actively participating in
  the study of medium performance parameters and
  transmission requirements to support 10GBASE-T
• This high-performance cabling system will require
  a high-performance field tester
• Increased frequency range (1 to 500 MHz)
• Higher accuracy specification (Accuracy Level
  IIIe and IV)
• Capable of supporting Alien Crosstalk measurements

5
10GBASE-T

• IEEE 802.3an task force has delegated study of
  the physical medium to TIA and ISO/IEC workgroups
• The signal-to-noise ratio budget analysis is
  complex and consists of two components
• In-channel requirements for all parameters, are
  initially set to ISO/IEC 11801 Class E limits,
  extended to 500 MHz
• Between-Channel crosstalk requirements are
  becoming very important in the Signal-to-Noise
  Ratio
• Referred to as Alien Crosstalk
• Also known as Alien NEXT or Alien FEXT

6
Alien Crosstalk

• Crosstalk induced in a wire-pair in the (victim)
  cable by wire-pairs in adjacent cables
  (disturbers) in the bundle
• General rules
• This crosstalk is worst between wire-pairs with
  the same twist rate
• The effect is greater if cables stay in parallel
  at the link ends
• Impact increases with the distance over which the
  cables run in parallel
• Impact increases with the frequency of the
  transmitted signals

7
Development Status of 10 Gigabit Ethernet

• IEEE 802.3an 10GBASE-T standard
• Expected to pass June-July 2006
• Includes references to TIA and ISO/IEC for
  physical medium
• A single testing methodology for field testing of
  Alien Crosstalk will be included in TIA, ISO and
  IEEE as the only standards-compliant methodology
  for field testing of Alien Crosstalk

8
Status on TIA and ISO

• ANSI/TIA-TSB-155 Additional Guidelines for
  4-pair 100 O Category 6 Cabling for 10GBASE-T
  Applications.
• This document creates the guidelines how Cat 6
  links can be certified for the 10Gb/s Ethernet
  application.
• Expected to pass Q3 2006.
• ANSI/TIA/EIA-568-B.2-10 Transmission
  performance specifications for 4-pair 100 O
  augmented Category 6 cabling.
• This amendment 10 defines a new cabling type
  called Augmented Cat 6 abbreviated as Cat 6A.
• Expected to pass Q1-Q2 2007
• ISO/IEC 11801 Edition 2.1 (draft) Information
  Technology Generic cabling for customer
  premises. (Draft document number ISO/IEC JTC 1/SC
  25 N 755.
• This document will include the definition of
  Augmented Class E and Augmented Class F cabling
  systems.
• Expected to pass Q4 2006.
• ISO/IEC 24750 Guidelines for support of
  10GBASE-T over Copper Balanced pairs of Class E
  and Class F as per ISO/IEC 118012002 and
  IEEE802.3an.
• This is a Working Draft for an amendment to
  ISO/IEC 118012002.
• Expected to pass Q1 2007

9
Cable Types Expected to Support 10GBASE-T
10
10Gig over Copper Solution for Field Testing
and Certification
11
Alien Crosstalk measurement methodsPair-To-Pair
Alien NEXT Measurements

• The main and remote units are sitting
  side-by-side at one end of the cabling bundle
  under test.
• These units are plugged into different cables.
• A standard patch cord connects the
  synchronization of the Alien Crosstalk modules
  plugged into each of the testers to allow the
  testers to perform all of the pair-to-pair NEXT
  measurements between the wire pairs of the two
  selected cabling links.

12
Alien Crosstalk measurement methodsPair-To-Pair
Alien FEXT Measurements

• The main and remote units are plugged into
  different cabling links at opposite ends of the
  bundle under test.
• A spare channel in this bundle (not to be used as
  disturber or victim) connects the synchronization
  modules to allow the testers to perform all of
  the pair-to-pair FEXT measurements between the
  wire pairs of selected cabling links.

13
Field Testing Alien Crosstalk

• Perform In-Channel certification using the
  appropriate test standard
• IEEE 10GBASE-T, Cat 6A or ISO Class EA
• Save the test results using results management
  software and create a project file
• Tester setup for PSANEXT
• Insert the Alien Crosstalk modules in Main and
  Remote Cable Analyzer units
• Connect main unit with USB cable to PC
• Connect the testers as shown in previous slide
• Plug terminators into victim and selected
  disturber links
• Launch PSAXTalk software on PC and select cabling
  links to test
• See next slide

14
Selection of Cabling Links in the Tests

• Disturbed (or victim) linksSelect the longest
  links in the installation
• Links with the highest Insertion Loss
• IEC recommends to pick the 10 longest links
• TIA recommends to pick the 6 longest links
• Identify the bundles to which these longest links
  belong
• All links in these bundles should be used as
  disturbers in calculating the PSAXTalk
  performance
• This is an important argument to keep the number
  of links in each bundle relatively small
• In addition, verify that all cables in adjacent
  panel jacks have been included in the test as
  well
• If they have not, they should be added to the
  list of disturbers

15
Test Result with One Disturber PSAELFEXT
Test limit line for individual pair measurements
Test limit line for average of four pairs
16
Test Result with Mulitple Disturbers PSAELFEXT
