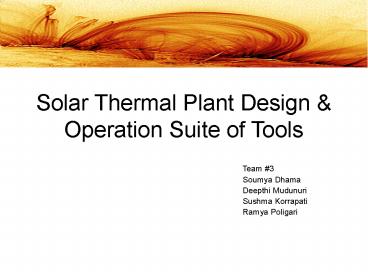

Solar Thermal Plant Design Operation Suite of
Tools
Team 3 Soumya Dhama Deepthi Mudunuri Sushma
Korrapati Ramya Poligari
2
Team Information

• Team 3 Members
• Soumya Dhama
• E-mail soumya.dhama_at_gmail.com
• Deepthi Mudunuri
• Email deepthiathrayasa_at_gmail.com
• Sushma Korrapati
• E-mail sushmakorrpati_at_gmail.com
• Ramya K Poligari
• E-mail ramya.poligari_at_gmail.com
•


•

  Instructor
•

  Dr. Kwok Bun Yue
•

  Email
  yue_at_uhcl.edu
• Mentor
•

  Dr. Michel
  Izygon
•

  Email
  mizygon_at_tietronix.com

3
Contents

• Introduction
• Heliostats
• Shading and Blocking
• Solar Computation Program
• Project Proposal
• Project Requirements
• Technologies Used
• Flow Chart Diagram
• User Interface Demo
• Future Work
• References

4
Introduction

• A Solar Power plant produces electricity by
  reflecting sunlight on to the central receiver
• A solar thermal plant consists of mirror
  reflectors called heliostats

5
Heliostats

• They direct and concentrate the solar radiation
  onto a central receiver
• Many parameters must be optimized, in the design
  of a solar thermal plant
• The parameters are
• Location
• Shading and
• Blocking

6
Shading and Blocking

• Shading occurs when a heliostat casts its shadow
  on another heliostat located behind it
• Blocking occurs when a heliostat in front of
  another heliostat, blocks the reflected suns
  energy on its way to the receiver

7
Solar Computation Program

• It produces a snapshot of shading and blocking of
  each heliostat
• The design process includes analyses of data at
  different times and dates
• Many executions are required for a solar thermal
  plant

8
Project Proposal

• Effectively store, retrieve and delete the output
  data of the Solar Computation Program
• Retrieve the data by various key words
• Program executed via a simple Graphical User
  Interface

9
Project Requirements

• Develop a Graphical User Interface
• Store the output data from the Solar Computation
  Program to the database
• Output data
• OpenGI_Helio_DYN.txt
• Results.xls
• run_info.txt
• NeighborDistances.txt
• dataSAR.txt

10
Project Requirements

• Retrieve a data set from the database by
  providing the field identifiers
• Retrieve multiple sets of data by the user
  request
• Display the statistics on the sets in storage
• Delete sets from storage by providing the field
  identifier

11
Project Requirements

• Prevent duplicate entries in the database
• Facilitate two user interaction with the database

12
Technologies Used

• C.NET
• SQL Server 2005
• Windows XP/Vista
• Visual Studio 2005

13
Start
Open the application
A
Q
R
D
Select the insert page
Selects an input directory
Verifies whether the folder has the read
permission
No
YES
Ready to access the files
You cant access files
Check-in
Verifies if SC sets exists in the folder
Shows an acknowledgement that one set already
exists
No
YES
Copy into the database
Check-in successful
14
A
Select output directory
Verifies whether it has write permission
YES
NO
Not ready to accept any queries
Ready to accept queries
15
Q
Browse
Select one of the options
Search the database for the value entered in the
selected option
NO
Data not found
YES
Successful
Information about the sets
Select a set
Retrieve
Re-write data into the output folder
Done
16
R
Statistics
Displays general statistics
OK
Close window
17
D
Browse
Select field identifier
NO
YES
Search
No data found
Successful
Information about the sets
Select a set
Delete
Warning message
Remove permanently
Done
Closes window
End
18
User interface Demo

• DEMO

19
Future Work

• UI Enhancements
• - In each page there are some
  functionalities which have to be implemented.
• - Implement multiple user interaction
  modules which is still under
  documentation.
• - Implement the On_Click Events in few
  pages.

20
Future Work

• Questions?

• Data Base Design and Implementation
• - Data modeling using UML class diagrams
• - Rough Database design
• - Restructuring and refinement of the data
  accordingly
• Integrate the User Interface with the data base
  to
• provide complete functionality to our
  application

21
References

• http
• http//aa.usno.navy.mil/data/docs/AltAz.php
• http//www.powerfromthesun.net/
