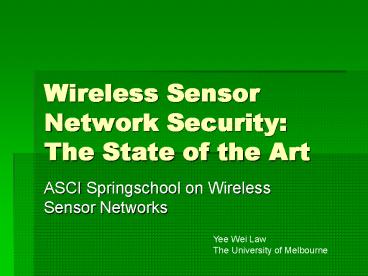

Wireless Sensor Network SecurityThe State of

the Art

- ASCI Springschool on Wireless Sensor Networks

Yee Wei Law The University of Melbourne

Prelude

- In the beginning, security objective for civilian

applications is unclear - But communication with the industry confirms our

suspicion about the security requirements - Endless challenges, every component of WSNs has

its corresponding security issues

Roadmap

- Primer to cryptography andWSNs
- Secure data aggregation
- Key management
- Other areas
- secure remote reprogramming
- secure localization
- energy-efficient jamming attacks

Information Assurance

Protection

Detection

Reaction

Part Zero

- Primer to cryptography and WSNs

Introduction to security

- Security threats either somebody wants to steal

something from you or sabotage you - Information assurance (IA) is a set of measures

that protect and defend information and

information systems by ensuring their

availability, integrity, authentication,

confidentiality, and non-repudiation. These

measures include providing for restoration of

information systems by incorporating protection,

detection, and re-action capabilities.

Information assurance

Information security

Operation security

Primitives

- Security objectives
- Confidentiality
- Integrity
- Authentication
- Non-repudiation
- Encryption / decryption
- Symmetric-key E(K, M) / D(K, M)
- Asymmetric-key E(PK, M) / D(SK, M)
- Signature / verification
- Symmetric-key message authentication code (MAC),

denotedMAC(K, M) - Asymmetric-key digital signature,

denotedSign(SK, M), Ver(PK, M)

Notation Public key PK Private key SK

Common usage

Diff keys for encryption and authentication

- E(K1, M) MAC(K2, E(K1, M))
- E(K1, M) Sign(SK, h(E(K1, M)))

Integrity, authentication

Confidentiality

Signing on hash is more efficient

Confidentiality

Integrity, authentication, non-repudiation

Birthday threshold

23 people (q)

birthdays (n)

- Collision probability C(N,q)
- Birthday attack on CBC-MAC Bellare et al. 00

number of queries

running time

Security notions (PKC)

- Semantic security indistinguishabilityCiphertex

t doesnt reveal anything about the plaintext

except the length - Non-malleabilityNew ciphertexts cannot be

created based on known ciphertexts - Satisfies a security notion, if an attacker loses

to a game, e.g., the chosen plaintext attack

(CPA) game

Challenges in WSNs

Constraints

Implications

Sensor node hardware, resource constraints

Algos must be energy- and storage-efficient

Nodes operate unattended

Adversary can compromise any node

Nodes not tamper-resistant

Adversary can compromise any nodes keys

No fixed infrastructure

Cannot assume any special-function node in

vicinity

No pre-configed topology

Nodes dont know neighbours in advance

Communicate in an open medium

Communications are world-readable and

world-writeable by default

Security design principles

- Favour computation over communication
- Communication 1000 times more energy-consuming

than computation - Minimal public-key crypto
- Tate pairing costs 5s (54mJ) on a Tmote Sky

(fastest recorded by Szczechowiak et al. 08) - Favour resilience (tolerance) over absolute

security - Strength in number

Part One

- Secure data aggregation

Data aggregation

aggregate

aggregate

aggregate

- Purposes
- Save bandwidth (limited data rate)
- Save energy (limited energy)

Reason why we put a processor on every node in

the first place

Phase 1 Query dissemination

Sample query SELECT AVERAGE(temperature) FROM

sensors WHERE floor 6 EPOCH DURATION 30s

Phase 2 Data aggregation

aggregate

aggregate

aggregate

Types of aggregation (1) basic aggregation, (2)

data compression, (3) parameter estimation

Phase 3 Result verification (optional)

Did you really report this?

Did you really report this?

Did you really report this?

Did you really report this?

Did you really report this?

Did you really report this?

Security goals of data aggregation

So the average is 251.5 Oh wait a minute

- Robustness Byzantine corruption of data would

not make aggregation result totally meaningless - Confidentiality To ensure that other than the

sink and the sources, no intermediate node should

have knowledge of the raw data or the aggregation

result

perform averaging

1

1000

3

2

What the hell am I forwarding?

sink

What the hell am I aggregating?

sources

Securing data aggregation multipronged defence

4

1

2

3

Resilient aggregation

- Objective To bound the effect of data corruption
- Corruption can be arbitrary Byzantine
- By convention, we denote the number of

corruptions as k - Methods
- Robust statistics (1-hop networks)
- RANBAR (1-hop networks)
- Quantiles aggregation (multi-hop networks)

Robust statistics

Say an aggregation function is actually an

estimator Say we are estimating a parameter T

and there are k rouge nodes An aggregation

function is (k,?)-resilient if

That is, the RMS error as a result of

k-corruption, must be bounded by a constant

factor of the original RMS error We win if we

can limit ? The attacker wins if he manages to

unbound ?

Examples of (k,?)-resilient aggregation functions

y

y?y?

Non-resilient, example Average

rms(y?)gt? rms(y)

AVG

AVG

x1

x1

x2

x3

x4

x2

x3

x44?

Resilient, examples

RANBAR

- Based on RANdom SAmple Consensus, which

originates in computer vision (hence the name

RANBAR RANsac-Based AggRegation Buttyán et al.

06) - Step1 Use as few samples as possible to

determine a preliminary model - Step 2 Use the preliminary model to identify

samples that are consistent with the model - Step 3 Refine the model with all the samples

that are found to be consistent

Quantiles aggregation (extending resilient

aggregation to multihop)

4

6

Median

Median

10

2

2

Median

Median

Median

1

2

3

4

16

1

2

3

4

16

Actual median 3

This approach suggests that instead of taking a

median every hop on the way, we should compress

the data judiciously at each hop

Quantiles aggregation

count

tree nodes are numbered

Rules for deriving a q-digest Rule (A)

count(node) count(parent) count(siblings)

?n/k? 1 Rule (B) count(node) ?

?n/k? q-digest in this example

lt8,2gt,lt9,2gt,lt1,1gt

Quantiles aggregation

count

tree nodes are numbered

Derived median data value represented by node 9

3.5 Actual median 3

Resilient aggregation guidelines

- Two approaches actually
- estimate by minimizing effects of outliers
- detect outliers and estimate without outliers

1-hop multihop

Data distribution known Robust statistics, RANBAR Quantiles aggregation

Data distribution unknown Robust statistics Quantiles aggregation

Progress so far

4

1

2

3

Voting

malicious

is mean 61.4 reasonable?

malicious

3

300

2

1

malicious

1

Alright, 61.4 is not reasonable!

No

Yes

No

No

Resource-intensive, only good for

mission-critical, small-scale networks

No

Progress so far

4

1

2

3

Result verification

- The single-aggregator case
- The multi-aggregator case
- Chan et al.s hierarchical in-network aggregation
- Yang et al.s SDAP

Interactive proof algo

- By Przydatek et al. 2003, algo for proving

probabilistically a given figure is indeed the

median of the samples - Example for the sake of intuition

Prover must have the samples sorted first

1

1

2

3

4

5

6

Prover tells the verifier median is 3.5 and the

no. of samples is 6

2

Verifier asks for the 3rd sample, prover tells

the 3rd sample is 3 lt 3.5, verifier is happy but

still suspicious

3

Verifier asks for the 4th sample, prover tells

the 4th sample is 4 gt 3.5, verifier is happy but

still suspicious

4

Verifier asks for the 1st and 6th sample, prover

tells 1st is 1 lt 3.5 and 6th is 6 gt 3.5, verifier

says Alright, Ive sampled enough, median

should be 3.5 at high probability.

5

Relies on the trustworthiness of the samples, but

how do we make sure?

Result verification single aggregator

- (a) The information S requires from A in the data

aggregation phase - aggregation result f(x1xn)
- the number of data samples n
- a commitment of the data samples hA.

(b) Commitment tree based on Merkle hash tree

saves bandwidth

Previous slide shows these are necessary

Forces prover to commit to the sample values

Result verification single aggregator

A returns the following when interrogated by S M

MAC(KAS, M) where M q ID(1) x1

MAC1S ID(2) x2 MAC2S h1,1

Prevents source nodes from lying

Result verification multi-aggregator

- Chan et al.s hierarchical in-network aggregation
- Every sensor sends a message of the following

format to its parentquery ID value

complement count commitment MAC - Uses two primitives COMB and AGG
- AGG(msg1, msg2)Let msg1 q v1 c1 and

msg2 q v2 c2, then AGG(msg1, msg2) q

f(v1, v2) c1c2. - COMB(msg1, msg2)Let msg1 q v1 c1 and

msg2 q v2 c2, then COMB(msg1, msg2) q

v1 c1 v2 c2.

Aggregation phase Chan et al.

- Aggregate only trees of the same size to create

balanced binary trees - The advantage of creating only balanced binary

trees is that edge congestion (congestion on a

link) is only O(log2n), where n is the number of

samples

Verification phase Chan et al.

- S broadcasts COMB(AGG(B2, H2), G1) to the

network, for example, using µTESLA. Next, the

following transmissions take place - A ? B H2 A ? E COMB(B2, G1) B ? C COMB(H2,

D1) B ? D COMB(H2, C1) E ? G COMB(B2, G1) G

? H B2 H ? I COMB(B2, J1) H ? J COMB(B2, I1) - A source node that successfully reconstructs the

commitment will send a confirmation message to

the sink qnodeIDOK MAC(K, qnodeIDOK) - Problem is instead of at the sink, the commitment

is reconstructed at the source nodes themselves

an attacker can forge negative confirmations

Result verification SDAP

- Better than previous approach, because commitment

is re-constructed at the sink, not the source

nodes - We divide the sub-network into groups, we only

need to check the groups which look suspicious - A sensor decides whether it would become a group

leader by checking whether h(qnodeID) lt Fg(c),

where Fg(c) is a function that increases with the

data count c - The role of a group leader is to set a boolean

flag in a message to NAGG to indicate the message

needs only be forwarded, not aggregated

SDAPs aggregation phase

- S tests if h(qleaders nodeID) lt Fg(c). If

false, S discards the group aggregate. Otherwise,

S proceeds with the next test. - S tests if the group aggregate represents an

outlier

SDAPs verification phase

- S ? A G q qa
- G ?? S qa G xG 3 MACGSH ?? S qa

H xH 2 MACHSJ ?? S qa J xJ 1

MACJSI ?? S qa I xI 1 MACIS - S performs the following checks
- xG is correctly derived from f(xG, f(xJ, xI))
- MACGS is correctly reconstructed in the following

steps - MACIS MAC(KIS, q I xI 1)
- MACJS MAC(KJS, q J xJ 1)
- MACHS MAC(KHS, q H f(xJ, xI) 2

MACIS ? MACJS) - MACGS MAC(KGS, q G f(xG, f(xJ, xI)) 3

MACHS)

Progress so far

4

1

2

3

Privacy homomorphism (PH)

- First proposed by Rivest et al. in 1978 to

process encrypted data without decrypting the

data first - A function is (?,?)-homomorphic if f(x) ? f

(y) f (x ? y)where ? is an operator in the

range and ? is an operator in the domain. - If f is an encryption function and the inverse

function f-1 is the corresponding decryption

function, then f is a PH.

Types of PHs

- There are three main approaches to PHs in WSNs so

far - PHs that are based on polynomial rings, e.g.,

Domingo-Ferrers scheme - PHs that are based on one-time pads
- homomorphic public-key cryptosystems

Insecure under known-plaintext attacks Attacks

involve only computation of gcd and linear

algebra Wagner 03

PHs based on one-time pads

One-time pad

- Encryption

- Decryption by sink
- Drawbacks
- Use of the addition operator in place of the XOR

operator in the plaintext space is unproven in

terms of security - Synchronization of keys causes scalability problem

m1m2m3k1 k2k3

m1 m2 k1 k2

m1m2m3m4k1 k2k3k4

m1 k1

m3 k3

sink

m4 k4

m2 k2

Security of homomorphic public-key cryptosystems

- PHs are different from conventional ciphers in

the sense that the highest attain-able security

for PHs is semantic security under non-adaptive

chosen-ciphertext attacks (IND-CCA1) - PHs are also by definition malleable, so they

fail all the non-malleability notions - In practice, we only look for PHs that are

semantically secure against chosen-plaintext

attacks (IND-CPA)

Candidate cryptosystems

- ElGamal on elliptic curves (EG-EC)
- Semantic security depends on the discrete

logarithm problem on elliptic curves - (,)-homomorphic
- Okamoto-Uchiyama
- Semantic security depends on the intractability

of factoring p2q - (?,)-homomorphic

Guideline Mykletun et al. 06

EG-EC becomes increasing costly with larger

ciphertexts

EG-EC requires too much storage here

(real-time)

(intermediate nodes might want to decrypt the

intermediate values)

Part One Conclusion

- Among the techniques introduced so far, voting,

result verification and PH all require a lot of

resources. - Only resilient aggregation is the most practical.
- If all data are only aggregated once, then

RANBAR, or a simple resilient aggregation

function can be used. - For multi-aggregation scenarios, quantiles

aggregation can be used at each aggregation

point to compress the data. - Instead of PH, encrypted data are decrypted and

then aggregated and re-encrypted no true

end-to-end confidentiality.

Part Two

aggregate

aggregate

Key management

aggregate

In Secure Data Aggregation, we secure one-way

traffic.

generalized

In Key Management, we secure generic traffic.

Components

Protocol verification

1

Key management

Key establishment

2

Key refreshment

3

Key revocation

4

Protocol verification

- Verification gives us indication and confidence

of security - If we simulate unbounded sessions, verification

of secrecy and authentication is undecidable - If we limit number of parallel sessions, we can

use constraint solving for verification - Model strand space model
- Tool CoProVe implements the strand space model

using constraint solving (Prolog)

Strand space model

Node-to-node key establishment

- A wants to establish a secure channel with B via

a common trusted node S - A ? B NA AB ? S NA NB A B

MAC(KBS, NA NB A B)S ? A E(KAS, KAB)

MAC(KAS, NA B E(KAS, KAB))S ? B E(KBS,

KAB) MAC(KBS, NB A E(KBS, KAB))A ? B

Ack MAC(KAB, Ack)

Node-to-node key establishment

E(KBS, KAB) MAC(KBS, NB A )

NA NB A B MAC(KBS, )

E(KAS, KAB) MAC(KAS, NA B )

NA A

Ack MAC(KAB, Ack)

Verification using CoProVe

Strand space model

Role 1 send ? recv ?

Scenario Instantiate Role 1 Instantiate

Role n Instantiate Outcome

Bundle

Strands

Role n send ? recv ?

Outcome e.g., attacker learns key

has_to_finish(Outcome)

Security is disproved if there exists a bundle

that satisfies these constraints

Verification using CoProVe the code itself

- initiator(A, S, B, Na, Ns, Ka, Kb, Kab, Ack,
- recv(A, S, B),
- send(Na, BKa),
- recv(NsKb, Kab, Na, BKa),
- send(A, NsKb),
- recv(AckKab)
- ).
- server(A, B, Na, Ns, Nb, Ka, Kb, Kab,
- recv(Na, BKa),
- send(NsKb, Kab, Na, BKa),
- recv(B, Nb, A, NsKb),
- send(Kab, Nb, AKb)
- ).

- responder(A, B, Nb, Ns, Kb, Kab, Ack,
- recv(A, NsKb),
- send(B, Nb, A, NsKb),
- recv(Kab, Nb, AKb),
- send(AckKab)
- ).
- secrecy(N, recv(N)).
- scenario(a, Init1, b, Resp1, s, Serv1,

sec, Secr1) - - initiator(a, s, B, na, Ns, ka, Kb, Kab, ack,

Init1), - server(a, b, Na, ns, Nb, ka, kb, kab, Serv1),
- responder(A, b, nb, Ns1, kb, Kab1, ack,

Resp1), - secrecy(kab, Secr1).
- has_to_finish(sec).

Components

Protocol verification

1

Key management

Key establishment

2

Key refreshment

3

Key revocation

4

Key establishment

- Definition a process or protocol whereby a

shared secret key becomes available to two or

more parties, for subsequent cryptographic use - Types

A key agreement protocol whereby the

resulting established keys are completely

determined a priori by initial keying material

Protocol design by communication modes

- Global broadcasts
- Authenticated broadcast using µTESLA
- Local broadcasts
- Passive participation
- Unicast
- Only consider neighbour-to-neighbour
- Multihop can be secured hop by hop
- Random key pre-distribution schemes
- LEAP
- EBS

Global broadcast µTESLA

- Micro version of the Timed, Efficient,

Streaming, Loss-tolerant Authentication Protocol

Authenticated broadcast

keys are generated in reverse order

Ki-1 h(Ki)

K1

K2

K3

K4

Kn

keys are released in forward order

µTESLA example (1)

(3) Generate one-way reverse key chain on the

base station

(1) Generate one-way reverse key chain on the

base station

h()

K1

K2

K3

K4

(2) Give K1 to everybody

M

K2

MAC(K3, )

K1

K1

K1

K1

µTESLA example (2)

(5) Base station later sends K3 that can be used

to authenticate message M

(4) K2 is genuine because h(K2) K1 but packet

tagged with MAC(K3, MK2) still needs to be

authenticated

M2

K3

MAC(K4, )

M

MAC(K3, )

K2

Authentication steps (a) K3 is genuine because

K2 h(K3) (b) M is genuine because K3 is genuine

and K3 authenticates M

M

MAC(K3, )

K2

Local broadcast Passive participation

A is just transmitting a similar data to I have,

so I shall not transmit.

D

C

E

B

Passive participation nodes B, C, D, E suppress

their transmissions when they find A transmitting

about the same data To secure passive

participation, A uses a cluster key and a one-way

key chain to achieve encrypted and authenticated

local broadcast

A

Local broadcast Passive participation

D

- If only the key chain is used, the keys in the

key chain would have to be broadcast in the

clear, and in the absence of time interval

differentiation, a cluster-outsider would be able

to forge messages using these keys - If only the cluster key is used, authentication

of the sender cannot be achieved - But if used together, the cluster key can be used

to encrypt messages as well as to hide the key

chain keys from cluster-outsiders and at the

same time, the key chain keys can be used for

authentication

C

B

A

Securing unicast

- Random key pre-distribution schemes
- LEAP
- EBS

Random key pre-distribution (RKP)

at random

Keying material

at random

Pool

Able to establish session key?

P pool size (4 in this example) K key ring

size (1 in this example)

Random key pre-distribution (RKP)

- Different types

Type 1

Type 2

Type 3

Symmetric key Eschenauer Gligor 02

Symmetric bivariate polynomial Liu et al. 05

Part of a matrix Du et al. 05

Symmetric-key-based RKP

Ive got keys 1, 2, 3, 4

1

1

Ive got keys 1, 5, 6, 7

2

5

3

6

4

7

OK, so our session key can be derived from key 1

OK, so our session key can be derived from key 1

Although not all neighbouring pairs of nodes can

establish a session key (aka pairwise key), the

network will remain connected, with a suitable

choice of K and P. K key ring size (4 in this

example) P key pool size (7 in this example)

Symmetric-key-based RKP

Prconnectivity k vs k

K 4, P 15, RMSE 0.0427

K 4, P 30, RMSE 0.0436

Prconnectivity k

Expected connectivity

Derived from results of random geometric graphs

Law et al. 07

Polynomial-basedRKP

f1(x, y) 12y3y22xxy4xy2 3x24x2yx2y2

f2(x, y) 23y5y23x2xy7xy2 5x27x2y2x2y2

Ive got f1(), f2()

f3(x, y) 34y5y24x3xy6xy2 5x26x2y3x2y2

Ive got f2(), f3()

Node 1

Pool

f1(1, y) 67y8y2

Node 2

OK, so our session key can be derived from f2()

f2(2, y) 2835y27y2

f2(1, y) 1012y14y2

f3(2, y) 31 34y 29y2

OK, so our session key can be derived from f2()

In this example, t 2, K 2, P 3 The pairwise

key is f2(1,2) f2(2,1) 10 24 56 28 35

27 90 In reality, the value must of course

be as large as normal crypto keys Storage

requirement K(t 1) coefficients, where t is

the threshold

Matrix-basedRKP

N number of nodes number of columns

this seed can be used as an ID

Vandemonde-like generator matrix

Random symmetric matrices

D2

D3

D4

D1

M1(D1G)T

M2

M3

M4

Matrix-basedRKP

M1

M3

M2

M4

Ive got M1, M2

Pool

Ive got M2, M3

Node 1

Node 2

G(2)

M1(1)

G(1)

M3(2)

OK, so our session key can be derived from M2

OK, so our session key can be derived from M2

M2(1)

M2(2)

Heres G(1)

Heres G(2)

- Pairwise key M2(1)G(2) M2(2)G(1)
- Storage requirement K(t1)1 coefficients, where

t is the threshold

Node-to-node key establishment

- RKP schemes only good for keying two neighbouring

nodes with common key(s) what about neighbours

without any common key? Use common trusted node - A wants to establish a secure channel with B via

a common trusted node S - A ? B NA AB ? S NA NB A B

MAC(KBS, NA NB A B)S ? A E(KAS, KAB)

MAC(KAS, NA B E(KAS, KAB))S ? B E(KBS,

KAB) MAC(KBS, NB A E(KBS, KAB))A ? B

Ack MAC(KAB, Ack)

LEAP

- LEAP is a key pre-distribution scheme but not

random - Every node is pre-distributed with Kin

Node B node key KB PRF(Kin, B) Kin already

deleted

A sets timer

0

Hello, Im A

1

Im B

2

Node A initial key Kin

A and B compute pairwise key PRF(PRF(Kin, B), A)

3

Timer fires, A deletes Kin

4

EBS (Exclusion Basis System)

Nodes

Keys

Pro Two nodes always share at least 2K-P

keys. Con When a node is compromised, more than

half of the keys in the key pool are compromised.

Components

Protocol verification

1

Key management

Key establishment

2

Key refreshment

3

Key revocation

4

Key refreshment

- Why? The more a key is used, the more it is open

to cryptanalytic attacks, birthday attacks etc.

Parallel re-keying

- Lose the key K, then all past and future keys are

exposed - Not suitable for WSNs

Key refreshment

Serial re-keying preferable because of forward

security

- Only need to store this
- Lose this, then all future keys are compromised
- But past keys are intact

Abdalla et al. 2000

- Without this scheme, birthday threshold O(2k/2)
- With this scheme, a session key can be refreshed

O(2k/3) times - Each time, a session key has a birthday threshold

of O(2k/3) - The final birthday threshold is O(2k/3) ? O(2k/3)

O(22k/3)

Components

Protocol verification

1

Key management

Key establishment

2

Key refreshment

3

Key revocation

4

Which keys to revoke?

Big picture

- When A is compromised
- Global broadcast keys B, C, D, E need to have

their copies of KSglobal replaced - Local broadcast keys B, C, D, E need to purge

KAcluster and KAchain B needs to re-gen and

re-distribute KBcluster and KBchain similarly

for C, D, E

Strategy

Gateway

Re-keying unicast keys

Big picture

- If using polynomial-based or matrix-based RKP or

LEAP, do nothing - If using symmetric key-based RKP, re-keying is

desirable but can be done without - If using EBS, re-keying is a must

Re-keying local broadcast keys

Re-keying global broadcast keys

- New global key is propagated from the base

station in two stages - The hash of the key is propagated
- Then the key itself
- Over each hop, the key is protected by a cluster

key and a cluster key chain

Part Two Conclusion

- Securing local broadcasts is generally too

expensive for current generation of nodes - The priority is to secure query broadcasts, data

convergecasts and neighbour-to-neighbour unicasts

This means a node should minimally store - a unique key shared with the base station
- a µTESLA commitment distributed by the base

station - a global key
- a set of pairwise keys, each of which is shared

with a different neighbour - Periodic key refreshment should be made a

standard practice - global key is used most often
- Always verify protocols

- Thank yall
- Dank u
- Danke
- Grazie
- Mult'umesc
- Dziekuje
- Köszönöm
- Tesekkurler
- Shukran
- ???????
- ??
