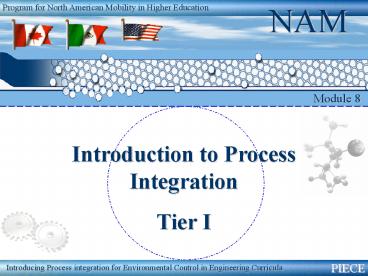

1
NAMP
Program for North American Mobility in Higher
Education
Module 8
Introduction to Process Integration Tier I
PIECE
Introducing Process integration for Environmental
Control in Engineering Curricula
2
How to use this presentation
  • This presentation contains internal links to
    other slides and external links to websites
  • Example of a link (text underlined in grey) link
    to a slide in the presentation or to a website
  • link to the tier table of contents
  • link to the last slide viewed
  • when the user has gone over the
    whole presentation, some multiple choice
    questions are given at the end of this tier. This
    icon takes the user back to the question
    statement if a wrong answer has been given

3
Table of contents
  • Project Summary
  • Participating institutions
  • Module creators
  • Module Structure Purpose
  • Tier I
  • Statement of Intent
  • Sections
  • 1.1 Introduction Definition of Process
    Integration (PI)
  • Brief history of PI
  • Modern context of PI
  • IEA definition of PI
  • M. El-Halwagi definition of PI
  • Nick Hallale definition of PI
  • NAMP-PIECE definition of PI

4
Table of contents (2)
  • Tier I
  • 1.1 Introduction Definition of Process
    Integration (PI)
  • Possible objectives of PI
  • Summary of PI elements
  • Conclusion
  • 1.2 Overview of PI tools
  • Overview of PI tools
  • Process Simulation
  • Data Treatment Reconciliation
  • Pinch Analysis
  • Optimization by Mathematical Programming
  • Stochastic Search Methods
  • Life Cycle Analysis
  • Data-driven Process Modeling
  • Integrated Process Design Control

5
Table of contents (3)
  • Tier I
  • 1.2 Overview of PI tools
  • Real Time Optimization
  • Business Model Supply Chain Modeling
  • 1.3 Around-the world tour of PI practitioners
  • Institutions World Map
  • Institutions North South America
  • Institutions Europe
  • Institutions Asia, Africa Oceania
  • Companies
  • Quiz

6
Project Summary
  • Objectives
  • Create web-based modules to assist universities
    to address the introduction to Process
    Integration into engineering curricula
  • Make these modules widely available in each of
    the participating countries
  • Participating institutions
  • Two universities in each of the three countries
    (Canada, Mexico and the USA)
  • Two research institutes in different industry
    sectors petroleum (Mexico) and pulp and paper
    (Canada)
  • Each of the six universities has sponsored 7
    exchange students during the period of the grant
    subsidised in part by each of the three
    countries governments

7
PIECE
Process integration for Environmental Control in
Engineering Curricula
NAMP
Program for North American Mobility in Higher
Education
8
Module 8
This module was created by
Carlos Alberto Miranda Alvarez
Paul Stuart
Host Institution
From
Host director
Martin Picon-Nuñez
Jean-Martin Brault
9
Structure of Module 8
  • What is the structure of this module?
  • All modules are divided into 3 tiers, each with a
    specific goal
  • Tier I Background Information
  • Tier II Case Study Applications
  • Tier III Open-Ended Design Problem
  • These tiers are intended to be completed in that
    particular order. Students are quizzed at various
    points to measure their degree of understanding,
    before proceeding to the next level. Each tier
    contains a statement of intent at the beginning
    and a quiz at the end.

10
Purpose of Module 8
  • What is the purpose of this module?
  • It is the intent of this module to cover the
    basic aspects of Process Integration Methods and
    Tools, and to place Process Integration into a
    broad perspective. It is identified as a
    pre-requisite for other modules related to the
    learning of Process Integration.

11
Tier I Background Information
12
Tier I Statement of intent
  • The goal of this tier is to provide a general
    overview of Process Integration tools, with focus
    on their link with profitability analysis. At the
    end of Tier I, the student should be able to
  • Distinguish the key tools of Process Integration
  • Understand the scope of each Process Integration
    tool
  • Have an overview of each Process Integration tool

13
Tier I Contents
  • Tier I is broken down into three sections
  • 1.1 Introduction and definition of Process
    Integration (PI)
  • 1.2 Overview of PI tools
  • 1.3 Around-the-world tour of PI practitioners
    which focuses on their expertise
  • A short multiple-choice quiz will follow at the
    end of this tier.

14
Tier I Outline
  • 1.1 Introduction and definition of Process
    Integration
  • 1.2 Overview of Process Integration tools
  • 1.3 Around-the-world tour of PI practitioners
    which focuses on their expertise

1.1 Introduction and definition of Process
Integration 1.2 Overview of Process Integration
tools 1.3 Around-the-world tour of PI
practitioners which focuses on their expertise
15
1.1 Introduction and definition of Process
Integration
16
Introduction and Definition of Process Integration
  • The president of your company probably does not
    know what Process Integration can do for the
    company.........
  • .......... but he should. Lets look at why...

17
Introduction and Definition of Process Integration
A brief history of Process Integration
  • 1960s-1970s Linnhoff started the area of Pinch
    (bottleneck identification) at University of
    Manchester Institute of Science and Technology
    (UMIST), focusing on the area of Thermal Pinch.
    At about the same time, the UMIST Department of
    Process Integration was created, shortly after
    the consulting firm Linnhoff-March Inc. was
    formed
  • 1980s-1990s Concept expansion from energy to
    process design
  • 1990s-2000s Analogies used to derive Pinch
    concept from heat exchanger networks to mass
    transfer, water treatment and hydrogen systems
  • PI is not really easy to define

18
Introduction and Definition of Process Integration
Modern Process Integration context
  • Process Integration might be regarded as a set of
    early stage process techniques for both new and
    retrofit design
  • Business objectives drive the development of PI
  • Emphasis is on retrofit projects in the new
    economy driven by Return on Capital Employed
    (ROCE)
  • PI is finding value in data, especially as real
    time data systems have been implemented
  • Corporations wish to make more knowledgeable
    decisions
  • For operations
  • During the design process
  • A strong trend today is to move away from unit
    operations and focus on phenomena. We no longer
    look at integration between units only, but also
    at integration within units (Process Integration
    Primer, IEA)

19
Introduction and Definition of Process Integration
Definition of Process Integration
  • The International Energy Agency (IEA) definition
    of Process Integration (1993)
  • Systematic and general methods for designing
    integrated production systems, ranging from
    individual processes to total sites, with special
    emphasis on the efficient use of energy and
    reducing environmental effects

Process Integration is the common term used for
the application of methodologies developed for
system-oriented and integrated approaches to
industrial process plant design for both new and
retrofit applications. Such methodologies can
be mathematical, thermodynamic and economic
models, methods and techniques. Examples of these
methods include Artificial Intelligence,
Hierarchical Analysis, Pinch Analysis and
Mathematical Programming. Process Integration
refers to optimal design examples of aspects
are capital investment, energy efficiency,
emissions, operability, flexibility,
controllability, safety and yields. Process
Integration also refers to some aspects of
operation and maintenance
? Sustainable Development
20
Introduction and Definition of Process Integration
Definition of Process Integration
  • El-Halwagi, M. M., Pollution Prevention through
    Process Integration Systematic Design Tools.
    Academic Press, 1997.
  • A chemical process is an integrated system of
    interconnected units and streams, and it should
    be treated as such. Process Integration is a
    holistic approach to process design,
    retrofitting, and operation which emphasizes the
    unity of the process. In light of the strong
    interaction among process units, streams, and
    objectives, Process Integration offers a unique
    framework for fundamentally understanding the
    global insights of the process, methodically
    determining its attainable performance targets,
    and systematically making decisions leading to
    the realization of these targets. There are three
    key components in any comprehensive Process
    Integration methodology synthesis, analysis, and
    optimization.

21
Introduction and Definition of Process Integration
Definition of Process Integration
  • Nick Hallale, Aspentech CEP July 2001 Burning
    Bright Trends in Process Integration
  • Process Integration is more than just Pinch
    technology and Heat Exchanger Networks. Today, it
    has a far wider scope and touches every area of
    process design. Switched-on industries are making
    more money from their raw materials and capital
    assets while becoming cleaner and more
    sustainable

22
Introduction and Definition of Process Integration
Definition of Process Integration
  • North American Mobility Program in Higher
    Education (NAMP)-January 2003
  • Process Integration (PI) is the synthesis of
    process control, process engineering and process
    modeling and simulation into tools that can deal
    with the large quantities of operating data now
    available from process information systems. It is
    an emerging area, which offers the promise of
    improved control and management of operating
    efficiencies, energy use, environmental impacts,
    capital effectiveness, process design, and
    operations management.

23
Introduction and Definition of Process Integration
Definition of Process Integration
  • So What Happened?
  • In addition to thermodynamics (the foundation of
    Pinch), other techniques are being drawn upon for
    holistic analysis, in particular
  • Process modeling
  • Process statistics
  • Process optimization
  • Process economics
  • Process control
  • Process design

24
Introduction and Definition of Process Integration
  • Here are some of the design activities that these
    techniques and methods address today
  • Process modeling and simulation, and validation
    of the results in order to have accurate and
    reliable process information for both new and
    retrofit design
  • Minimize total annual cost by optimal trade-off
    between energy, equipment and raw material.
    Within this trade-off minimize energy, improve
    raw material usage and minimize capital cost
  • Increase production volume by debottlenecking
  • Reduce operating problems by correct (rather than
    maximum) use of Process Integration
  • Increase plant controllability and flexibility
  • Minimize undesirable emissions and promote
    pollution prevention
  • Add to the joint efforts in the process
    industries and society for a sustainable
    development

25
Introduction and Definition of Process Integration
Possible objectives
  • Lower capital cost, for the same design objective
  • Incremental production increase, from the same
    asset base
  • Marginally-reduced unit production costs by
    process optimization
  • Better energy/environmental performance, without
    compromising competitive position

26
Introduction and Definition of Process Integration
Summary of Process Integration elements
  • Improving overall plant facilities energy
    efficiency and productivity requires a
    multi-pronged analysis involving a variety of
    technical skills and expertise, including
  • Knowledge of both conventional industry practice
    and state-of-the-art technologies commercially
    available
  • Familiarity with industry issues and trends
  • Methodology for determining correct marginal
    costs
  • Procedures and tools for energy, water, and raw
    material conservation audits
  • Process information systems

Real-Time Process Data
Process knowledge (models)
PI systems Tools
27
Introduction and Definition of Process Integration
Conclusion
  • Process Integration has evolved from heat
    recovery methodology in the 80s to become what a
    number of leading industrial companies and
    research groups in the 20th century regard as the
    holistic analysis of processes, involving the
    following elements
  • Process data
  • Systems and tools
  • Process engineering principles and in-depth
    process sector knowledge
  • Targeting

28
Tier I Outline
  • 1.1 Introduction and definition of Process
    Integration
  • 1.2 Overview of Process Integration tools
  • 1.3 Around-the-world tour of PI practitioners
    which focuses on their expertise

1.1 Introduction and definition of Process
Integration 1.2 Overview of Process Integration
tools 1.3 Around-the-world tour of PI
practitioners which focuses on their expertise
29
1.2 Overview of Process Integration Tools
30
Overview of Process Integration Tools
Business Model and Supply Chain Management
Real Time Optimization
Pinch Analysis
Optimization by Mathematical Programming
Data Treatment and Reconciliation
Stochastic Search Methods
  • Process Simulation
  • Steady-state
  • Dynamic

Life Cycle Analysis
Data-Driven Process Modeling
Integrated Process Design and Control
Process Data
31
Overview of Process Integration Tools
  • Business Model
  • Supply Chain Management

Real Time Optimization
Pinch Analysis
Data Treatment and Reconciliation
Optimization by Mathematical Programming
Stochastic Search Methods
  • Process Simulation
  • Steady state
  • Dynamic

Life Cycle Analysis
Data-Driven Process Modeling
Integrated Process Design and Control
Process Data
NEXT
32
Process Simulation
33
Process simulation
  • Simulation what if experimentation with a
    model
  • Simulation involves performing a series of
    experiments with a process model

A model does not include everything ngtm and
kgtt All models are wrong, some models are
useful George Box, PhD, University of Wisconsin
Figure 1
In the process industry, we find two levels of
models plant models, and models of unit
operations such as reactors, columns, pumps, heat
exchangers, tanks, etc.
There are two types of simulation steady-state
and dynamic
34
Process simulation Process modeling
Process Modeling is an understanding of the
phenomena of a given process and the
transformation of this understanding into a model.
What is a model used for?
  • A model is an abstraction of a process operation
    used to build, change, improve, control, and
    answer questions about that process
  • A model can be used for different basic problem
    formulations simulation, identification,
    estimation and design
  • A model can be used to solve problems in the
    areas of the process design, control and
    optimization, risk analysis, operator training,
    risk assessment, and software engineering for
    computer aided engineering environments

35
Process simulation Steady-state Dynamic
  • Why is steady-state simulation important?
  • Better understanding of the process
  • Consistent set of typical plant/facility data
  • Objective comparative evaluation of options for
    Return On Investment (ROI) etc.
  • Identification of bottlenecks, instabilities,
    etc.
  • Performs many experiments cheaply once the model
    is built
  • Avoids implementing ineffective solutions

Why is dynamic simulation important?
Figure 3
Figure 2
Next Tool
36
Data Treatment and Reconciliation
37
Data Treatment Reconciliation
  • Objectives of Data Treatment
  • Provide reliable information and knowledge of
    complete data for validation of process
    simulation and analysis
  • Perform instrument maintenance
  • Detect operating problems
  • Estimate unmeasured values
  • Reduce random and gross errors in measurements
  • Detect steady states
  • Objectives of Data Reconciliation
  • Optimally adjust measured values within given
    process constraints
  • Improve consistency of data to calibrate and
    validate process simulation
  • Estimate unmeasured process values
  • Detect gross errors to further investigate
    operation/instrument problems

38
Data Treatment Reconciliation



  • Data Reconciliation
  • Data Reconciliation is the validation of process
    data using knowledge of plant structure and of
    the plant measurement system






Figure 4
39
Data Treatment Reconciliation - Benefits
Next Tool
40
Pinch Analysis
41
Pinch Analysis
What is Pinch Analysis?
  • In the process industries, the prime objective
    of Pinch Analysis is to optimize the ways in
    which process utilities (particularly energy,
    mass, water, and hydrogen) are applied for a wide
    variety of purposes
  • Pinch Analysis does this by creating an
    inventory of all producers and consumers of these
    utilities and then systematically designing an
    optimal scheme of utility exchange between these
    producers and consumers. Energy, mass, and water
    re-use are at the heart of Pinch Analysis
    activities
  • With the application of Pinch Analysis, savings
    can be achieved in both capital investment and
    operating cost. Emissions can be minimized and
    throughput maximized

42
Pinch Analysis
Features
  • The basis of Pinch Analysis
  • The use of thermodynamic principles (first and
    second law)
  • The use of design and economy heuristics
  • Pinch Analysis is a technique to design
  • Heat Exchanger Networks (HEN) Mass Exchange
    Networks (MEN)
  • Utility Networks
  • Pinch Analysis makes extensive use of various
    graphical representations
  • In Pinch Analysis, the engineer controls the
    design procedure (interactive method)
  • Pinch Analysis integrates economic parameters

43
Pinch Analysis
  • In addition, Pinch Analysis allows you to
  • Update or develop process flow diagrams
  • Identify process bottlenecks
  • Run both departmental and full plant facilities
    simulations
  • Determine minimal heating (steam) and cooling
    requirements
  • Identify cogeneration opportunities
  • Estimate costs of projects to achieve energy
    savings
  • Evaluate new equipment configurations for the
    most economical installation
  • Substitute past energy studies with a live study
    that can be easily updated using simulation
  • Possible Benefits
  • One of the main advantages of Pinch Analysis over
    conventional design methods is the ability to set
    a target energy consumption for an individual
    process or for an entire production site before
    designing the processes
  • Pinch Analysis quickly identifies where energy,
    water, hydrogen and other material savings are
    likely to be found
  • Reduction of emissions
  • Pinch Analysis enables the engineer to find the
    best way to change a process, if the process
    allows it

Next Tool
44
Optimization by Mathematical Programming
45
Optimization of Mathematical Programming
Mathematical Model
  • A Mathematical Model of a system is a set of
    mathematical relationships (e.g., equalities,
    inequalities, logical conditions) which
    represents an abstraction of the real world
    system under consideration
  • A Mathematical Model can be developed using
  • Fundamental approaches
  • Empirical methods
  • Methods based on analogy
  • A Mathematical Model of a system consists of four
    key elements
  • Variables
  • Parameters
  • Constraints
  • Mathematical relations

46
Optimization of Mathematical Programming
  • What is Optimization?
  • An optimization problem is a mathematical model
    which in addition to the key elements stated in
    the previous slide contains one or more
    performance criteria
  • The performance criteria are represented by an
    objective function. This function can be the
    minimization of costs, the maximization of profit
    or yield of a process, for example
  • If we have multiple performance criteria, the
    problem is then classified as a multi-objective
    optimization problem
  • There are different classes of optimization
    problems linear and non-linear programming, LP
    and NLP, mixed-integer linear programming (MILP)
    and mixed-integer non-linear programming (MINLP)
  • Whenever possible, linear programs (LP or MILP)
    are used because they guarantee global solutions.
    MINLP problems also feature many applications in
    engineering.

47
Optimization of Mathematical Programming
  • Applications
  • Process Synthesis
  • Heat Exchanger Networks (HEN)
  • Mass Exchanger Networks (MEN)
  • Distillation sequencing
  • Reactor-based systems
  • Utility systems
  • Total process systems
  • Design, scheduling, and planning of process
  • Design and retrofit of multiproduct plants
  • Design and scheduling of multiproduct plants
  • Interaction of design and control
  • Molecular product design
  • Facility location and allocation
  • Facility planning and scheduling
  • Topology of transport networks

Next Tool
48
Stochastic Search Methods
49
Stochastic Search Methods
  • Why Stochastic Search Methods?
  • All of the model formulations that you have
    encountered thus far in the Optimization section
    have assumed that the data for the given problem
    are known accurately. However, for many actual
    problems, the problem data cannot be known
    accurately for a variety of reasons. The first
    reason is due to simple measurement error. The
    second and more fundamental reason is that some
    data represent information about the future
    (e.g., product demand or price for a future time
    period) and simply cannot be known with
    certainty.

50
Stochastic Search Methods
  • There are different types of stochastic
    algorithms
  • Simulated Annealing (SA)
  • Genetic Algorithms (GAs)
  • Tabu Search
  • These algorithms are suitable for problems that
    deal with uncertainty. These computer algorithms
    or procedure models do not guarantee global
    optima but are successful and widely known to
    come very close to the global optimal solution.
  • SA takes one solution and efficiently moves it
    around in the search space, avoiding local optima
  • GAs have the capability of collectively searching
    for multiple optimal solutions for the same
    optimal cost
  • Tabu Search is an iterative procedure that
    explores the search space of all feasible
    solutions by a sequence of moves

Next Tool
51
Life Cycle Analysis (LCA)
52
Life Cycle Analysis
What is Life Cycle Analysis?
  • Technique for assessing the environmental aspects
    and potential impacts associated with a product
    by
  • Establishing an inventory of relevant inputs and
    outputs of a system
  • Evaluating the potential environmental impacts
    associated with those inputs and outputs
  • Interpreting the results of the inventory and
    impact phases in relation with the objectives of
    the study
  • Evaluation of some aspects of a product system
    through all stages of its life cycle

53
Life Cycle Analysis
Figure 5
54
Life Cycle Analysis
Possible Benefits
  • Improves overall environmental performance and
    compliance
  • Provides a framework for using pollution
    prevention practices to meet LCA objectives
  • Increases efficiency and potential cost savings
    when managing environmental obligations
  • Promotes predictability and consistency in
    managing environmental obligations
  • Measures scarce environmental resources more
    effectively

Next Tool
55
Data-Driven Process Modeling
56
Data-Driven Process Modeling
  • Process Integration challenge
  • Make sense of masses of data
  • Necessity to work on bigger samples if full
    advantage is to be taken of all accessible
    information

Drowning in data!
Data-Rich but Knowledge-Poor
  • Interesting, useful patterns and relationships
    not intuitively obvious lie hidden inside
    enormous, unwieldy databases. Also, many
    variables are correlated
  • Data mining techniques Neural Networks, Multiple
    Regression, Decision Trees, Genetic Algorithms,
    Clustering, MVA, etc.

57
Data-Driven Process Modeling
Theoretical vs. Empirical Model
  • Theoretical model ? uses First Principles to
    mimic the inner workings of a process
  • Empirical model ? uses the plant process data
    directly to establish mathematical correlations
  • Unlike the theoretical models, empirical models
    do NOT take the process fundamentals into
    account. They only use pure mathematical and
    statistical techniques. Multivariate Analysis
    (MVA) is one such method, because it reveals
    patterns and correlations between variables
    independently of any pre-conceived notions

58
Data-Driven Process Modeling
What is MVA?
  • Multivariate Analysis (gt 5 variables)
  • MVA uses ALL available data to capture
    information as much as possible
  • Principle boil down hundreds of variables down
    to a mere handful

Benefits
  • Explore inter-relationships
  •  What-if  exercises
  • Software sensors
  • Feed-forward control

Next Tool
59
Integrated Process Design Control
60
Integrated Process Control Control
Context
  • Safety issues, energy costs, environmental
    concerns have increased complexity and
    sensitivity of processes
  • Plants become highly integrated in terms of mass
    and energy and therefore, process dynamics are
    often difficult to control
  • Objectives
  • Product specifications variability should be kept
    at a minimum ? process variability (to control
    product quality)
  • Control is essential to operate a process in the
    best conditions

61
Integrated Process Control Control
Controllability
Controllability is the property of a process that
accounts for the ease with which a continuous
plant can be held at a specified operating regime
despite bounded external disturbances and
uncertainties and regardless of the control
system imposed on such a process
62
Integrated Process Control Control
Why is Controllability important?
  • Smoother operation of process closer to
    operating limits

Flexibility
  • Stability and better performance of control loops
    and structures
  • System relatively insensitive to perturbations
  • Efficient management of interacting networks

Improvement of current dynamics
Next Tool
63
Real-Time Optimization (RTO)
64
Real Time Optimization
Context
  • The process industries are increasingly compelled
    to operate profitably in a very dynamic and
    global market. The increasing competition in the
    international area and stringent product
    requirements mean decreasing profit margins
    unless plant operations are optimized dynamically
    to adapt to the changing market conditions and to
    reduce the operating cost.

Importance of real-time or on-line optimization!
65
Real Time Optimization
What is Real-Time Optimization (RTO)?
  • Real-Time Optimization is a model-based
    steady-state technology that determines the
    economically optimal operating regime for a
    process in the near term
  • The system optimizes a process simulation, not
    the process directly
  • Performance measured in terms of economic benefit
  • Is an active field of research ? model accuracy,
    error transmission, performance evaluation

66
Real Time Optimization
Business objectives Economic data Product
specification
RTO - Schematically
Reconciliation gross error detection
Updating process model (Steady-state?dynamic simul
ation)
Optimization (objective functions)
Steady-state detection
Cost, process, Environmental product Data
Plant facility
Next Tool
Figure 6
67
Business Model and Supply Chain Modeling (BM-SCM)
68
Business Model and Supply Chain Modeling (BM-SCM)
Cost, Process, Environmental Product Outcomes
Process Design Analysis And Synthesis
Process Operation Analysis and Optimization
Integrated Business Process Model
Cost, Process, Environmental Product Data
Back to PI Tools
69
BM-SCM Cost, Process, Environmental Product
Data
Integrated Business Process Model
Cost, Process, Environmental and Product Data
Once the model is built, it can be used to
validate and reconcile data
Plant Facilities
70
BM-SCM Integrated Business Process Model
Data Driven Models
1st Principles Models
Process Simulation Models
71
BM-SCM Supply Chain Environmental Supply Chain
  • Supply Chain (SC) is a network of organizations
    that are involved, through upstream and
    downstream linkages, in the different processes
    and activities that produce value in the form of
    products and services in the hands of the
    ultimate customer

Environmental Supply Chain (ESC) holds all the
elements a traditional Supply Chain has, but is
extended to a semi-closed loop in order to also
account for the environmental impact of the
Supply Chain and for recycling, re-use and
collection of used material (Beamon 1999)
72
BM-SCM Supply Chain Environmental Supply Chain
  • Objectives of the SC and ESC models
  • To integrate inter-organizational units along a
    SC and coordinate materials, information and
    financial flows in order to fulfill customer
    demands and to improve SC profitability and
    responsiveness
  • To gain insight on the total environmental impact
    of the production process (from supplier to
    customer and back to the facility by recycling)
    and all the products that are manufactured
    (closely linked to LCA)

Back to PI Tools
BM-SCM
73
Tier I Outline
  • 1.1 Introduction and definition of Process
    Integration
  • 1.2 Overview of Process Integration tools
  • 1.3 Around-the-world tour of PI practitioners
    which focuses on their expertise

1.1 Introduction and definition of Process
Integration 1.2 Overview of Process Integration
tools 1.3 Around-the-world tour of PI
practitioners which focuses on their expertise
74
1.3 Around-the-world tour of PI practitioners
which focuses on their expertise
75
Around-the-world tour of PI Practitioners
  • Courtesy mainly of the World Wide Web ? to
    capture the flavour of the evolution of Process
    Integration
  • PI is relatively new
  • Researchers build on their strengths
  • Many of the ground-breaking techniques are coming
    from universities
  • When techniques become practical, the private
    sector generally capitalizes and techniques
    advance more rapidly

Institutions
Companies
END
76
Around-the-world tour of PI Practitioners
Institutions
Click on a continent to view institutions from
that continent
77
Around-the-world tour of PI Practitioners
Institutions-North and South America
Canada (2)
Mexico (1)
USA (8)
Brazil (1)
To view institutions from a particular country,
click on the flag of the country of choice
Back to World Map
78
Around-the-world tour of PI Practitioners
Institutions-Europe
Belgium (1)
Greece (1)
Spain (1)
Sweden (1)
Denmark (1)
Hungary (1)
Finland (3)
Norway (1)
Switzerland (1)
France (1)
UK (5)
Portugal (2)
Germany (2)
Slovenia (1)
To view institutions from a particular country,
click on the flag of the country of choice
Back to World Map
79
Around-the-world tour of PI Practitioners
Institutions-Africa, Middle-East, Asia and Oceania
South Africa (1)
Israel (1)
India (1)
Australia (3)
To view institutions from a particular country,
click on the flag of the country of choice
Back to World Map
80
Around-the-world tour of PI Practitioners
Canada
École Polytechnique de Montréal, Department of
Chemical Engineering, Montréal
Major Contact Professor Paul Stuart
Web http//www.pulp-paper.ca
Research areas the application of Process
Integration in the pulp and paper industry, with
emphasis on pollution prevention techniques and
profitability analysis, the efficient use of
energy and raw materials (including water),
process control, and plant sustainability
Consortium "Process Integration in the Pulp and
Paper Industry Research Consortium" with 13
members (2003) including operating companies,
engineering contracting companies, consulting
companies and software vendors in pulp and paper
industry
  • Current research in Process Integration
  • Process Simulation
  • Data Reconciliation
  • Process Control
  • Networks Analysis (HEN and MEN)
  • Environmental technologies (e.g. LCA)
  • Business model
  • Date-Driven Modeling

NEXT
Back to Americas Institutions
81
Around-the-world tour of PI Practitioners
Canada
University of Ottawa, Department of Chemical
Engineering, Ottawa
Major Contact Professor Jules Thibault
Web http//www.genie.uottawa.ca/chg/eng/
Brazil
Universidade Federal do Rio de Janeiro, Rio de
Janeiro
Major Contact Professor Eduardo Mach Queiroz
Web http//www.poli.ufrj.br/
Back to Americas Institutions
82
Around-the-world tour of PI Practitioners
Mexico
Universidad de Guanajuato, Department of Chemical
Engineering, Guanajuato
Major Contact Dr Martín-Picón-Núñez
Web http//www.ugto.mx
Research areas hosts the only course Masters
Program in Process Integration in North America.
Analysis of processes, Power Systems, and
development of environmentally benign technology
  • Current research in Process Integration
  • Synthesis of processes modeling, simulation,
    control and optimization of processes new
    processes and materials
  • Heat recovery systems renewable sources of
    energy thermodynamic optimization
  • Contaminated atmosphere rehabilitation
    treatment of effluents environmental processes

Back to Americas Institutions
83
Around-the-world tour of PI Practitioners
USA
Carnegie Mellon University, Department of
Chemical Engineering, Pittsburgh
Major Contact Professor Ignacio E. Grossmann
Web http//capd.cheme.cmu.edu/
Research areas recognized as one of the major
research groups in the area of Computer Aided
Process Design. In Process Integration, the group
is recognized for its work in Mathematical
Programming, Optimization, reactor systems,
separation systems (especially distillation),
Heat Exchanger Networks, operability and the
synthesis of operating procedures
Consortium CAPD (Centre for Advanced Process
Decision-making, founded 1986, 20 members (2001))
including operating companies, engineering
contracting companies, consulting companies and
software vendors
  • Current research in Process Integration
  • Insights to aid and automate synthesis
    (invention)
  • Structural optimization of process flowsheets
  • Synthesis of reactor systems and separation
    systems
  • Synthesis of Heat Exchanger Networks
  • Global optimization techniques relevant to
    Process Integration
  • Integrated Design and Scheduling of batch plants
  • Supply chain dynamics and optimization

NEXT
Back to Americas Institutions
84
Around-the-world tour of PI Practitioners
USA
Texas AM University, Department of Chemical
Engineering, College Station
Major Contact Professor Mahmoud M. El-Halwagi
Web http//process-integration.tamu.edu/ and
http//www-che.tamu.edu/cpipe/
Research areas Recognized as a leading research
group in the areas of Mass Integration and
Pollution Prevention through Process Integration
  • Current research in Process Integration
  • Global allocation of mass and energy
  • Synthesis of waste allocation and species
    interception networks
  • Physical and reactive Mass Pinch Analysis
  • Synthesis of Heat-Induced Networks
  • Design of membrane-hybrid systems
  • Design of environmentally acceptable reactions
  • Integration of reaction and separation systems
  • Flexibility and scheduling systems
  • Simultaneous design and control
  • Global optimization via interval analysis

NEXT
Back to Americas Institutions
85
Around-the-world tour of PI Practitioners
USA
Auburn University, Auburn
Major Contact Professor Christopher Roberts
Web http//www.eng.auburn.edu/department/che/
Massachusetts Institute of Technology (MIT),
Department of Chemical Engineering, Cambridge
Major Contact Professor George Stephanopoulos
Web http//web.mit.edu/cheme/index.html
NEXT
Back to Americas Institutions
86
Around-the-world tour of PI Practitioners
USA
Princeton University, Princeton
Major Contact Professor Christodoulos A. Floudas
Web http//chemeng.princeton.edu/html/home.shtml
Purdue University, West Lafayette
Major Contact Professor G.V. Rex Reklaitis
Web https//engineering.purdue.edu/ChE/index.html
and https//engineering.purdue.edu/ECN/
NEXT
Back to Americas Institutions
87
Around-the-world tour of PI Practitioners
USA
University of Massachusetts, Amherst
Major Contact Professor J. M. Douglas
Web http//www.ecs.umass.edu/che/
University of Pennsylvania, Philadelphia
Major Contact Professor Warren D. Seider
Web http//www.seas.upenn.edu/cbe/chehome.html
Back to Americas Institutions
88
Around-the-world tour of PI Practitioners
Belgium
Université de Liège, Laboratory for Analysis and
Synthesis of Chemical Systems (LASSC), Liège
Major Contact Professor Boris Kalitventzeff
Web http//www.ulg.ac.be/lassc/
Denmark
Technical University of Denmark, Lyngby
Major Contact Professor Bjørn Qvale
Web http//www.et.dtu.dk/
Back to Europe Institutions
89
Around-the-world tour of PI Practitioners
Finland
Åbo Akademi University, Process Design
Laboratory, Åbo
Major Contact Professor Tapio Westerlund
Web http//www.abo.fi/fak/ktf/at/
Lappeenranta University of Technology,
Lappeenranta
Major Contact Professor Lars Nyström
Web http//www2.lut.fi/kete/laboratories/Process_
Engineering/mainpage.htm
Helsinki University of Technology, Laboratory of
Energy Engineering and Environmental Protection,
Helsinki
Major Contact Professor Carl-Johan Fogelholm
Web http//eny.hut.fi/
Back to Europe Institutions
90
Around-the-world tour of PI Practitioners
France
INPT-ENSIGC, Chemical Engineering Laboratory,
Toulouse
Major Contact Professor Xavier Joulia
Web http//www.ensiacet.fr/ENSIA7_FR/FORMATION/IN
GENIEUR/GPI/gpi.shtml
Greece
Chemical Process Engineering Research Institute,
Hellas
Major Contact Professor I. Vasalos
Web http//www.cperi.forth.gr
Back to Europe Institutions
91
Around-the-world tour of PI Practitioners
Germany
Universität Dortmund, Dortmund
Major Contact Professor A. Behr
Web http//www.bci.uni-dortmund.de/tca/web/en/ind
ex.html
Technische Universität Hamburg, Harburg
Major Contact Professor Günter Gruhn
Web http//www.tu-harburg.de/vt3/
Back to Europe Institutions
92
Around-the-world tour of PI Practitioners
Hungary
Budapest University of Technology and Economics,
Budapest
Major Contact Professor Zsolt Fonyo
Web http//www.bme.hu/en/organization/faculties/c
hemical/
Norway
Norwegian University of Science and Technology,
Process Systems Engineering in Trondheim (PROST),
Trondheim
Major Contact Professor Sigurd Skogestad
Web http//kikp.chembio.ntnu.no/research/PROST/
Back to Europe Institutions
93
Around-the-world tour of PI Practitioners
Portugal
Universidade do Porto, Porto
Major Contact Professor Manuel A.N. Coelho
Web http//www.fe.up.pt/
Instituto Superior Técnico, Lisboa
Major Contact Professor Clemente Pedro Nunes
Web http//dequim.ist.utl.pt/english/
Back to Europe Institutions
94
Around-the-world tour of PI Practitioners
Slovenia
University of Maribor, Maribor
Major Contact Professor Peter Glavic
Web http//www.uni-mb.si/
Switzerland
Swiss Federal Institute of Technology, Lausanne
Major Contact Professor Daniel Favrat
Web http//leniwww.epfl.ch/
Back to Europe Institutions
95
Around-the-world tour of PI Practitioners
Spain
Universitat Politècnica de Catalunya, Chemical
Engineering Department, Barcelona
Major Contact Professor Luis Puigjaner
Web http//tqg.upc.es/
Research areas pioneering work in Computer Aided
Process Operations. In Process Integration, the
group is recognized for its contributions in
time-dependent processes, such as Combined Heat
and Power, Combined Energy-Waste and Waste
Minimization, Integrated Process Monitoring,
Diagnosis and Control and Process Uncertainty
Consortium "Manufacturing Reference Centre" with
12 members (1966) including Conselleria
d'Indústria and associated operating companies,
engineering and contracting companies,
consultants and software vendors. Also the TQG
(General Chemical Technology) research group has
grown steadily with research related to kinetics,
process design and operation
  • Current research in Process Integration
  • Evolutionary modeling and optimization
  • Multi-objective optimization in time-dependent
    systems
  • Combined energy and water use minimization
  • Integration of thermally coupled distillation
    columns
  • Hot-gas recovery and cleaning systems

Back to Europe Institutions
96
Around-the-world tour of PI Practitioners
Sweden
Chalmers University of Technology, Department of
Heat and Power, Göteborg
Major Contact Thore Berntsson
Web http//www.hpt.chalmers.se/
Research areas methodology development and
applied research based on Pinch Technology.
Emphasis on new retrofit methods including
realistic treatment of geographical distances,
pressure drops, varying fixed costs, etc.
Important new concepts include the Cost Matrix
for Retrofit Screening and new Grand Composite
thermodynamic diagrams for heat and power
applications (including gas turbines and heat
pumps). Research in pulp and paper with focus on
energy and environment
Industry Close cooperation with some of the
major pulp and paper industry groups, including
training courses and consulting
  • Current research in Process Integration
  • Retrofit design of Heat Exchanger Networks
  • Process Integration of heat pumps in grassroots
    and retrofits
  • Gas turbine based CHP plants in retrofit
    situations
  • Applied research in pulp and paper industry,
    such as black liquor gasification and closing the
    bleaching plant
  • Environmental aspects of Process Integration,
    especially greenhouse gas emissions

Back to Europe Institutions
97
Around-the-world tour of PI Practitioners
UK
Imperial College, Centre for Process Systems
Engineering, London
Major Contact Professor Efstratios N.
Pistikopoulos
Web http//www.ps.ic.ac.uk/ and
http//www.psenterprise.com
Research areas recognized as the largest
research group in the area of Process Systems
Engineering (PSE), which includes
Synthesis/Design, Operations, Control and
Modeling. The group is recognized as a world-wide
centre of excellence in Process Modeling,
Numerical Techniques/Optimization and Integrated
Process Design (includes simultaneous
consideration of Process Integration and
Control). The Centre is also an important
contributor in the area of integration and
operation of batch processes
Consortium Process Systems Engineering (PSE)
with 17 members (2003) including operating,
engineering contracting companies, software
vendors
  • Current research in Process Integration
  • Integrated batch processing
  • Design and management of integrated Supply Chain
    processes
  • Uncertainty and operability in process design
  • Formulation of mathematical programming models
    to address problems in process synthesis and
    integration

NEXT
Back to Europe Institutions
98
Around-the-world tour of PI Practitioners
UK
UMIST, Department of Process Integration,
Manchester
Major Contact Professor Robin Smith
Web http//www.cpi.umist.ac.uk/
Research areas recognized as the pioneering and
major research group in the area of Pinch
Analysis. Previous research includes targets and
design methods for Heat Exchanger Networks
(grassroots and retrofits), Heat and Power
systems, Heat driven Separation Systems,
Flexibility, Total Sites, Pressure Drop
considerations, Batch Process Integration, Water
and Waste Minimization and Distributed Effluent
Treatment
Industry Research Consortium in Process
Integration created in 1984 and now formed by 26
major companies representing different aspects of
the process and utility industries
  • Current research in Process Integration
  • Efficient use of raw materials (including water)
  • Energy efficiency
  • Emissions reduction
  • Efficient use of capital

Back to Europe Institutions
NEXT
99
Around-the-world tour of PI Practitioners
UK
University of Edinburgh, Edinburgh
Major Contact Professor Jack W. Ponton
Web http//www.chemeng.ed.ac.uk/
University College, London
Major Contact Dr. David Bogle
Web http//www.chemeng.ucl.ac.uk/
University of Ulster, Coleraine
Major Contact Professor J.T. McMullan
Web http//www.engineering.ulster.ac.uk/
Back to Europe Institutions
100
Around-the-world tour of PI Practitioners
Israel
Technion, Israel Institute of Technology, Haifa
Major Contact Professor Daniel R. Lewin
Web http//www.technion.ac.il/technion/chem-eng/i
ndex_explorer.htm
India
Indian Institute of Technology, Bombay
Major Contact Dr. Uday V. Shenoy
Web http//www.che.iitb.ac.in/
Back to Asia Institutions
101
Around-the-world tour of PI Practitioners
South Africa
University of the Witwatersrand, Process
Materials Engineering, Johannesburg
Major Contact Professor David Glasser
Web http//www.procmat.wits.ac.za/
Research areas recognized as the major research
group in the development of the Attainable Region
(AR) method for Reactor and Process Synthesis.
The Attainable Region concept has been expanded
to systems where mass transfer, heat transfer and
separation take place. In its generalized form
(reaction, mixing, separation, heat transfer and
mass transfer), the Attainable Region concept
provides a Synthesis tool that will provide
targets for "optimal" designs against which more
practical solutions can be judged
Has founded its own consultancy enterprise called
Wits Enterprise http//www.enterprise.wits.ac.za/
  • Current research in Process Integration
  • Systems involving reaction, mixing and
    separation (e.g. reactive distillation)
  • Non-isothermal chemical reactor systems
  • Optimization of dynamic systems

Back to Africa Institutions
102
Around-the-world tour of PI Practitioners
Australia
University of Adelaide, Adelaide
Major Contact Dr. B.K. O'Neill
Web http//www.chemeng.adelaide.edu.au/
Murdoch University, Rockingham
Major Contact Professor Peter Lee
Web http//wwweng.murdoch.edu.au/engindex.html
University of Queensland, Brisbane
Major Contact Professor Ian Cameron
Web http//www.cheque.uq.edu.au/
Back to Oceania Institutions
103
Around-the-world tour of PI Practitioners
Companies
Linnhoff March Limited, Northwich, Cheshire, UK
Web http//www.linnhoffmarch.com/ and
http//www.kbcat.com/
Linnhoff March is the pioneering company of Pinch
Technology and is now a division of KBC Process
Technology Limited since 2002. KBC Advanced
Technologies is the leading independent process
engineering consultancy, improving operational
efficiency and profitability in the hydrocarbon
processing industry worldwide
  • List of Services in the area of Process
    Integration
  • Project execution and consulting
  • Software development and support
  • Training assistance
  • Typical Projects 1200 assignments over 18 years
  • PI Technologies
  • Pinch Technology (analysis and HEN Design,Total
    Site Analysis)
  • Water Pinch for wastewater minimization
  • Combined thermal and hydraulic analysis of
    distillation columns PI software extensively
    proven state-of-the-art software including
    SuperTarget, PinchExpress, WaterTarget and Steam97

NEXT
Back to Companies
104
Around-the-world tour of PI Practitioners
Companies
Process Systems Enterprise Limited, London, UK
Web http//www.psenterprise.com
Process Systems Enterprise Limited (PSE) is a
provider of advanced model-based technology and
services to the process industries. These
technologies address pressing needs in
fast-growing engineering and automation market
segments of the chemicals, petrochemicals, oil
gas, pulp paper, power, fine chemicals, food,
pharmaceuticals and biotech industries.
  • List of Services in the area of Process
    Integration
  • Dynamic process modeling
  • Dynamic optimization
  • Enterprise modeling
  • Extensive training for all its products
  • PI Technologies
  • gPROMS, for general PROcess Modeling System ?
    Steady-state and dynamic process simulation,
    optimization (MINLP) and parameter estimation
    software, packaged for different users
  • Model Enterprise ? supply chain modeling and
    execution environment
  • Model Care ? business model

NEXT
Back to Companies
105
Around-the-world tour of PI Practitioners
Companies
Industrial and Power Association-National
Engineering Laboratory (NEL), UK
Web http//www.ipa-scotland.org.uk/home.asp
QuantiSci Limited, UK
Web http//www.quantisci.co.uk/
NEXT
Back to Companies
106
Around-the-world tour of PI Practitioners
Companies
American Process Inc., Atlanta, USA
Web http//www.americanprocess.com
Founded in 1994, American Process Inc is the
premier consulting engineering specialist firm
dedicated to energy cost minimization in pulp and
paper and other industries. Our success is
largely due to offering custom tailored solutions
for our customers, understanding that each mill
is a unique operation, thereby optimizing the
potential for savings
  • List of Services in the area of Process
    Integration
  • Energy Targeting Using Pinch Analysis
  • Simulation modeling
  • Linear optimization
  • Over 150 studies completed
  • PI Technologies
  • PARIS (Production Analysis for Rate and
    Inventories Strategies) ? Decision-Making tool
    for optimizing pulp and paper mill operations)
  • O-Pinch (Operational Pinch)
  • SPARTA ? real-time steam and power cost
    optimizer
  • Water Close ? water pinch

NEXT
Back to Companies
107
Around-the-world tour of PI Practitioners
Companies
Advanced Process Combinatorics (APC), USA
Web http//www.combination.com
Aspen Technology Inc. (AspenTech), USA
Web http//www.aspentech.com and
http//www.hyprotech.com
Back to Companies
108
End of Tier I
  • This is the end of Tier I. At this point, we
    assume that you have done all the reading. Some
    of this information might still seem confusing
    but remember that we are still trying to set all
    the pieces in the Process Integration puzzle.
  • Prior to advancing to Tier II, a short multiple
    choice quiz will follow.

109
QUIZ
110
Tier I - Quiz
Question 1
Where was the concept of Process Integration
first developed?
Atlanta, USA
Guanajuato, Mexico
Manchester, UK
Montreal, Canada
111
Tier I - Quiz
Question 2
Using PI techniques and methods allows you to
observe different variations in a process, a
plant or a company. Use each one of the following
and indicate if they would be reduced or
increased in a Process Integration context.
1. Costs 2. Pollution 3. Throughput 4.
Energy Use 5. Yield 6. Profit 7. Data
Use 8. Production Volume 9. Water Use 10.
Operating Problems
? 1,4,6,7 and 9 ? 2,3,5,8 and 10
? 2,3,6,8 and 10 ? 1,4,5,7 and 9
? 1,2,4,9 and 10 ? 3,5,6,7 and 8
? 3,4,5,7 and 8 ? 1,2,6,9 and 10
112
Tier I - Quiz
Question 3
  • Which of the following statements are false?
  • Steady-state simulations enable the process
    engineer to study strategies for start-up and
    shut down
  • In the process industry, we find two levels of
    models models of unit operations and plant
    models
  • A model can represent exactly what goes on in a
    process
  • Generally, dynamic simulations are used to
    estimate the sizes and costs of process units

1 and 2
2 and 3
1 and 3
3 and 4
2 and 4
1,3 and 4
1,2 and 3
All of the above
113
Tier I - Quiz
Question 4
  • What are plant measurements usually corrupted by?
  • Random power supply fluctuations
  • Ambient conditions
  • Sensor miscalibration
  • Computer calculation capacity and speed
  • Hostile process environment
  • Sampling frequency

1,2 and 3
1,3 and 6
1,2 and 5
2,3,5 and 6
2 and 4
1,2,3 and 4
1,2,3 and 5
All of the above
114
Tier I - Quiz
Question 5
  • What was Pinch Analysis originally conceived for?
  • Oil refinery emissions reduction
  • Capital investment and operating costs savings
  • Heat Exchanger Network design
  • Better use of hydrogen in refineries
  • Utility Network design

2 and 3
3 and 4
1
3
2
1,2,3 and 4
1,2,3 and 5
All of the above
115
Tier I - Quiz
Question 6
  • What does an objective function represent in an
    optimization problem?
  • Interactions among variables
  • Performance criteria
  • Parameters
  • Mass and energy balances
  • Equalities or inequalities

2 and 3
3 and 4
1
3
2
1,2,3 and 4
1,2,3 and 5
All of the above
116
Tier I - Quiz
Question 7
The entire research area of Genetic Algorithms
was inspired by Darwin's theory of natural
selection and survival of the fittest. Unlike
natural evolution, a Genetic Algorithm program is
usually able to do what?
  1. Solve problems over a long period of time,
    through processes such as reproduction, mutation,
    and natural selection
  2. Each generation of the program improves upon the
    quality of the solution (each new generation is
    better than the previous one)
  3. Generate and evaluate thousands of generations in
    seconds

2 and 3
1 and 2
1
3
2
1,2 and 3
117
Tier I - Quiz
Question 8
  • Which of the following statements are false?
  • The need for capital investment savings has led
    to the creation of data-mining techniques
  • A black-box model using the plant process data
    directly takes the process fundamentals into
    account
  • Multivariate analysis is defined as the
    simult
About PowerShow.com
