Title: Making Ethernet a Carrier Ethernet Carrier Ethernet World

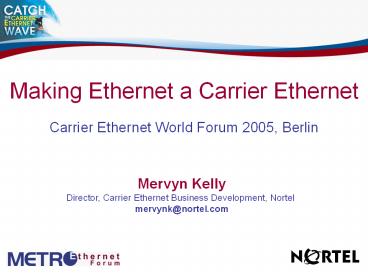

1
Making Ethernet a Carrier Ethernet
  • Carrier Ethernet World Forum 2005, Berlin

Mervyn Kelly Director, Carrier Ethernet Business
Development, Nortel mervynk_at_nortel.com
2
Agenda
  • Carrier Ethernet drivers for a converged network
  • Carrier Ethernet attributes
  • Carrier Ethernet Architecture
  • Support for Business, Mobile and Residential
    Services

3
Carrier Ethernet Drivers
  • Residential
  • Triple Play with IPTV
  • 100s of TV channels
  • Video on demand
  • Video recording/playback
  • Interactive video apps
  • Multi-megabit Internet access
  • Remote learning
  • Gaming
  • Business
  • Ultimate Connectivity
  • Data Center Consolidation
  • Gigabit connectivity between businesses
  • Storage and disaster recovery
  • Guaranteed rate multi-megabit Internet access
  • Video conferencing broadcast
  • Business telephony
  • Mobile
  • Wireless backhaul
  • Wi-Fi Access delivery
  • WiMAX infrastructure
  • 3G and beyond wireless
  • Next gen data services
  • High resolution photo
  • Wireless video
  • Gaming
  • Digital TV

4
Worldwide Ethernet based Services Market Size
Telecom Equipment for 2005 (HR 2004)
Ethernet Services 2003-07 (IDC)
5
and by the way
  • . . . Customers want all of these, delivered
    via a single, converged network.
  • Enterprise residential
  • Best-effort bullet proof...
  • Video, voice data
  • Mobile fixed

via the same Ethernet-enabled infrastructure
6
The New Network Architecture
Transport
Business Subscriber
Service Provider
Nationwide/Global Carrier Ethernet
Residential Subscriber
Metro Carrier Ethernet
7
Whats Carrier Ethernet
  • Protection
  • 50ms Protection
  • End to End Path Protection
  • Aggregated Line Node Protection
  • Scalability
  • Services and Bandwidth
  • 100,000s of EVCs
  • From Mbps to x10Gbps
  • Customer data integrity
  • Hard QoS
  • Guaranteed end to end SLA
  • End to End CIR and EIR
  • Business, Mobile, Residential

Carrier Ethernet
  • Service
  • Management
  • Fast service creation
  • Carrier class OAM capabilities
  • Customer Network Management (CNM)
  • TDM Support
  • Seamless integration of TDM
  • Circuit Emulation Services
  • Support existing voice applications

8
Carrier Ethernet Standards
  • Protection
  • MEF 2 Ethernet Protection
  • MEF 4 Architecture Framework
  • IETF MPLS Fast Reroute
  • Scalability
  • MEF 9 UNI Testing
  • MEF 11 UNI Framework
  • MEF UNI I IA
  • MEF UNI Type II
  • MEF Ethernet Aggregation
  • IEEE 802.1
  • Hard QoS
  • MEF 6 Service Definition
  • MEF 10 Service Attributes
  • MEF Service Attributes II
  • MEF Service Attributes Testing
  • MEF Service Definition II

Carrier Ethernet
  • Service
  • Management
  • MEF 7 EMS and NMS Info Model
  • MEF OAM Framework Requirements
  • MEF Performance Monitoring
  • MEF NE Management Requirements
  • IEEE 802.1, ITU
  • TDM Support
  • MEF 3 CES Framework
  • MEF 8 CES Implementation
  • MEF TDM Testing

9
Supporting Business Services
  • Any-to-any Layer 2 VPN to interconnect multiple
    locations transparently and effectively (with
    high and guaranteed bandwidth)
  • Supporting the convergence of data and voice

Branch
ISP
Internet
Nationwide/Global Carrier Ethernet
E-LAN
IP
HQ
Branch
Branch
Branch
10
Supporting Transport for IP Network
  • E-LAN connections among routers
  • Any logical IP topology, multiple EVCs of a
    single physical interface
  • It supports all business IP services, from IP VPN
    to Internet access

R
R
Nationwide/Global Carrier Ethernet
R
R
R
R
IP
IP
R
R
R
IP
R
R
R
11
Carrier Ethernet for 3G/UMTS Backhaul
  • Guaranteed QoS
  • Flexible SLA portfolios for different users and
    services
  • Flexible bandwidth growth without network upgrade
  • Efficient network for multimedia applications
    (P2P, P2MP, MP2MP)
  • Secure connectivity for corporate and consumer
    users
  • Seamless integration with the wireline transport
    network both Ethernet and TDM

IP
Carrier Ethernet
12
Supporting Residential Triple Play Services
  • Voice, video data distribution backhaul

IP DSLAM
L2 DSLAM
Nationwide/Global Carrier Ethernet
Subscribers
IP DSLAM
IP DSLAM
L2 DSLAM
IP DSLAM
L2 DSLAM
13
Service Provider Benefits
  • Greater Revenue Potential - Granular Bandwidth
  • Multiple Revenue Streams from Single Interface
  • Internet Access (E-Line)
  • Ethernet Virtual Private Line (E-Line)
  • Virtual Private LAN Service (E-LAN)
  • BTV and VoD (Triple Play)
  • VAS Enabled (VoIP, L3VPN, TDM/CES etc.)
  • Lower Capital Costs
  • Lower OPEX Costs
  • Higher Customer Retention

14
Thank you
15
References Resources
  • Metro Ethernet Services A Technical Overview
  • http//www.metroethernetforum.org/metro-ethernet-s
    ervices.pdf
  • MEF 10 Ethernet Services Attributes Phase 1
  • http//www.metroethernetforum.org/PDFs/Standards/M
    EF10.doc
  • Metro Ethernet Service Standards Overview
  • http//www.metroethernetforum.org/Metro-Ethernet-S
    ervices-Overview.ppt
  • MEF Specifications
  • http//www.metroethernetforum.org/TechSpec.htm
  • Metro Ethernet Networks - A Technical Overview
  • http//www.metroethernetforum.org/PDFs/WhitePapers
    /metro-ethernet-networks.pdf

Working to Deliver Carrier Ethernet Services
Today!
16
MEF Member Listas of June 6, 05
  • AboveNet
  • Actelis
  • Adva Optical Networks
  • Agilent Technologies
  • Alcatel
  • Altera
  • AMCC
  • Atrica
  • ATT
  • Axerra Networks
  • Axxessit
  • Bell South
  • British Telecom
  • Ciena Corp.
  • Cisco Systems
  • Colt Telecommunications
  • Corrigent Systems
  • Covaro Networks
  • Diatem
  • Ericsson
  • Extreme Networks
  • Foundry Networks
  • France Telecom RD LLC
  • Fujitsu Network Communications
  • FutureSoft
  • Hammerhead Systems
  • Harbour Networks
  • Hatteras Networks, Inc.
  • Huawei Tech Co. Ltd.
  • Industrial Technology Research Institute
  • Iometrix
  • Iskratel
  • IXIA
  • Juniper Networks
  • KDDI RD Laboratories, Inc.

17
MEF Member ListAs of June 6, 05
  • Lucent Technologies
  • Luminous Networks, Inc.
  • Mahi Networks
  • Marconi Communications
  • Marvell Semiconductor
  • Met-Net Communications
  • Metrobility Optical
  • Native Networks
  • Nortel Networks Corp.
  • NTT Advanced Technology Corp.
  • OmniTron Systems Technology
  • PMC-Sierra
  • Qwest Communications
  • RAD Data Communications
  • Raza Microelectronics
  • Redux Communications
  • Riverstone Networks
  • SBC Communications, Inc.
  • Shenick
  • Siemens AG
  • SII Network Systems, Inc
  • Spirent Communications
  • Sunrise Telecom
  • Telcordia Technologies
  • Telco Systems
  • TeliaSonera AB
  • Tellabs
  • Terachip
  • Tpack A/S
  • T-Systems
  • Transmode Systems
  • Transwitch
  • UNH- InterOperability Lab
  • Verizon Communications
  • World Wide Packets
  • Zarlink Semiconductor
  • ZTE Corporation
